TRUMPF

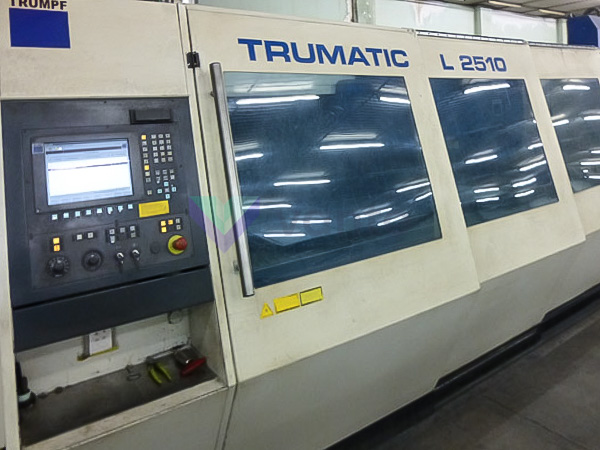

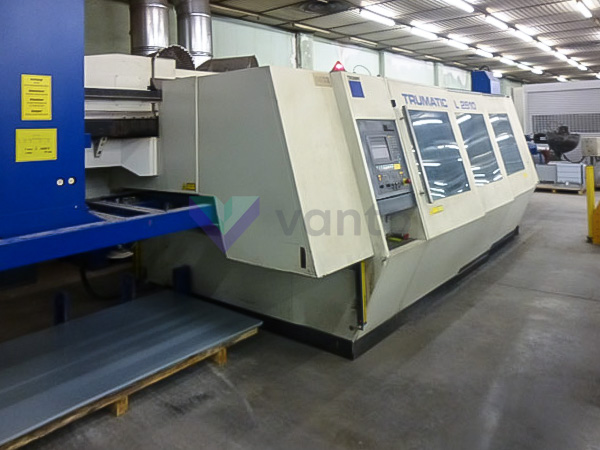

TRUMATIC L2510

Laser cutting machine (CO2)

Category	2D Laser Cutting Machines
Condition	Used
Year	2005
Availability	Sold
ID	5292

Maximum material thickness mild steel

0mm

Maximum material thickness aluminium

0mm

Maximum material thickness stainless steel

0mm

Control	SIEMENS SINUMERIK 840D
Dimensions (long x wide x high)	13.410 x 5.613 x 2.715 mm
Laser Output	2.000 kW
Laser Type	CO2
Max. workpiece weight	0 kg
Maximum material thickness aluminium	5 mm
Maximum material thickness mild steel	12 mm
Maximum material thickness stainless steel	6 mm
Positioning speed X/Y	120 m/min
Power: installed max	65 kW
Simultaneous positioning speed	169 X+Y m/min
Weight	16.000 kg
Working area (X x Y x Z)	1.250 x 2.500 x 115 mm

TRUMPF TRUMATIC L2510 Official Catalogue	View PDF
