TRUMPF

TruLaser Tube 7000

Laser pipe cutting machine

Category	Laser tube cutting
Condition	Used
Year	2011
Availability	Available
ID	11354

Adriana Arango

+34 932 711 191

Maximum material thickness aluminium

0mm

Maximum material thickness stainless steel

0mm

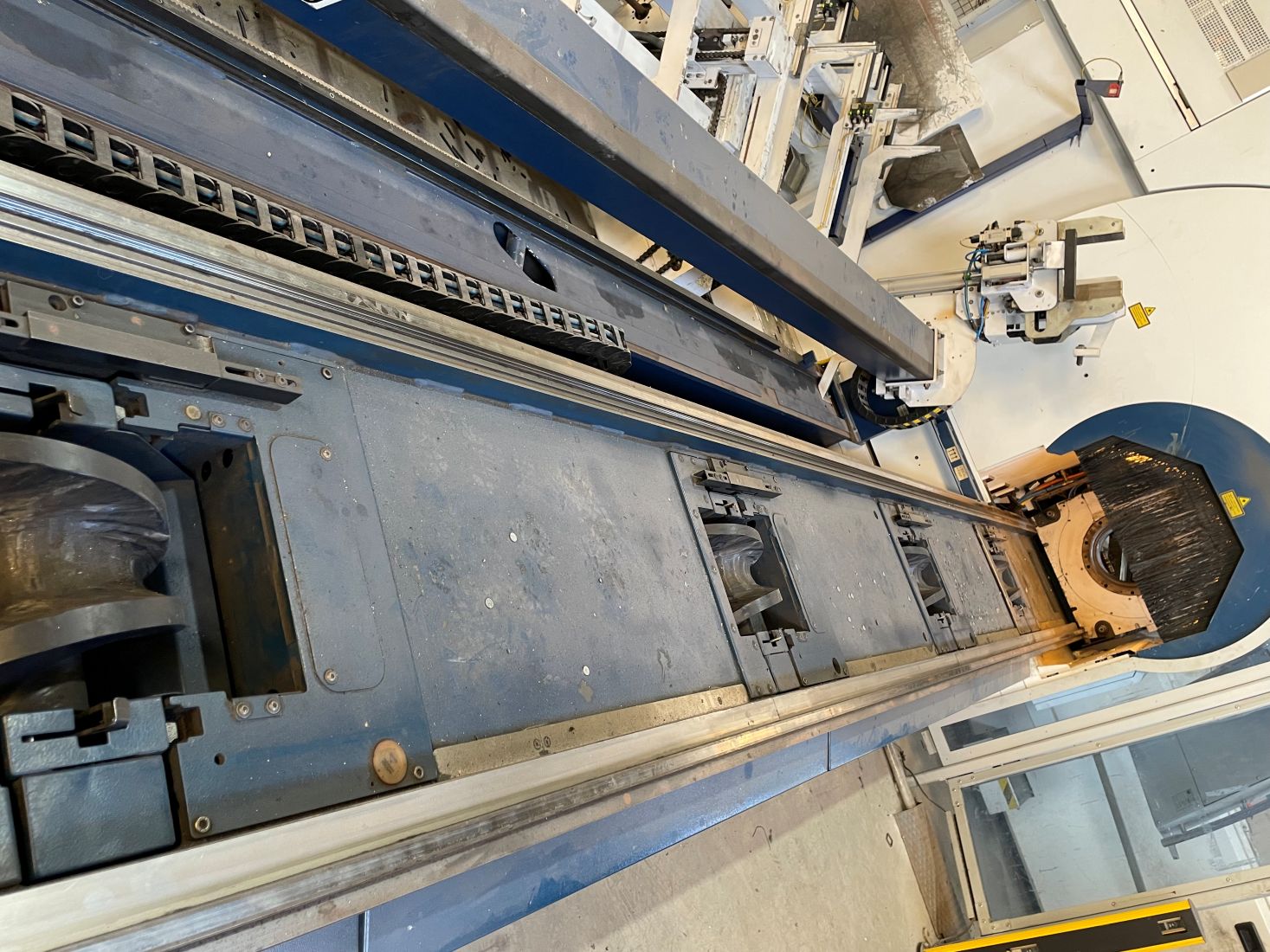

· LoadMaster Tube 6m with grouping chamber, 2 clamps · Scratch-free grouping chamber for LoadMaster Tube 6m · Oscillating transport track for LoadMaster Tube 6m · Scrap conveyor belt with hopper · Working range of tube X-axis: 6500 mm · Outer circuit diameter: 200 mm · 3m ejection station with brush table · Front ejection · NitroLine · FocusLine · SprintLine · Laser power control · Programmable cutting gas pressure · Repeat entry in the programme · Automatic shut-off · Work area lighting

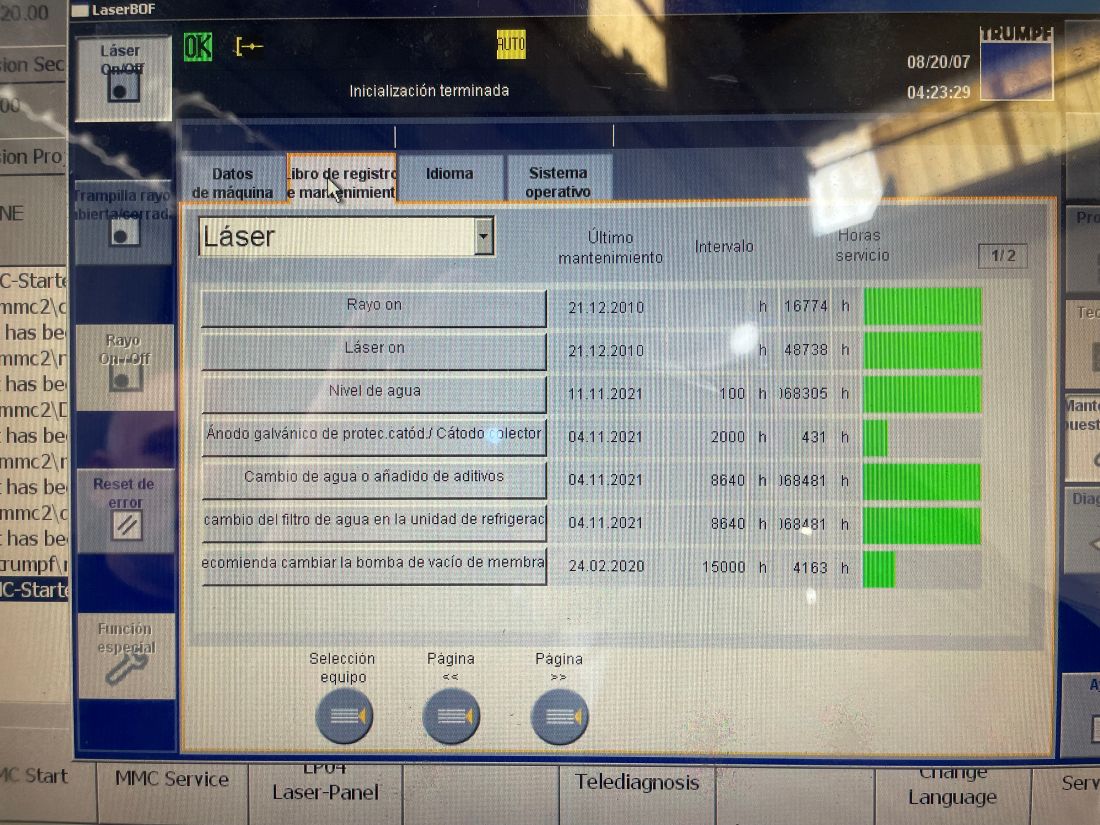

Beam ON Working hours	17.800
Control	SIEMENS SINUMERIK 840D
Laser Output	2,7 kW
Laser Type	CO2
Machine ON Working hours	33.178
Max. finished part length	6.500 mm
Max. outer circle diameter of rectangular tubes	250 mm
Max. raw material length for automatic loading	6.500 mm
Max. workpiece weight	25 kg/m / 37.5 kg/m kg
Maximum material thickness aluminium	4 mm
Maximum material thickness stainless steel	5 mm

No videos available

TRUMPF TruLaser Tube 7000 Official Catalogue (EN)	View PDF
TRUMPF TruLaser Tube 7000 Official Catalogue (ES)	View PDF
TRUMPF TruLaser Tube 7000 Technical Specification Sheet	View PDF

TRUMPF

TruLaser Tube 7000

Laser pipe cutting machine
