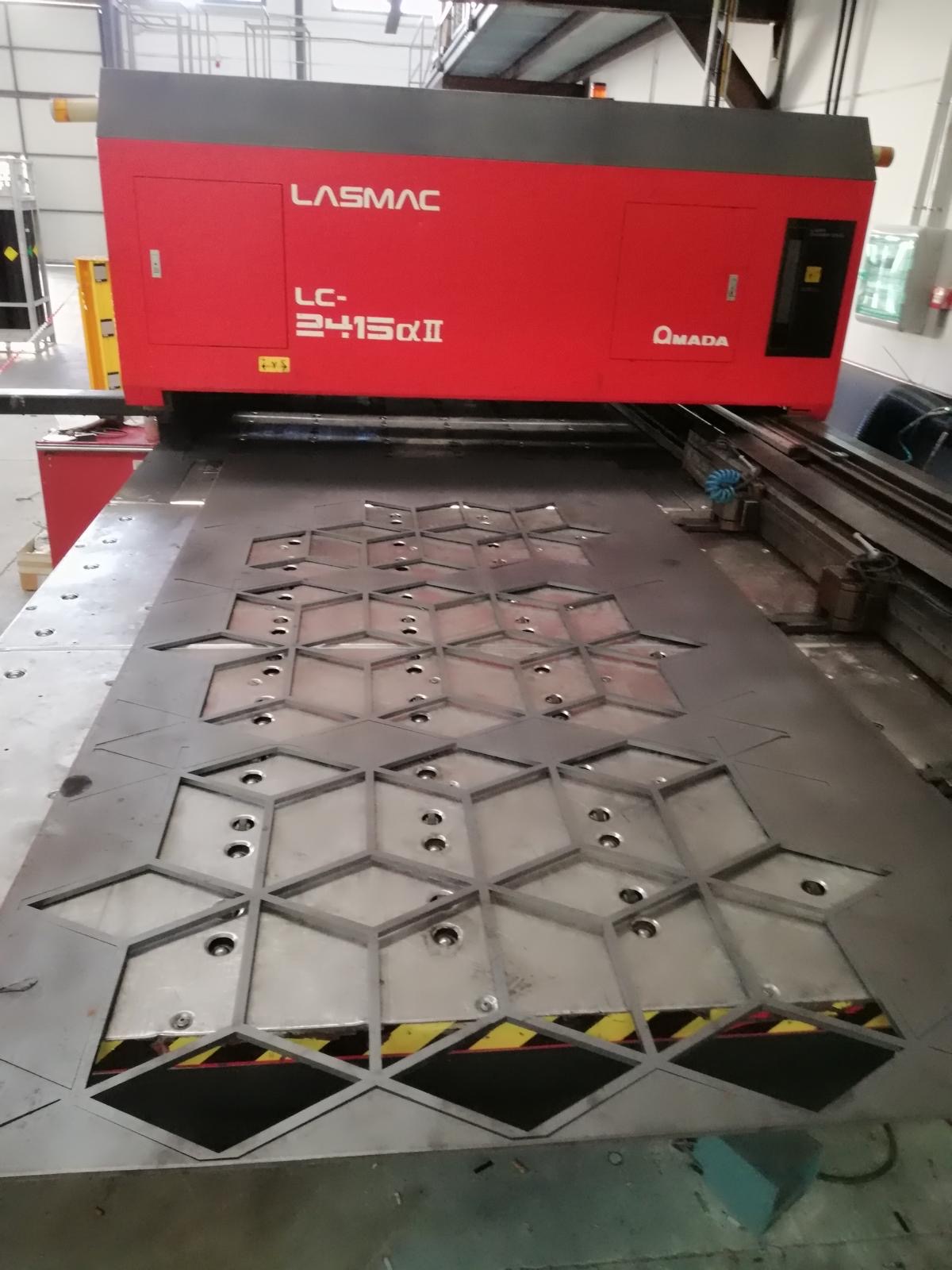

AMADA

LC 2415 ALPHA II

Laser cutting machine (CO2)

Category	2D Laser Cutting Machines
Condition	Used
Year	1997
Availability	Available
ID	11344

Adriana Arango

+34 932 711 191

|

+34 932 711 191

Maximum material thickness aluminium

0mm

Maximum material thickness mild steel

0mm

Maximum material thickness stainless steel

0mm

Yearly official maintenance

Control	Fanuc 160iL
Dimensions (long x wide x high)	4.370 x 2.500 x 2.275 mm
Laser Output	1,5 kW
Laser Type	CO2
Machine ON Working hours	36.244 h
Max. workpiece weight	300 kg
Maximum material thickness aluminium	2 mm
Maximum material thickness mild steel	9 mm
Maximum material thickness stainless steel	3 mm
Positioning speed X/Y	80/90 m/min
Weight	8.800 kg
Working area (X x Y x Z)	2.350 x 1.530 x 300 mm

No videos available

There are no available documents
