TRUMPF

TruPunch 5000

CNC punching machine

Category	Punching machines
Condition	Used
Year	2007
Availability	Available
ID	11332

Adriana Arango

+34 932 711 191

|

+34 932 711 191

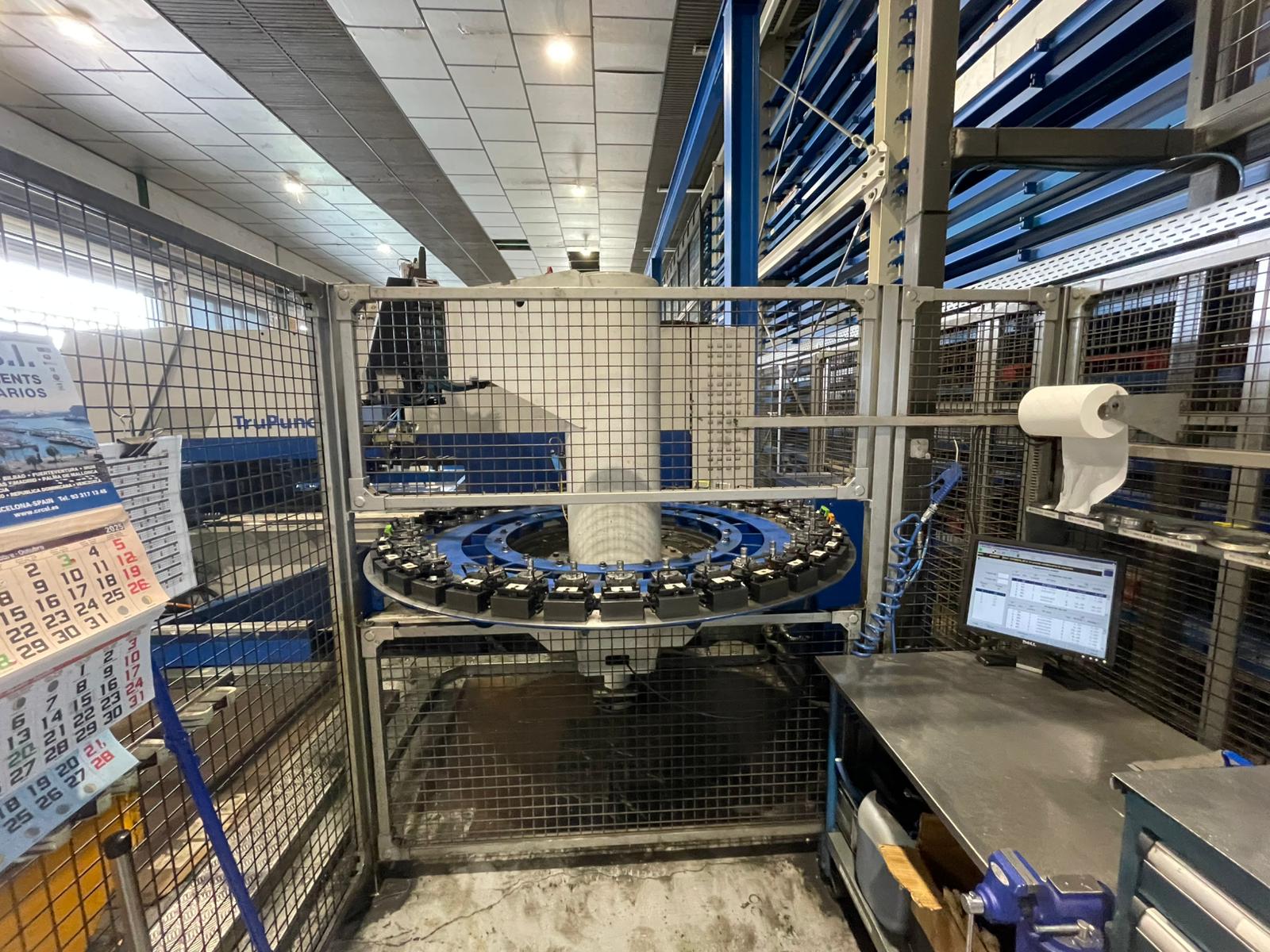

- Sheetmaster - Sissertable - TrumaTool40

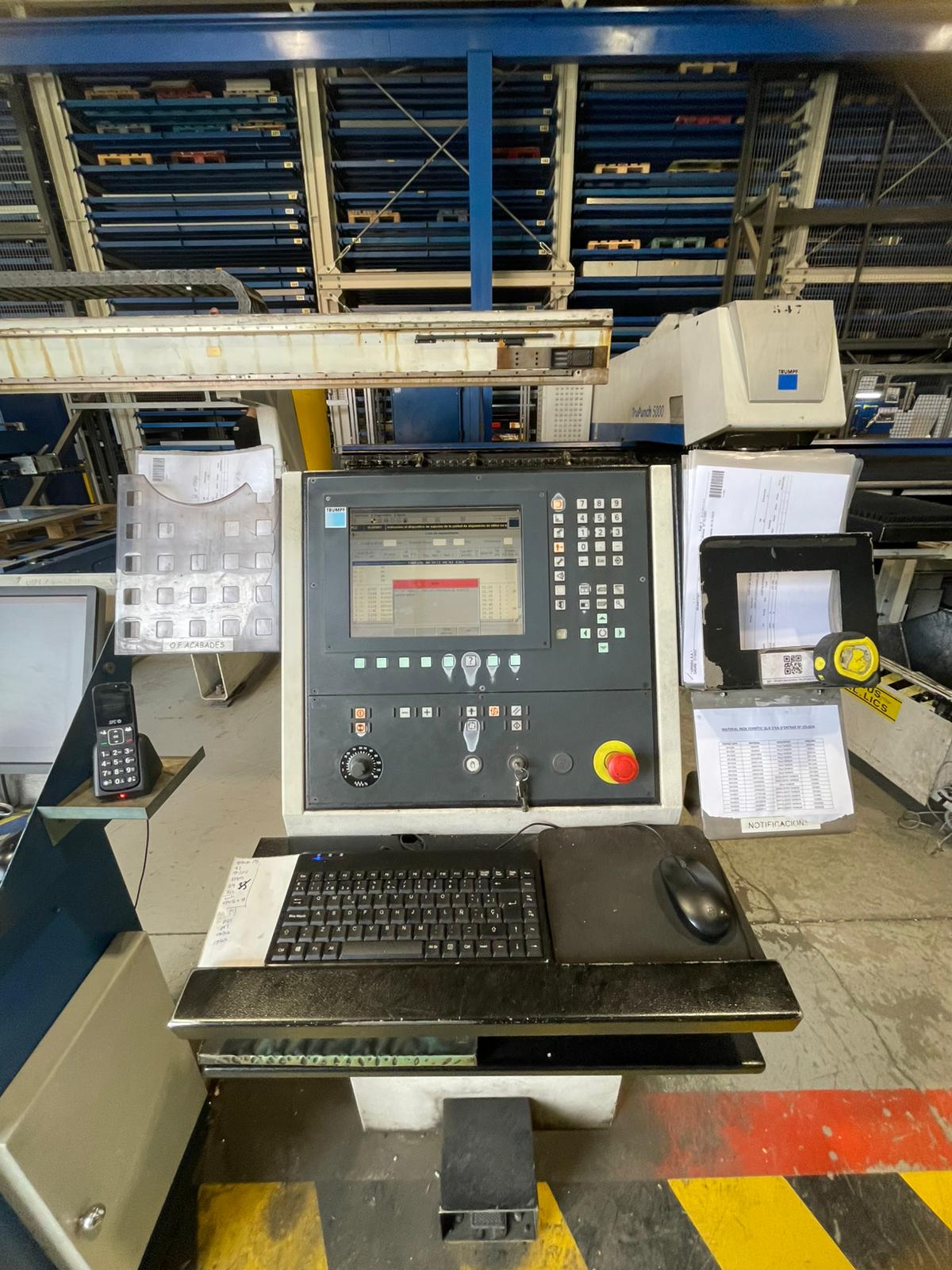

Control type	Siemens SINUMERIK 840 D
Axis speed [X axis] max	100 m/min
Axis speed [Y axis] max	60 m/min
Dimensions (long x wide x high)	7.600 x 8.171 x 2.072 mm
Material thickness (punching) max	8 mm
Max. workpiece weight	220 kg

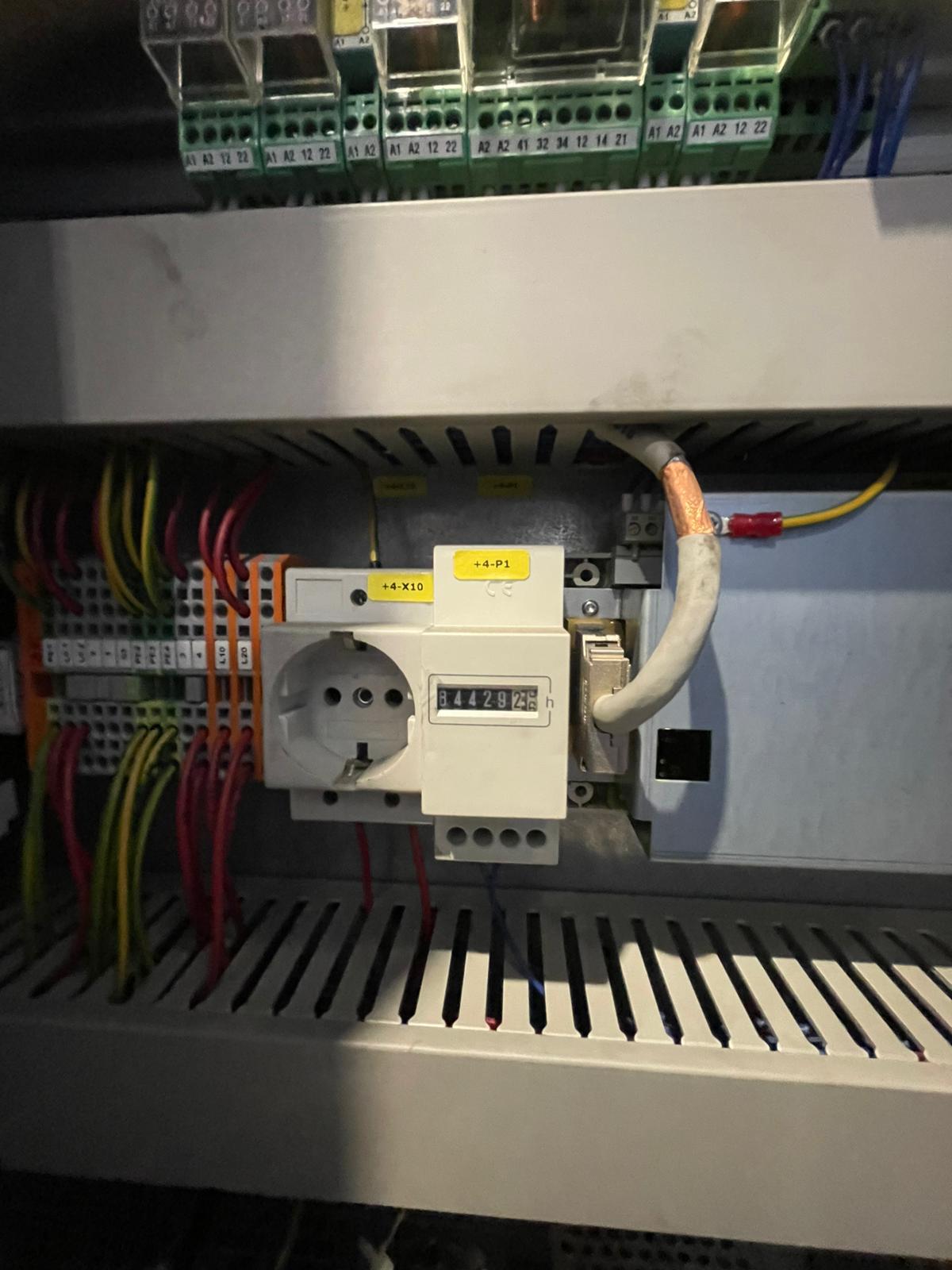

Operating hours	84.429
Power: installed max	9,5 kW
Punch diameter max	76,2 mm
Punching force	220 kN
Simultaneous positioning speed (X / Y)	116 m/min
Weight	19.300 kg
Working area max	3.050 x 1.550 mm

No videos available

TRUMPF TruPunch 5000 Official Catalogue	View PDF
