TRUMPF

TRUMATIC 5000R

CNC punching machine

Category	Punching machines
Condition	Used
Year	2005
Availability	Available
ID	11249

Adriana Arango

+34 932 711 191

OPTIONS
- Function MultiTool
- Function MultiShear
- Function MultiBend
- Function Tapping
- Function Marking / Rapid beading
- Function Roll technology
- Adaptive stroke calibration
- Clamps opening individually
- Repositioning cylinders
- Sensor for programmable chute
- Installation on air cushion
- Automatic shutdown
- Chip conveyor combination with switch point
- Programmable switch point by M-function
- Machining with low scratch effect
- RCI Remote Control Interface
- Storage interface
- Additional safety device
AUTOMATION

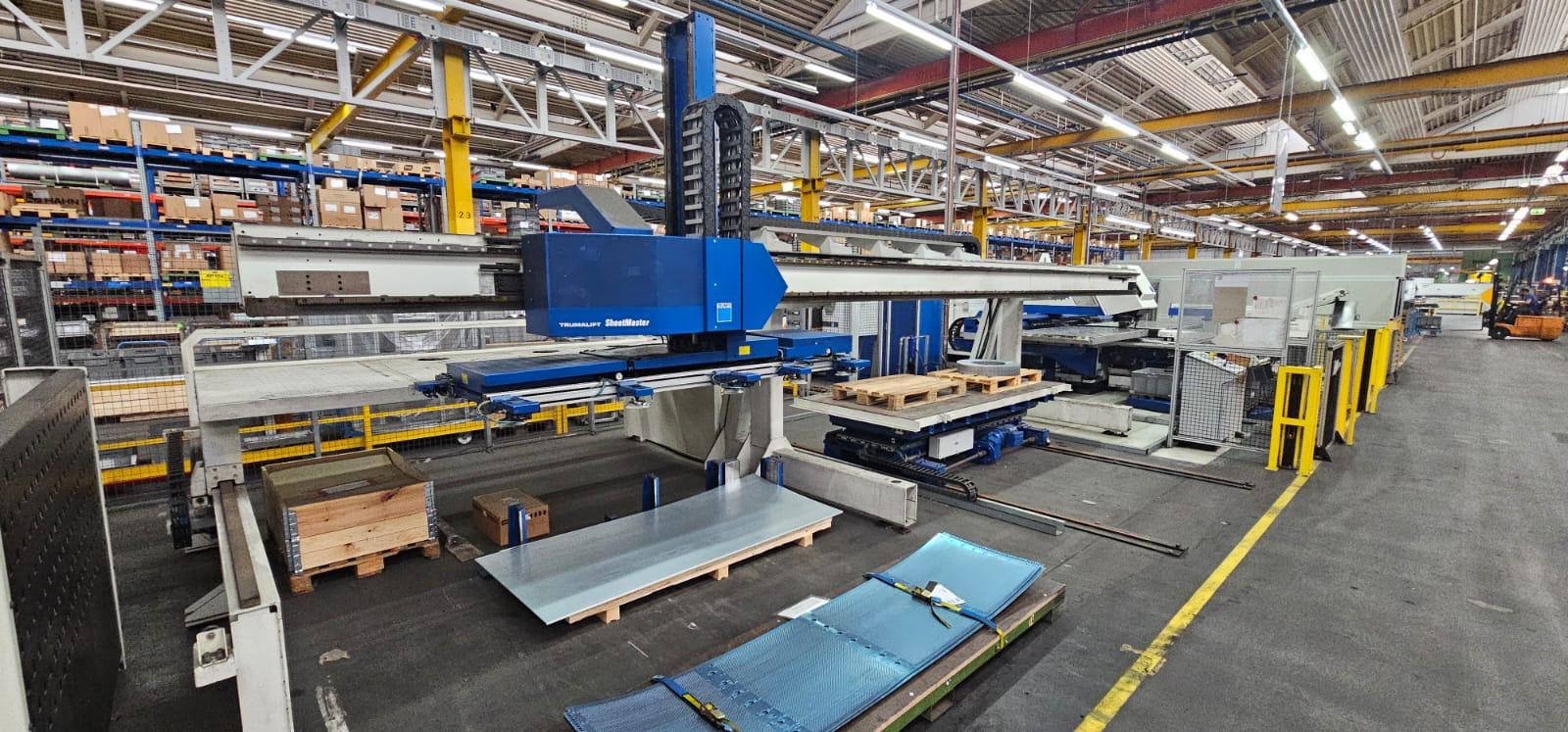

- SheetMaster 1305
- GripMaster
- TrumaSort R4
- TrumaTool 40

Control type	SIEMENS SINUMERIK 840D
Axis speed [X axis] max	100 m/min
Axis speed [Y axis] max	60 m/min
Dimensions (long x wide x high)	7.500 x 7.500 x 2.500 mm
Material thickness (punching) max	8 mm
Max. workpiece weight	200 kg
Number of index tool stations, max	18

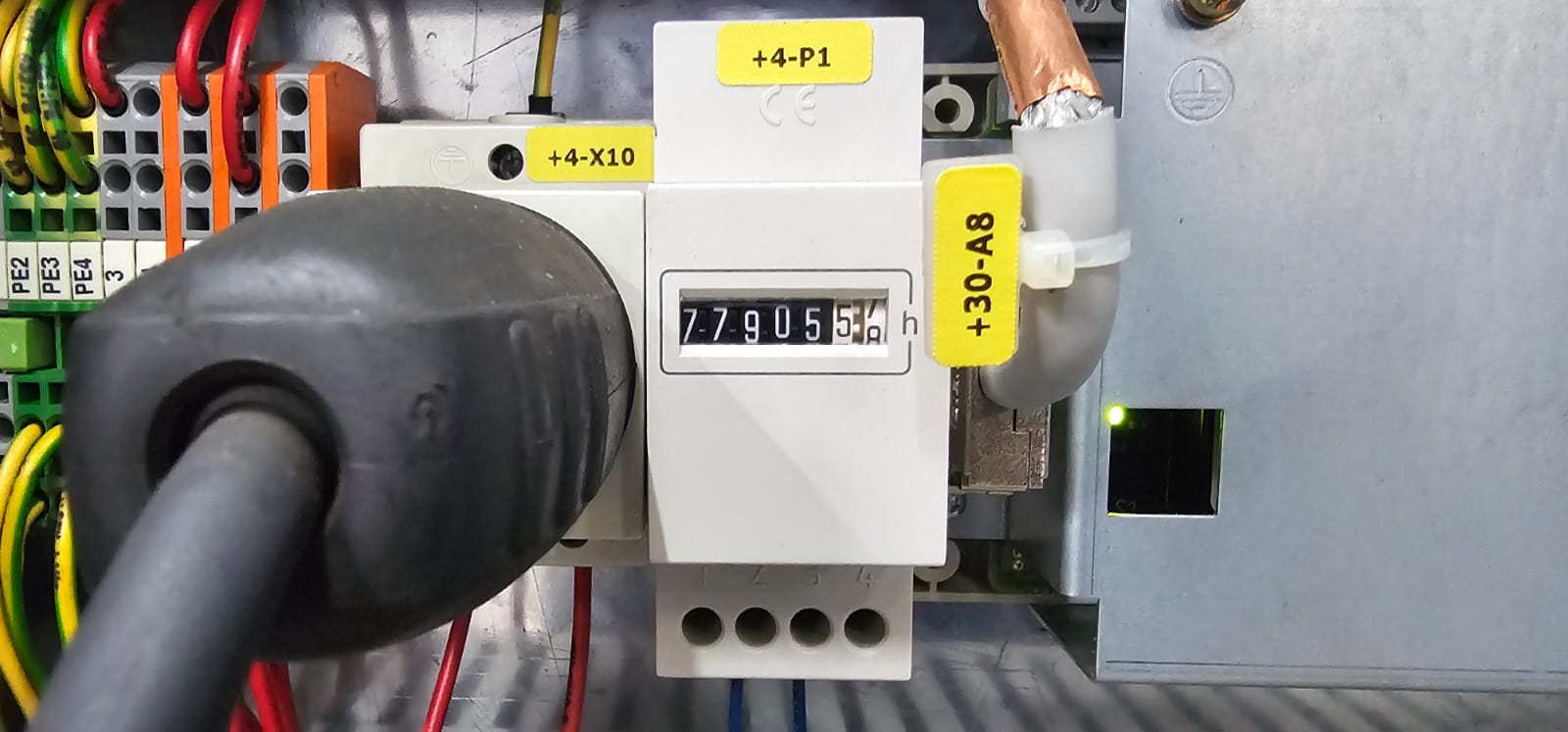

Operating hours	77.905
Punching force	220 kN
Punching speed (Hit speed max.)	1.200 1/min
Simultaneous positioning speed (X / Y)	116 m/min
Weight	17.500 kg
Working area max	2.500x1.250 mm
