TRUMPF

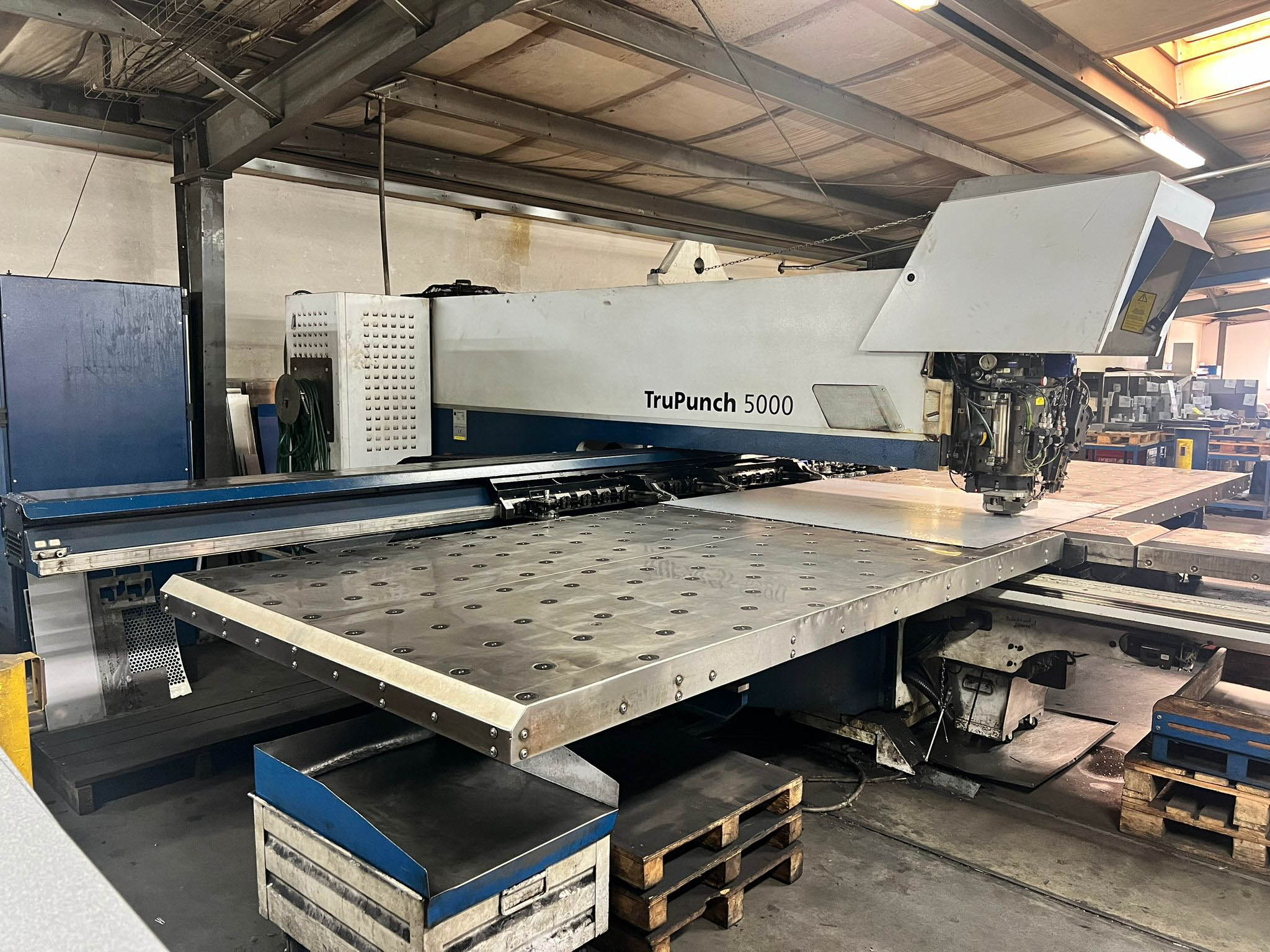

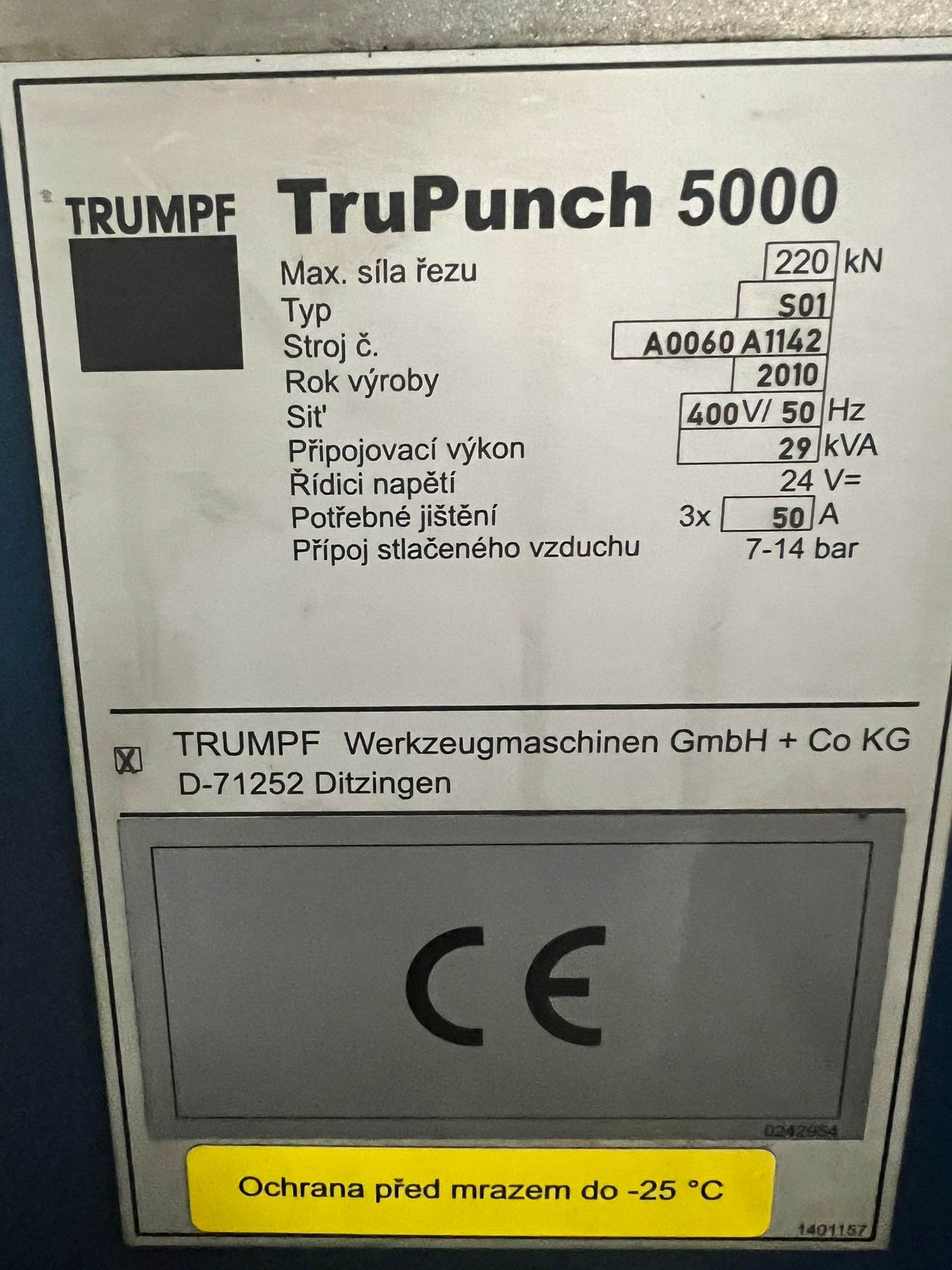

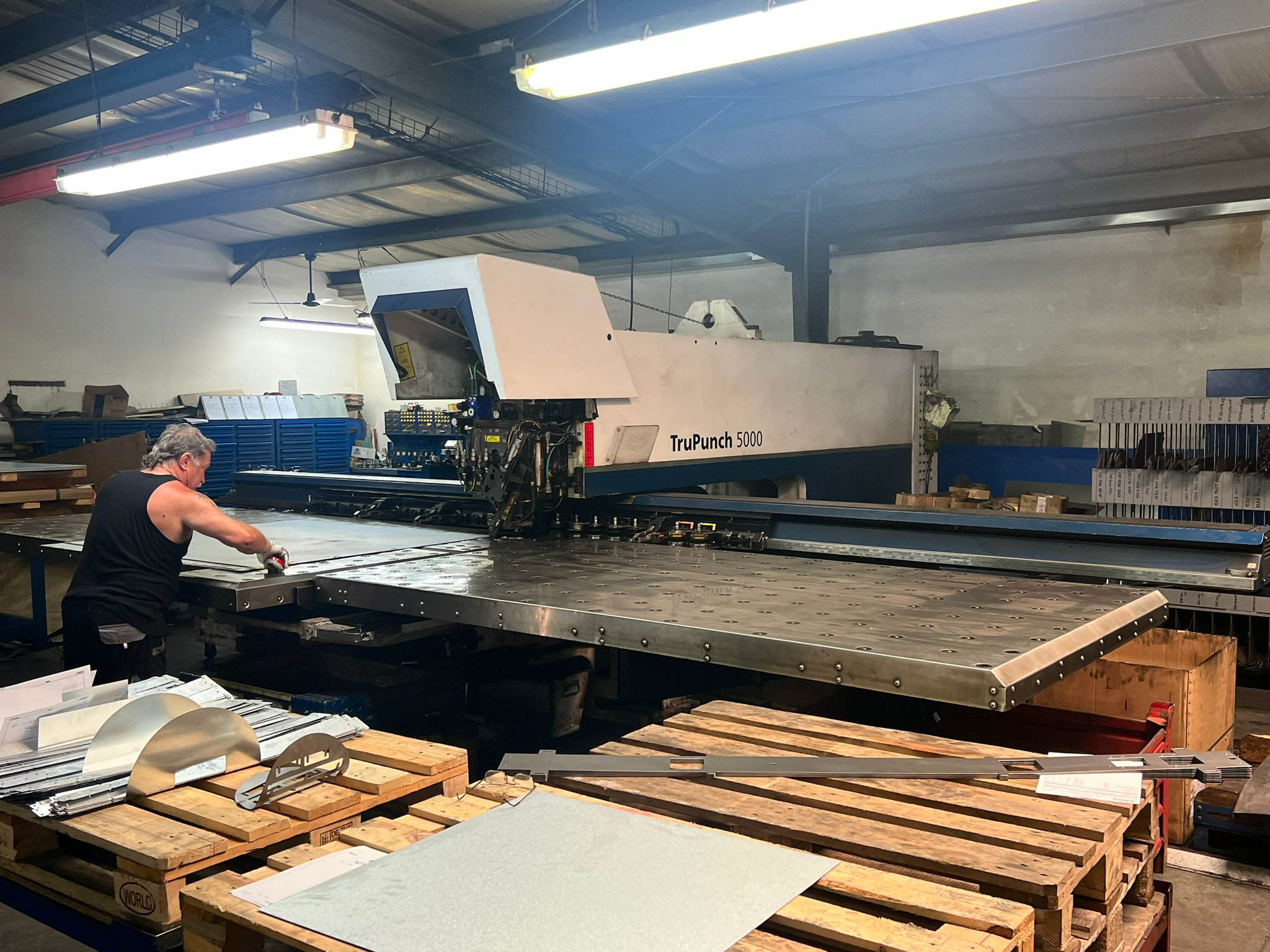

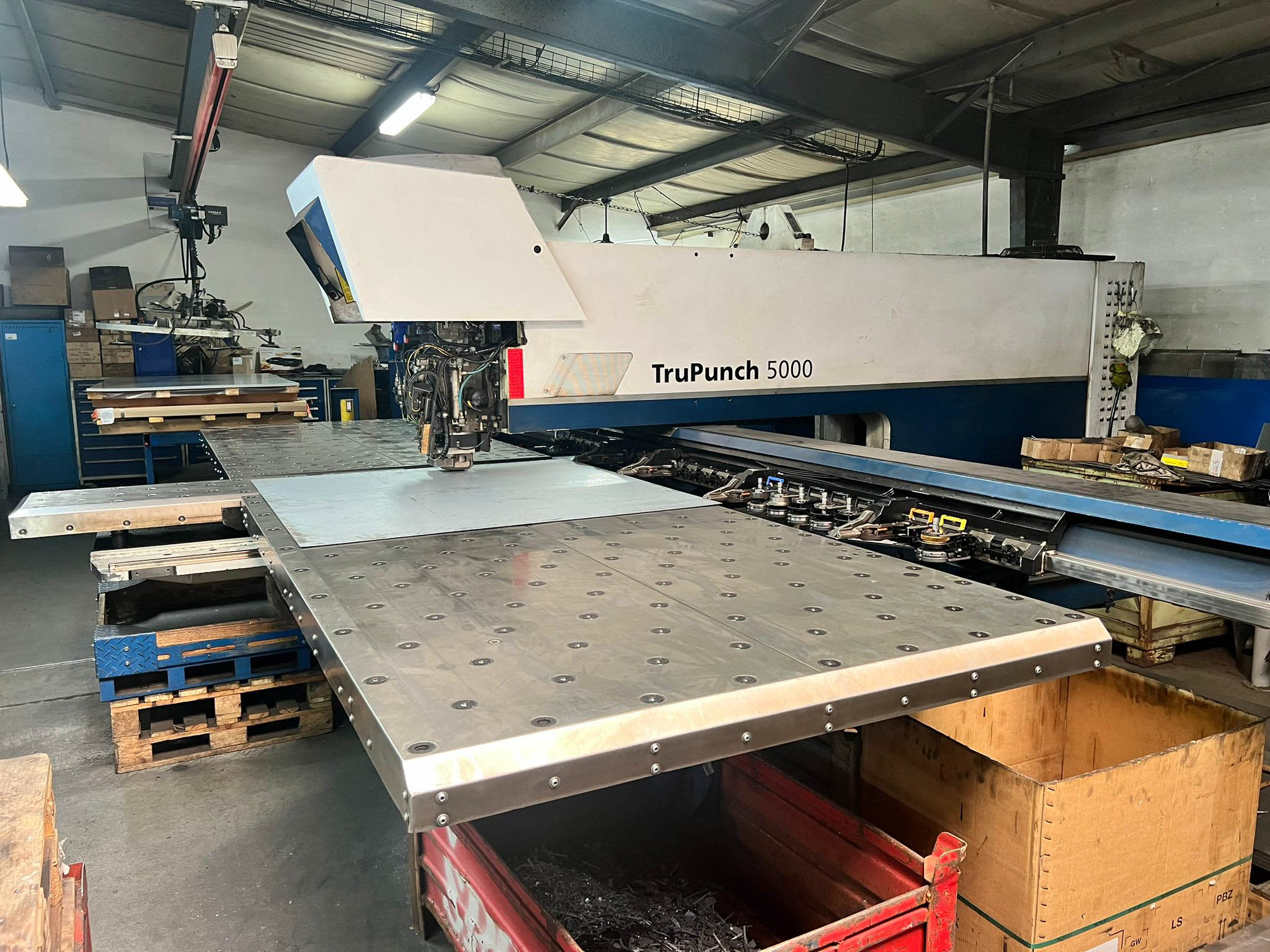

TruPunch 5000

CNC punching machine

Category Punching machines
Condition Used
Year 2010
Availability Available
ID 11103
Request a quote

Including: - SheetMaster - 3.000 x 1.500 table size - ToolMaster with 70 cassettes extra - Multitool - Tapping - Roller forming

Control typeSiemens SINUMERIK 840 D
Axis speed [X axis] max100 m/min
Axis speed [Y axis] max60 m/min
Dimensions (long x wide x high)7.600 x 8.171 x 2.072 mm
Material thickness (punching) max8 mm
Max. workpiece weight220 kg
Operating hours78.000
Power: installed max9,5 kW
Punch diameter max76,2 mm
Punching force220 kN
Simultaneous positioning speed (X / Y)116 m/min
Weight19.300 kg
Working area max3.050 x 1.550 mm

No videos available

TRUMPF TruPunch 5000 Official Catalogue View PDF
