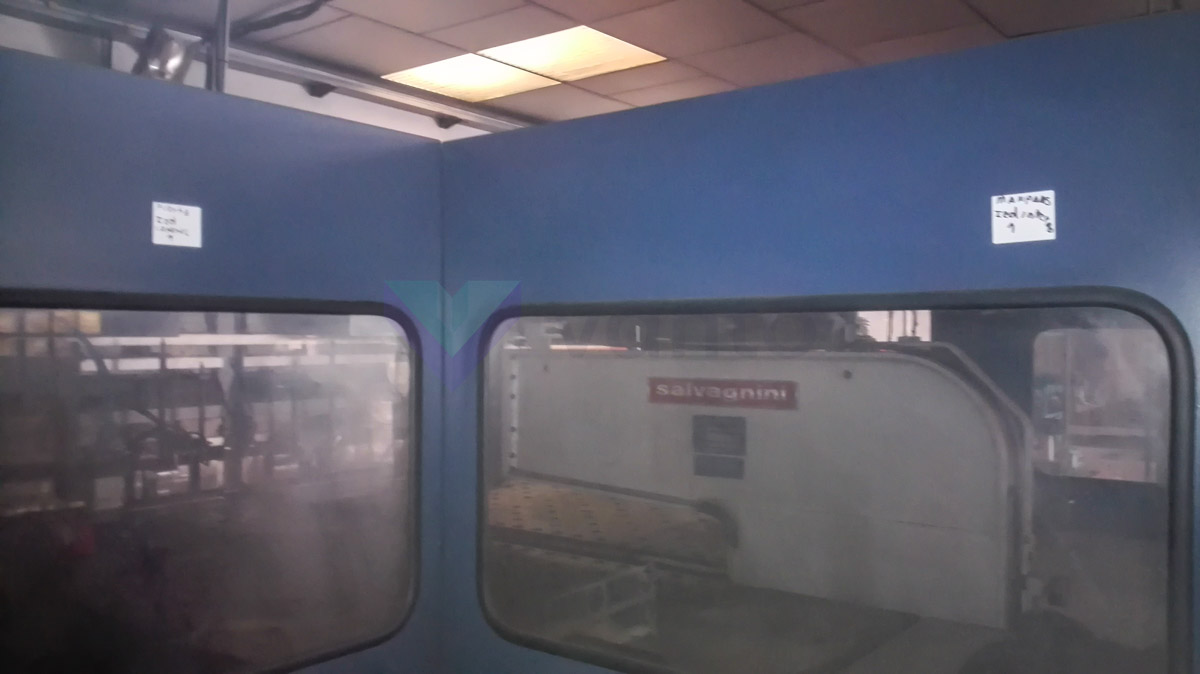

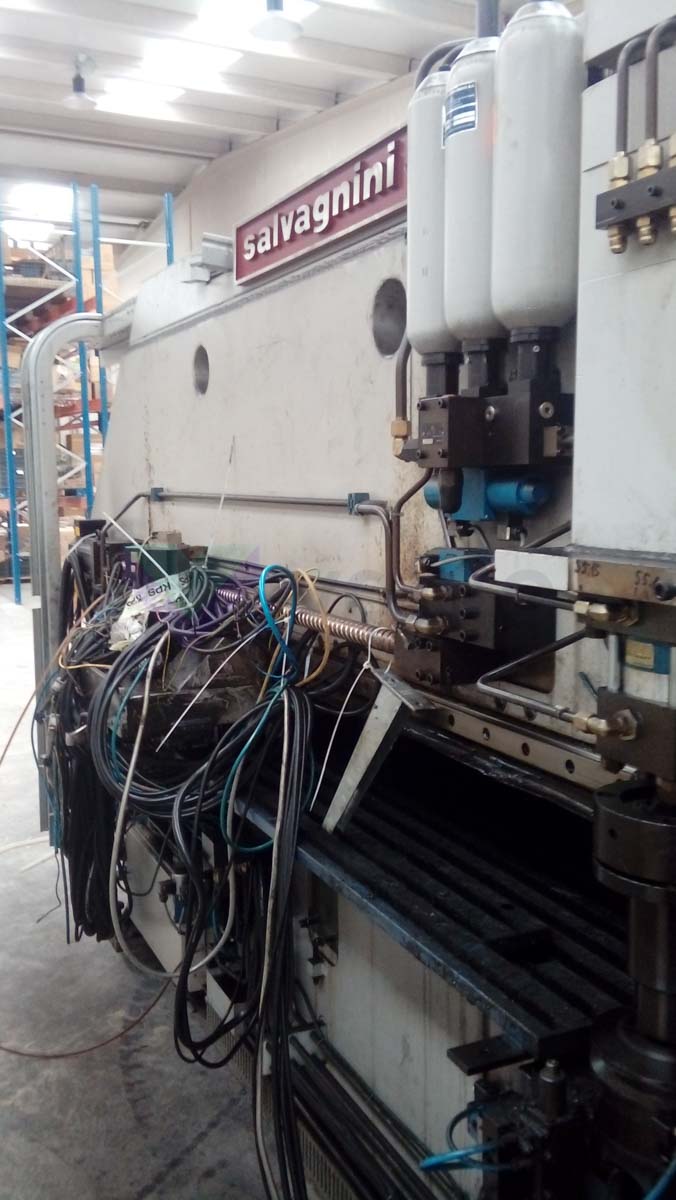

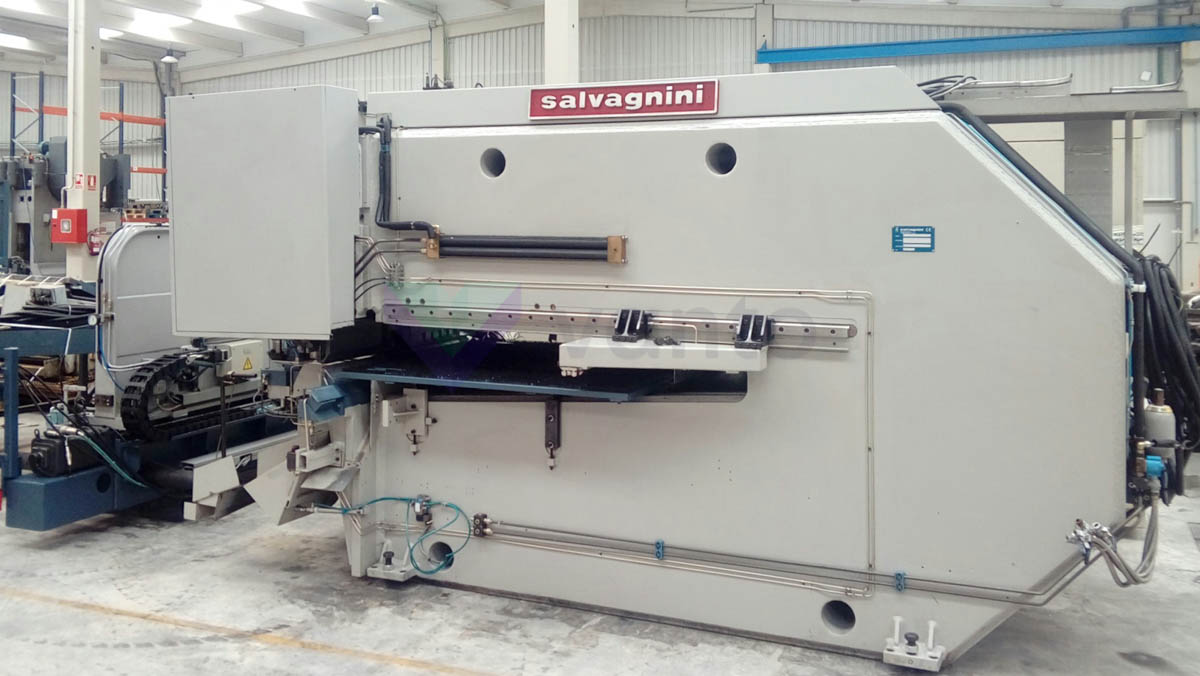

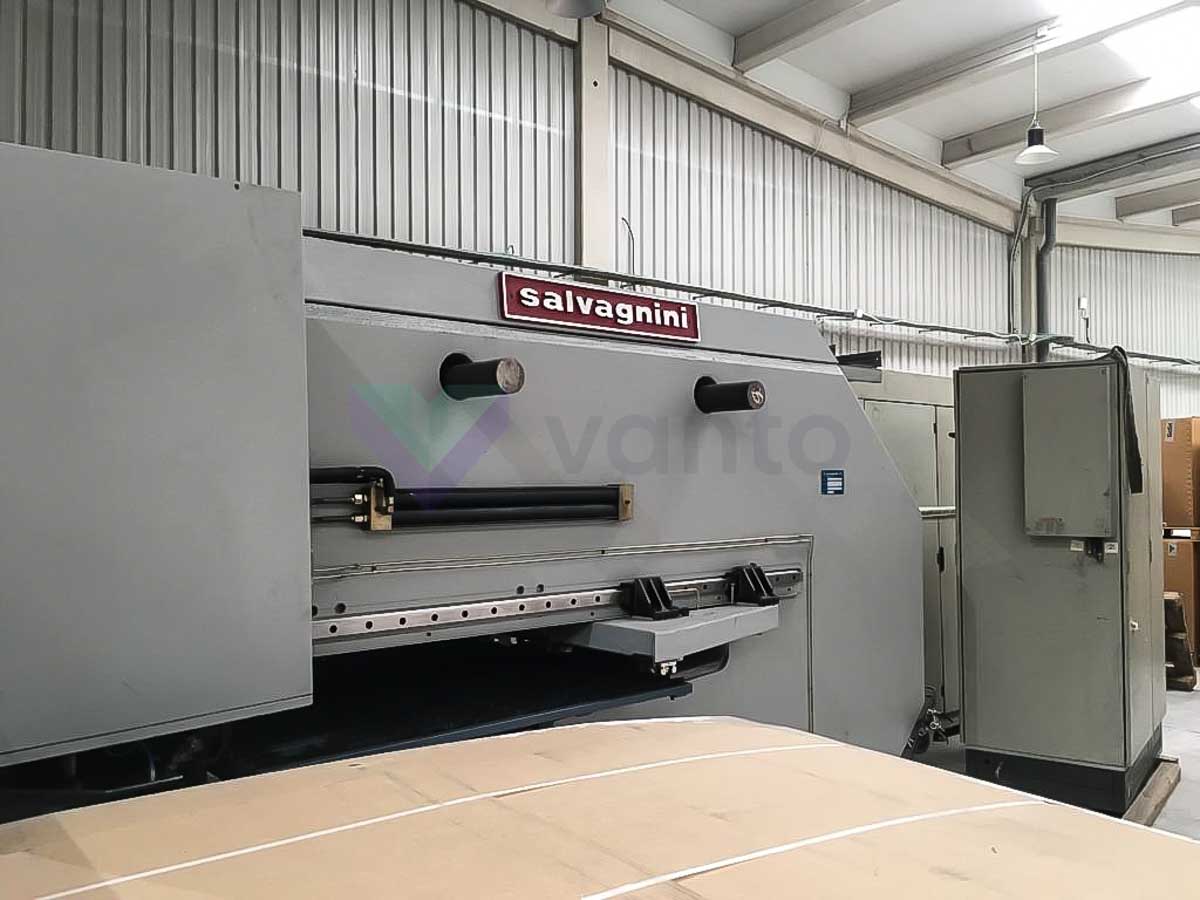

SALVAGNINI

S4 / P4 Line

2D Punching, shearing and sheet metal folding line

Category Punching machines
Condition Used
Year 1998
Availability Sold
ID 5481
Sold

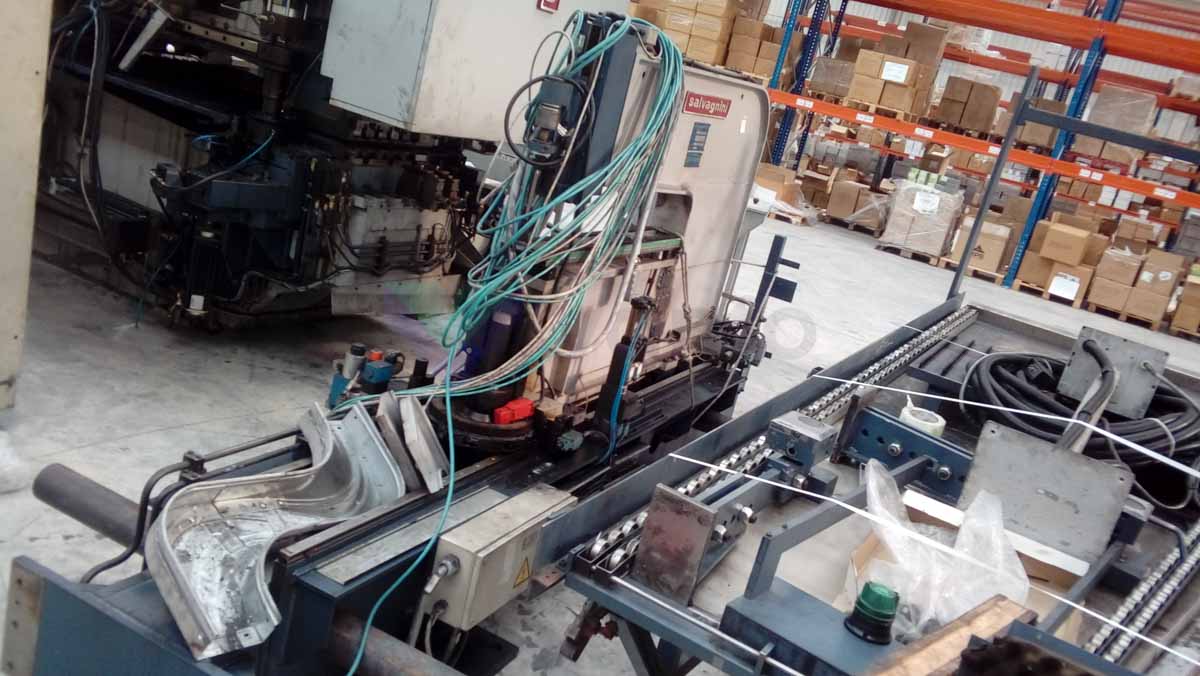

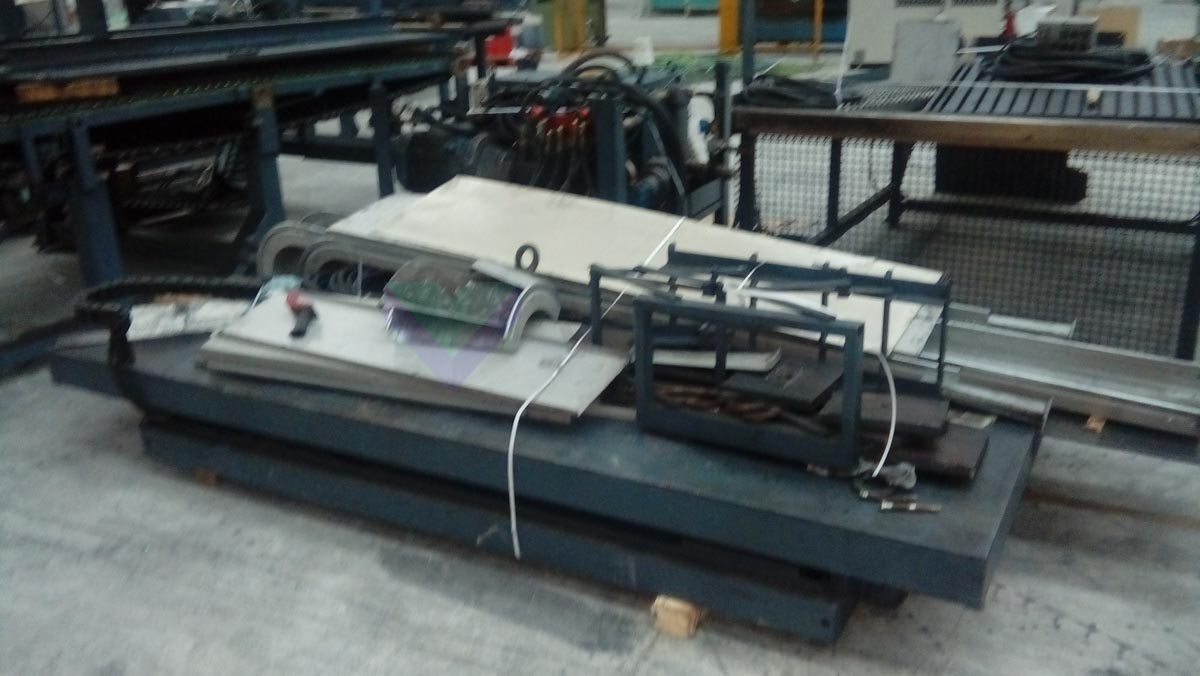

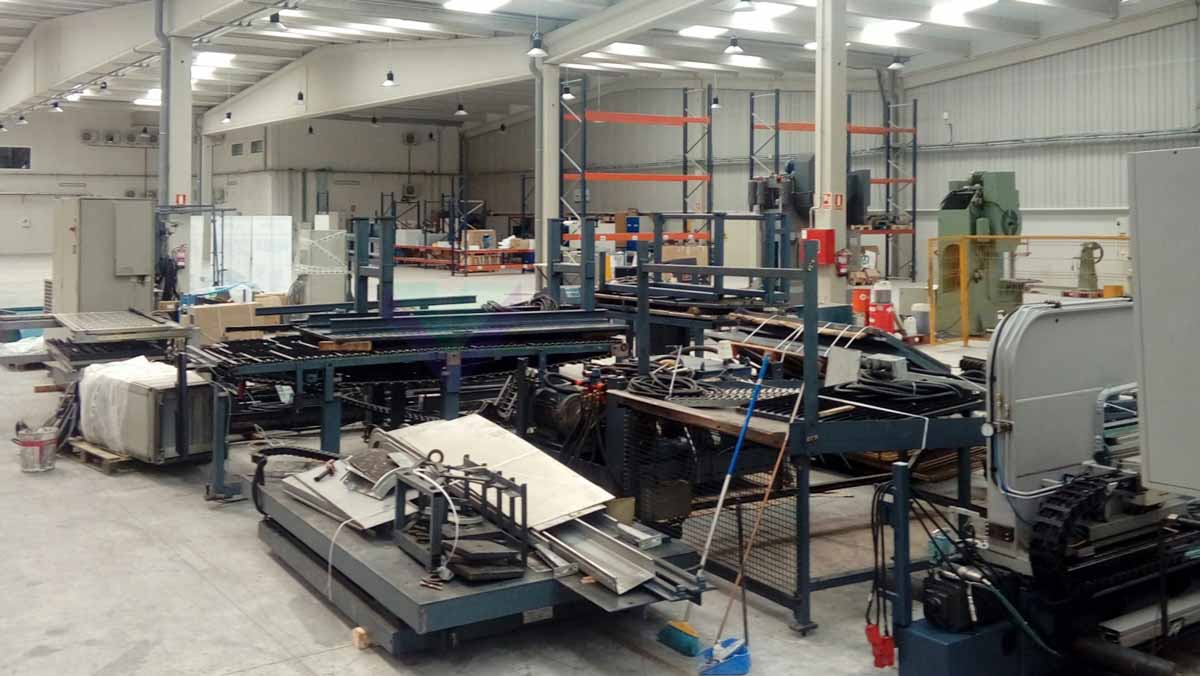

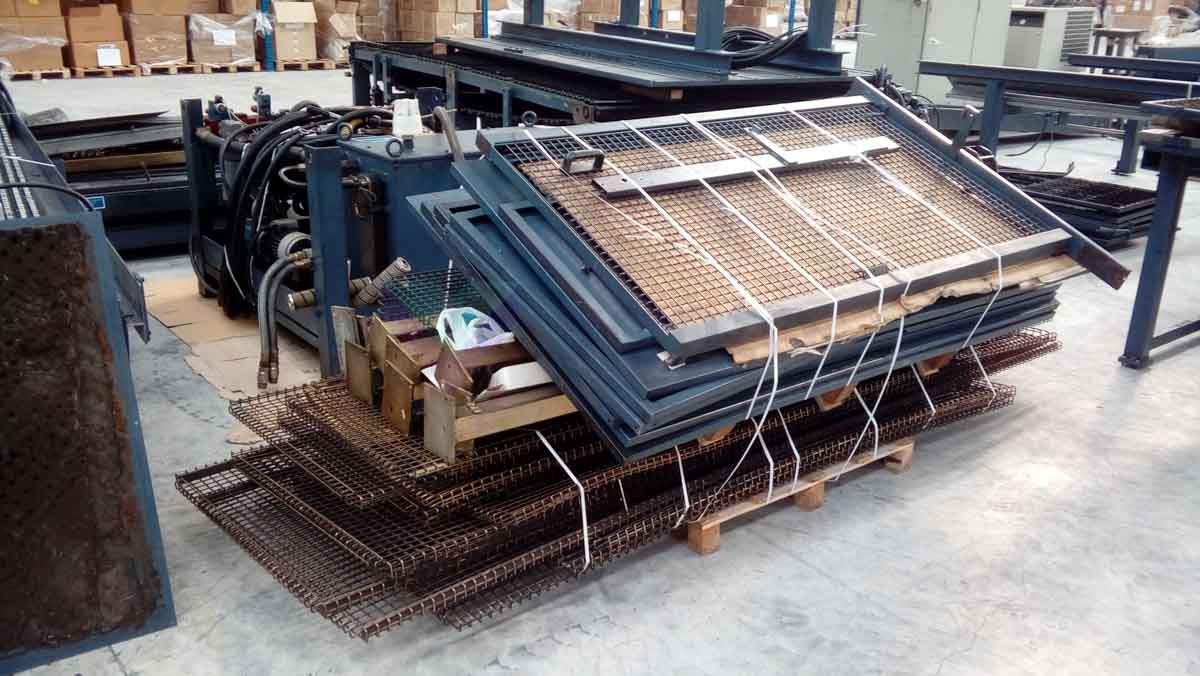

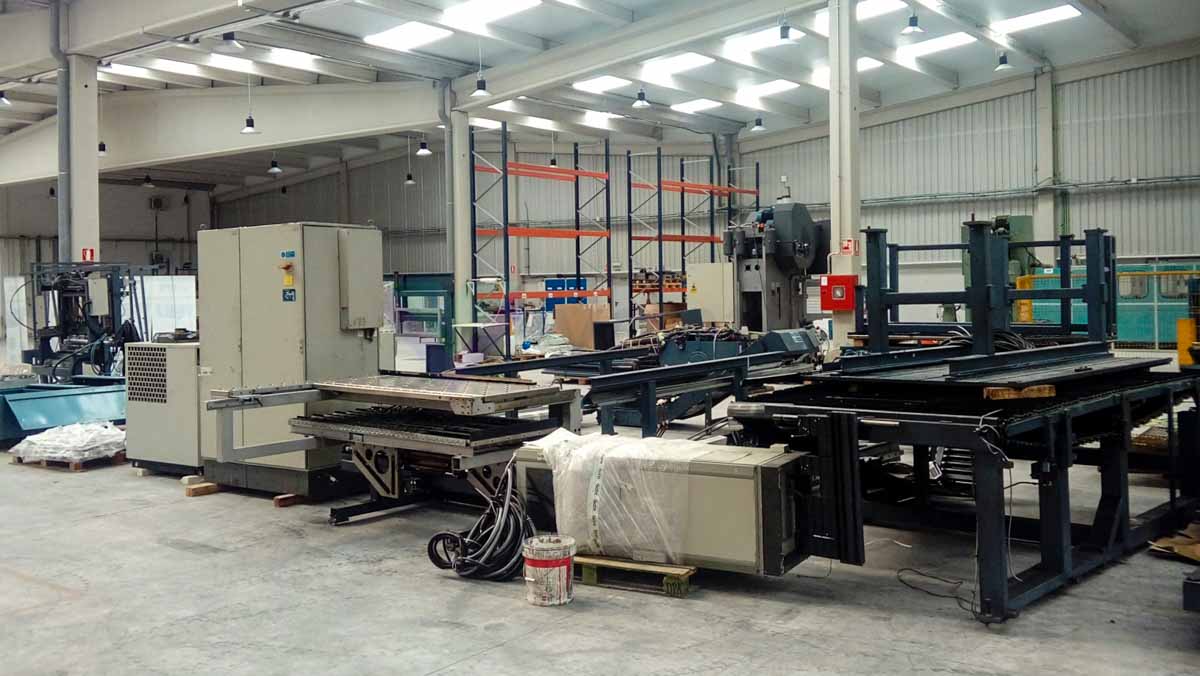

Disassembled. Ready for loading in truck.

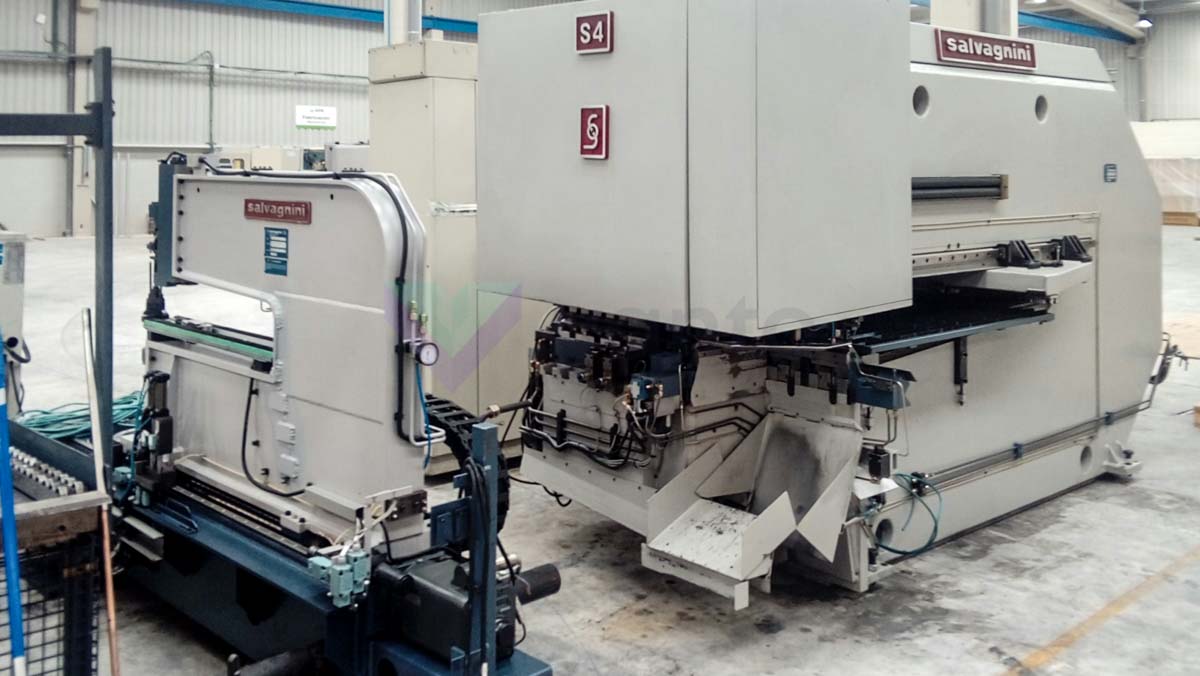

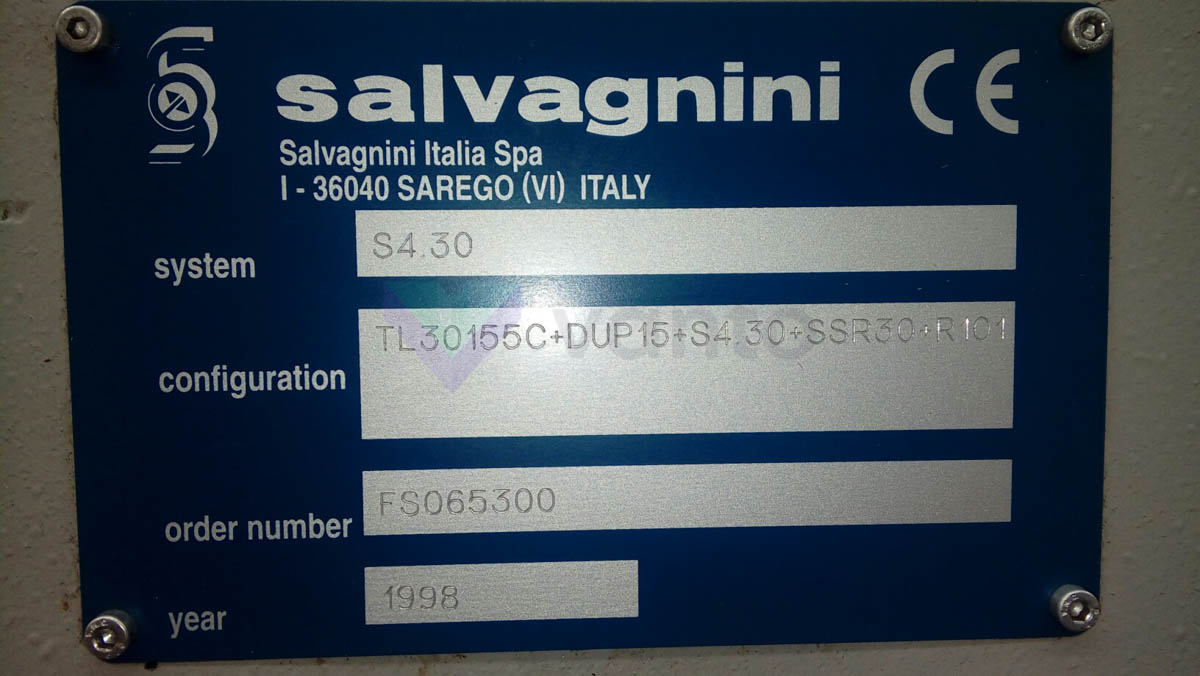

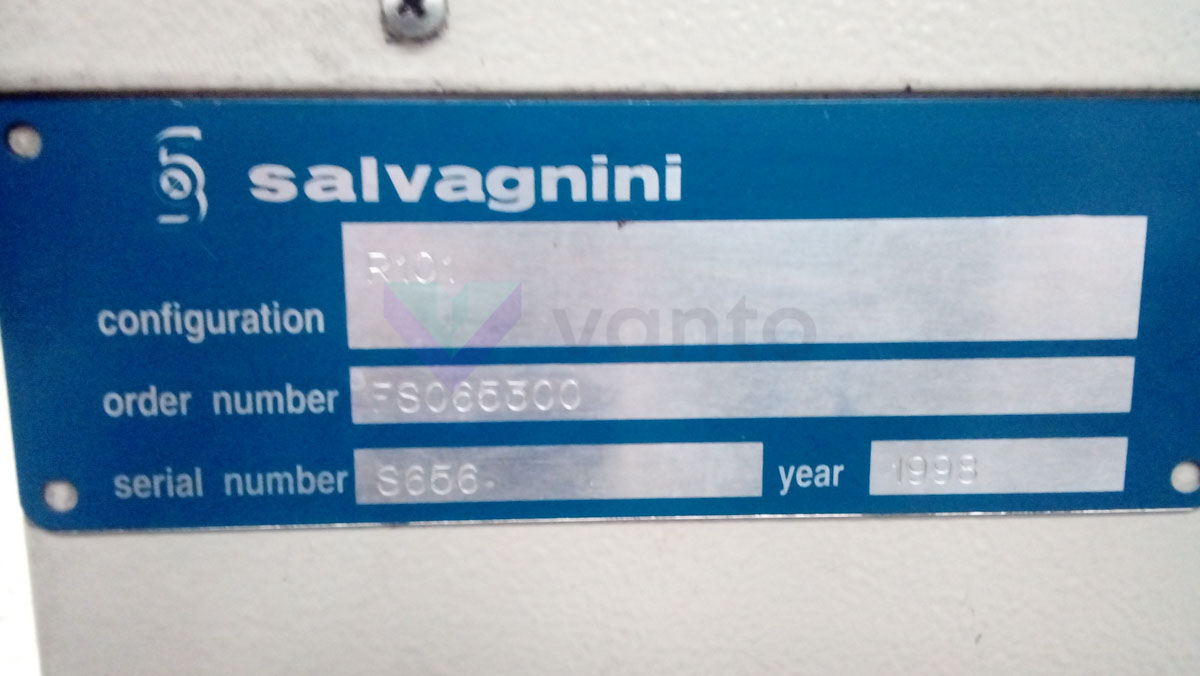

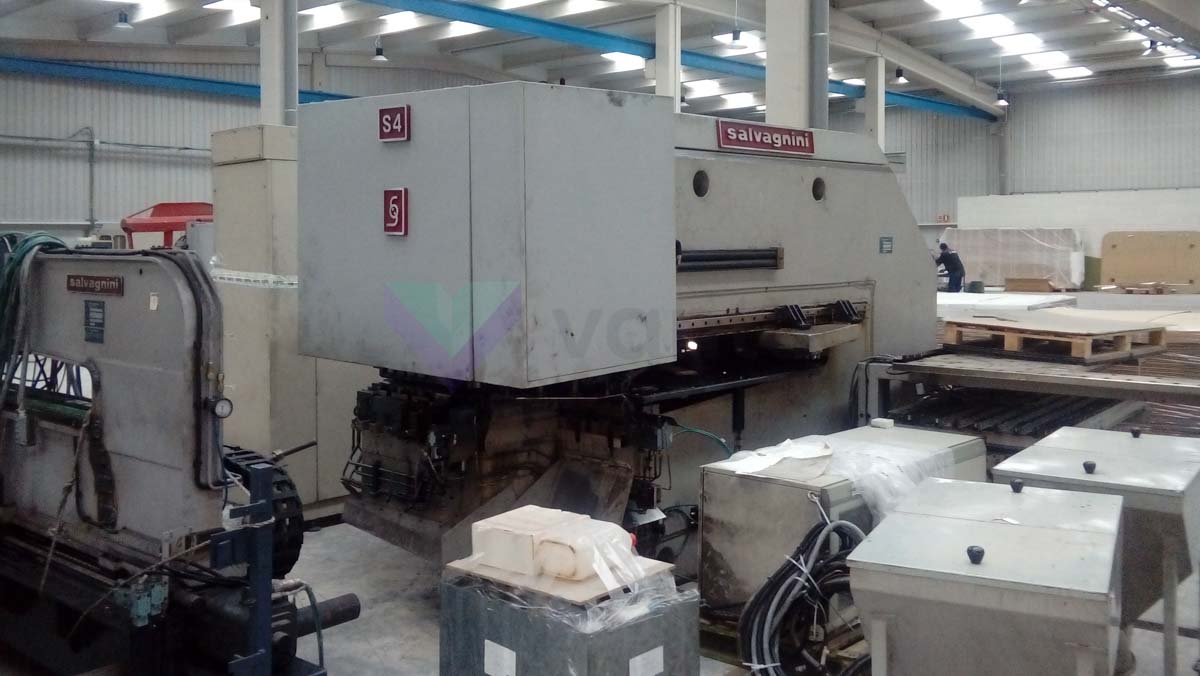

System: S4 30 · Configuration: TL30165C+DUP15+S4 30 + SSR30+R101

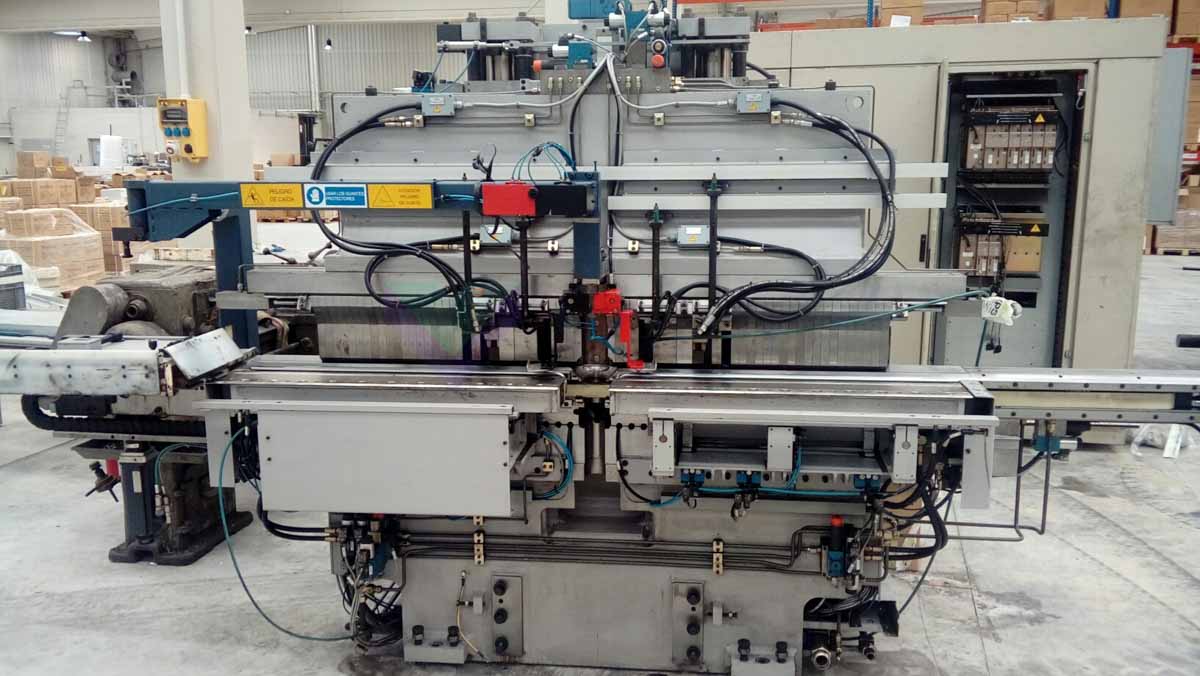

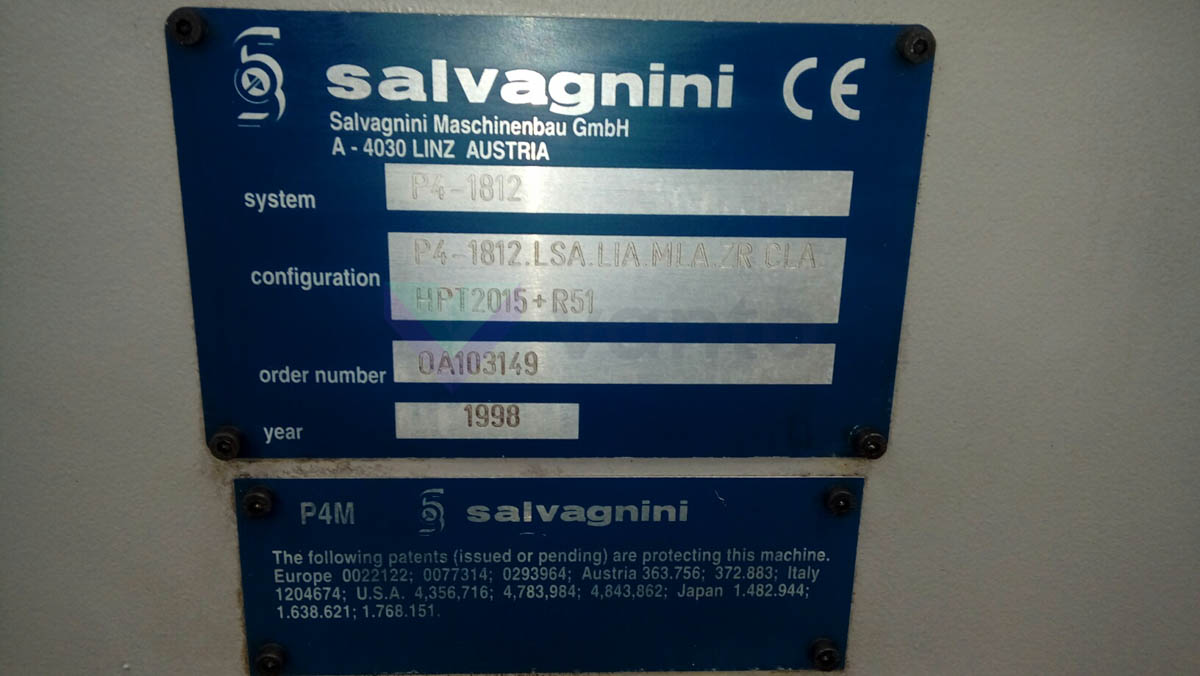

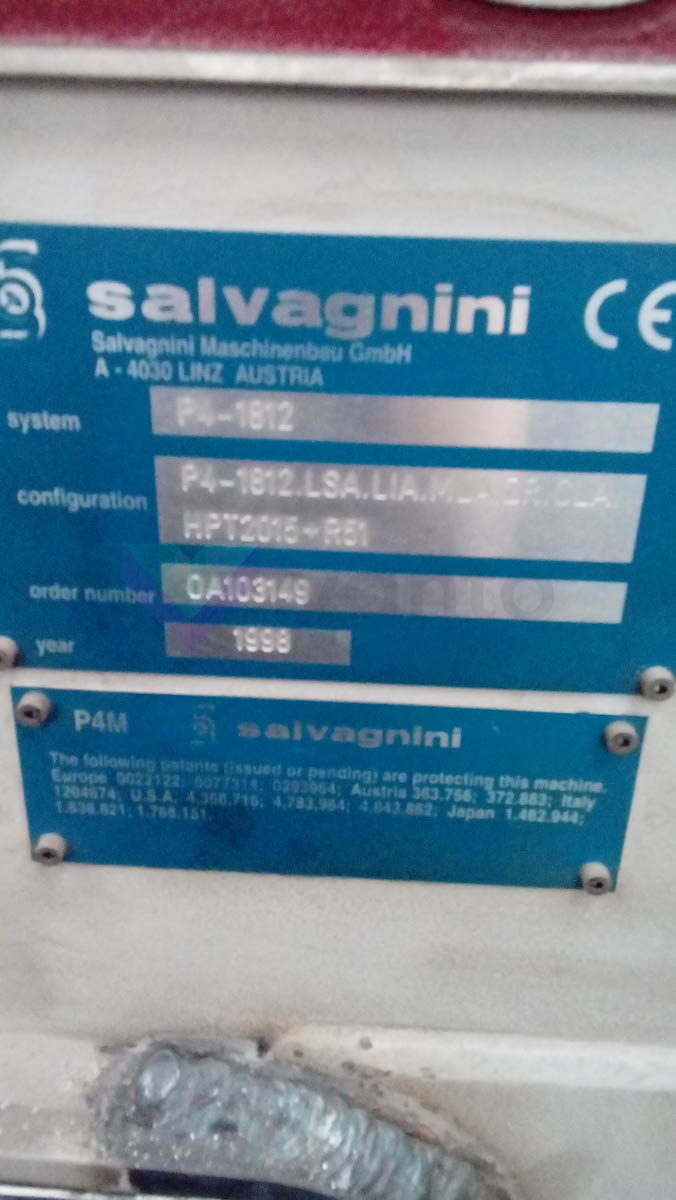

System: P4 -1812 · Configuration: P4-1812. LSA.LIA.MLA.ZR.CLA.HPT2015+R51
Max. bending length: 1850 mm.
Max. bending height: 127 mm.
Max. thickness of the sheet at 400 N/mm2 (standard configuration): 2mm.
Max. bending angle: x(/- 135º
Max. diagonal of sheet and panel: 2150 mm.
Max. length of the blank: 1995 mm.
Max. distance of the jogs on the long side: 265 mm /280 mm.
Working height: 1090 mm.
Air consumption at 6 bar: approx. 2 l./min
Water consumption: approx. 2 m3/h.
Cooling water inlet temperature: max. 20º C
Voltage: (V) 200 - 220 - 400 - 480
+-5% +-5% +-10% +-10%
Frequency: (Hz) 50/60 50/60 50/60 60
+-1% +-1% +-1% +-1%
Rated current: (A) 100 90 50 50
+-5% +-5% +-10% +-10%
Cross section for connection: (Cu) (mm2)
4x50 4x50 4x16 4x16
Protection fuse: (A) 125 125 63 63
Installed power: (KW) 30 30 30 34
Control voltage: 24 VAC and DC
Voltage for computer, screen and powe supply: 230 VAC
Accepted room temperature: + 5 ºC to +40 ºC
Accepted room temperature for computer: +15 ºC to +35º C
Hydraulic oil : approx. 600 l.
(HLP46 DIN 51524 part 2)
Noise level: approx. 80 dBA.
Floor space required: 7055 x 6845 mm.
