FINN POWER

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

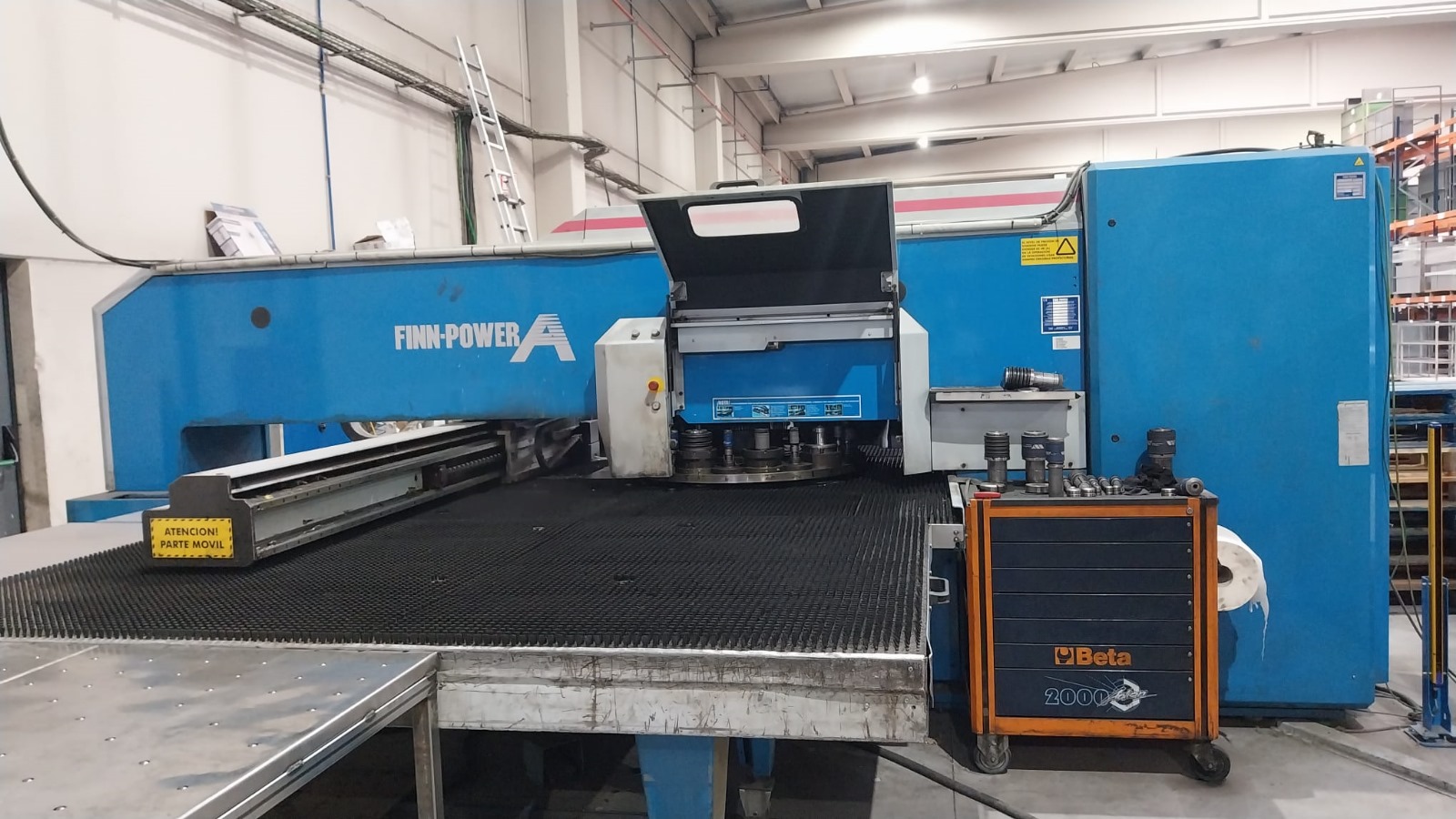

A5 S

CNC punching machine

Category	Punching machines
Condition	Used
Year	2005
Availability	Available
ID	11316

Adriana Arango

+34 932 711 191

Turret configuration: 1 - station C index 2 - station A 3 - station B index 4 - estación B 5 - station D index 6 - station A 7- station B index 8 - station A 9 - station D 10 - station A 11 - station C 12 - station B 13 - station C 14 - station B 15 - station C 16 - station B 17 - station B 18 - station A 20 - station B

Control type	Siemens 840D
Axis speed [X axis] max	90 m/min
Axis speed [Y axis] max	60 m/min
Compressed air consumption max	5N l/s
Compressed air pressure min	6 bar
Dimensions (long x wide x high)	5.400 x 5.600 x 2.500 mm
Material thickness max	8 mm
Max. workpiece weight	200 kg
Number of index tool stations, max	10
Oil tank capacity	330 l

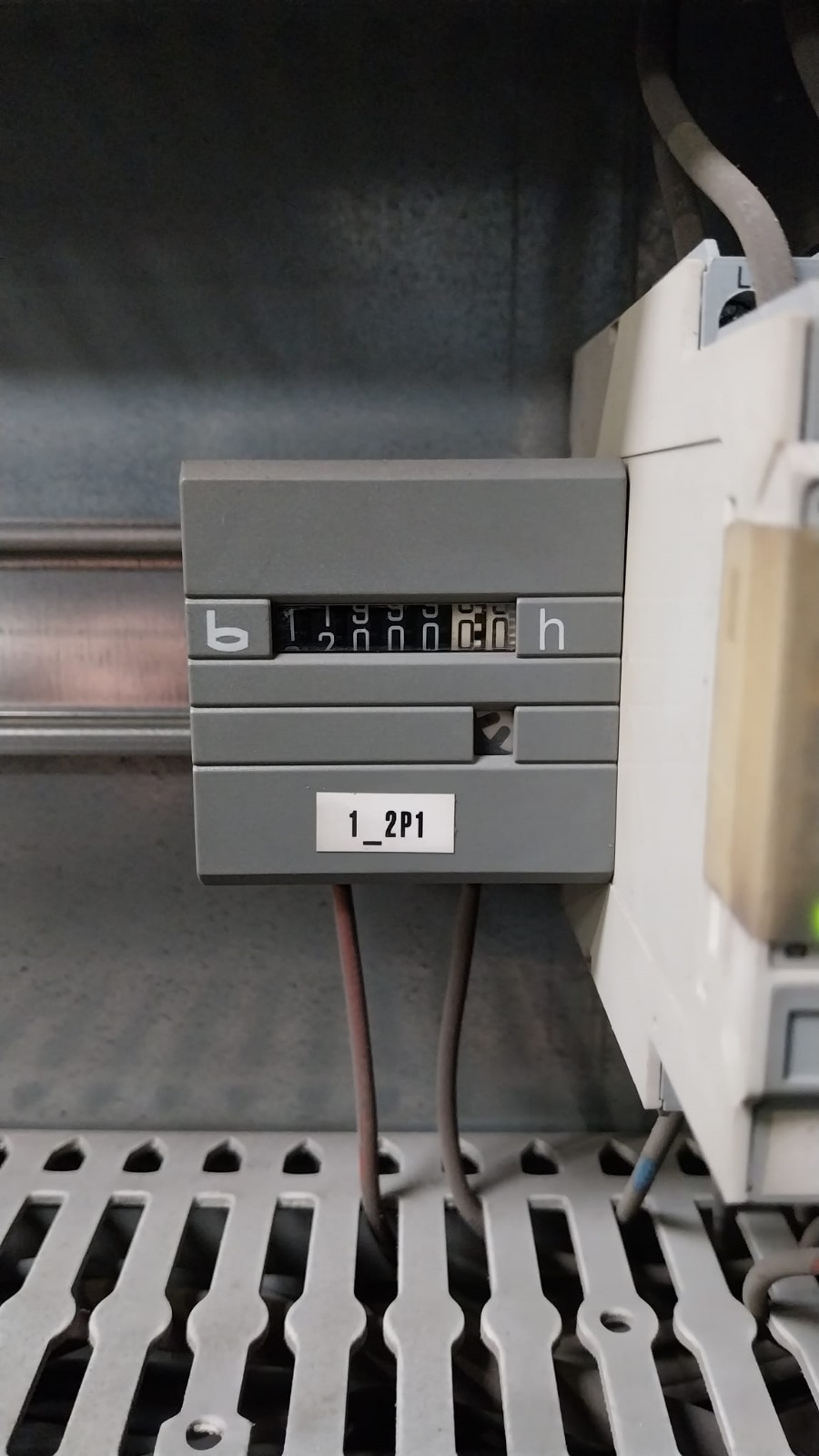

Operating hours	120.000
Power supply	40 kVA
Punch diameter max	89 mm
Punching force	230 kN
Tool rotation, max	58 r/min
Turret rotation	23,8 r/min
Weight	10.400 kg
Working area max	2.530 x 1.270 mm
