FINN POWER

SG6

CNC punching machine

Category Punching machines
Condition Used
Year 2007
Availability Sold
ID 10558
Sold

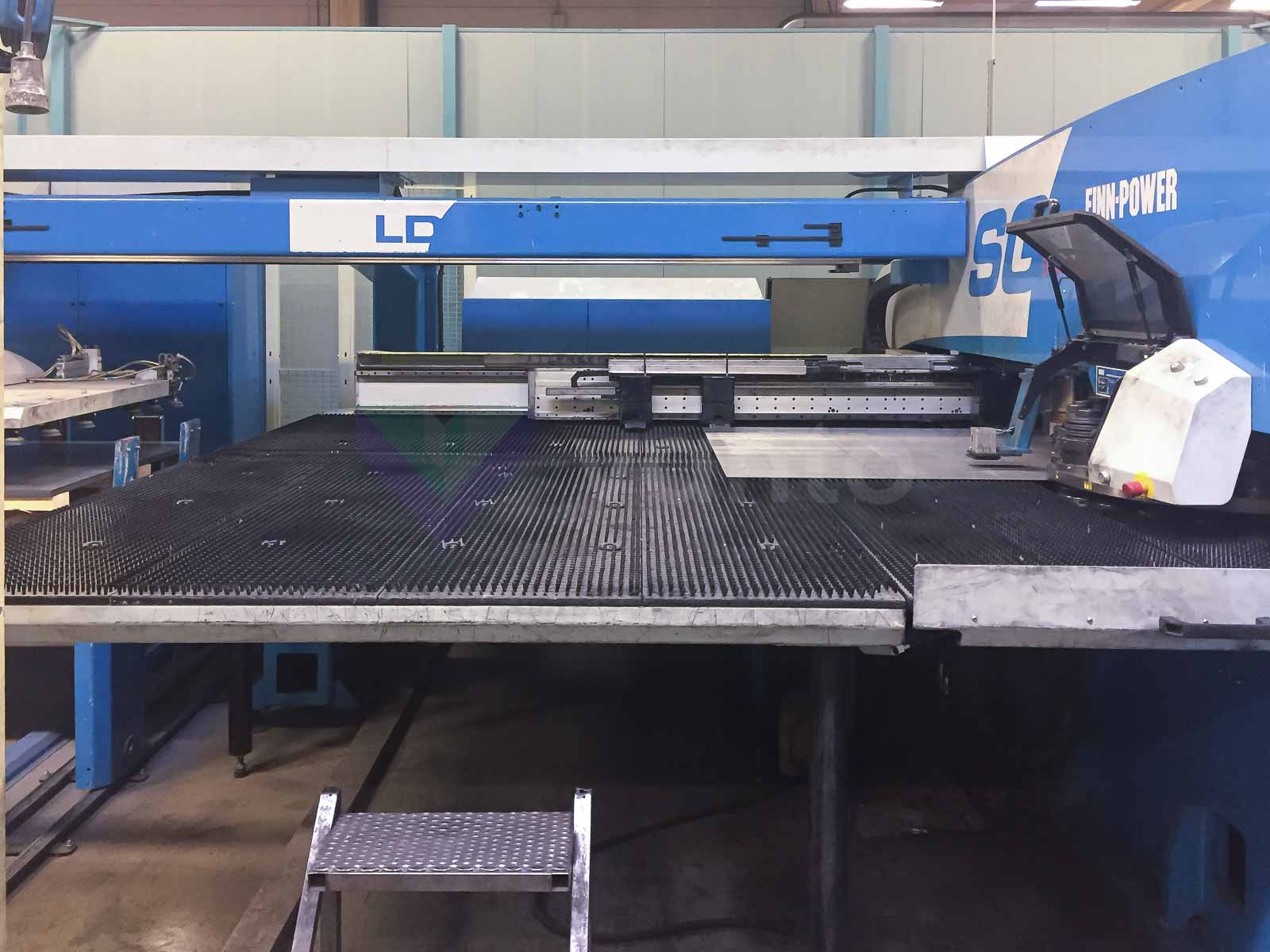

Finn-Power Shear Genius SG6
For sheet size 1500 x 3000 mm
Standard equipment;
* Hydraulic turret punch press, 30 tons
* Integrated right angle shear 1000 x 1500 mm (X x Y)
* Loading device LD6/1 (fixed table)
* double sheet detection and sheet positioning
* floating table cover
* max. load 3000 kg
* Superfast hydraulic F4
* 20 station turret
* 16 normal tool holders (fixed)
* 2 pcs index tool holders
* 2 pcs MT24-8 MT10-16 or MT8-24
* Brush tables
* 3 pcs clamps with central locking
* automatic clamp setting (PCS) and the move of single clamp
* operator alarm relay output (does not include pager)
* scrap conveyor SC1
* RS scrap conveyor RSC1
* oil cooling unit ( air )
* GSM Modem
* Teleservice on Internet by VPN client
SINUMERIK 840D NC-control
* Cell control computer (PowerLink M)
* Control cabinet cooler
Toolsystem
Indexable forming system , force 250 kN, stroke 12 mm
1 Bif forming station
1 Dif formingstation
3 Additional index
1 Multitool MT24-8 MT10-16 or MT8-24

Option;
Fourth sheet clamp
Tool lubrication system
1 Scrapconveyer SC2M lifting
1 Scrapconveyer for RS RSC2 lifting
1 PC-1 Work-Chute with conveyer
1 TU6-L tapping station
Machinesafety equipment and CE Mark
Safety device, STD MC incl safetybeam and fences
• 1 dubble loadingtable 2A/B
• 2 chutes for C1500
• SPB buffer
• STR robot

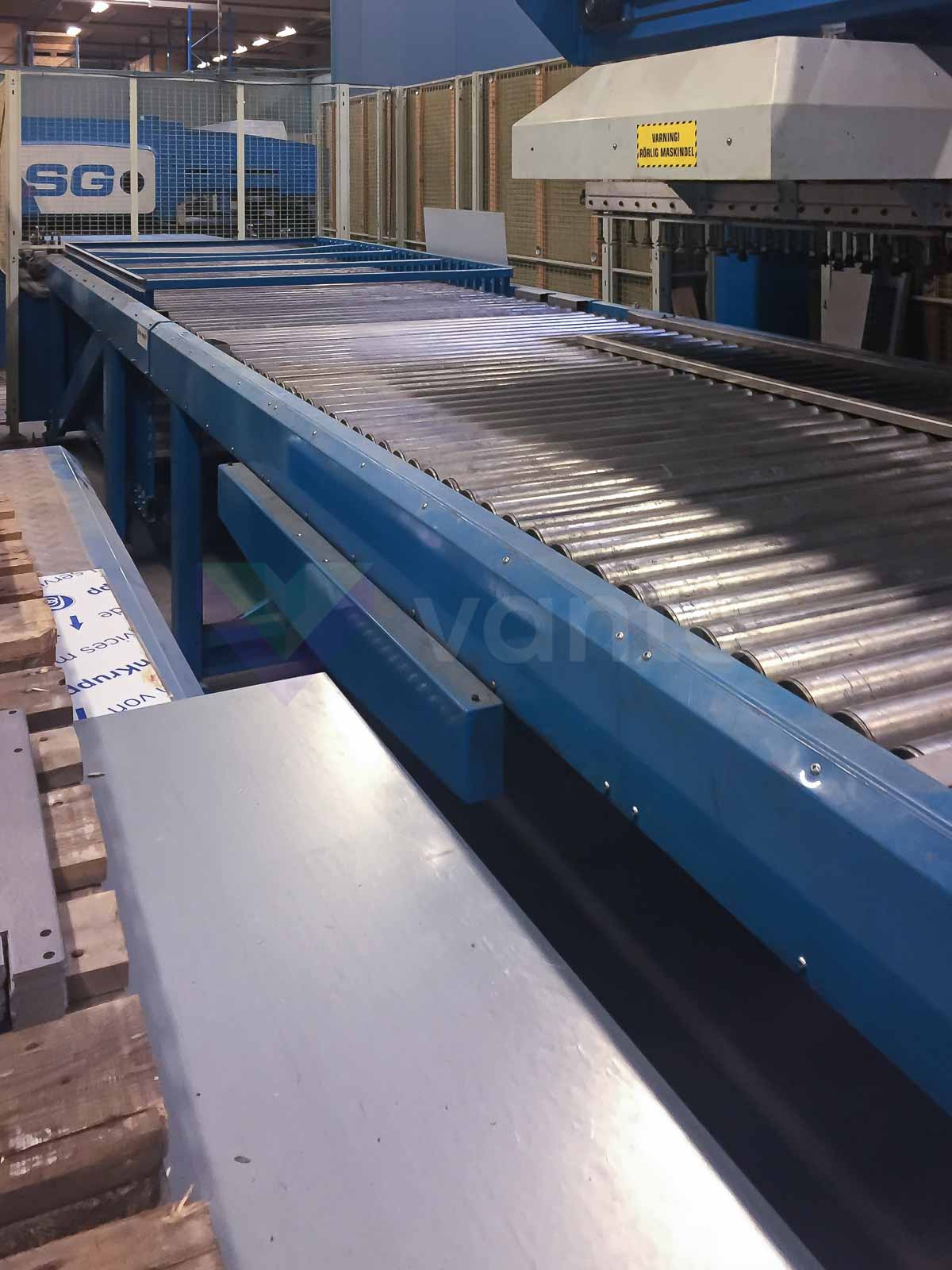

Sorting system
1 Sorting conveyor C1500/1 incl 1 sorting address
1 Additional sorting adress for C1500 conveyor
Stackingsystem
1 Stacking robot STR-6 with positioning table, stacking table 1A scrap container
1 Safety door (table changes possible without robot stops)
1 Unloadingtable for STR typ 2A
SPB 10 position Buffer
Loading/Unloading
Loading table 2A with safetydoor
27 000 Hour

Control typeSiemens Sinumerik 840D
Axis speed [X axis] max150 m/min
Axis speed [Y axis] max150 m/min
Compressed air pressure min6 bar
Material thickness (punching) max8 mm
Material thickness aluminium max50 mm
Material thickness max8 mm
Material thickness stainless steel max3 mm
Material thickness steel Fe52/Fe37 max4 mm
Number of turret stations (pcs)20
Oil tank capacity400 l
Operating hours40.000
Power supply80 kVA
Punch diameter max89 mm
Punching force300 kN
Turret rotation166 r/min
Weight28.000 kg
Working area max1.500 x 3.000 mm
