FINN POWER

C6

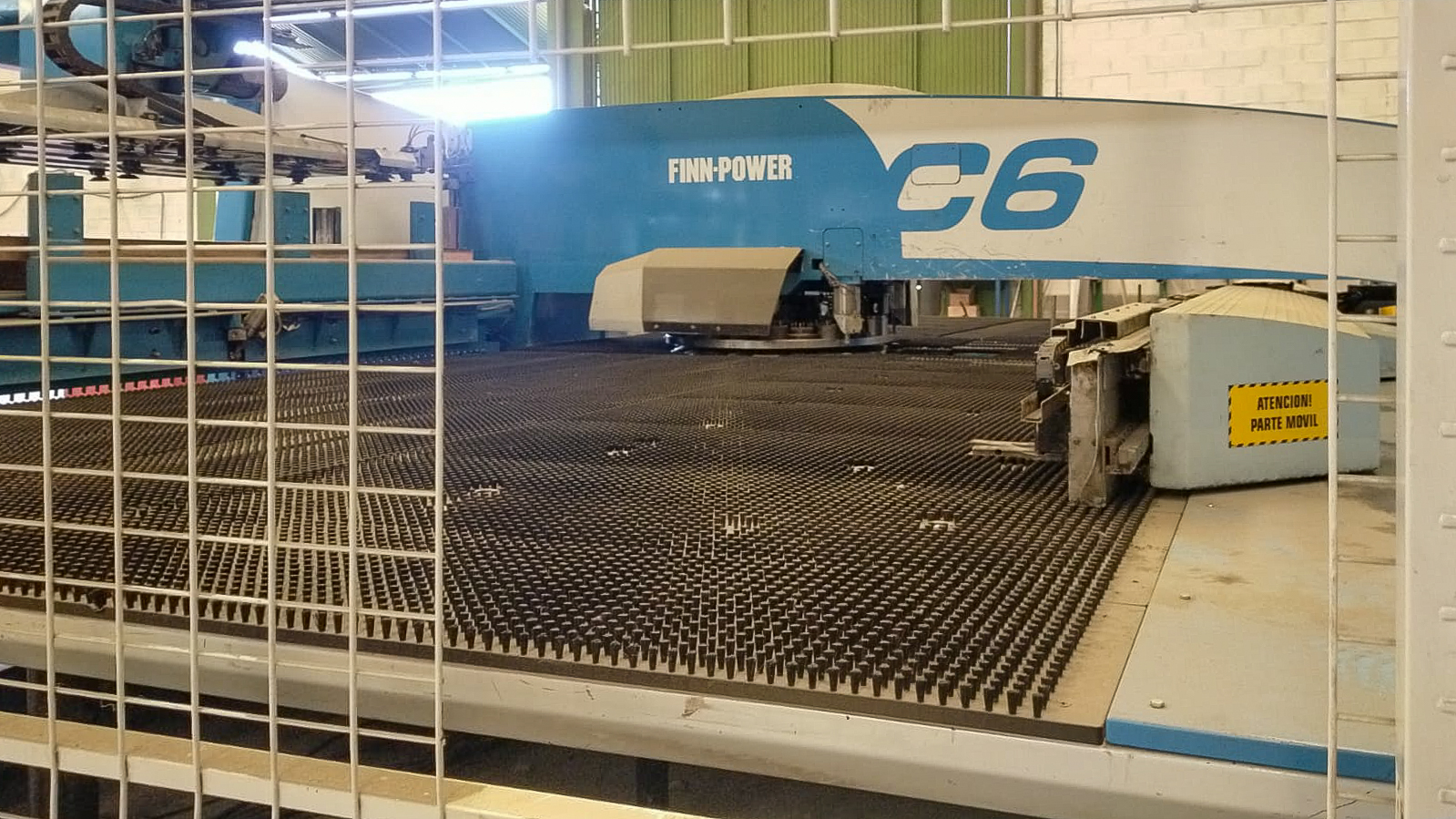

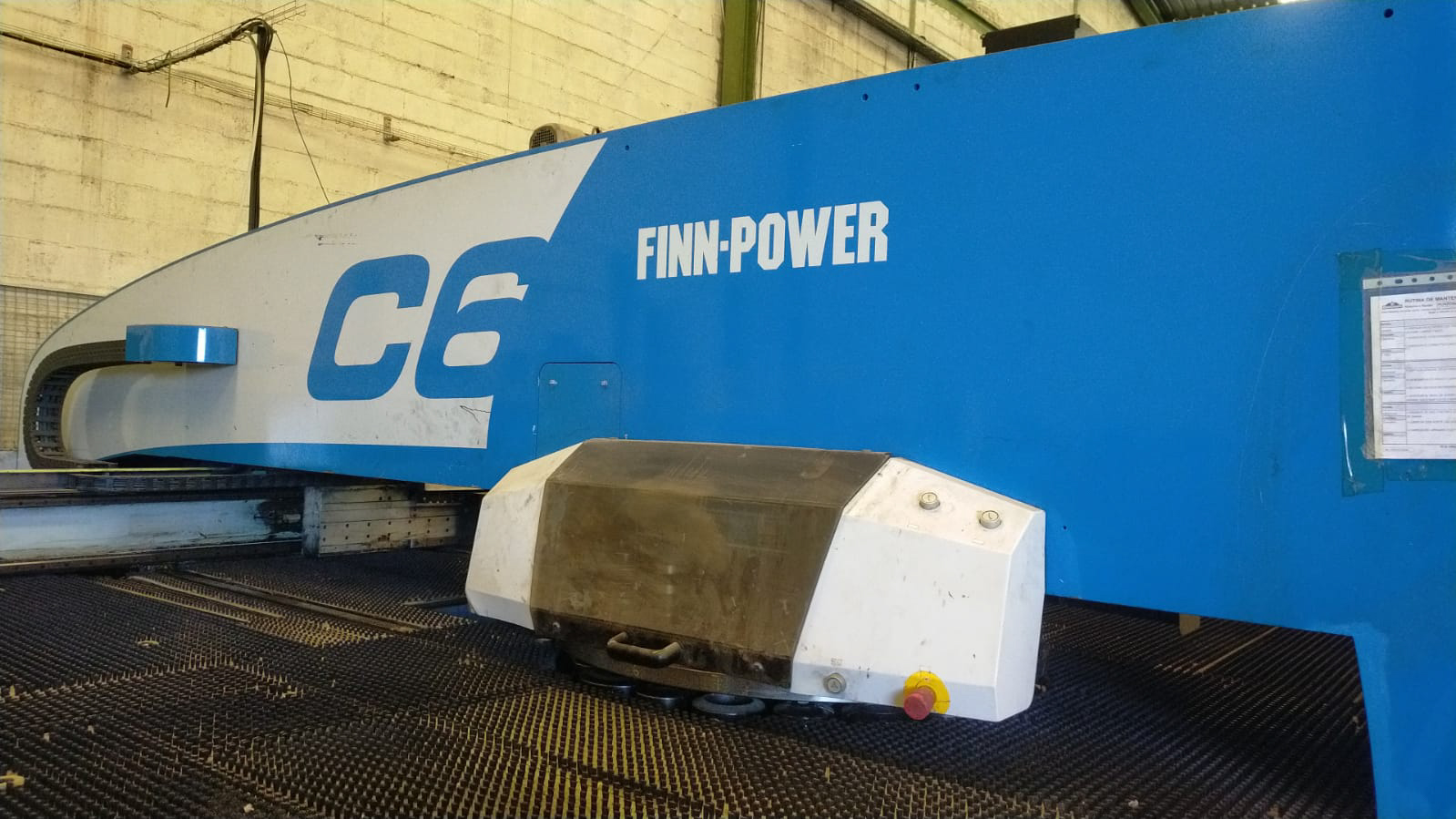

CNC punching machine

Category Punching machines
Condition Used
Year 2006
Availability Available
ID 10714
Request a quote

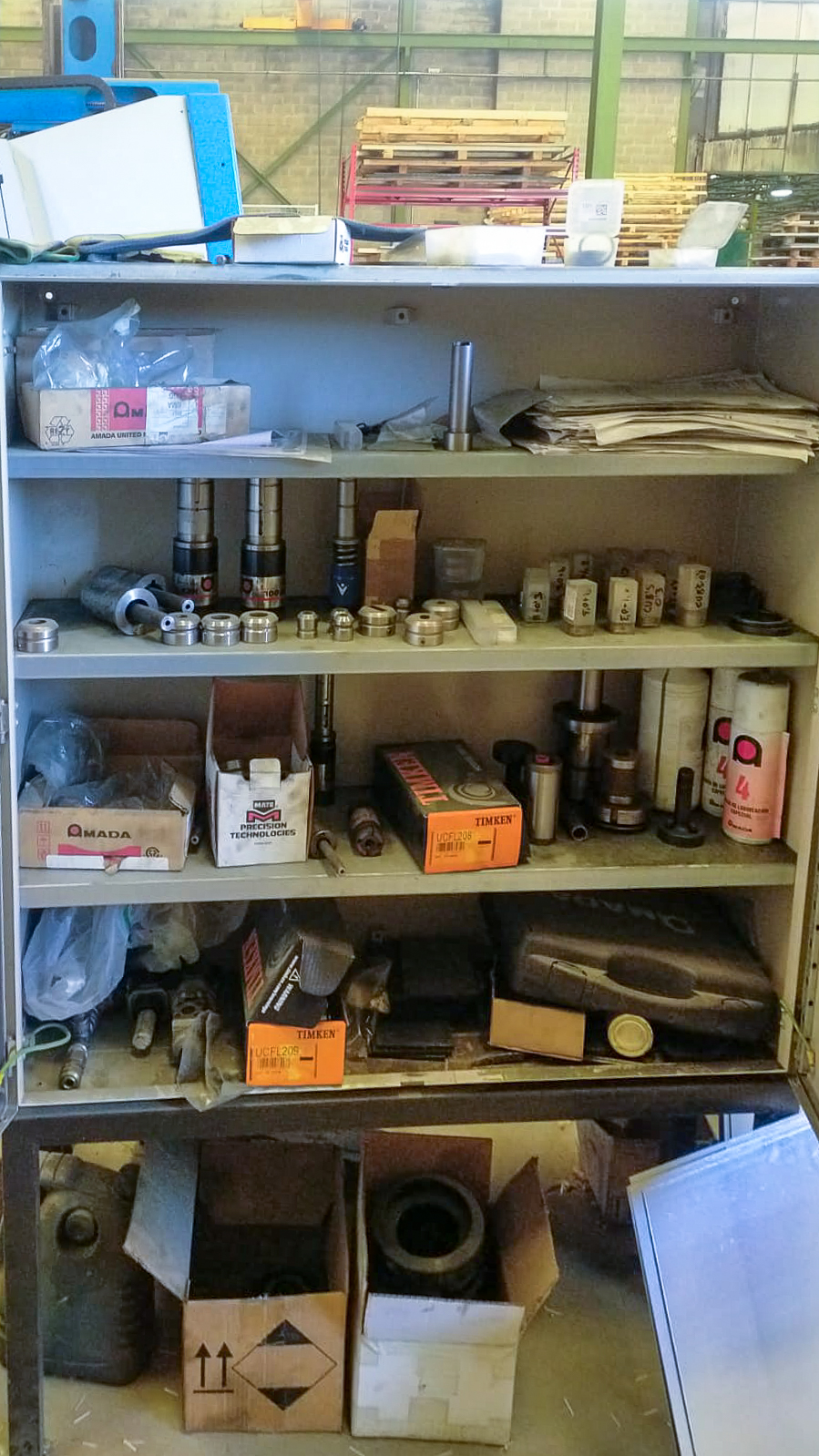

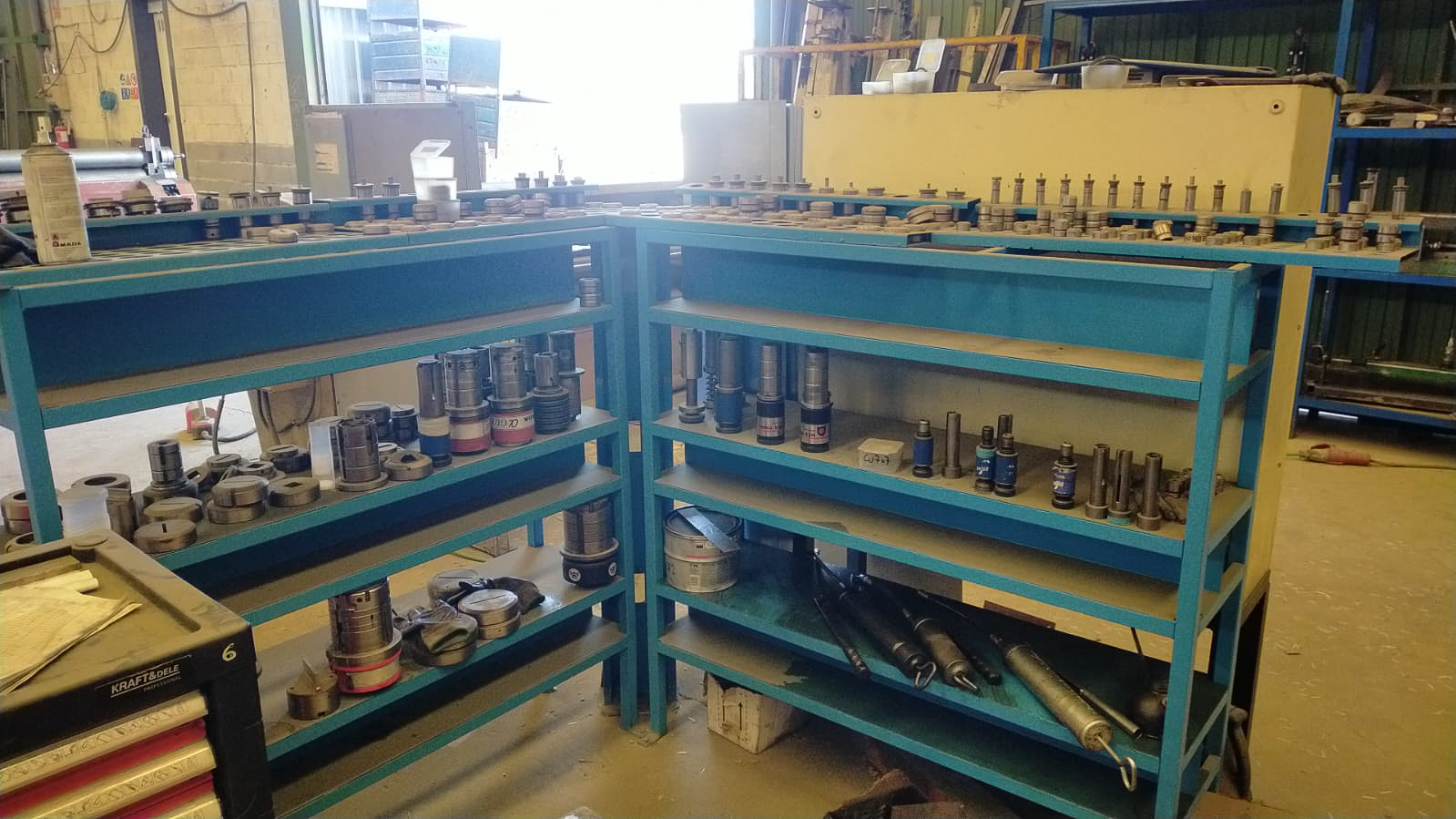

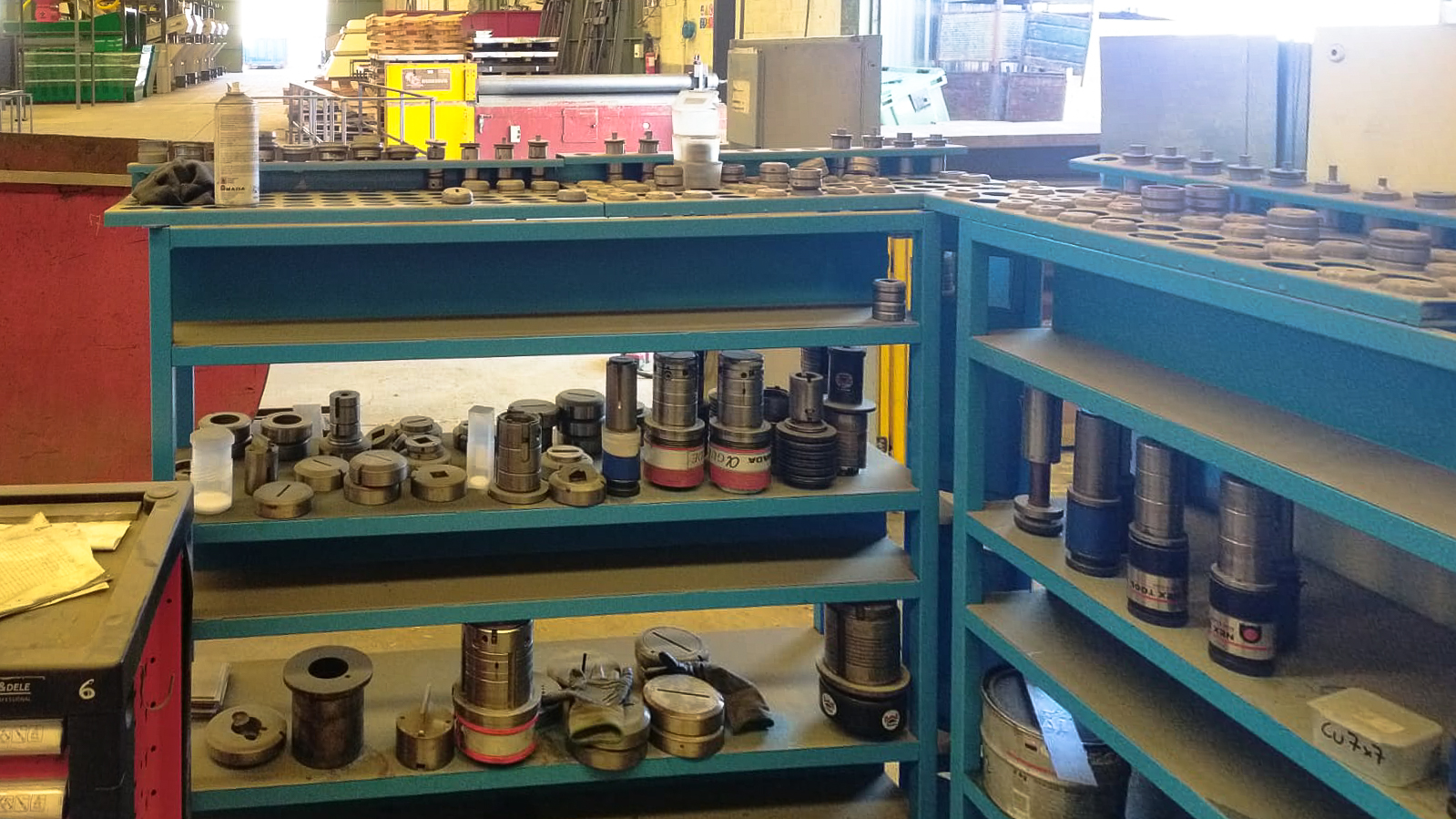

Includes interesting set of tools

Control typeSIEMENS SINUMERIK 840D
Axis speed [X axis] max120 m/min
Axis speed [Y axis] max60 m/min
Compressed air pressure min6 bar
Material thickness (punching) max8 mm
Max. workpiece weight13.000 kg
Number of turret stations (pcs)20
Oil tank capacity200 l
Operating hours13.000
Power supply35 kVA
Punch diameter max89 mm
Punching force300 kN
Turret rotation30 r/min
Working area max3.074 x 1.565 mm

FINN POWER C6 Official Catalogue View PDF
