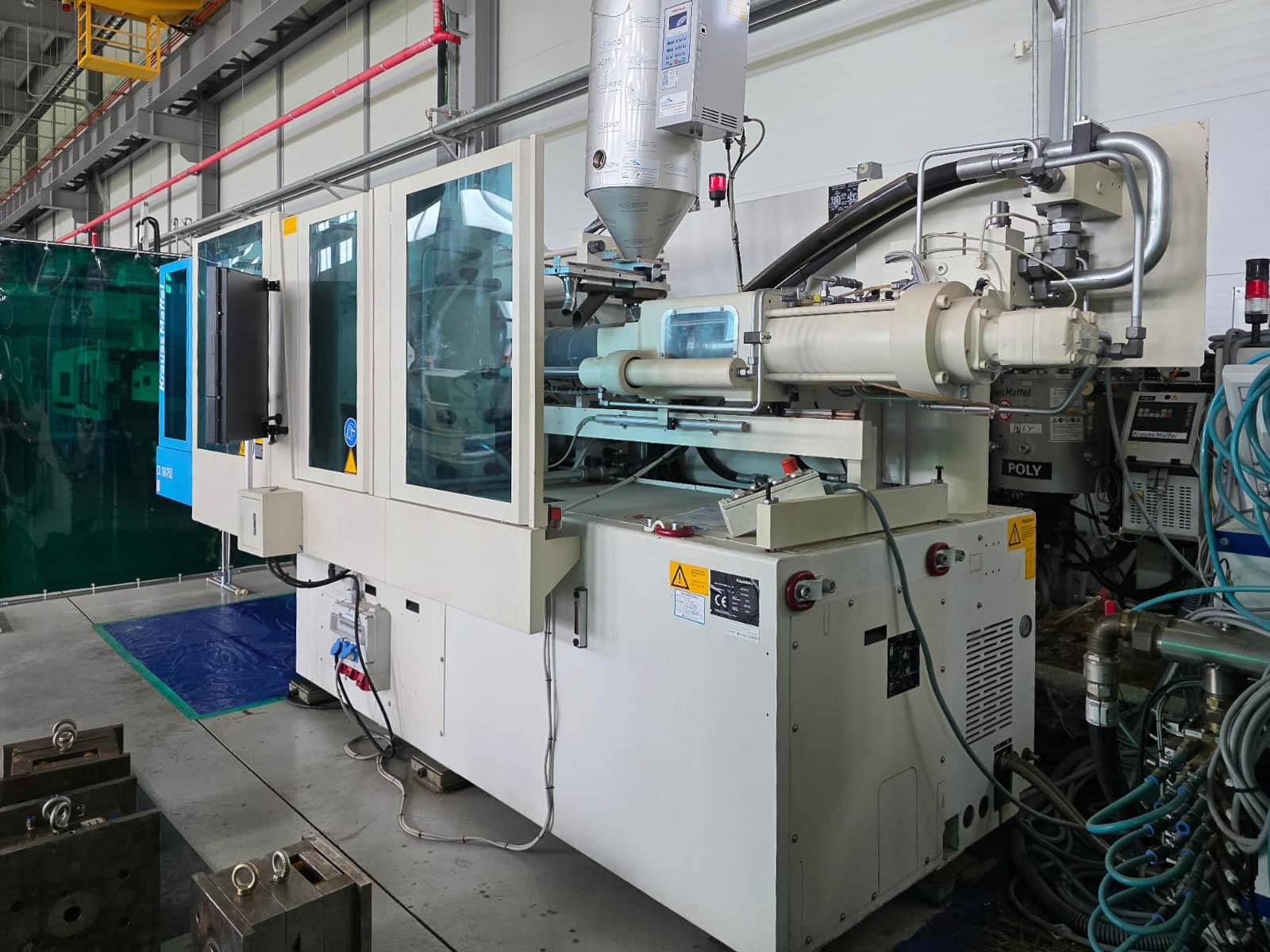

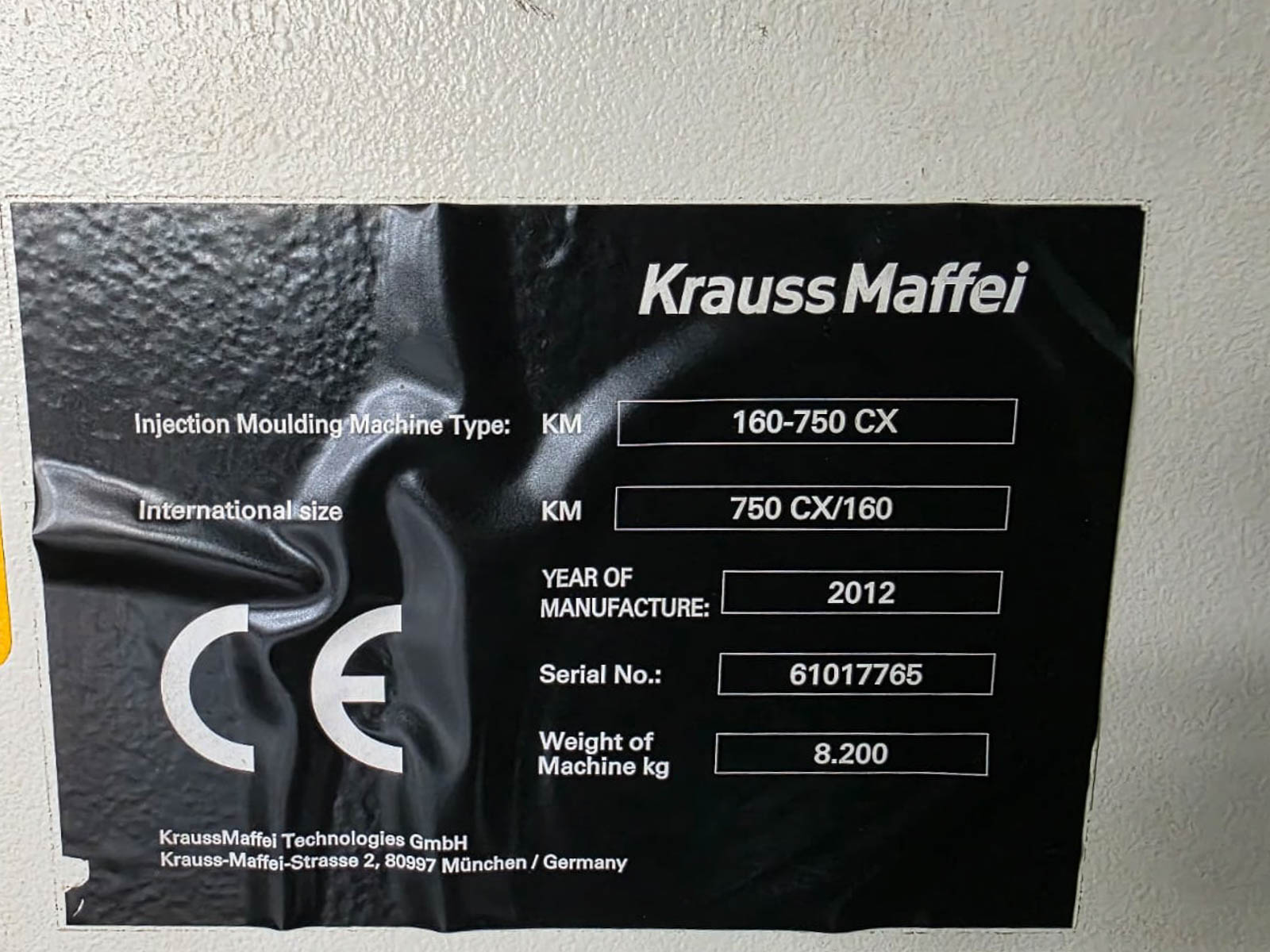

KRAUSS MAFFEI

KM 160 - 750 CX

160t vertical injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2012
Availability	Available
ID	11265

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

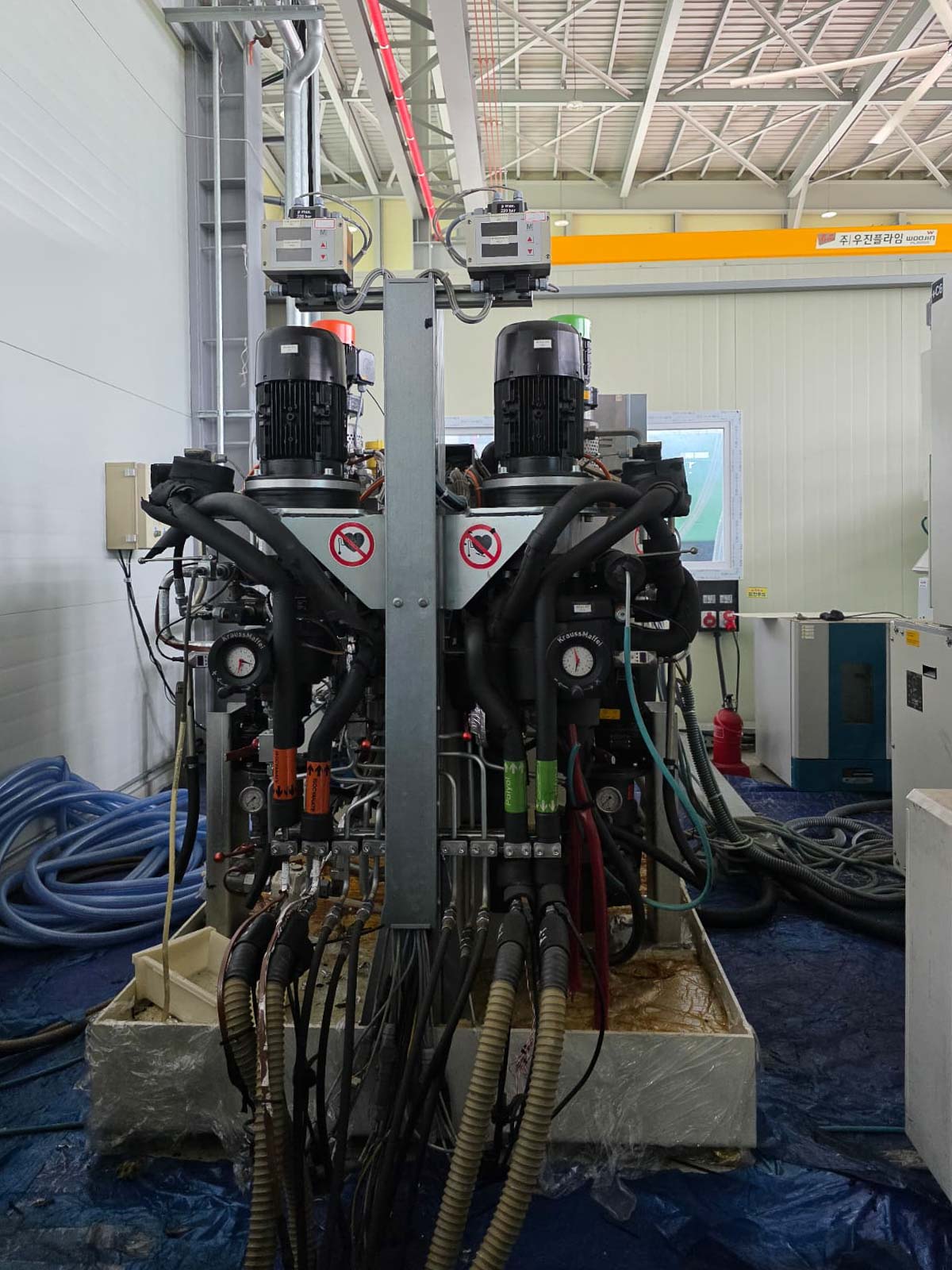

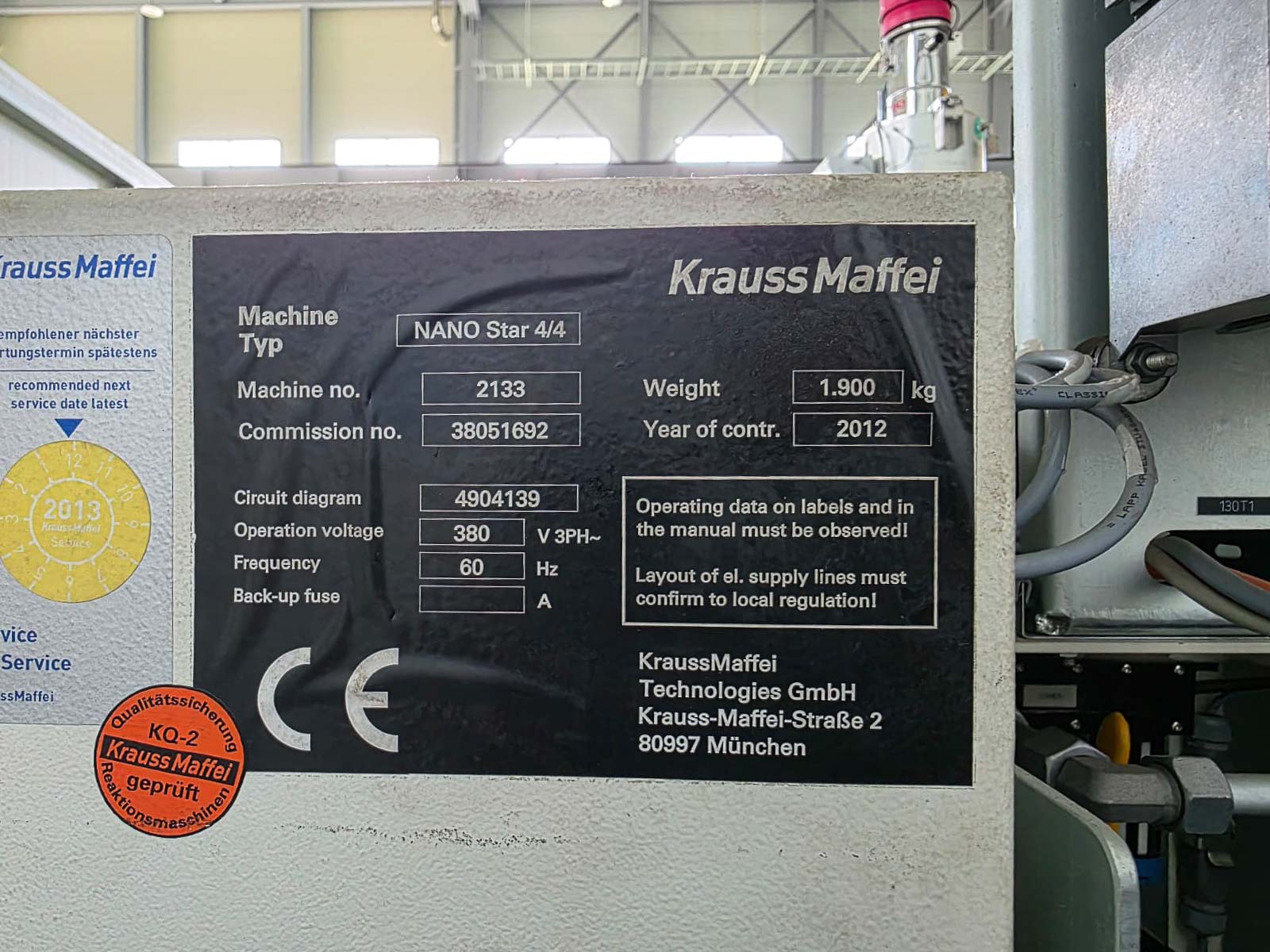

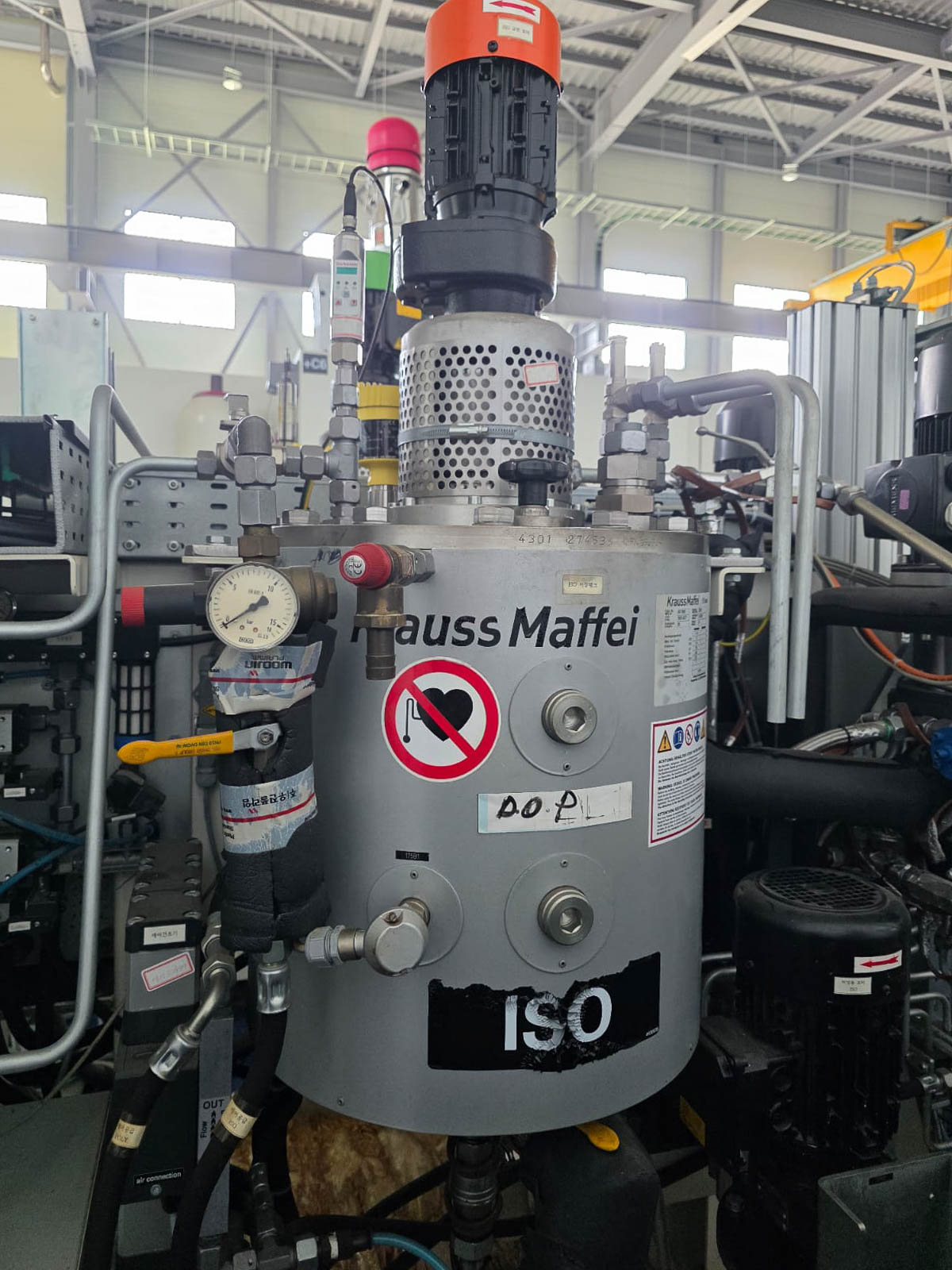

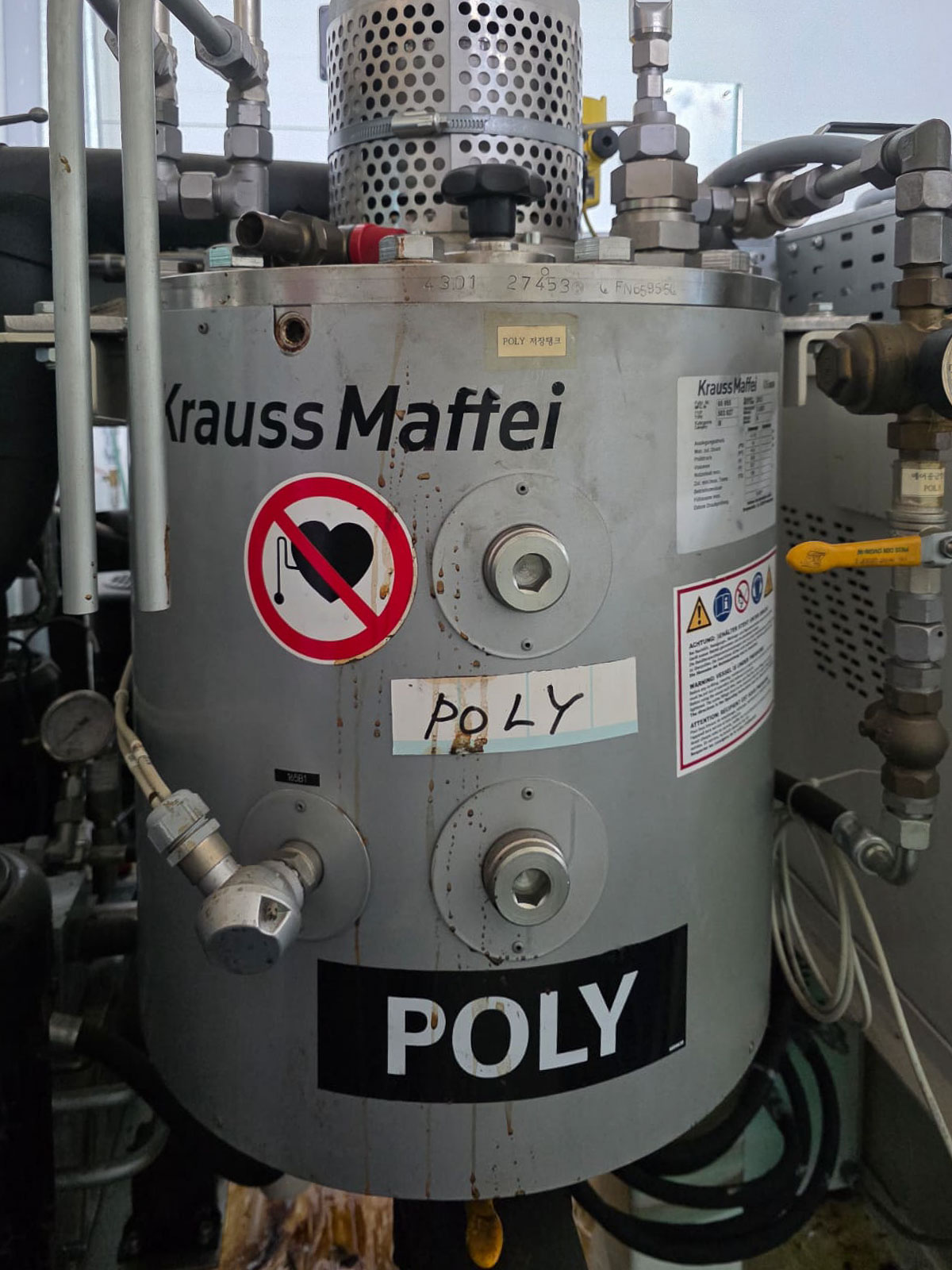

OPTIONAL Dosing System for inmold of poly urethane

Clamping force	1.600 kN

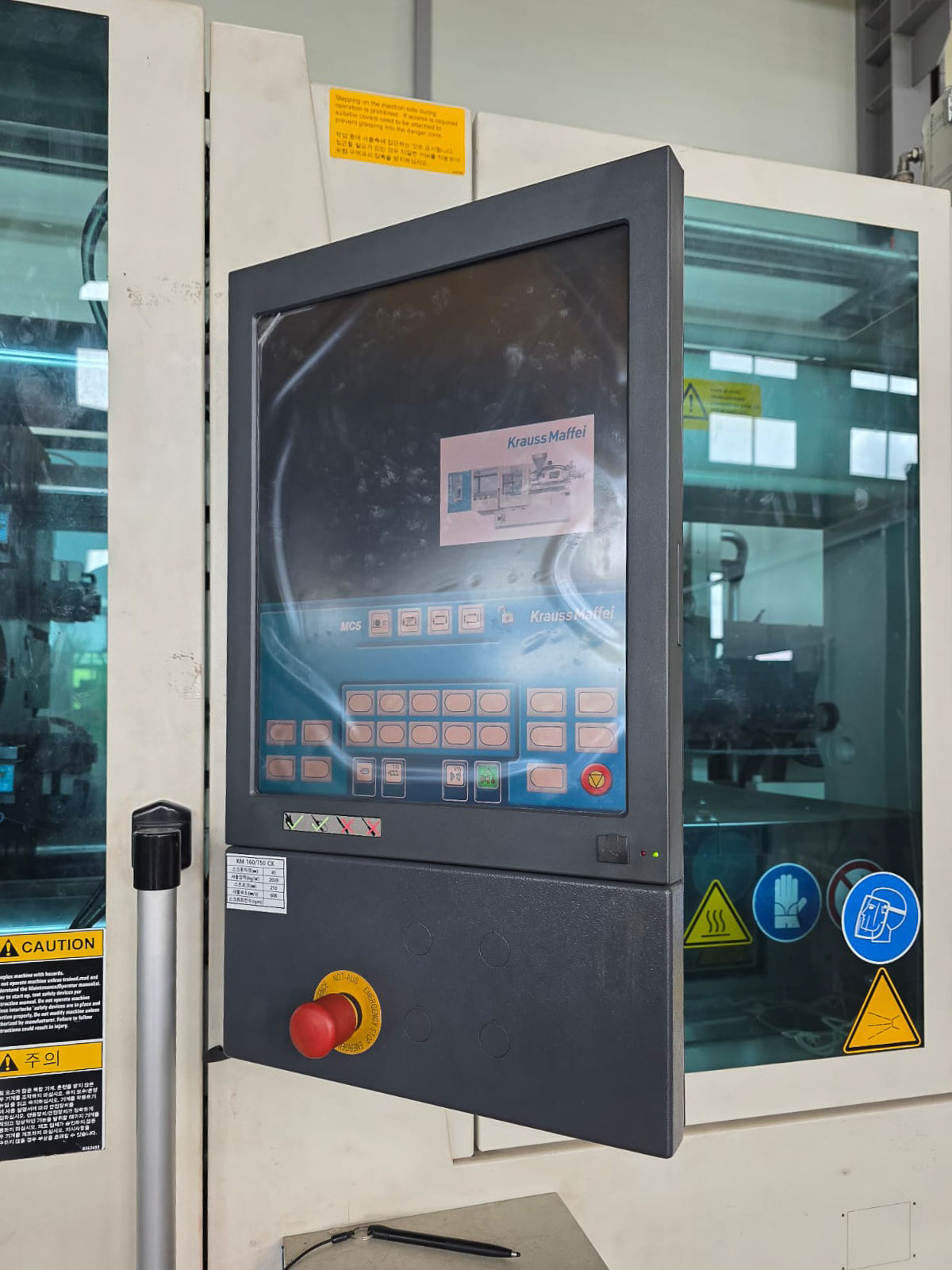

Control	MC 5
Core pulls	2
Daylight between platens max	950 mm
Dimensions (long x wide x high)	5.100 x 1.600 x 2.100 mm
Distance between tie-bars (h x v)	520 x 520 mm
Ejector stroke / force max.	150 / 22 mm / kN
Injection volume	318 cm³
Mould height min	300 mm
Platen size (h x v)	820 x 845 mm
Power: installed max	18,5 kW
Screw diameter	45 mm
Weight	6.600 kg
