ARBURG

470 C 1500 - 800

150t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2010
Availability	Available
ID	11261

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force	1.500 kN

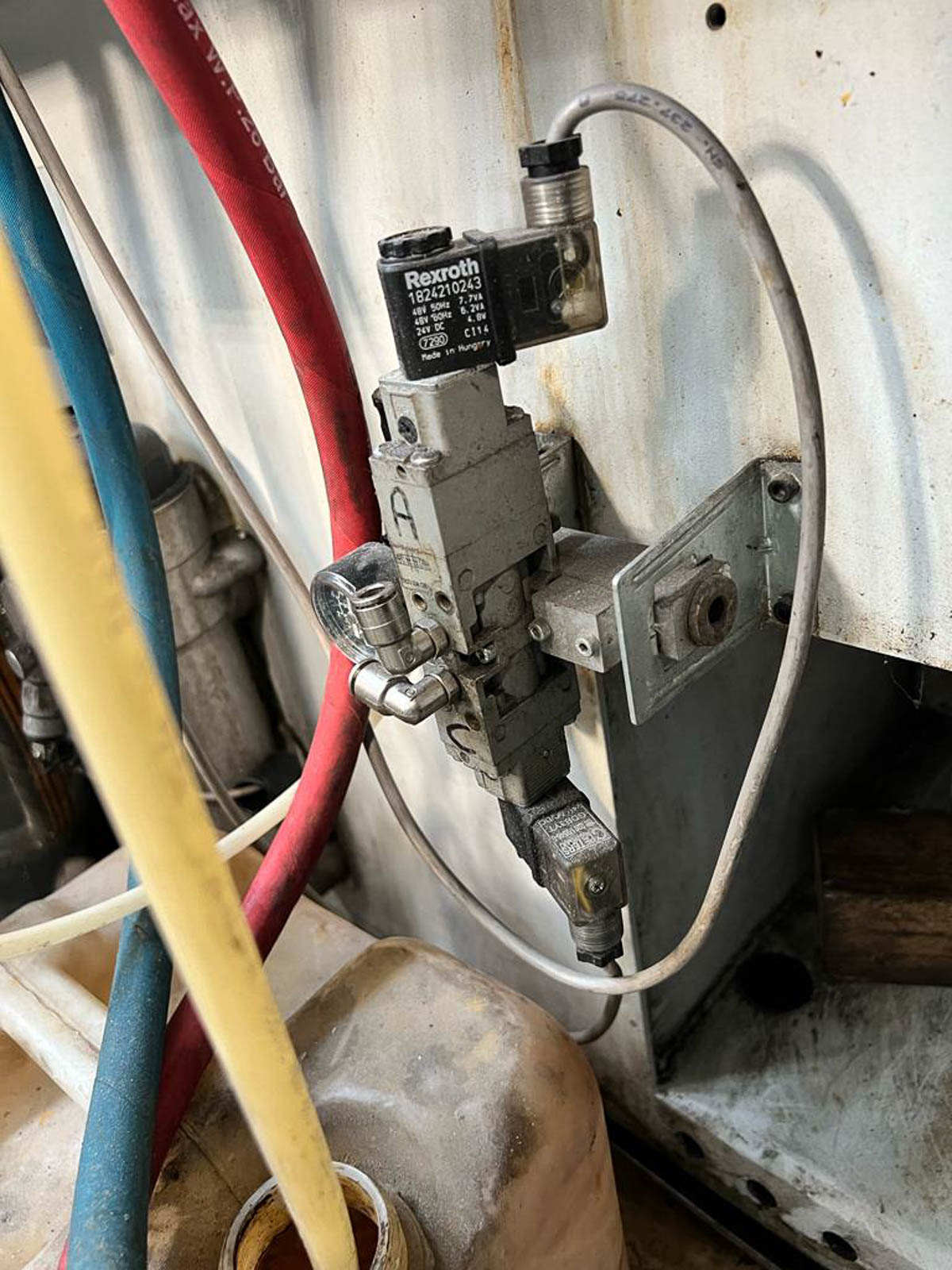

Air Valves	2
Core pulls	1
Dimensions (long x wide x high)	7.000 x 2.100 x 2.300 mm
Distance between tie-bars (h x v)	470 x 470 mm
Injection pressure	2.000 bar
Injection volume	392 cm³
Mould height min	250 mm
Mould opening stroke max	500 mm
Platen size (h x v)	650 x 650 mm
Power: installed max	22 + 44 kW

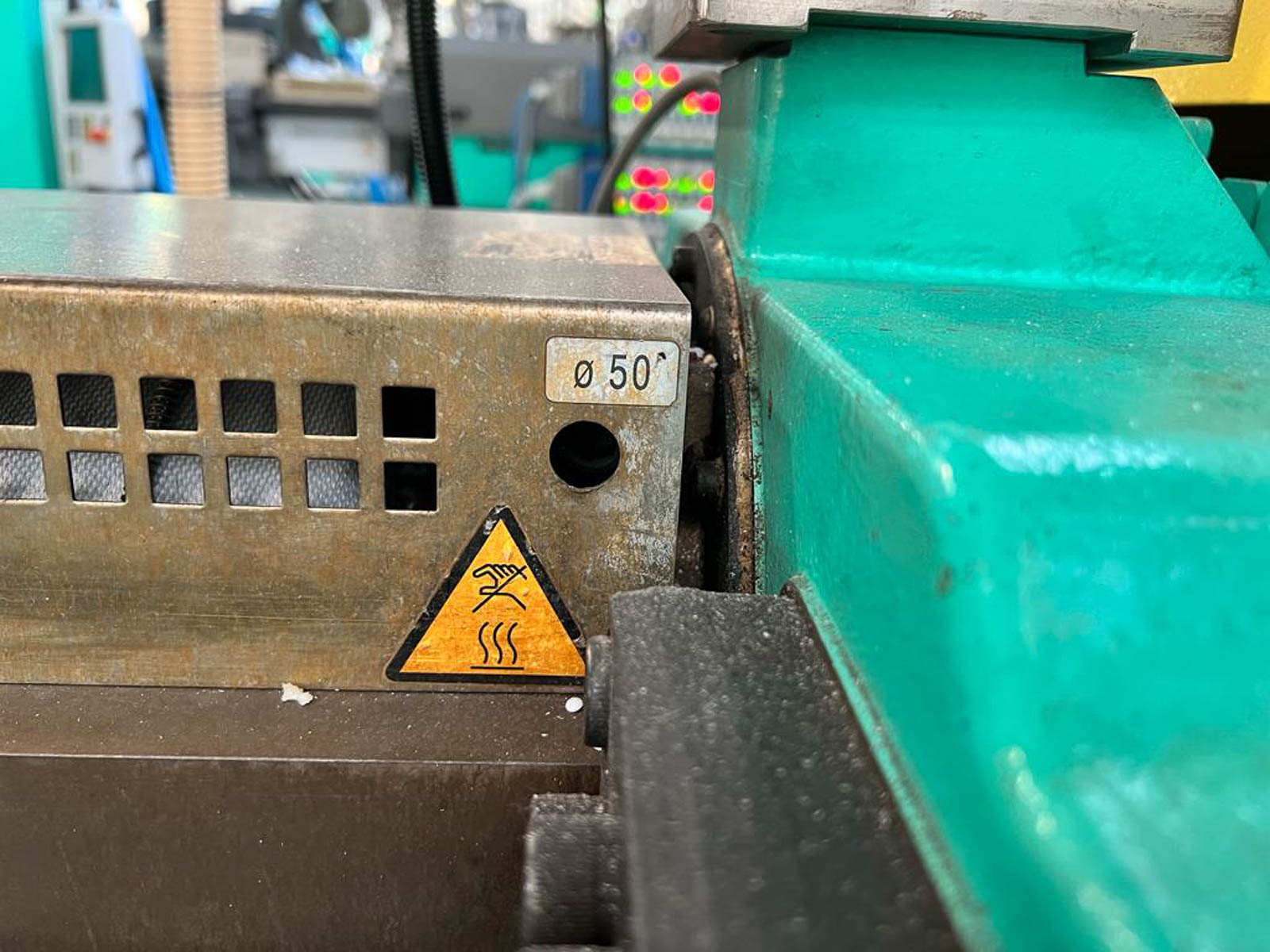

Screw diameter	50 mm
Weight	5.500 kg

No videos available

There are no available documents
