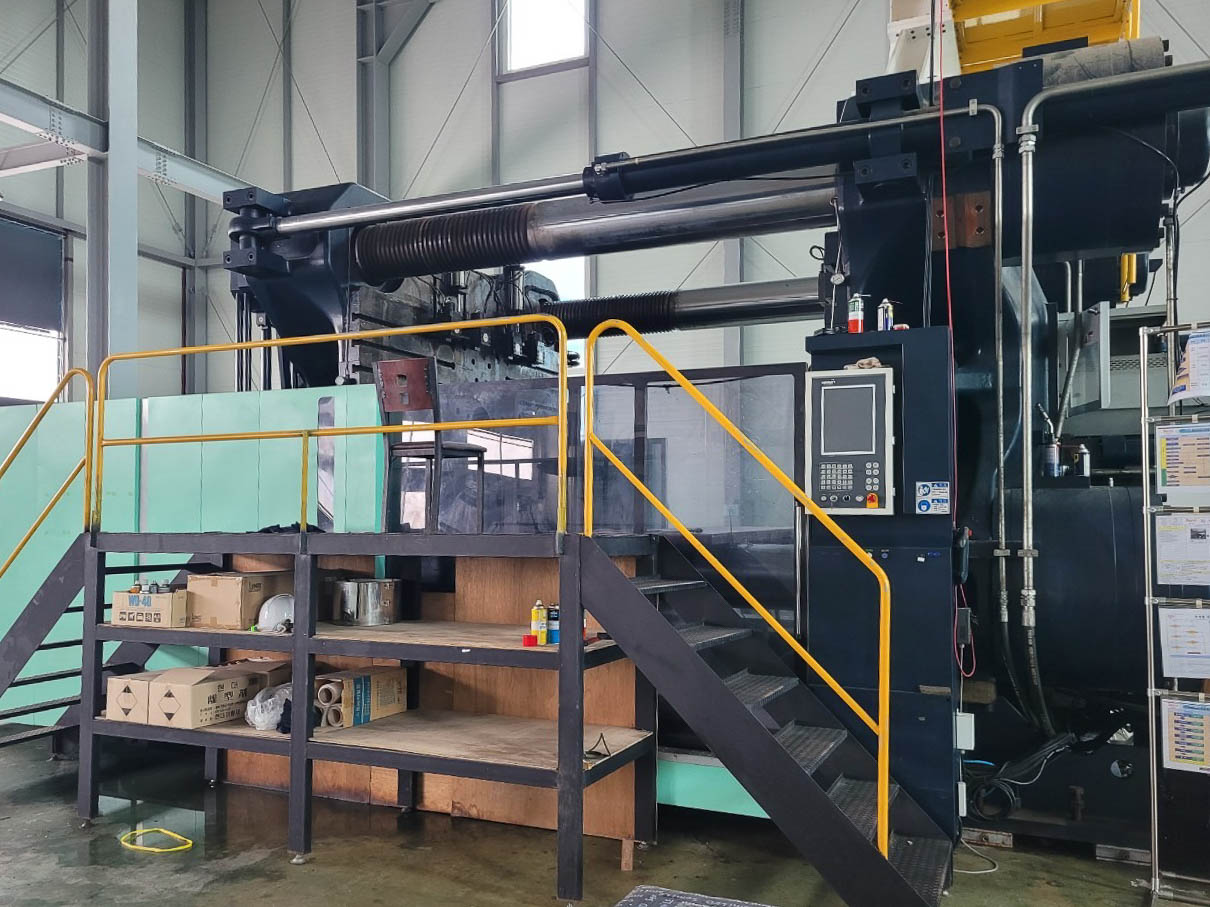

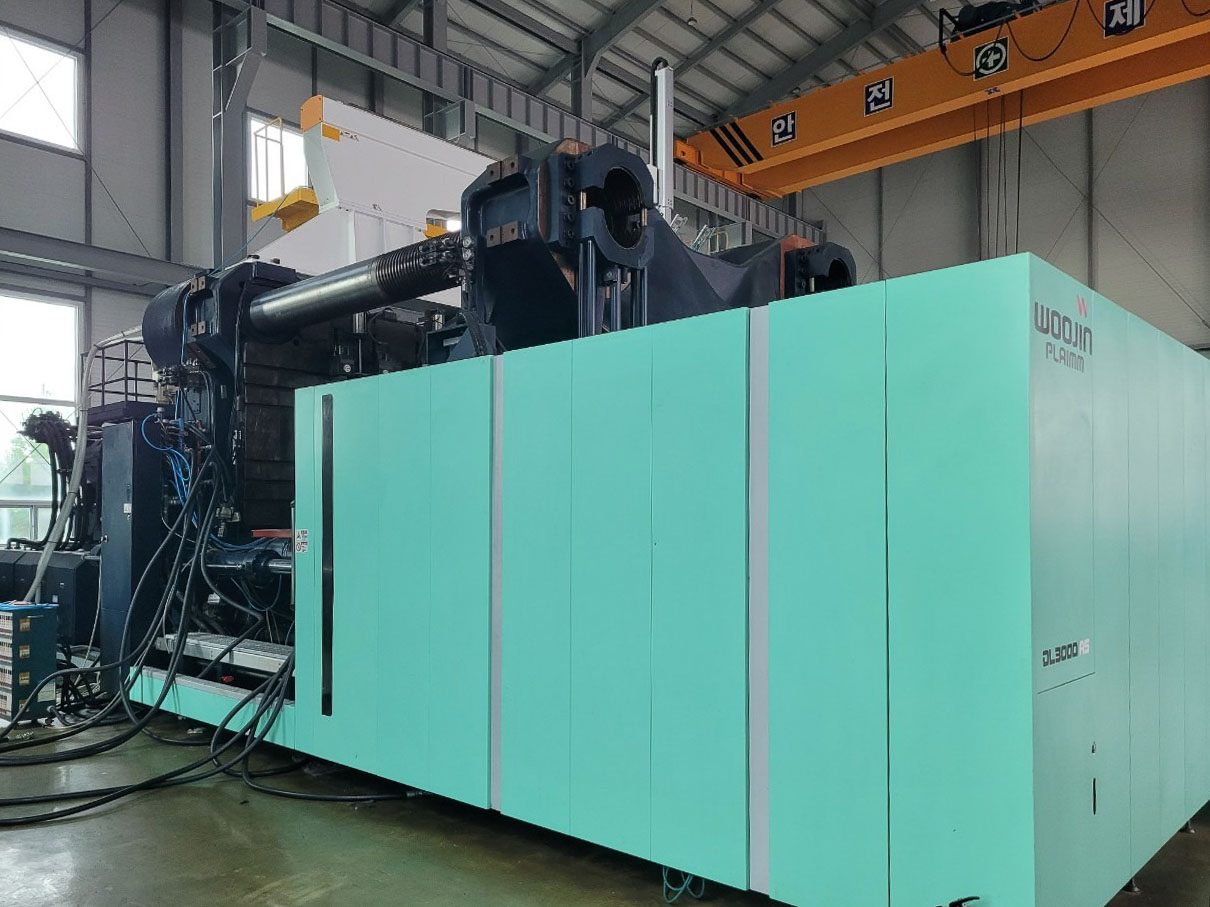

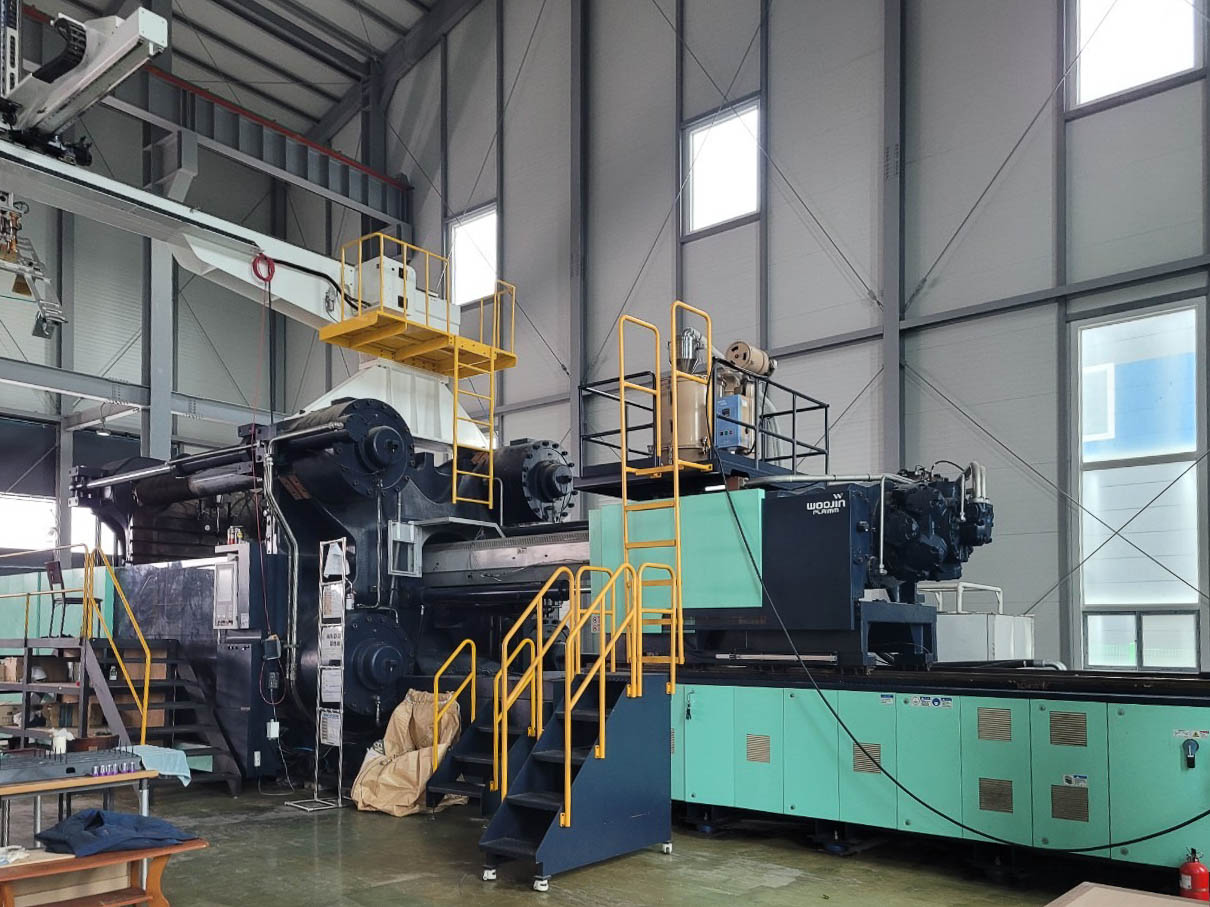

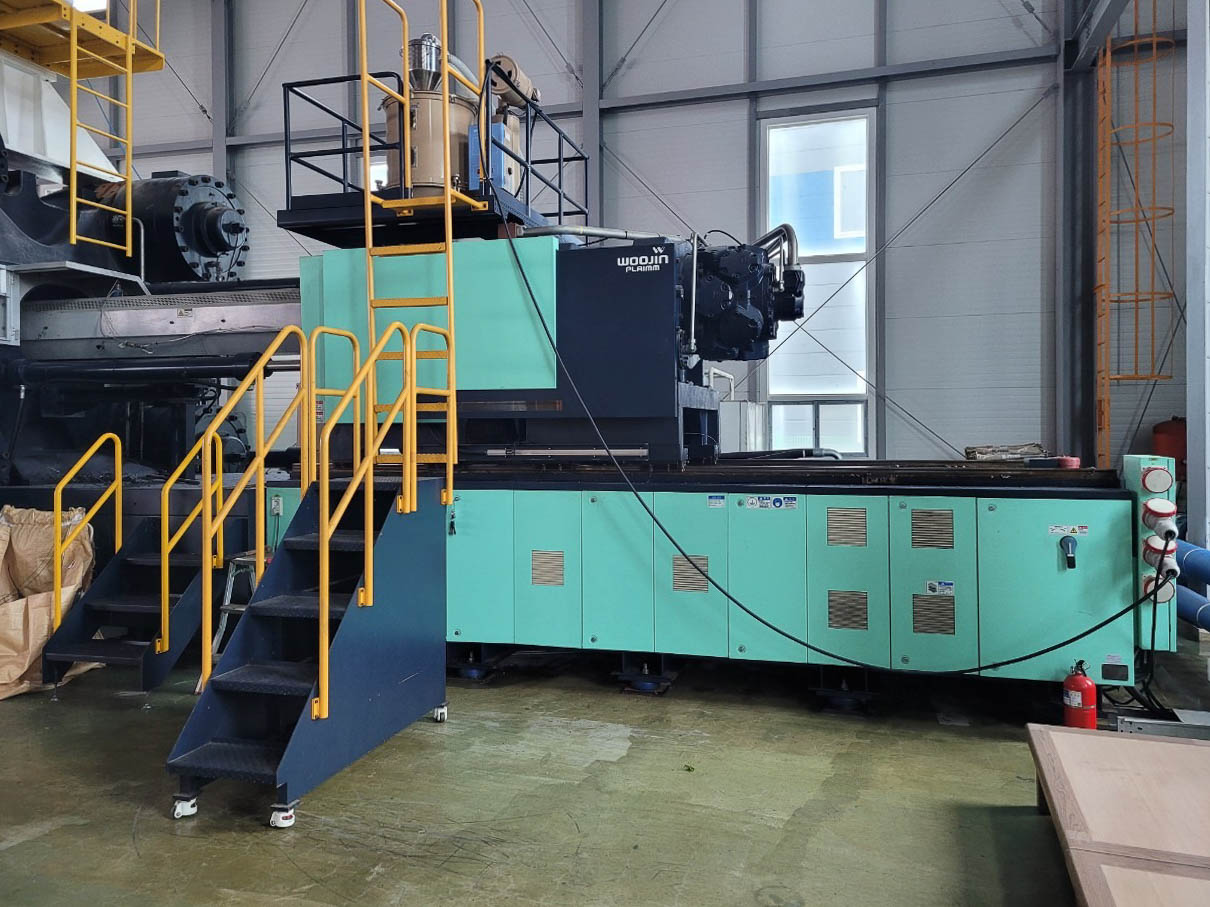

WOOJIN PLAIMM

DL3000A5

3000t injection molding machine

Category	1000t or more Injection moulding machines
Condition	Used
Year	2018
Availability	Available
ID	11193

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Screw diameter	160 mm
Clamping force	30.000 kN
Daylight between platens max	4.000 mm
Dimensions (long x wide x high)	16.500 x 5.000 x 4.000 mm

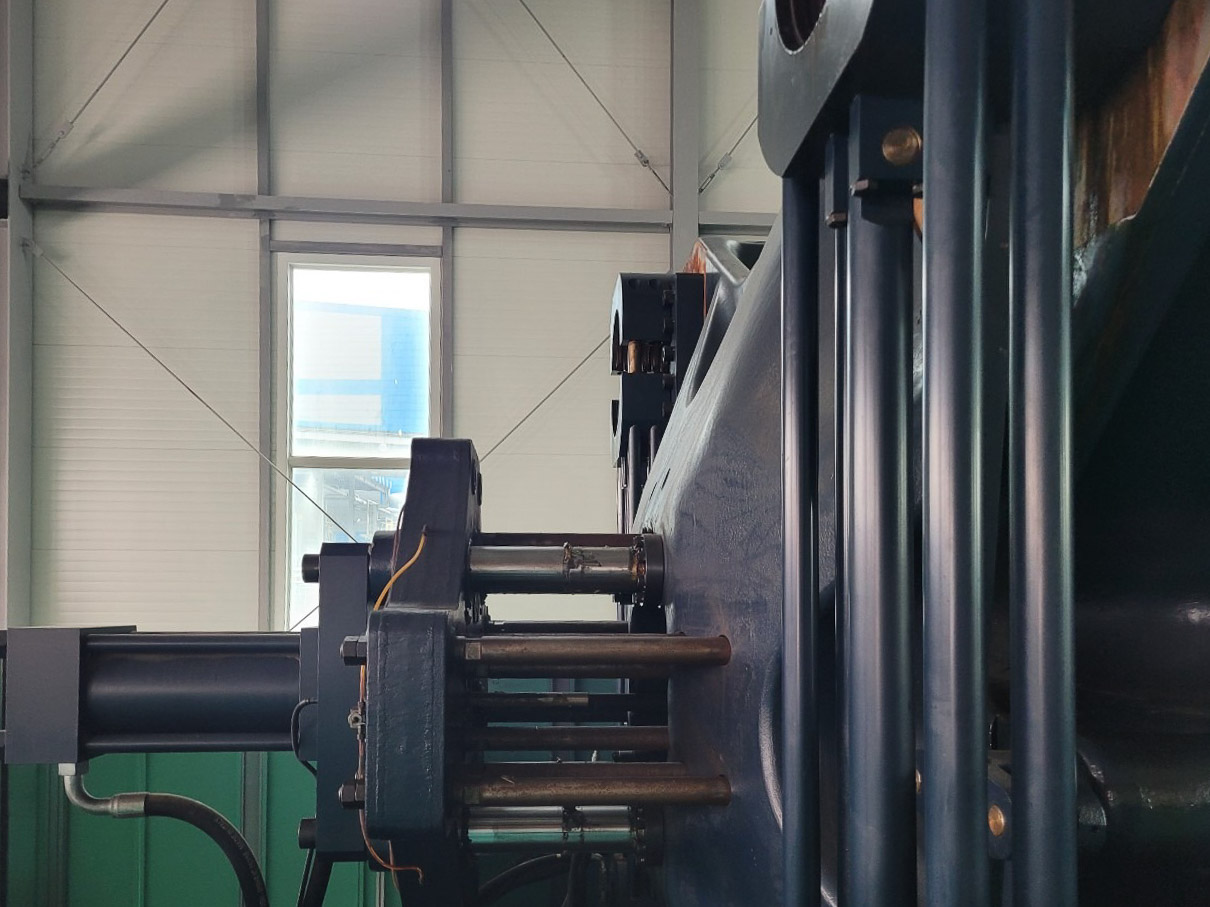

Distance between tie-bars (h x v)	2.260 x 1.810 mm
Ejector stroke / force max.	350 / 665 mm / kN
Injection pressure	1.770 bar
Injection rate	1.719 cm³/s
Injection volume	16.085 cm³
Mold opening force	2.427 kN
Mould height max	2.000 mm
Mould height min	1.100 mm
Nozzle stroke max	800 mm
Oil tank capacity	3.000 l

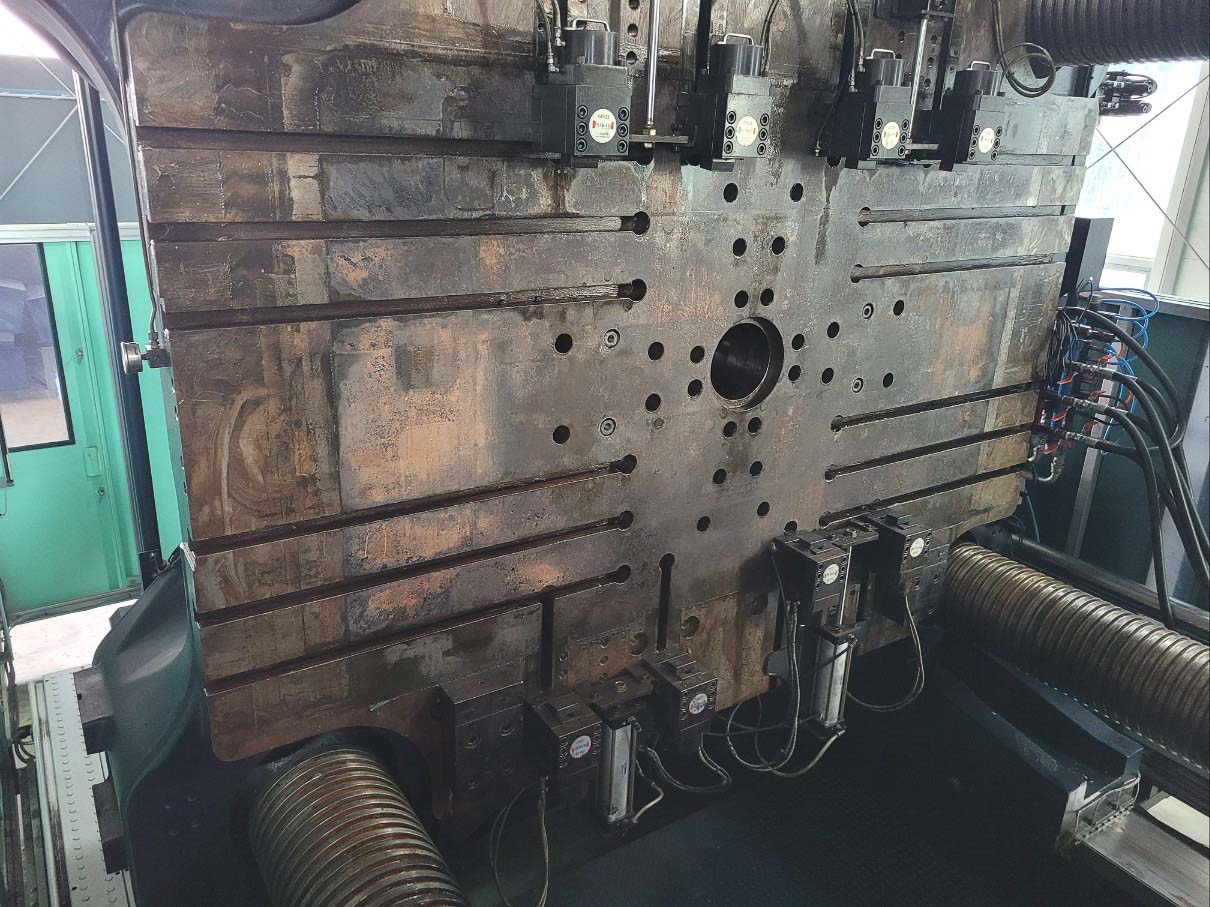

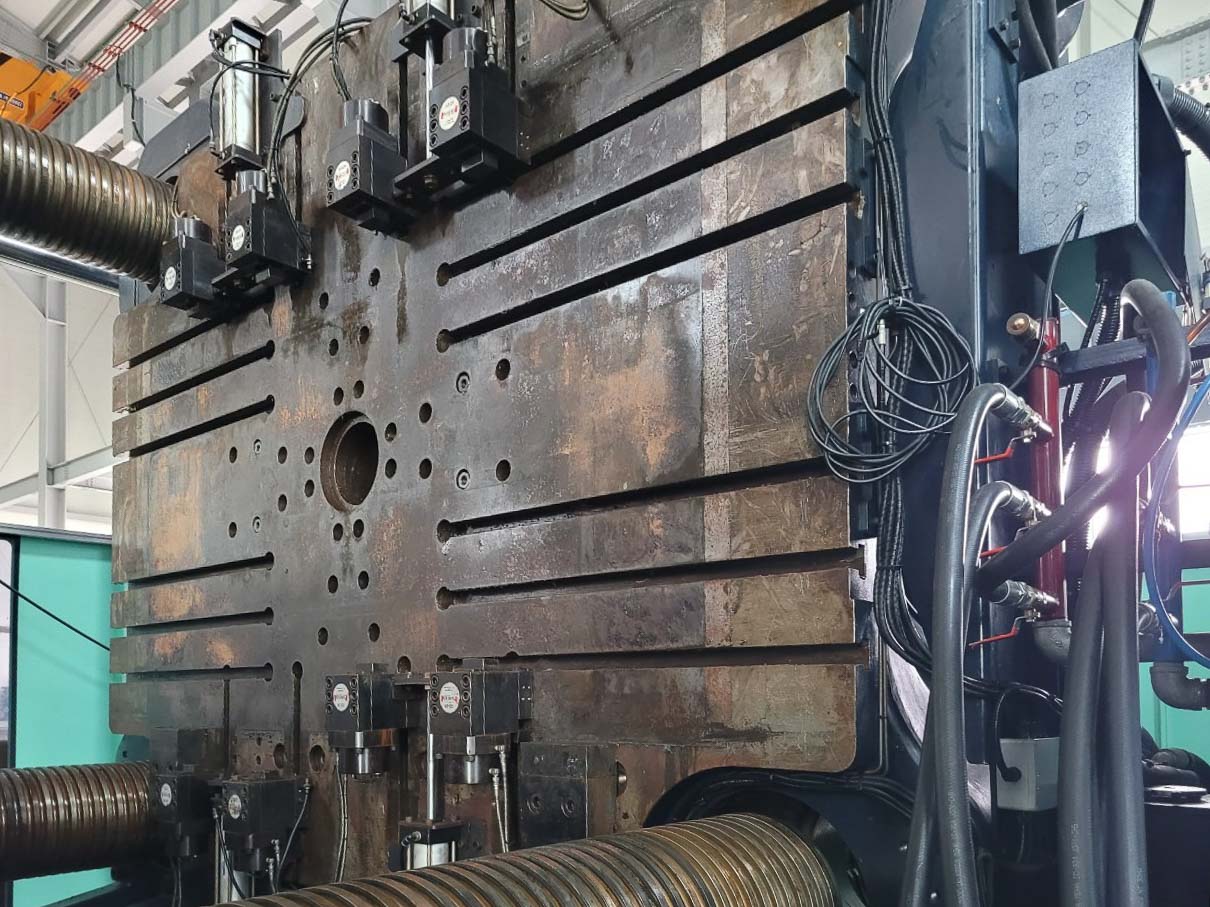

Platen size (h x v)	3.110 x 2.660 mm
Power: installed max	149,1 + 188 kW
Screw speed	78 rpm
Weight	149 + 45 kg

No videos available

WOOJIN PLAIMM DL3000A5 Official Catalogue	View PDF
