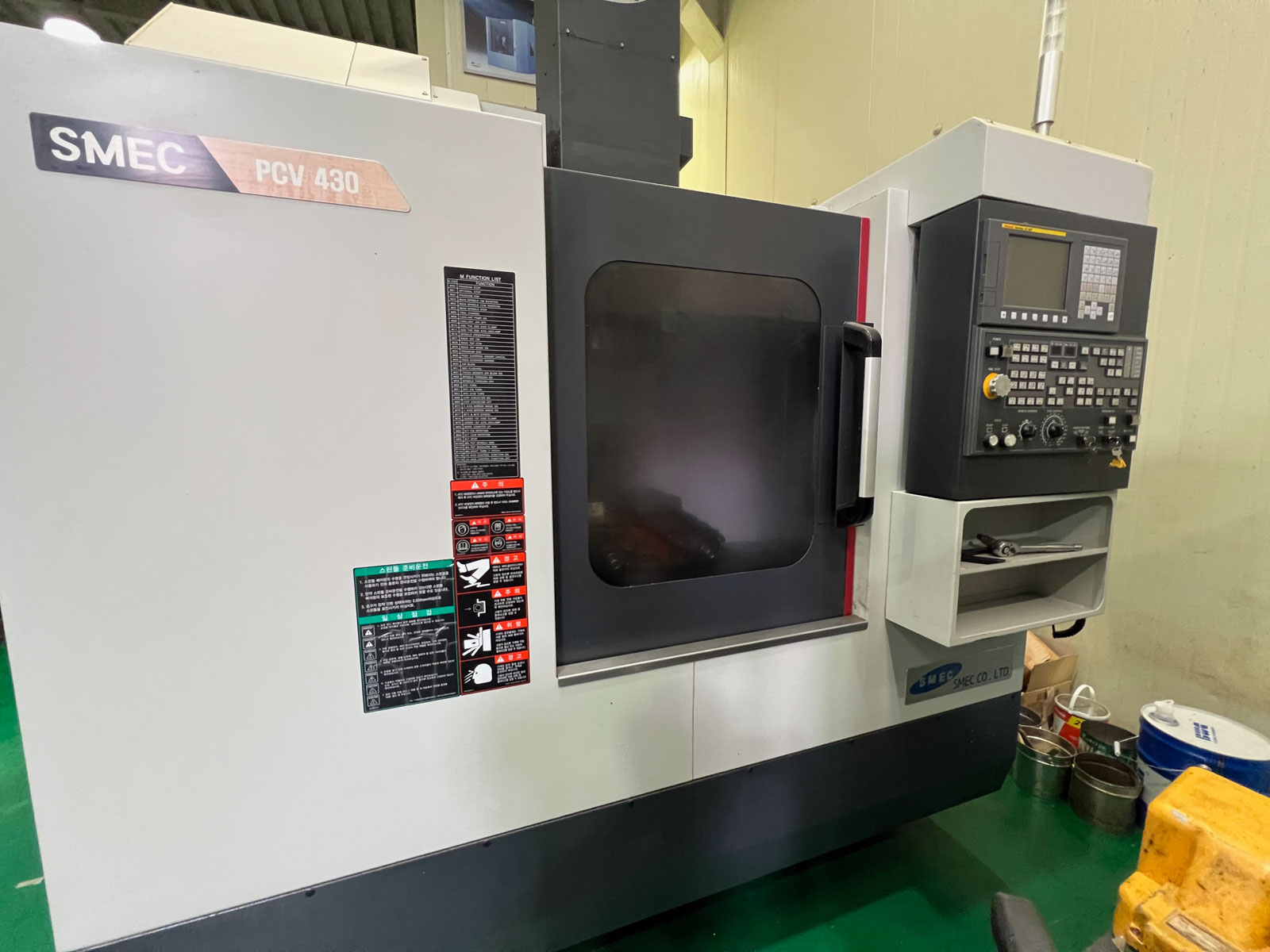

PCV430

Vertical machining center

Category	Machining centres
Condition	Used
Year	2020
Availability	Available
ID	11177

Isaac Mateo

+34 932 711 191

+34 652 098 501

BT40, 10000 RPM, FANUC SYSTEM, ATC30, SPINDLE COOLING DEVICE (OIL COOLER), AIR BLOWER,

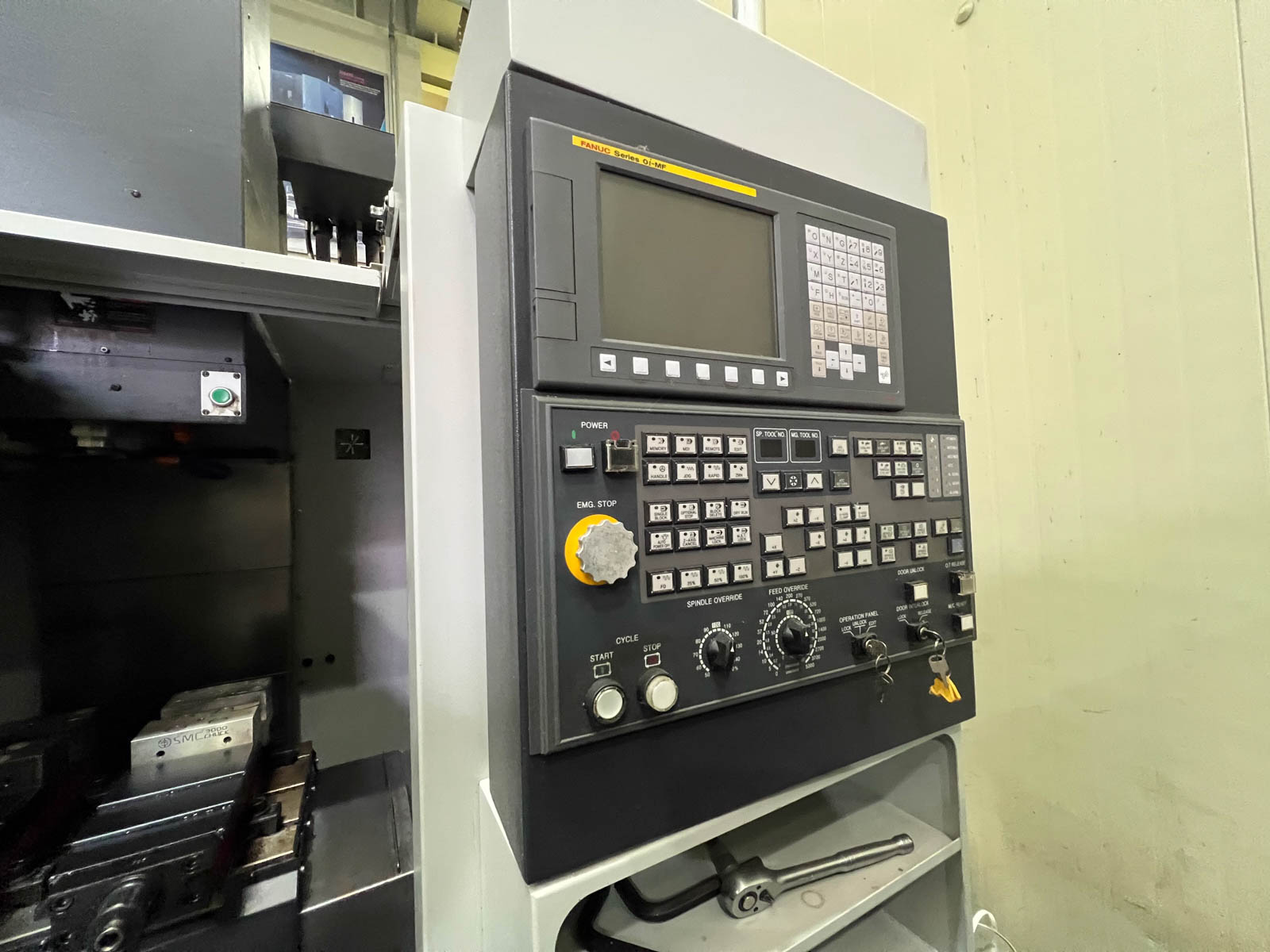

Control	FANUC 0i-MF
Coolant tank capacity	240 l
Dimensions (long x wide x high)	2.100 x 3.287 x 2.794 mm
Max. spindle speed	10.000 rpm
Max. tool dia. tool dia. with adjacent positions empty	125 mm
Max. tool diameter	80 mm
Max. tool length	300
Max. tool weight	7 kg
Max. workpiece weight	560 kg
Number of tool stations	24
Power: installed max	32 kW
Rapid Traverse (X x Y x Z)	48.000 mm/min
Spindle power	20 kW
Spindle type	CAT-40
Torque	95 Nm
Travel (X x Y x Z)	701 x 430 x 510 mm
Weight	4.500
Working area (X x Y x Z)	701 x 430 x 510 mm

No videos available

There are no available documents
