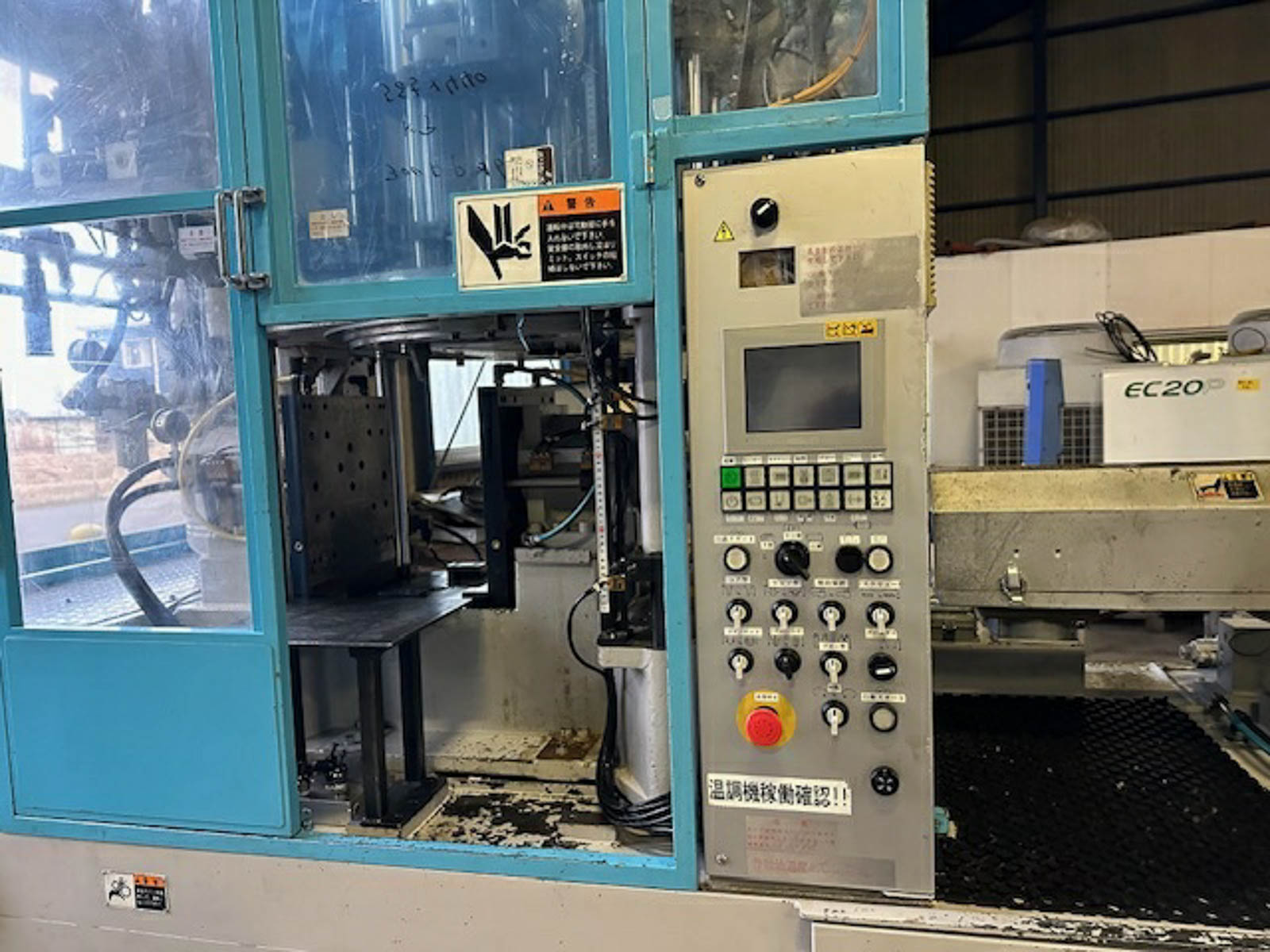

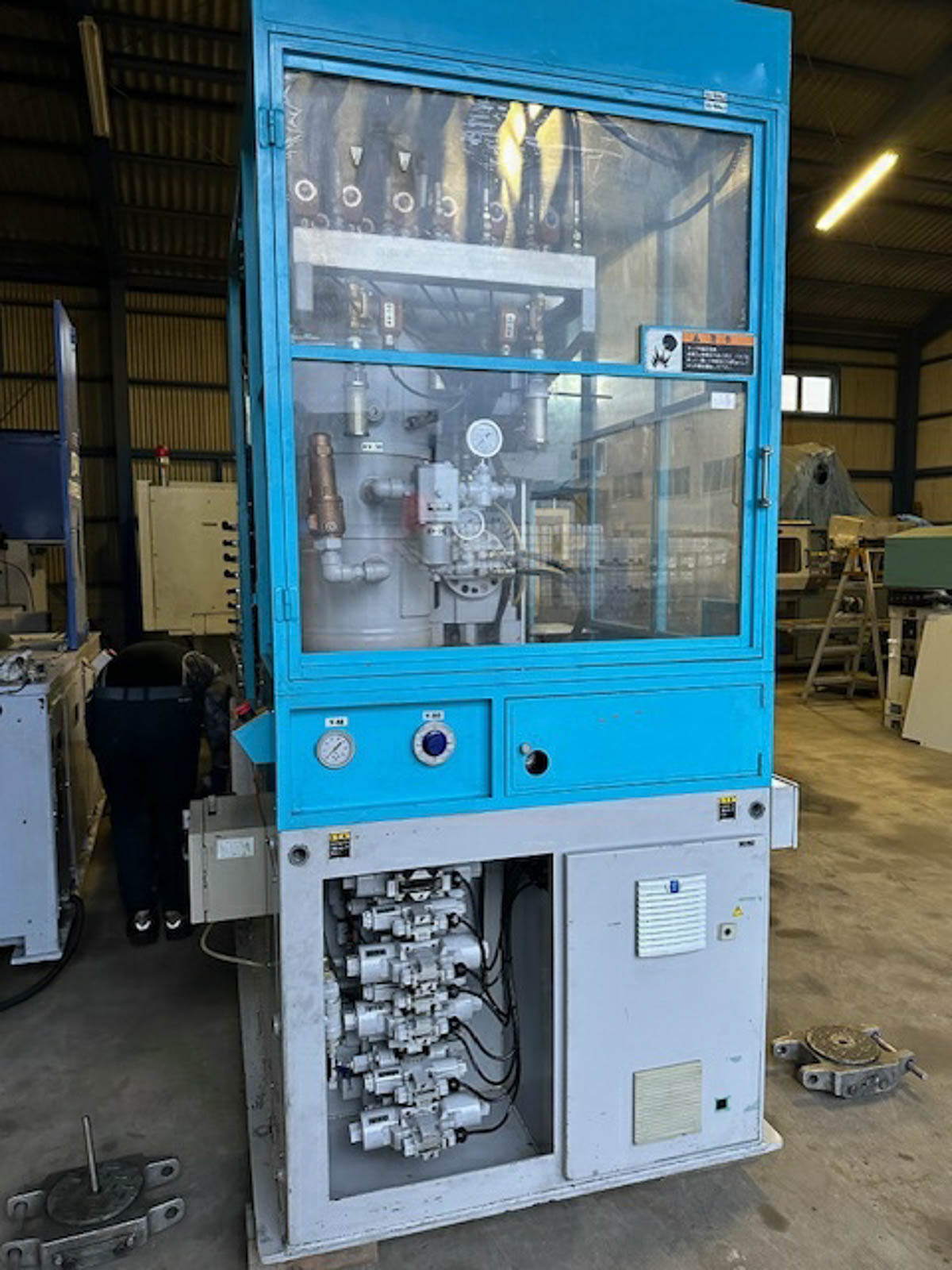

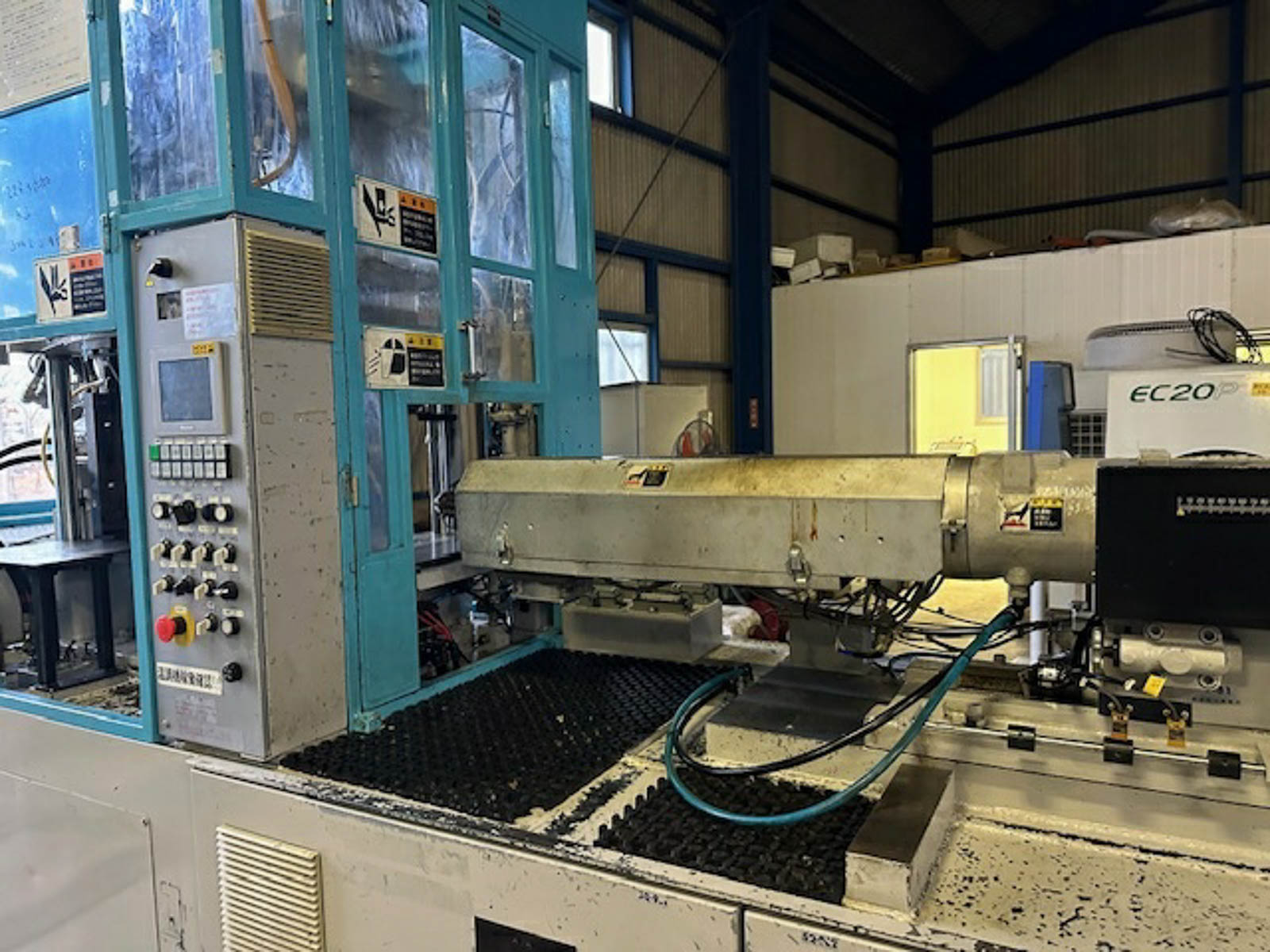

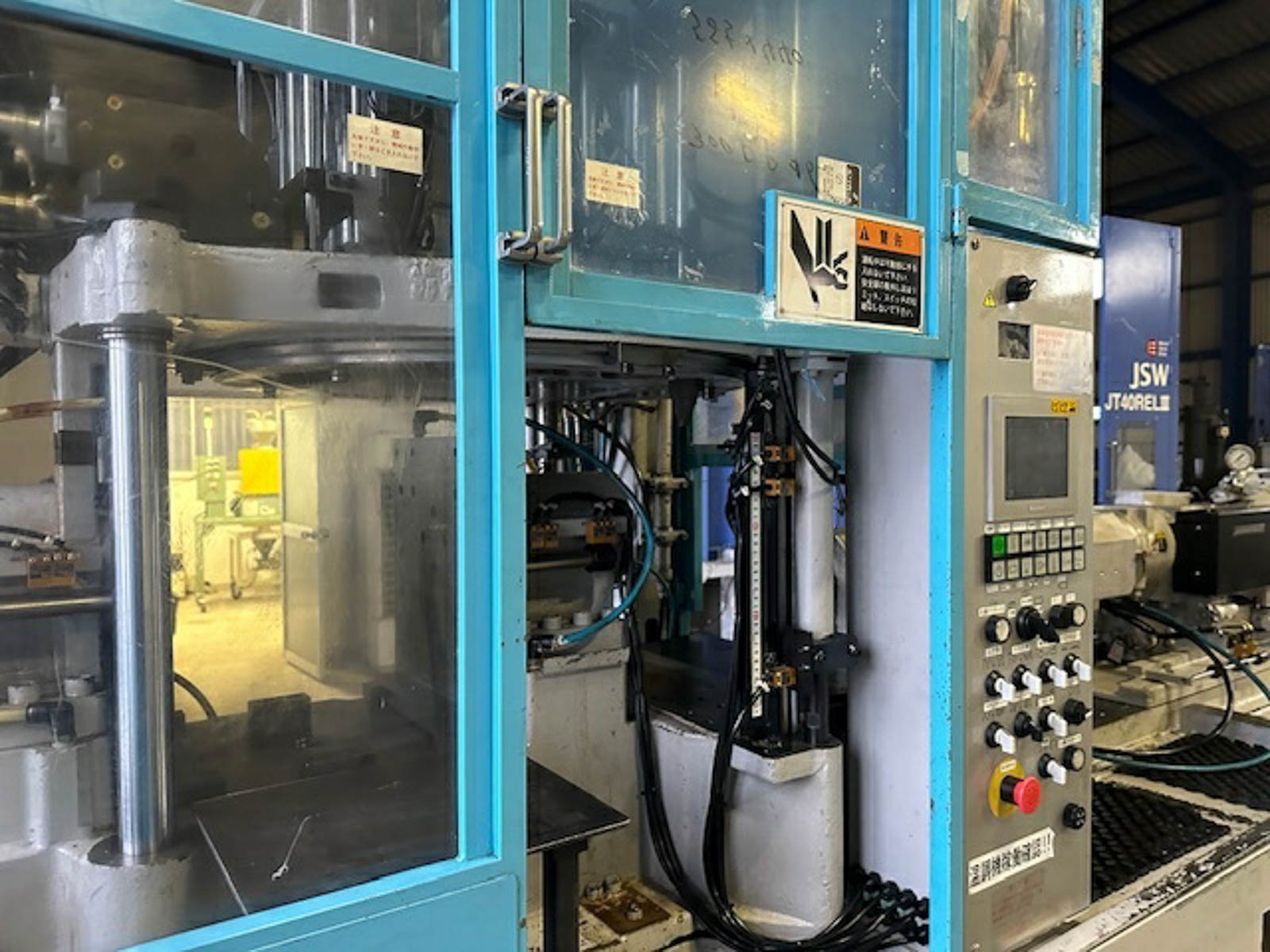

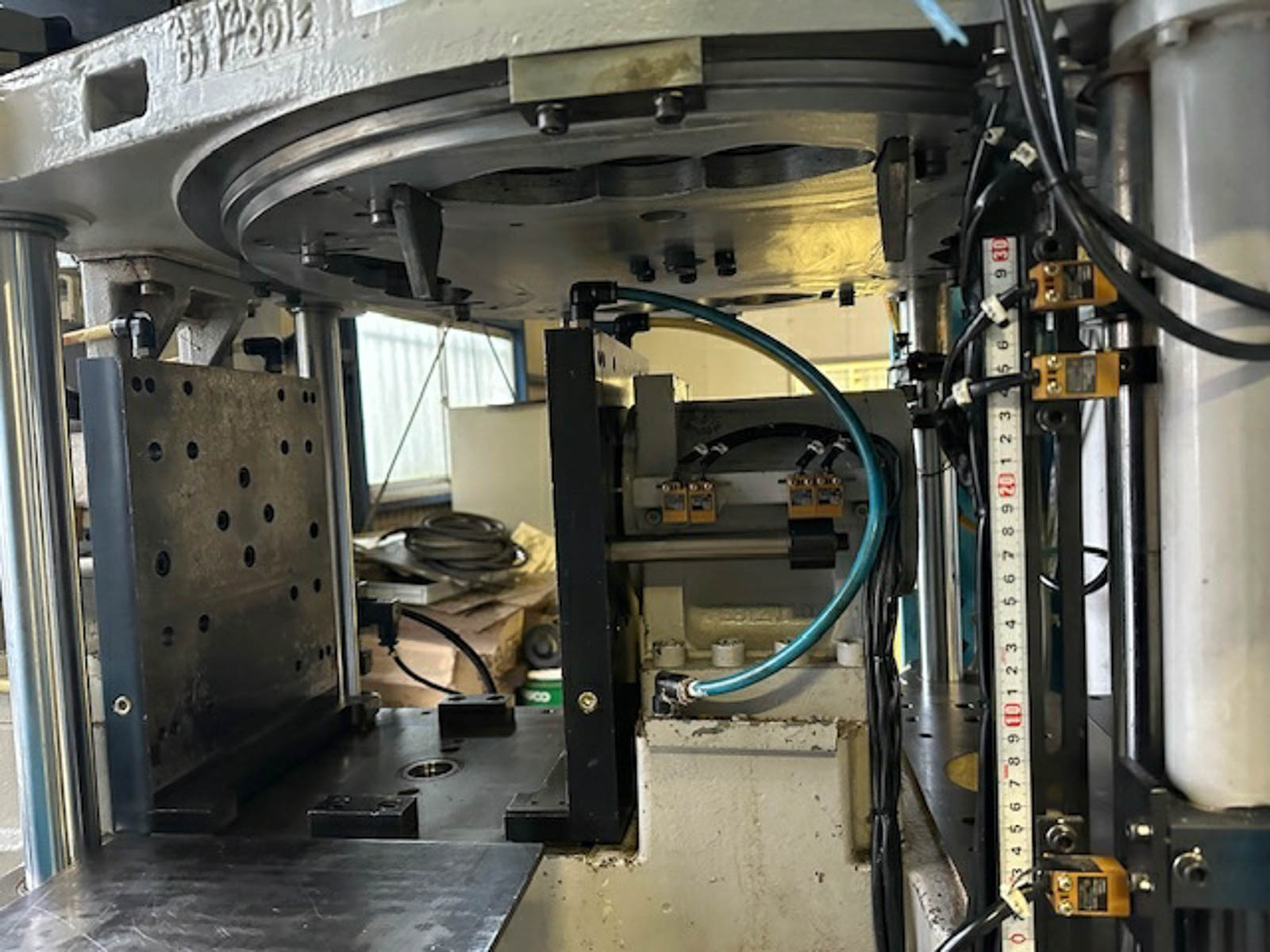

NISSEI ASB

Machine Specification ASB-12N/10
- Machine size (LxWxH): 4.083 x 1.110 x 2.957 mm
- Machine weight: 3.628,74 kgs
- Standard screw diameter: 44 mm
- Injection clamping force: 137 kN
- Blow clamping force: 116 kN
- Driving Power: 19,3 kW
- Oil reservoir capacity 220 L

Product specification ASB-12N/10 (Injection Blow)
- Cavity number: (1) to (6)
- Max. capacity: (0.80) to (0.07) L
- Max. thread diameter: (72) to (21) mm
- Max. body diameter: (118) to (35) mm
- Max. height: (140) to (100) mm
- Max. weight: (77) to (12) kgs
