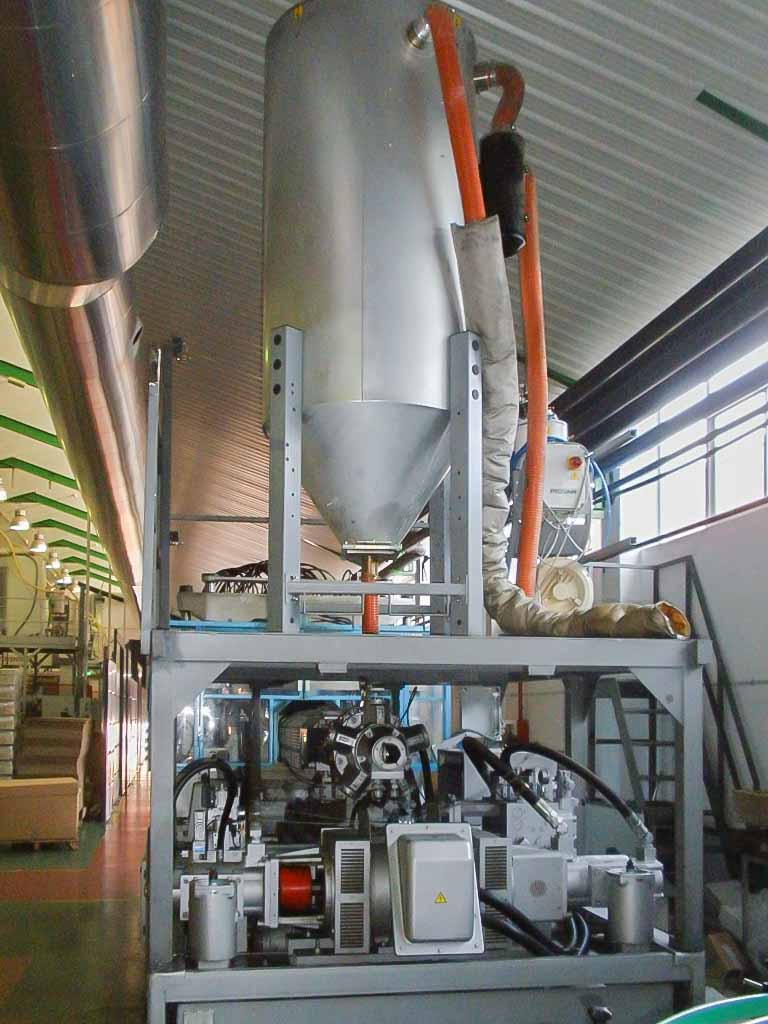

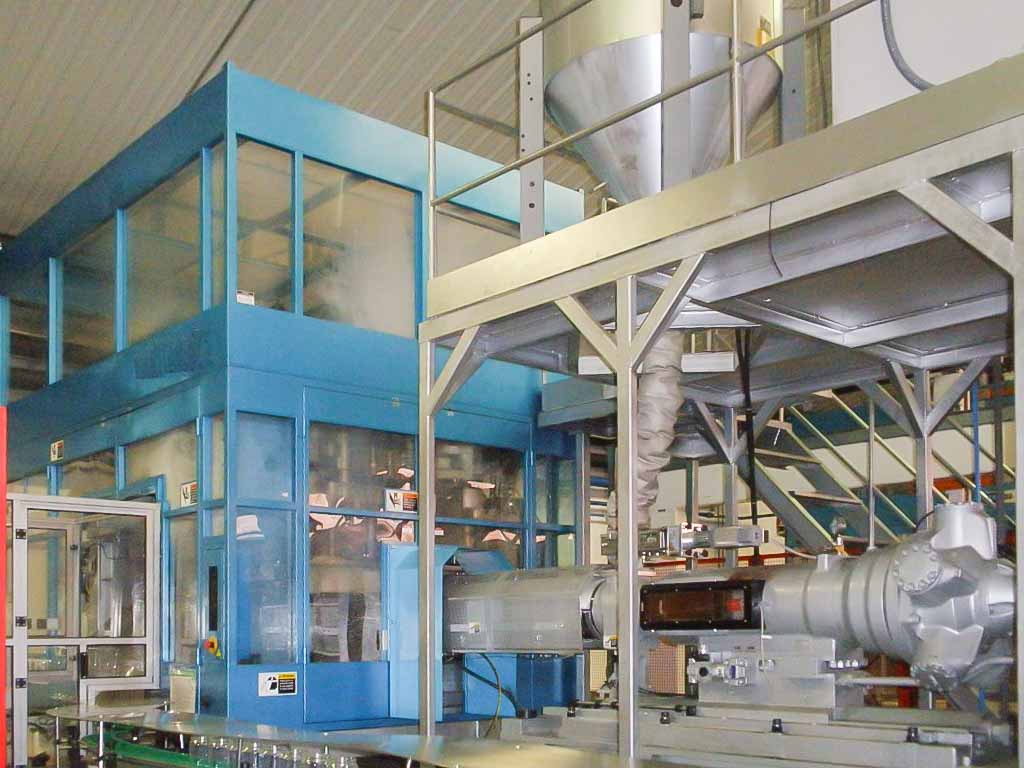

NISSEI ASB

Single step injection stretch blow molding machine

INJECTION CAVITY: 12
BLOW CAVITY: 12

Injection unit:

Unit model: IU-110
Hydraulic circuit pressure: 14,0 MPa
Screw diameter: 75 mm.
Injection capacity: 1060 *1 cm3/shot
Injection rate: 321 *1 cm3/shot (max)
Injection pressure: 131 MPa
Screw stroke: 240 mm.
Screw rotation speed: 0-120 *1 r/min

Injection mold clamp station: DL 510

Hydraulic circuit pressure: 14,0 MPa
Clamping force, upper: 949 kN
Clamping force, lower: 508 kN
Clamping stroke, upper: 400 mm.
Clamping stroke, lower: 300 mm.

Heating station

Heating core stroke: 350 mm.
Heating core cylinder diameter: 80 mm.
Heating pot stroke: 200 mm.
Heating pot cylinder diameter: 80 mm.

Stretch blow mold clamp station

Stretch stroke: 200 mm.
Stretch cylinder diameter: 100 mm.
Stretch force (AT 1,0 MPa): 7,8 kN

Blow core stroke: 300 mm.
Blow core cylinder diameter: 125 mm.
Blow core clamping force (AT 1,0 MPa): 12,2 kN

Blow mold clamping force (AT 14,0 MPa): 494 kN
Blow mold clamping stroke: 490 mm.
Blow mold platen size: 1040 x 370 mm.
Bottom mold clamping force (AT 14,0 MPa): 65,9 kN.
Bottom mold clamping stroke without spacer: 15 mm.
Bottom mold clamping stroke without spacer: 60

Bottle eject station
Ejector stroke: 185 mm.
Ejector cylinder diameter: 80 mm.

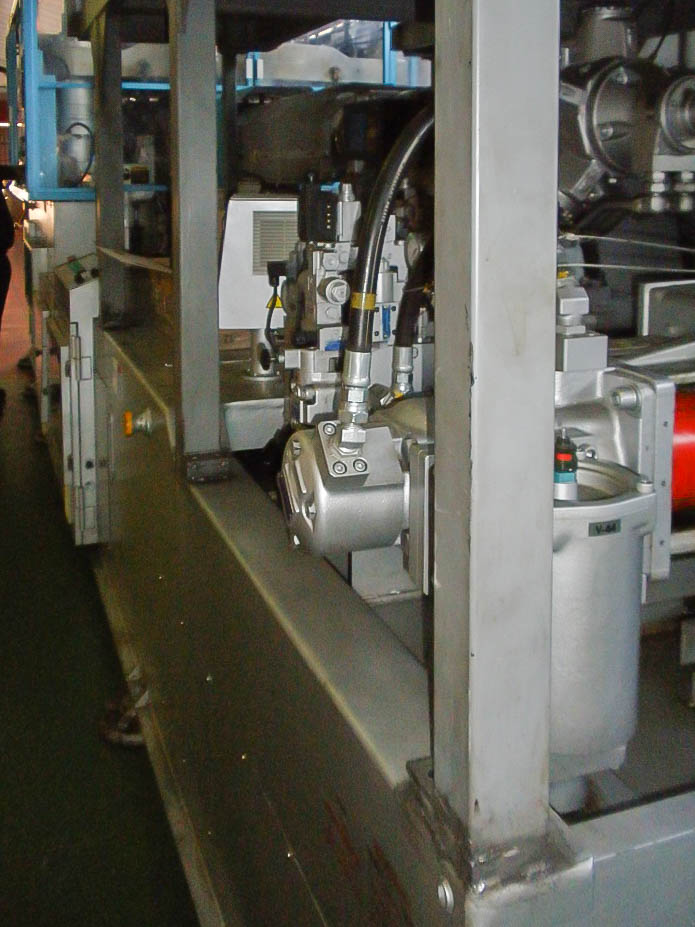

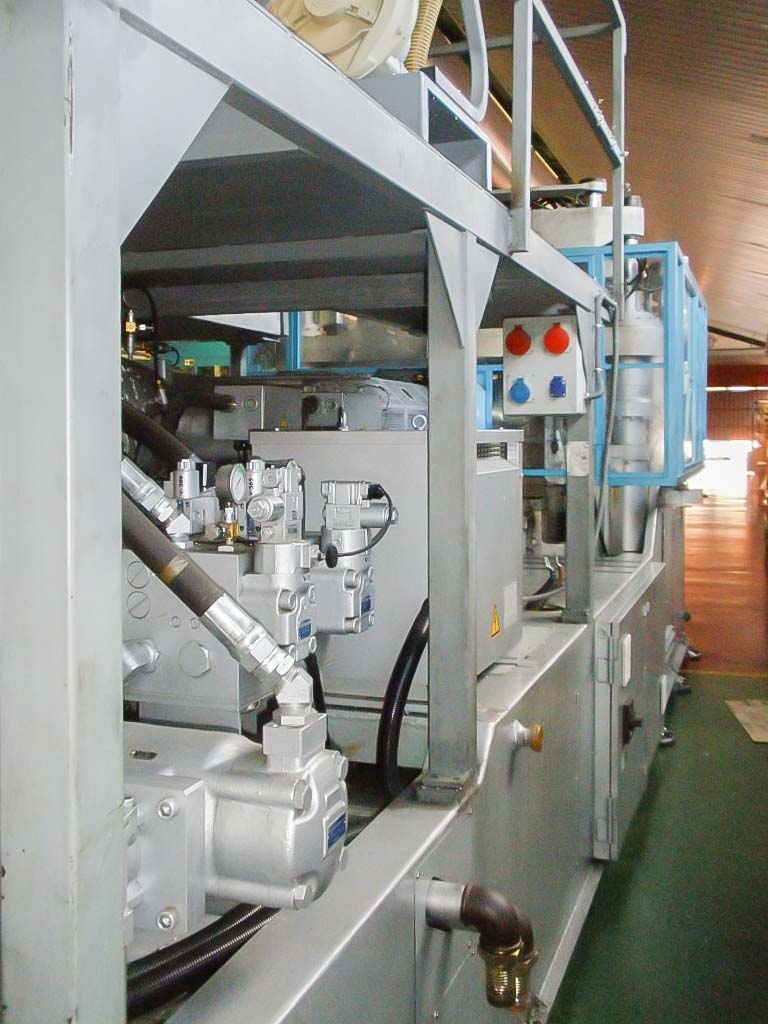

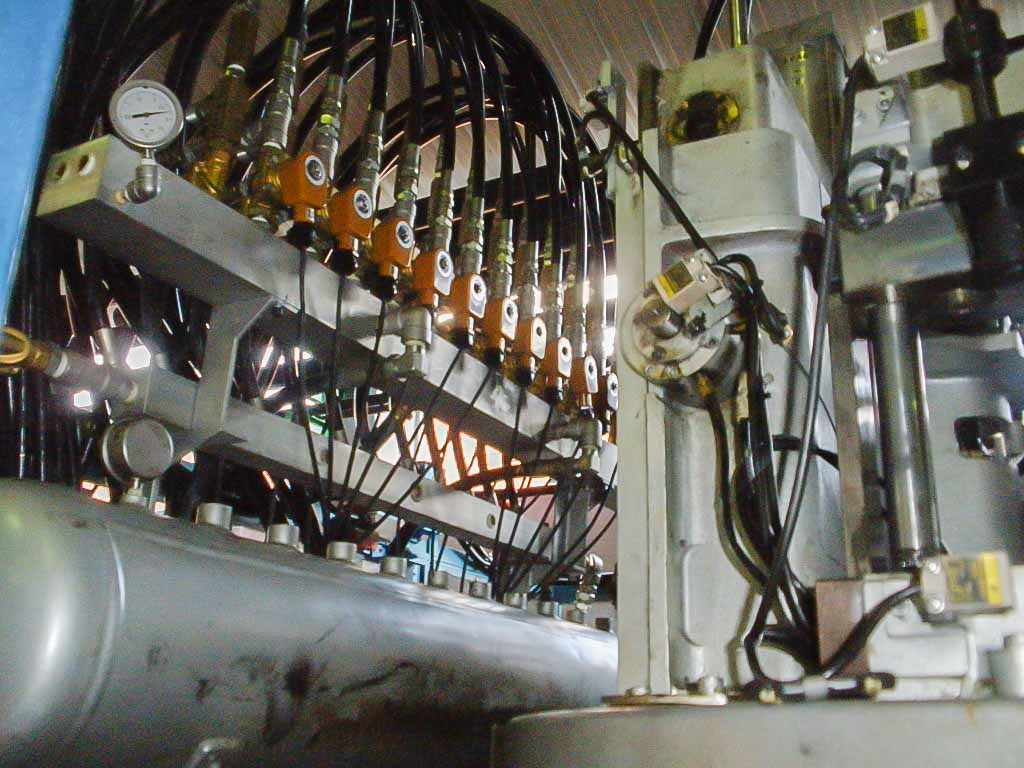

Hydraulic system
Oil tank capacity: 2000 l.
Pump delivery (AT 0,7 MPa): 760 l/min.

Dimensions aprox.: Length = 7230 mm., Width = 2350 mm., Height = 3296 mm. (Volume aprox. = 56 m3). Weight = 21000 Kg.
