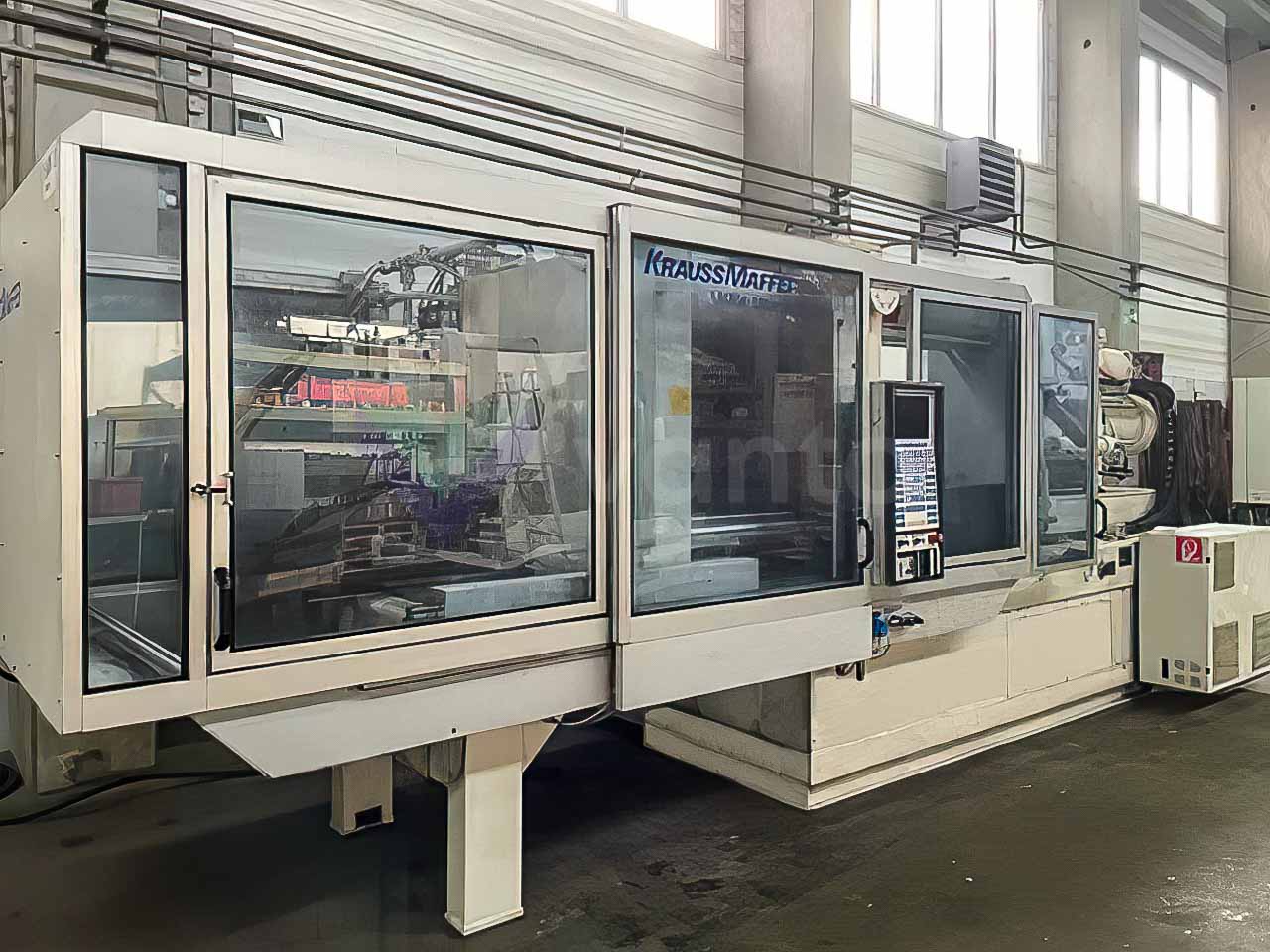

KM 350-1900 C2

350t injection molding machine

Category 250 to 499t Injection moulding machines
Condition Used
Year 2003
Availability Available
ID 10650
Request a quote
Clamping force


ROBOT ENGEL ERC65 X-axis 800 (EUROMAP standar)
Y-axis 1400
Z-axis: 2840
A-axis C-axis
2 x vacuum 3 x gripper

Cascades / Sequential valve gates6
Clamping force3.500 kN
ControlMC 4
Core pulls5
Daylight between platens max1.300 mm
Dimensions (long x wide x high)6.500 x 2.100 x 2.380 mm
Distance between tie-bars (h x v)710 x 710 mm
Ejector stroke / force max.250 / mm / kN
Injection volume769 cm³
Mould height max920 mm
Mould height min380 mm
Mould opening stroke max1.300 mm
Platen size (h x v)1.060 x 1.095 mm
Power: installed max55 kW
Screw diameter60 mm
Screw L/D ratio23
Shot weight max650 g
Weight15.500 kg
