ENGEL

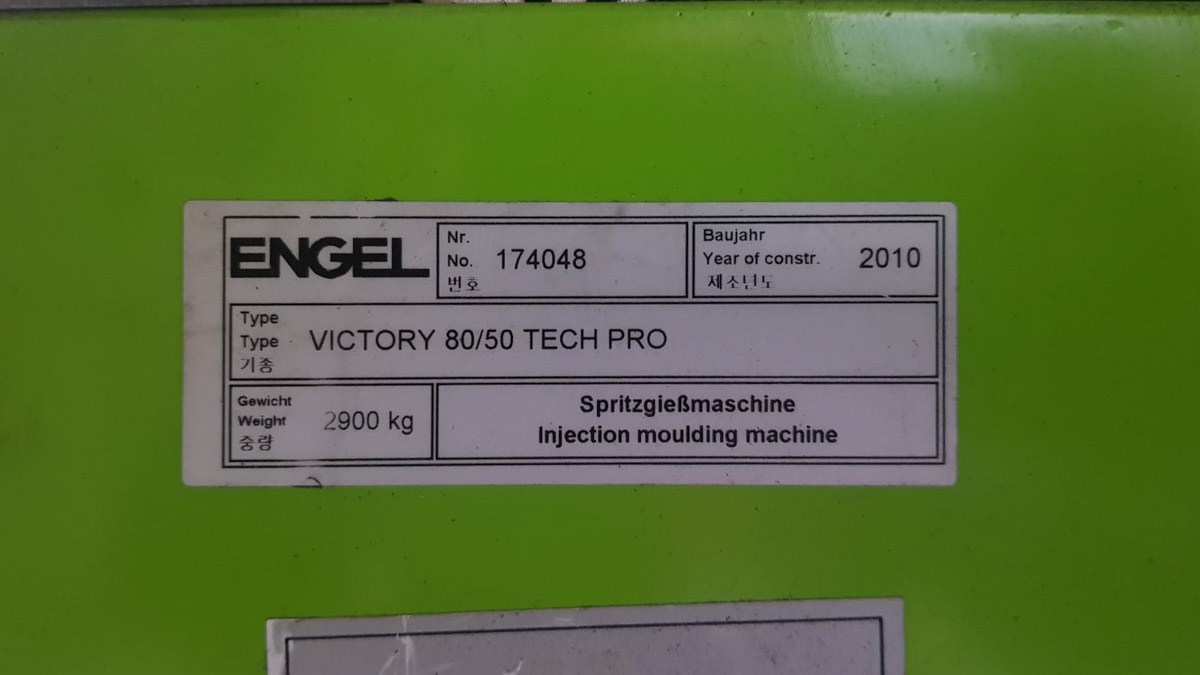

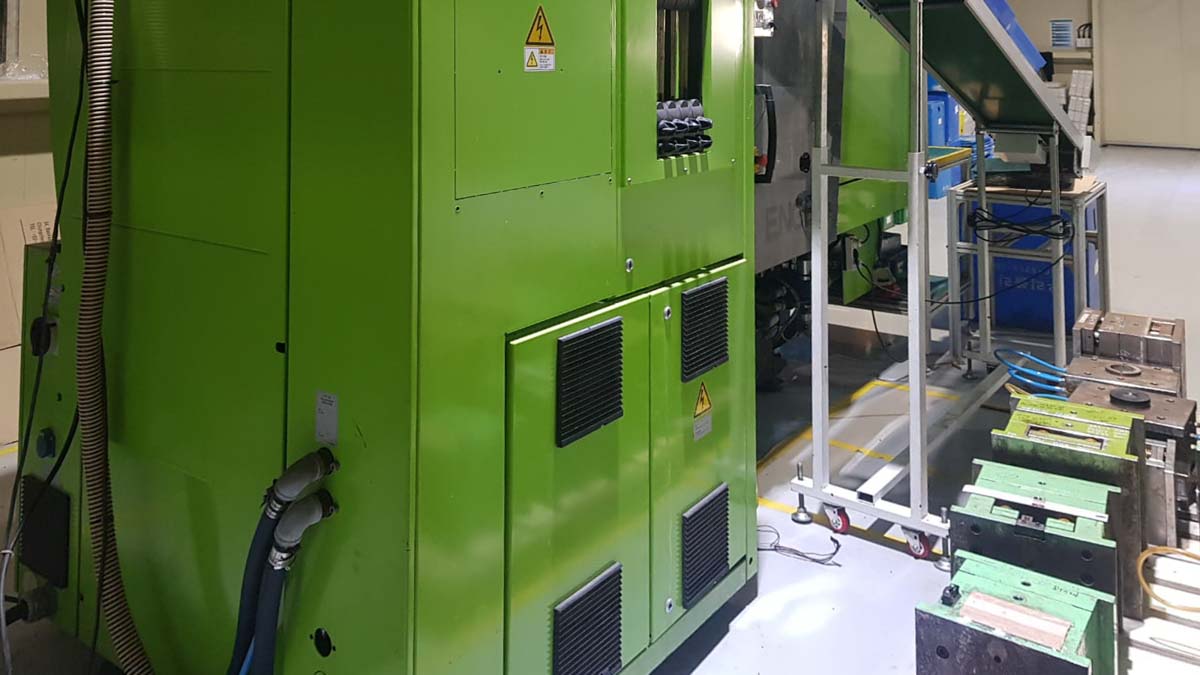

VICTORY VC 80 / 50 TECH PRO

50t injection molding machine

Category 10 to 99t Injection moulding machines
Condition Used
Year 2010
Availability Sold
ID 10262
Sold

Hybrid

Clamping force500 kN

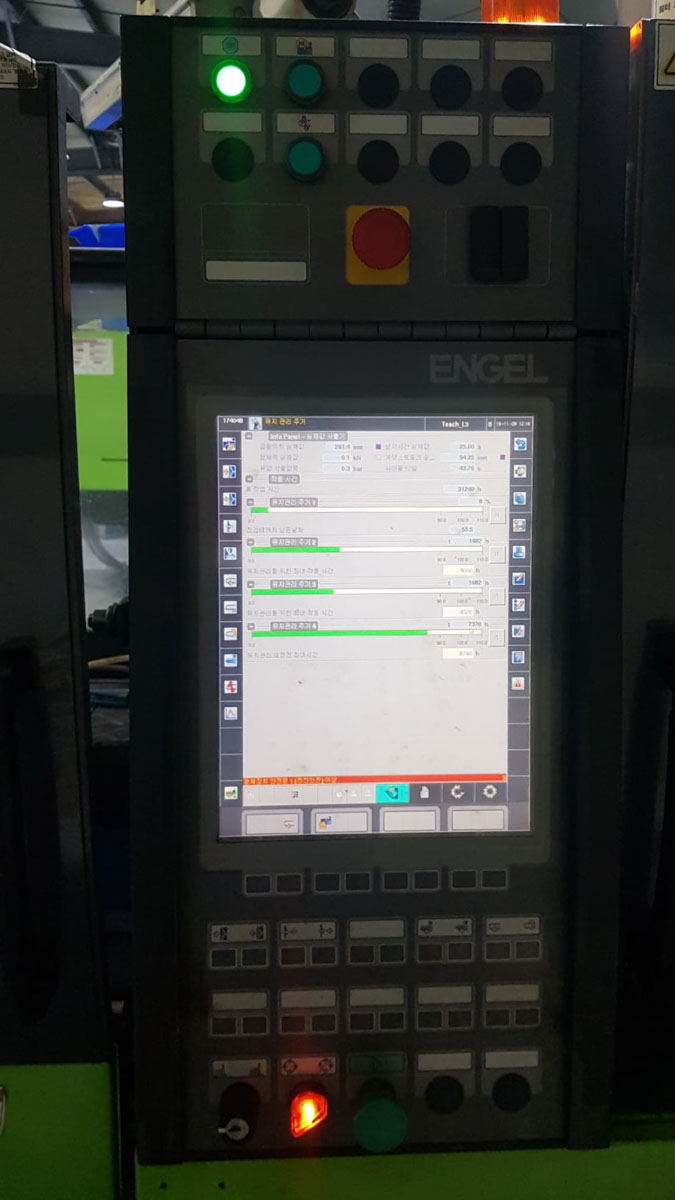

ControlCC200
Dimensions (long x wide x high)3.400 x 1.300 x 1.800 mm
Distance between tie-bars hn/a mm
Distance between tie-bars vn/a mm
Ejector force40 kN
Heating zones4
Injection pressure2.060 bar
Injection rate78 cm³/s
Injection volume38 cm³
Mould height max mm
Mould height min200 mm
Mould opening stroke max600 mm
Nozzle stroke / force max.28 mm / kN
Nozzle stroke max200 mm
Oil tank capacity135 l

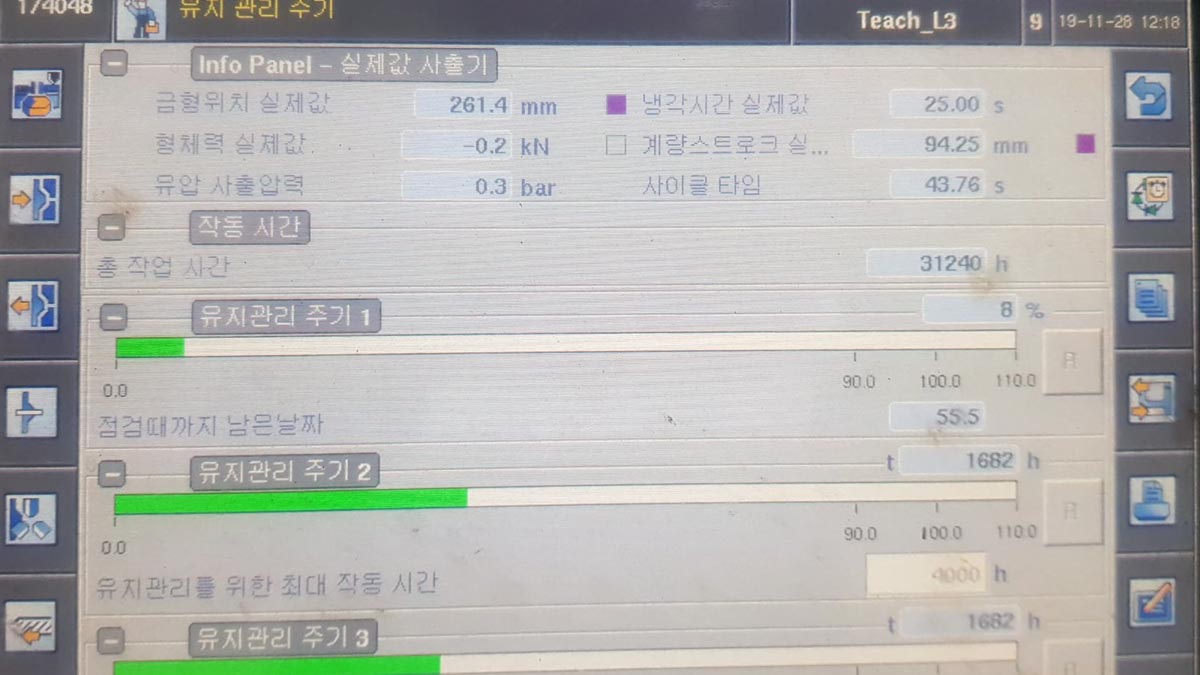

Operating hours31.240

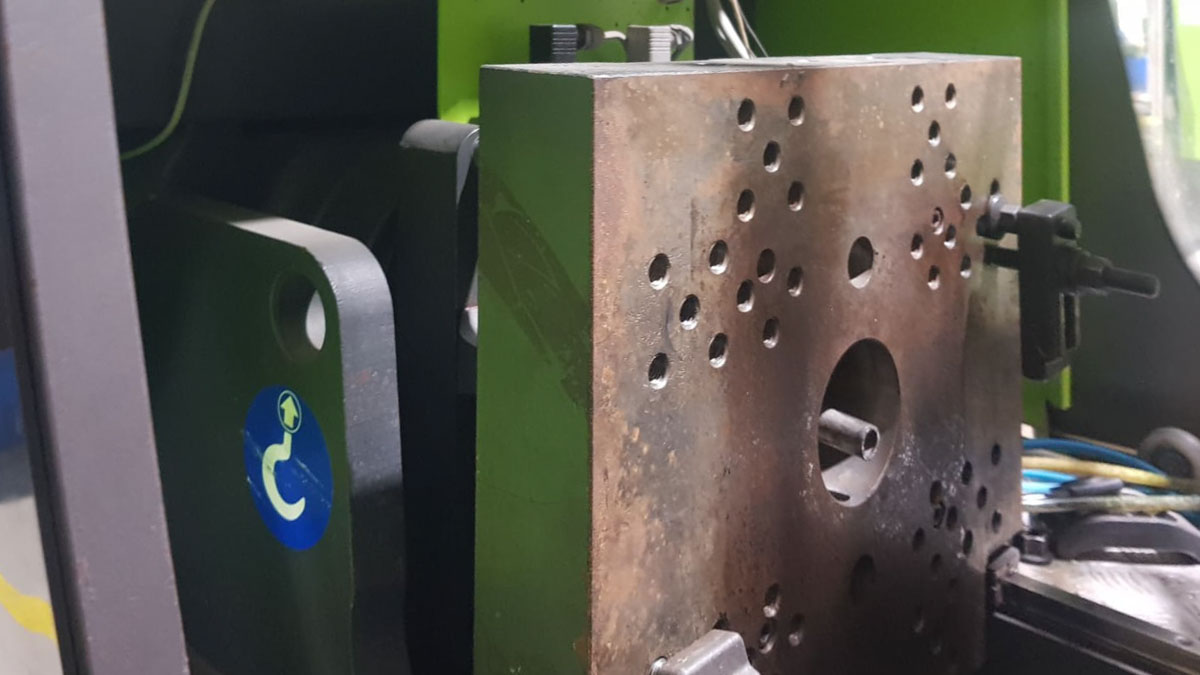

Platen size (h x v)500 x 350 mm
Power: installed max13 kW
Screw diameter22 mm
Screw L/D ratio18,7
Screw speed360 rpm
Shot weight max35 g
Weight2.700 kg

No videos available


There are no available documents
