ENGEL

VICTORY VC 750 / 300

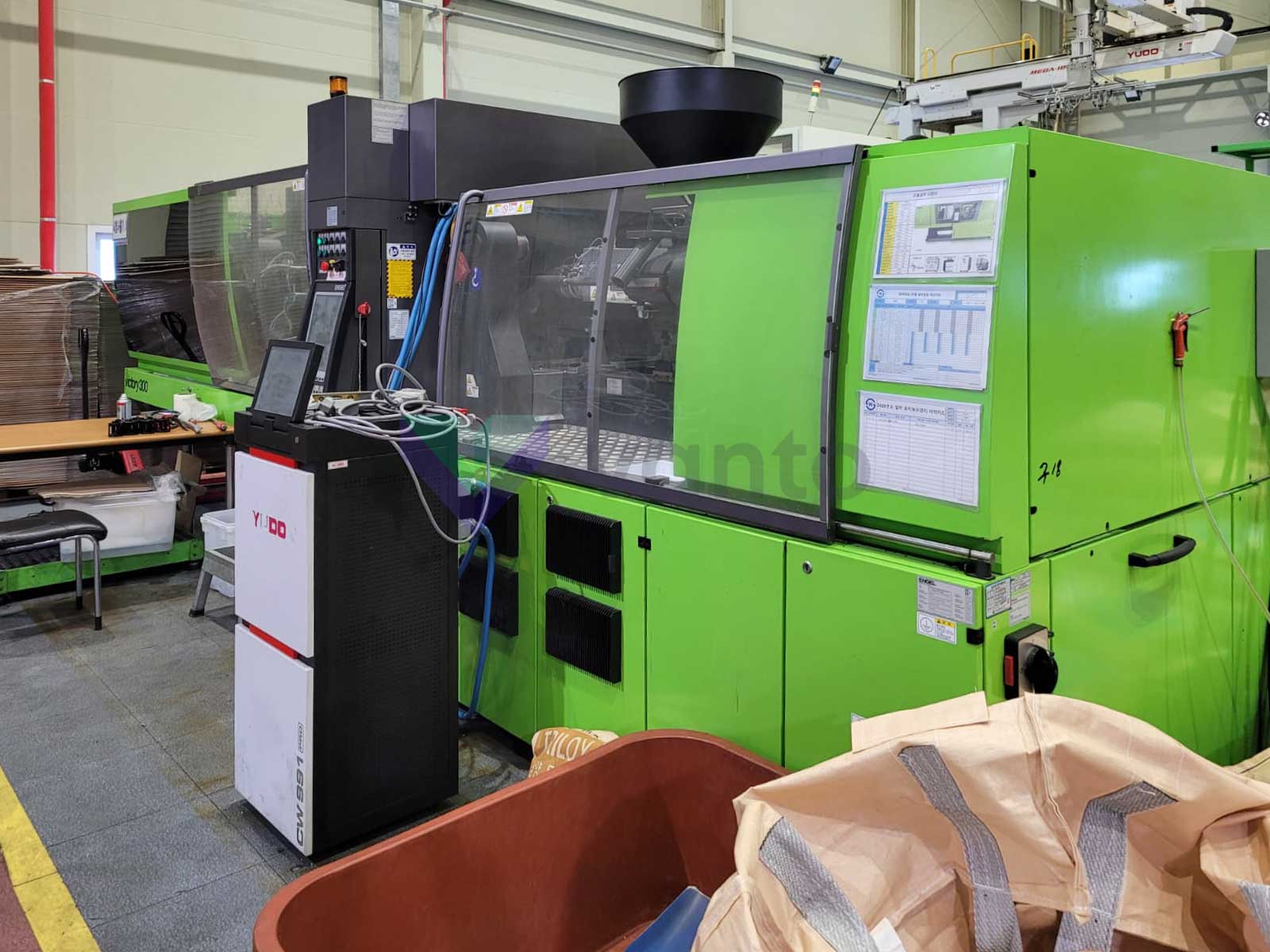

300t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2012
Availability	Sold
ID	10489

Clamping force

0kN

Clamping force	3.000 kN
Daylight between platens max	1.300 mm
Ejector force	90 kN
Heating zones	4
Injection pressure	2.400 bar
Injection rate	141 cm³/s
Injection volume	251 cm³
Mould height min	400 mm
Mould opening stroke max	900 mm
Oil tank capacity	870 l
Operating hours	n/a
Platen size h	1.100 mm
Platen size v	700 mm

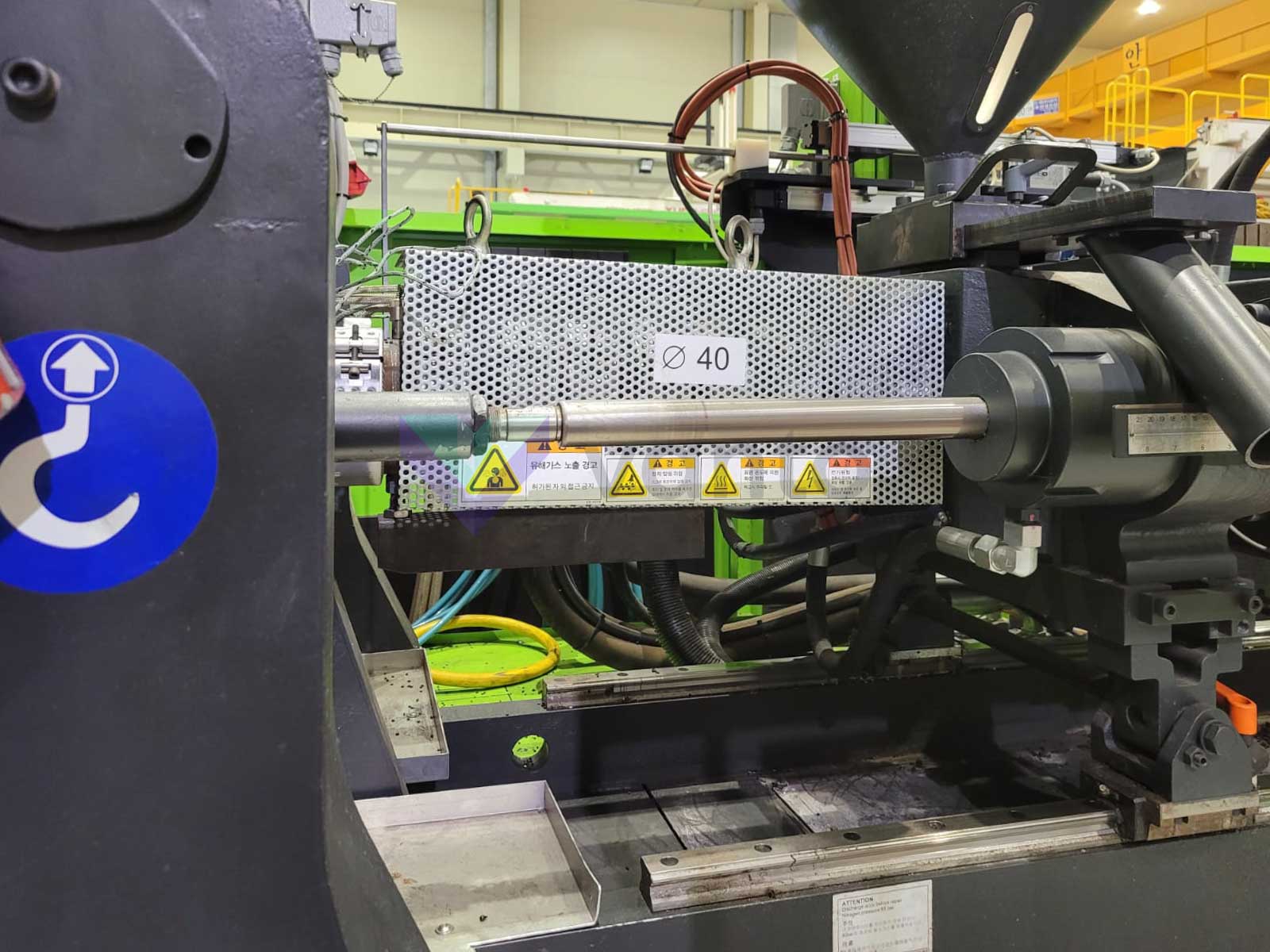

Screw diameter	40 mm
Screw L/D ratio	20
Screw speed	290 rpm
Shot weight max	231 g
