ENGEL

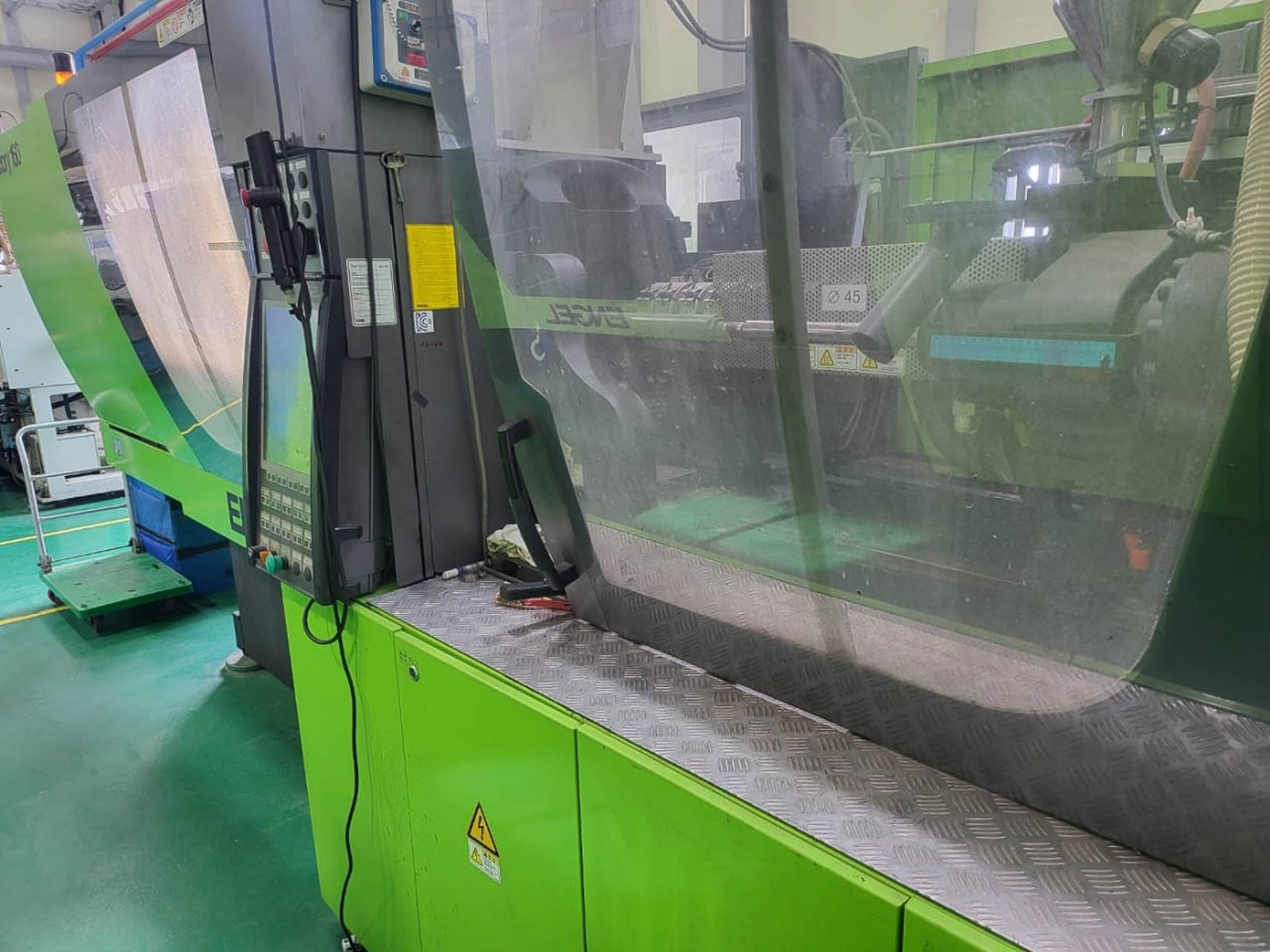

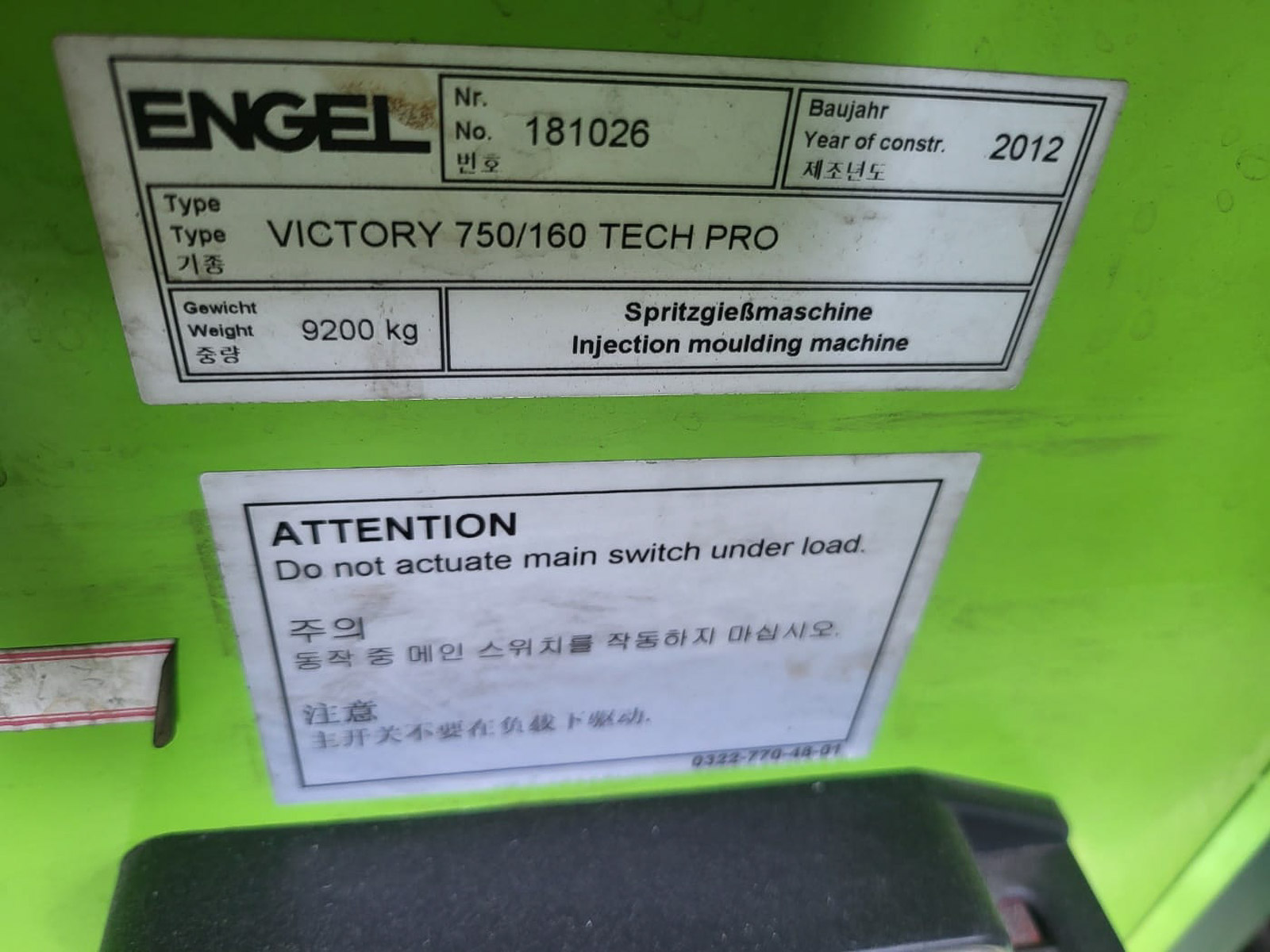

VICTORY VC 750 / 160 TECH PRO

160t injection molding machine

Category	100 to 249t Injection moulding machines
Condition	Used
Year	2012
Availability	Available
ID	11267

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force	1.600 kN
Dimensions (long x wide x high)	5.800 x 1.700 x 2.400 mm
Ejector stroke / force max.	150 / 61 mm / kN
Heating zones	5
Injection pressure	1.430 - 1.910 bar
Injection rate	220 cm³/s
Injection volume	392 cm³
Nozzle stroke / force max.	350 / 67 mm / kN
Oil tank capacity	460 l
Platen size (h x v)	750 x 750 mm

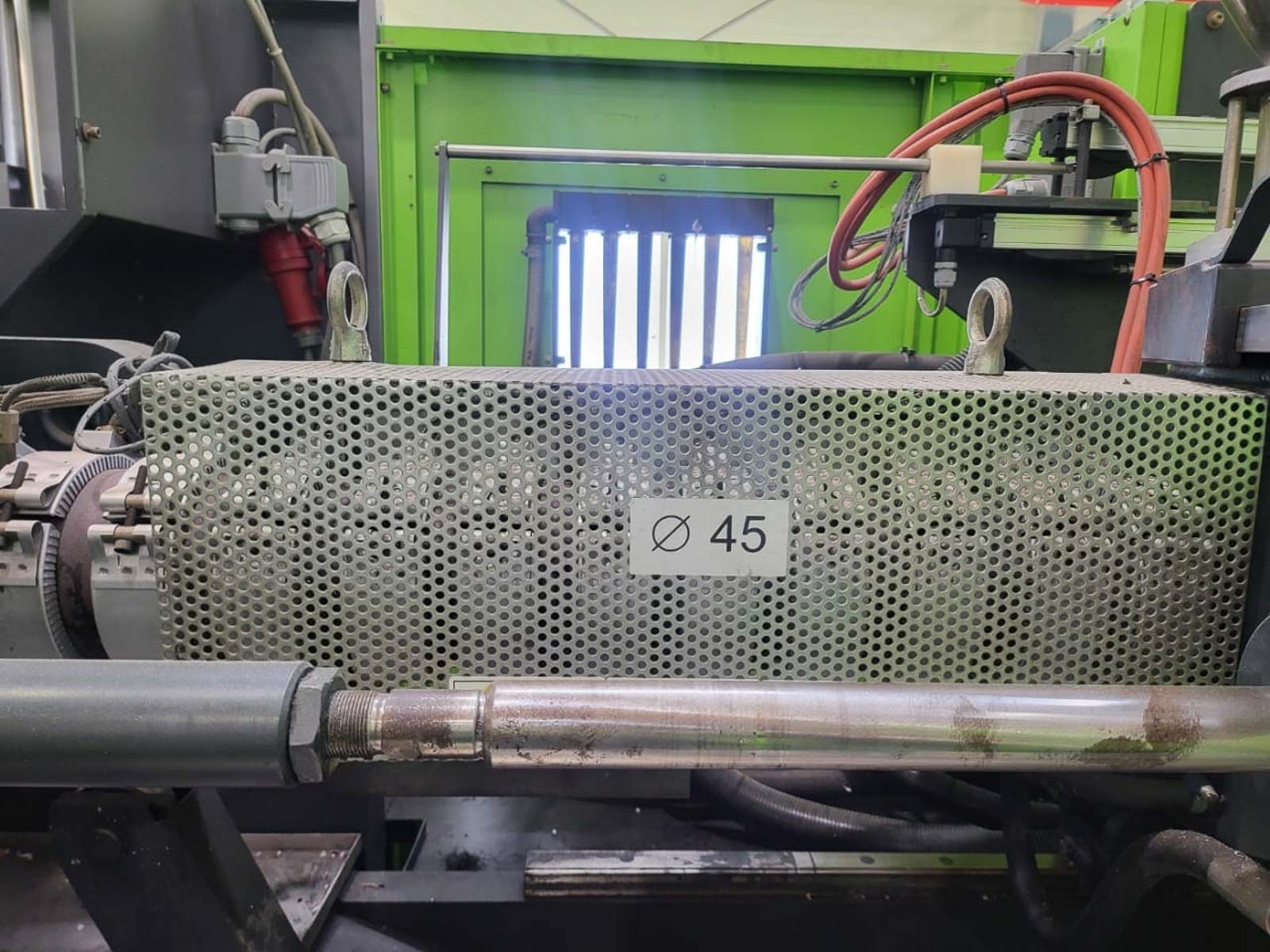

Screw diameter	45 mm
Screw L/D ratio	20
Screw speed	290 rpm
Shot weight max	361 g
Weight	8.900 kg

No videos available

ENGEL VICTORY VC 750 / 160 TECH PRO Technical Specification Sheet	View PDF
