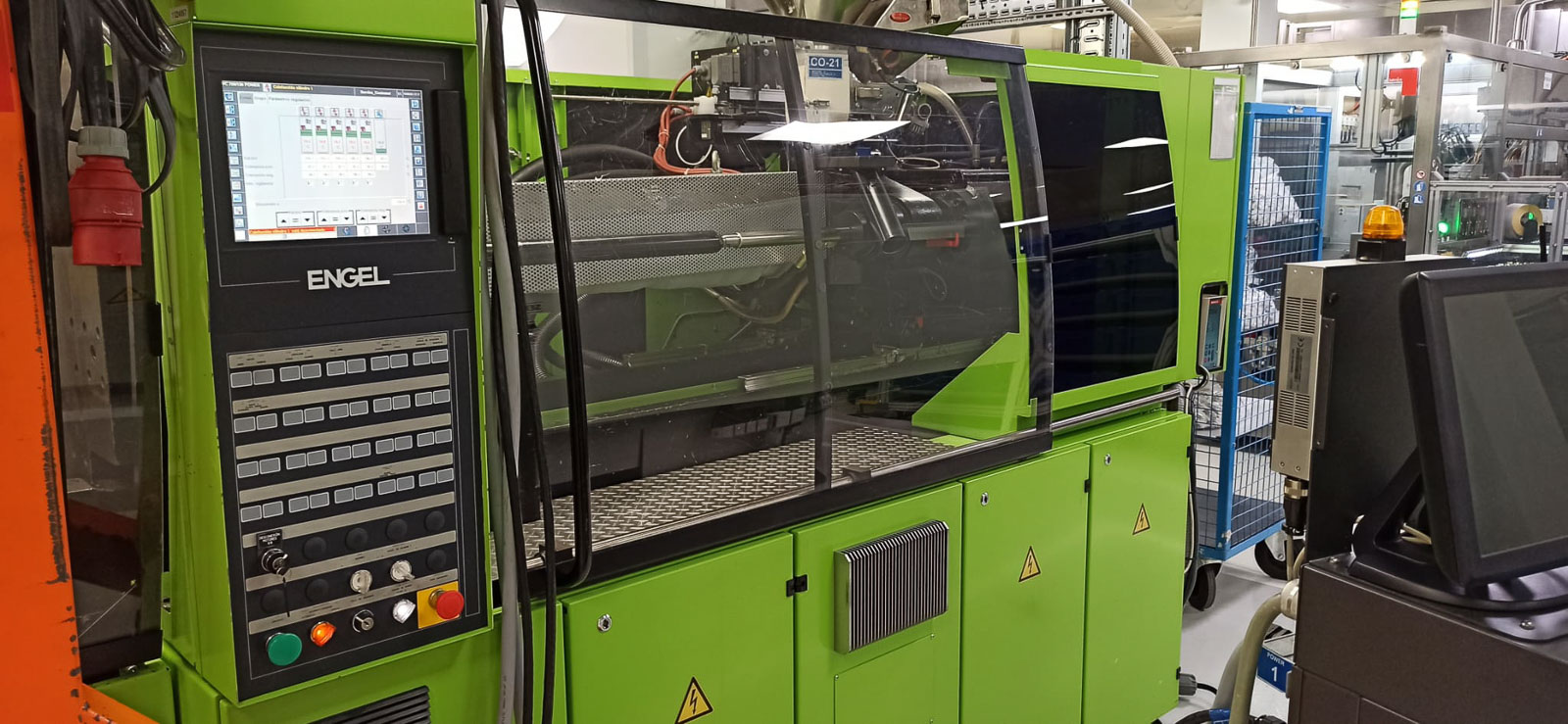

130t injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2004
Availability Available
ID 11088
Request a quote

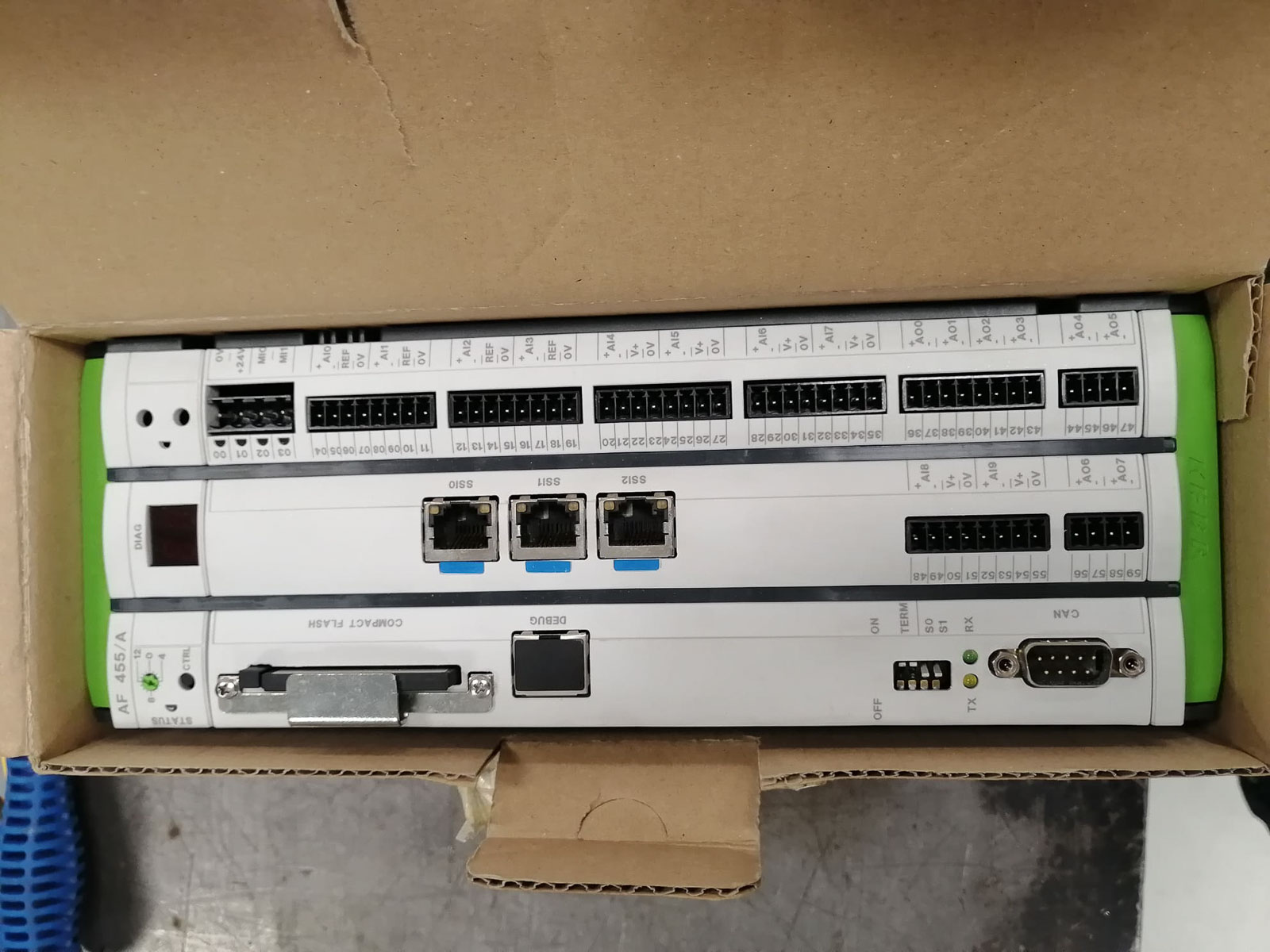

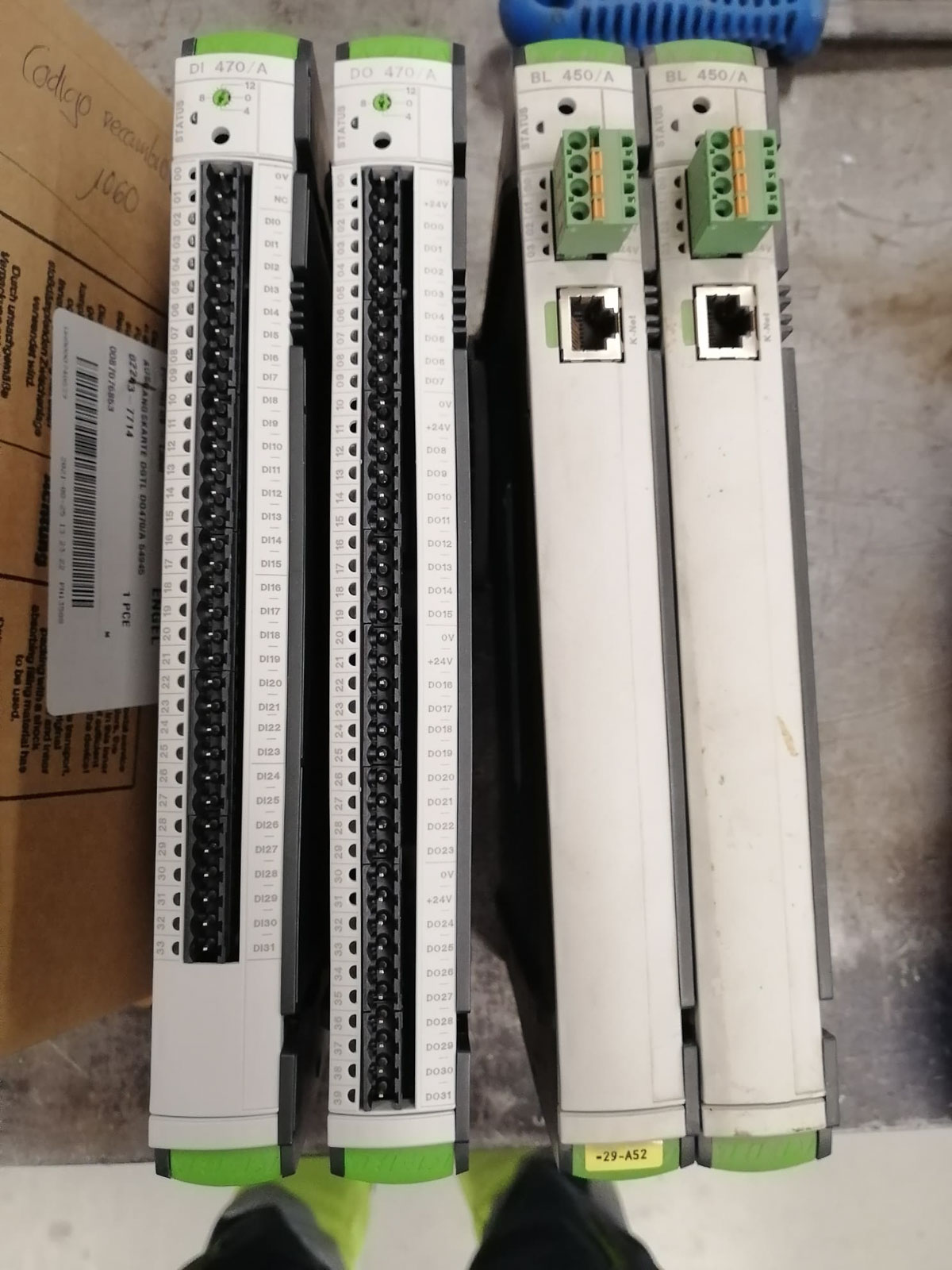

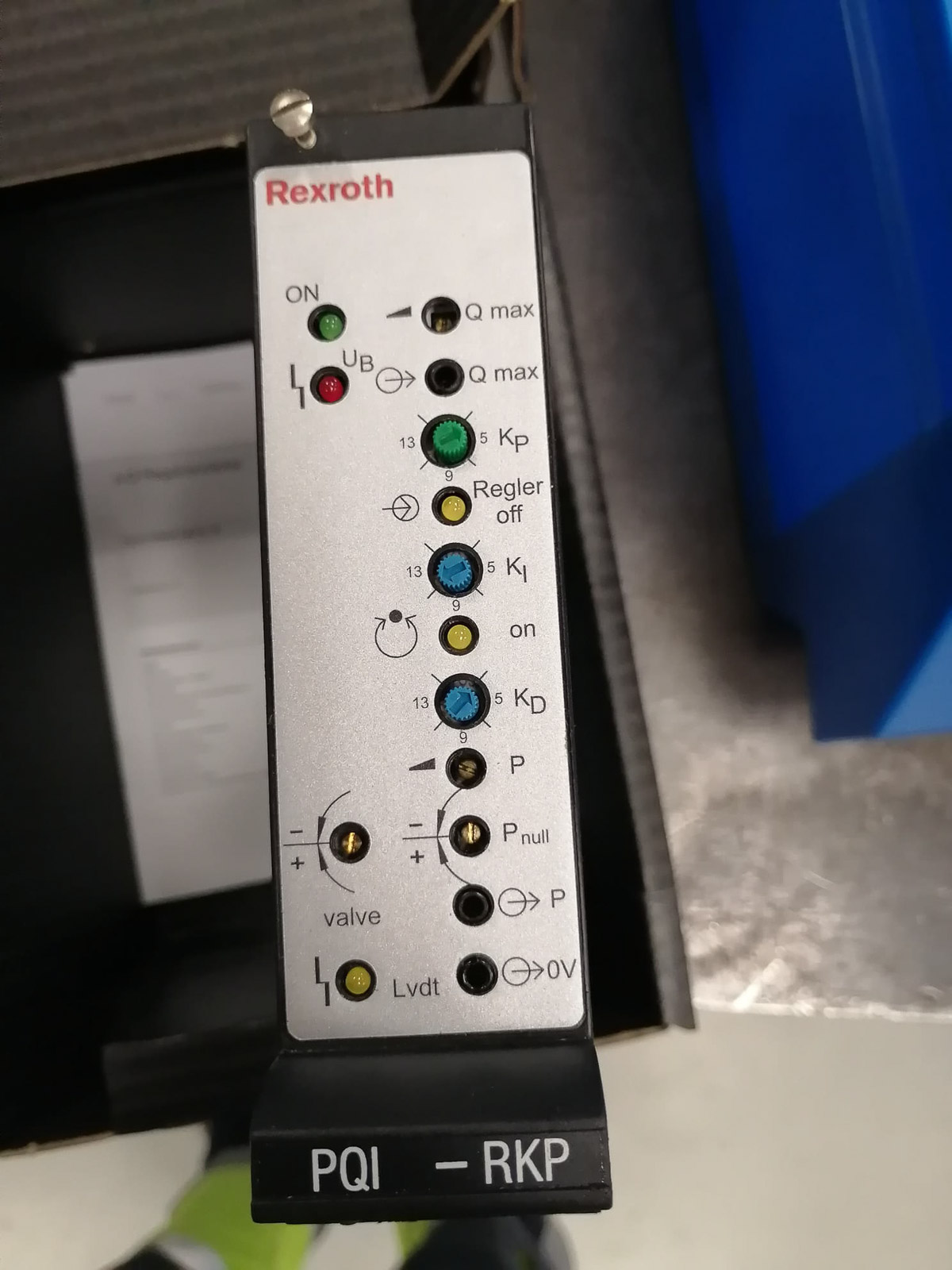

including: - cards, spare parts, new pump for replacement

Clamping force1.300 kN
Dimensions (long x wide x high)4.500 x 1.700 x 2.000 mm
Ejector stroke / force max.130 / 40 mm / kN
Heating zones5
Injection pressure1.180 / 1.580 bar
Injection volume475 cm³
Nozzle stroke / force max.350 / 67 mm / kN
Oil tank capacity300 l
Operating hours80.000
Platen size (h x v)750 x 750 mm
Screw diameter55 mm
Screw L/D ratio20
Screw speed230 rpm
Shot weight max437 g
Weight8.900 kg
