ENGEL

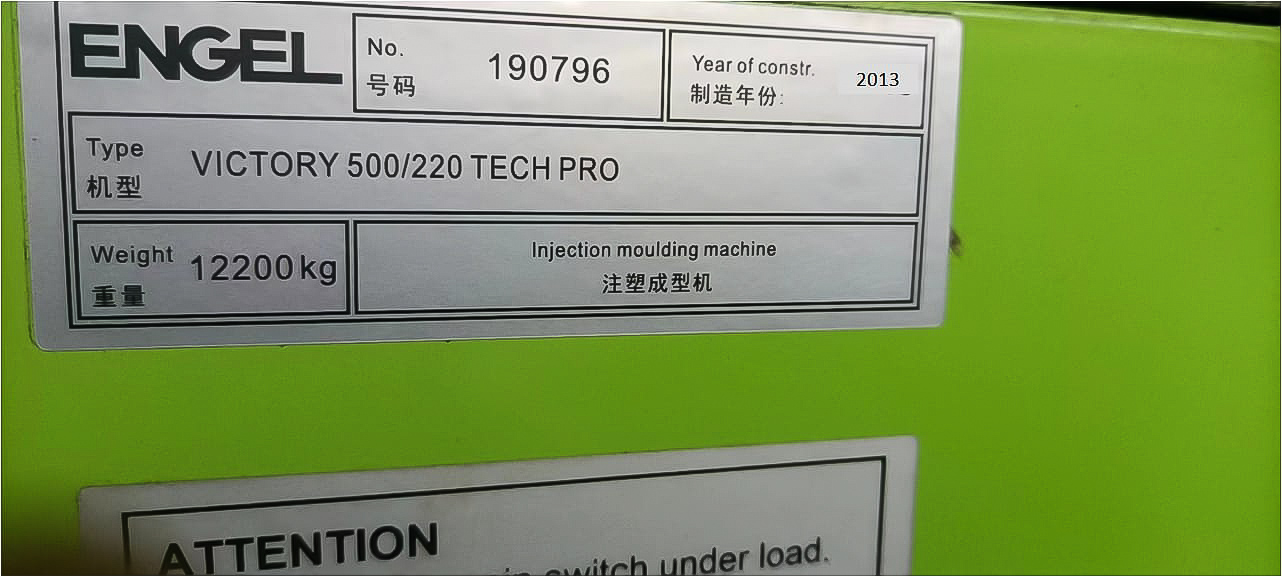

VICTORY VC 500 / 220 TECH PRO

220t injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2013
Availability Sold
ID 10907
Sold

Clamping force2.200 kN
ControlCC300
Daylight between platens max1.050 mm
Dimensions (long x wide x high)6.800 x 1.800 x 2.200 mm
Ejector force180 / 80 kN
Injection pressure2.400 bar
Injection rate152 cm³/s
Injection volume192 cm³
Mould height min300 mm
Mould opening stroke max750 mm
Nozzle stroke / force max.300 / 50 mm / kN
Nozzle stroke max200 mm
Oil tank capacity610 l
Platen size h860 mm
Platen size v580 mm
Power: installed max25 + 37 kW

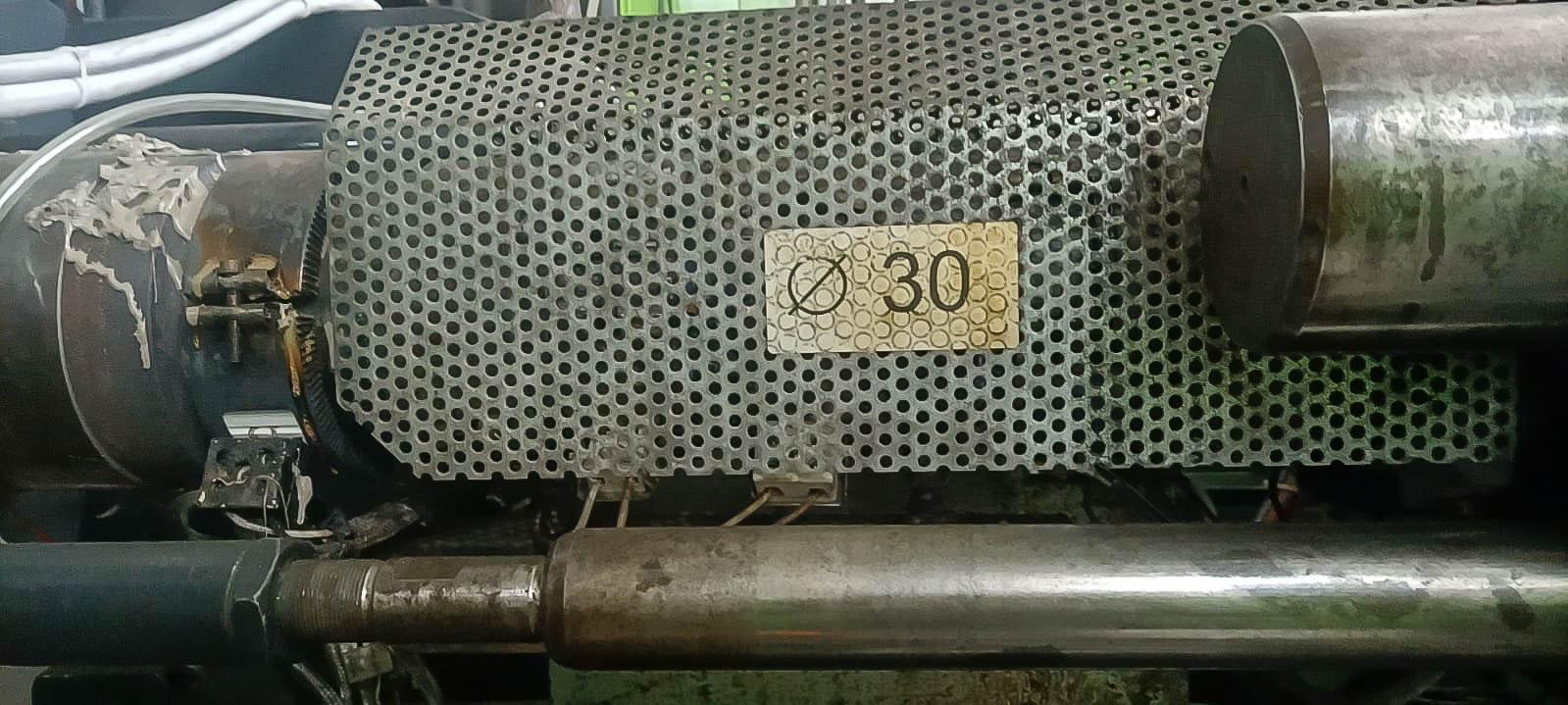

Screw diameter30 mm
Screw L/D ratio20
Screw speed400 rpm
Shot weight max177 g
Weight14.200 kg


There are no available documents
