ENGEL

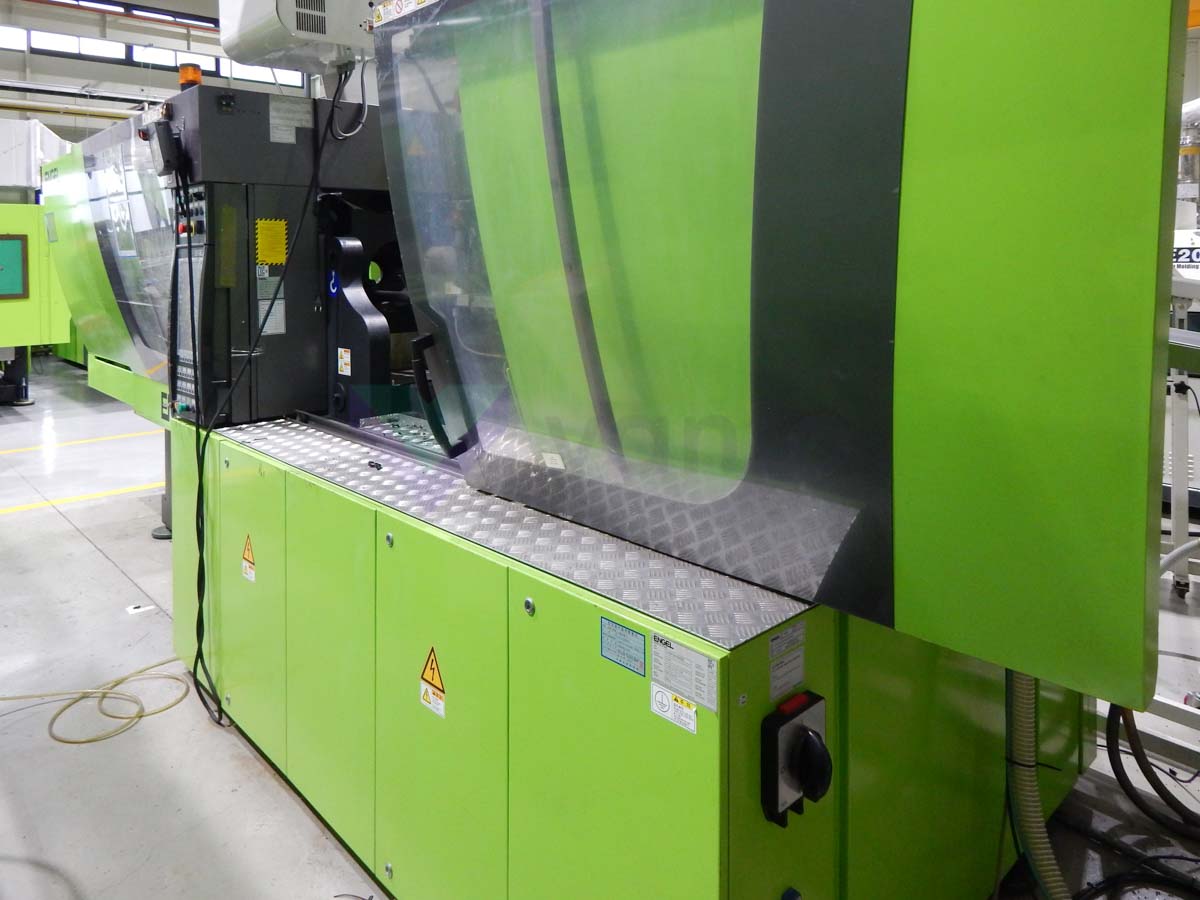

VICTORY VC 330 / 160 TECH PRO

160t injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2012
Availability Available
ID 10133
Request a quote

with YUDO Robot

Clamping force1.600 kN
ControlCC200
Daylight between platens max900 mm
Dimensions (long x wide x high)5.800 x 1.700 x 2.400 mm
Distance between tie-bars h550 mm
Distance between tie-bars v550 mm
Ejector force61 kN
Injection pressure2.400 bar
Injection rate77 cm³/s
Injection volume78 cm³
Mould height max300 mm
Mould height min300 mm
Mould opening stroke max600 mm
Nozzle stroke / force max.250 / 47 mm / kN
Nozzle stroke max160 mm
Oil tank capacity460 l
Operating hours25.830
Platen size h750 mm
Platen size v750 mm
Power: installed max30 kW
Screw diameter25 mm
Screw L/D ratio24,8
Screw speed400 rpm
Shot weight max72 g
Weight9.500 kg
