ENGEL

VICTORY VC 200 / 50 SPEX PRO

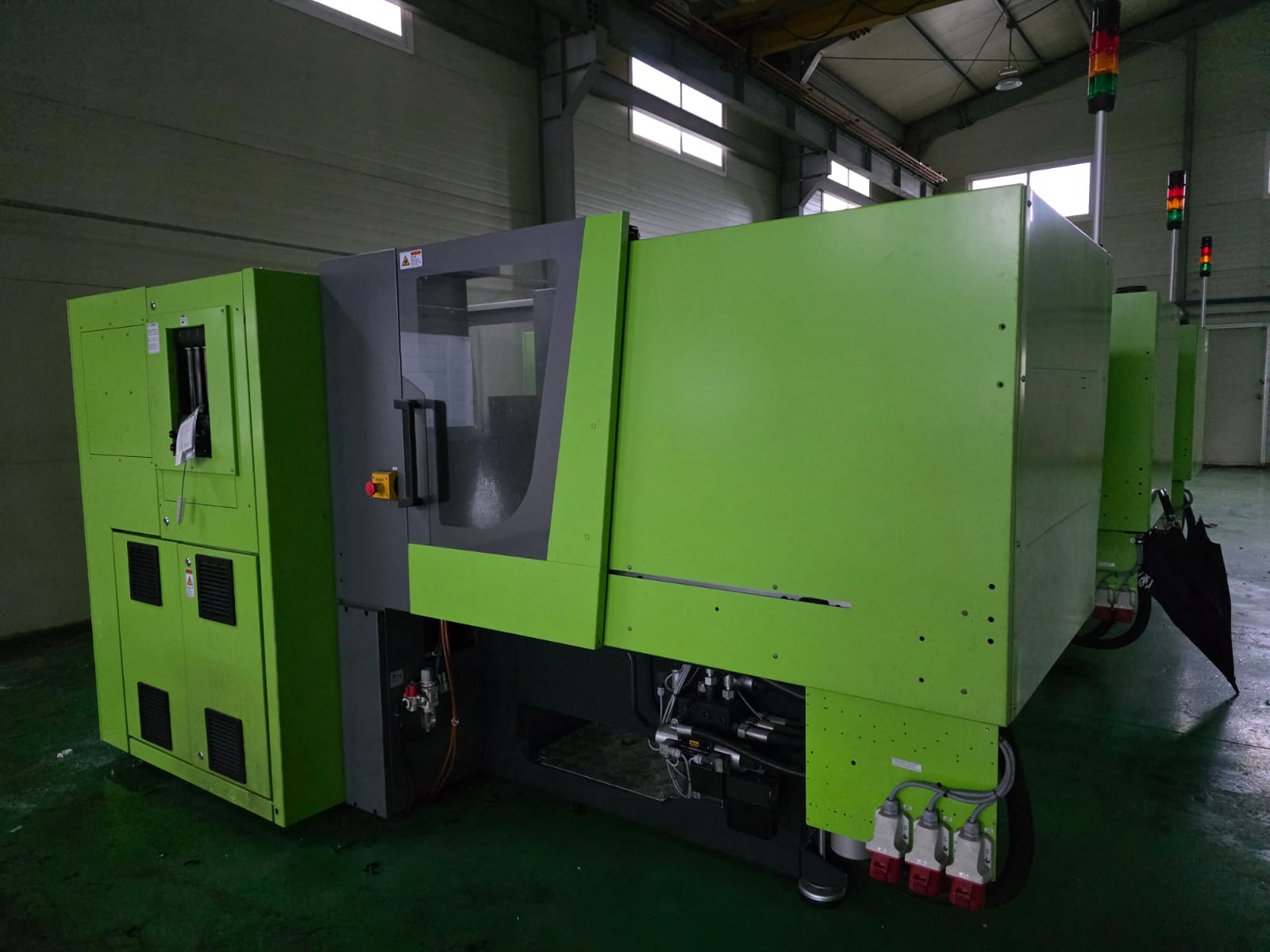

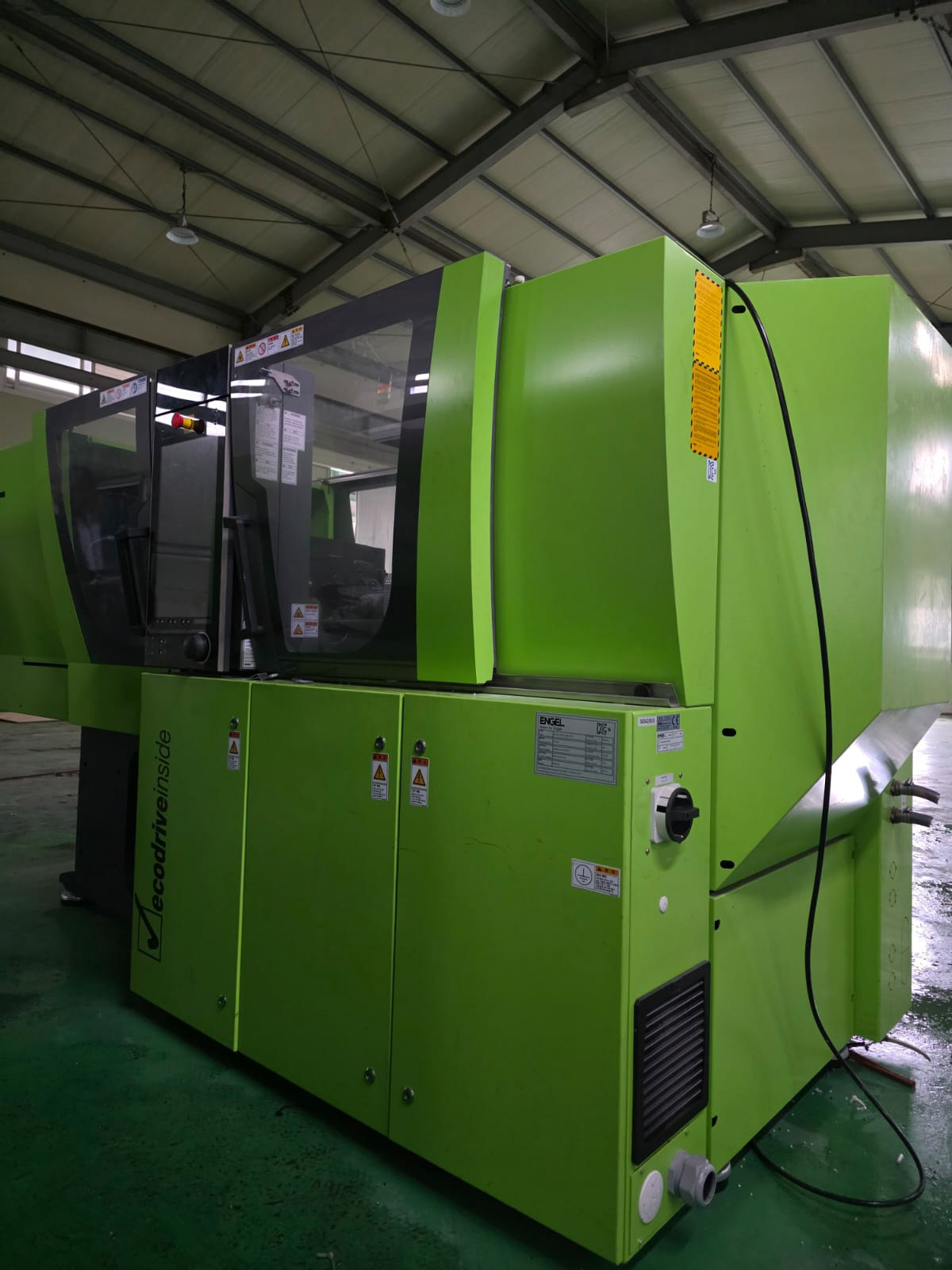

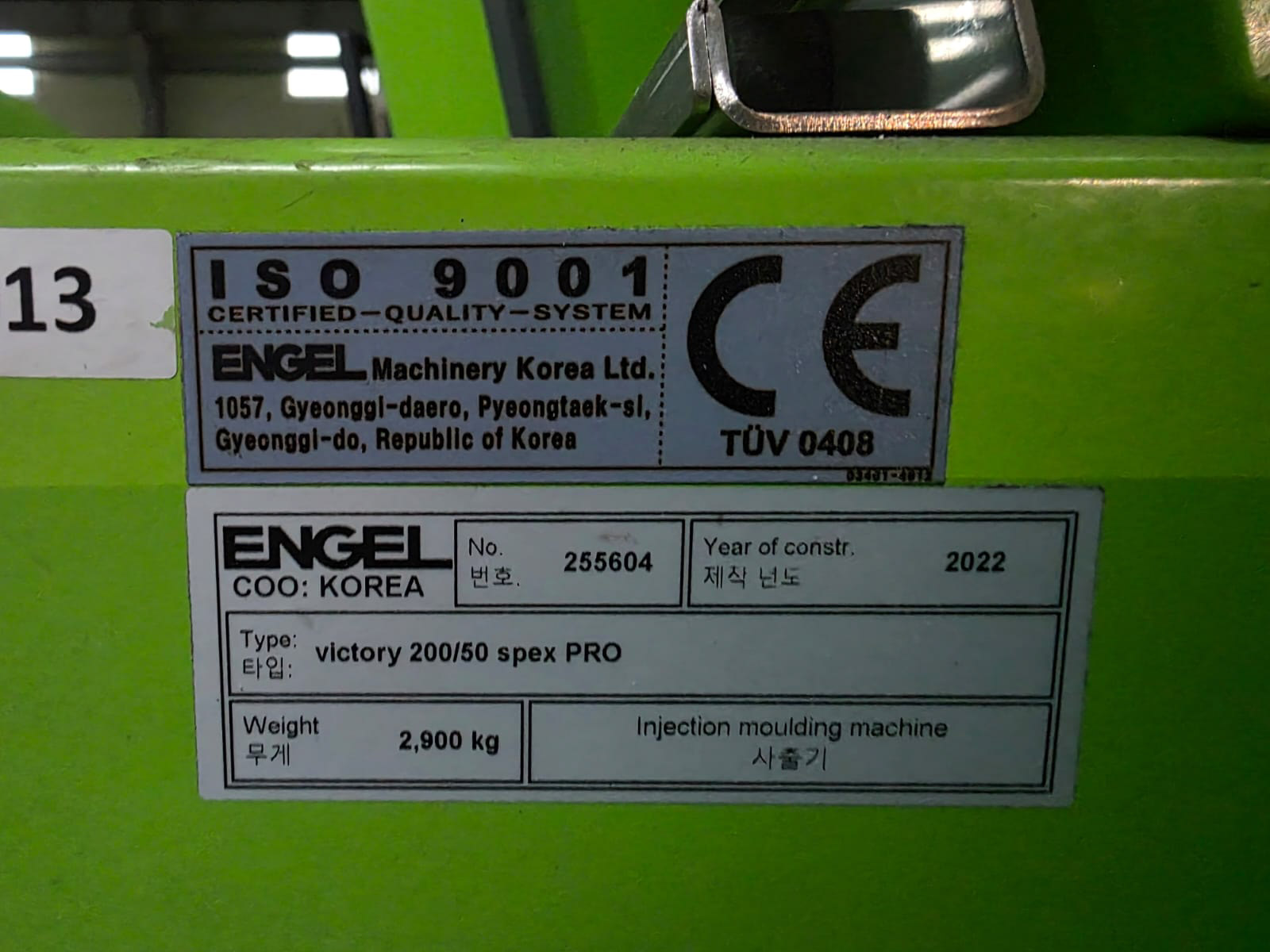

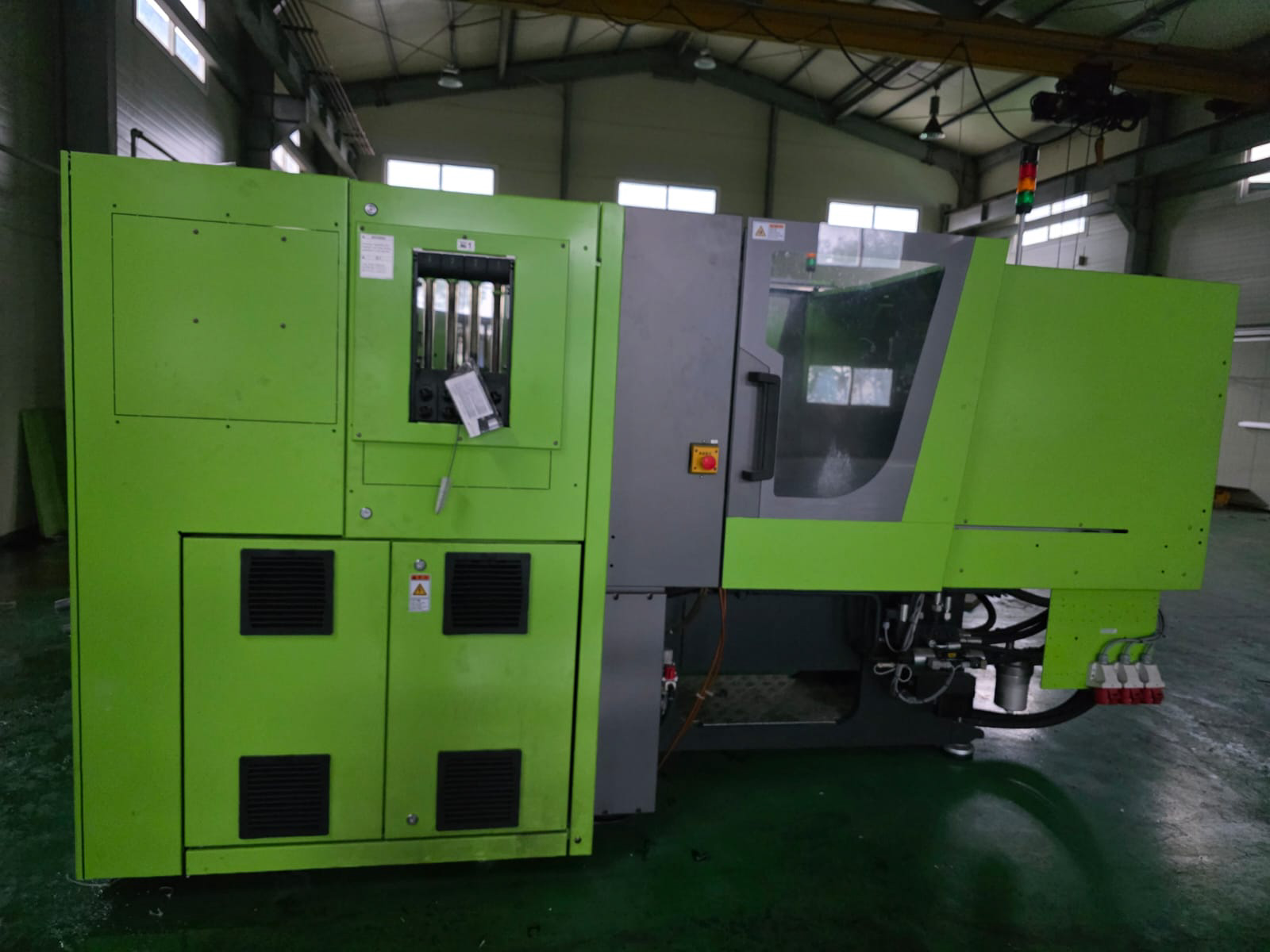

50t injection molding machine

Category	10 to 99t Injection moulding machines
Condition	Used
Year	2022
Availability	Available
ID	11306

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force

0kN

Clamping force	500 kN
Control	CC200
Daylight between platens max	600 mm
Dimensions (long x wide x high)	3.400 x 1.300 x 1.800 mm
Ejector force	40 kN
Injection pressure	2.210 bar
Injection rate	150 cm³/s
Injection volume	99 cm³
Mould height max	200 mm
Mould opening stroke max	400 mm
Nozzle stroke / force max.	28 mm / kN
Nozzle stroke max	230 mm
Oil tank capacity	135 l
Operating hours	107.630
Platen size h	500 mm
Platen size v	450 mm

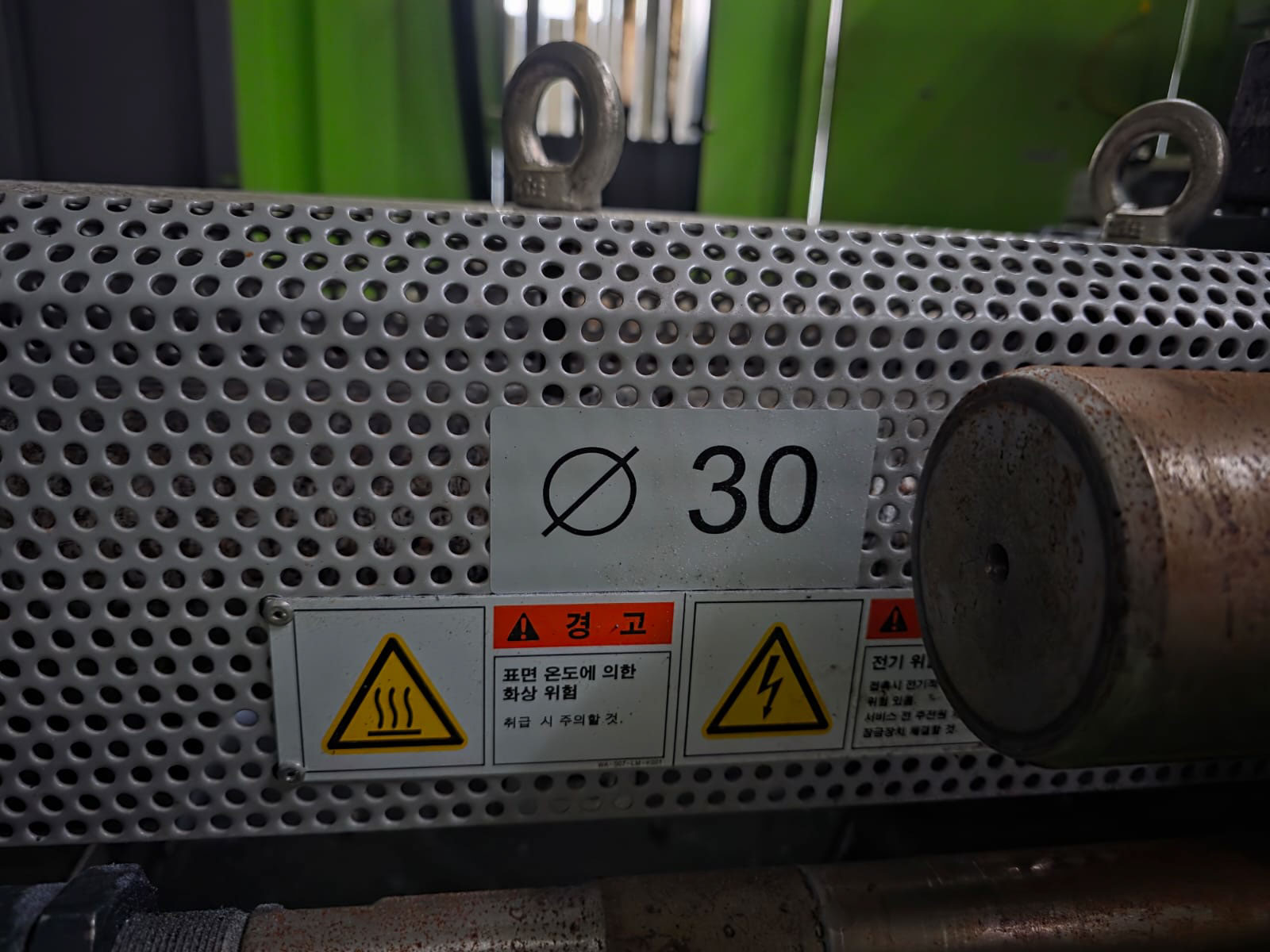

Screw diameter	30 mm
Screw L/D ratio	24,8
Screw speed	480 rpm
Weight	2.700 kg
