ENGEL

VICTORY VC 200 / 120 TECH PRO

120t injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2010
Availability Available
ID 10614
Request a quote

Clamping force1.200 kN

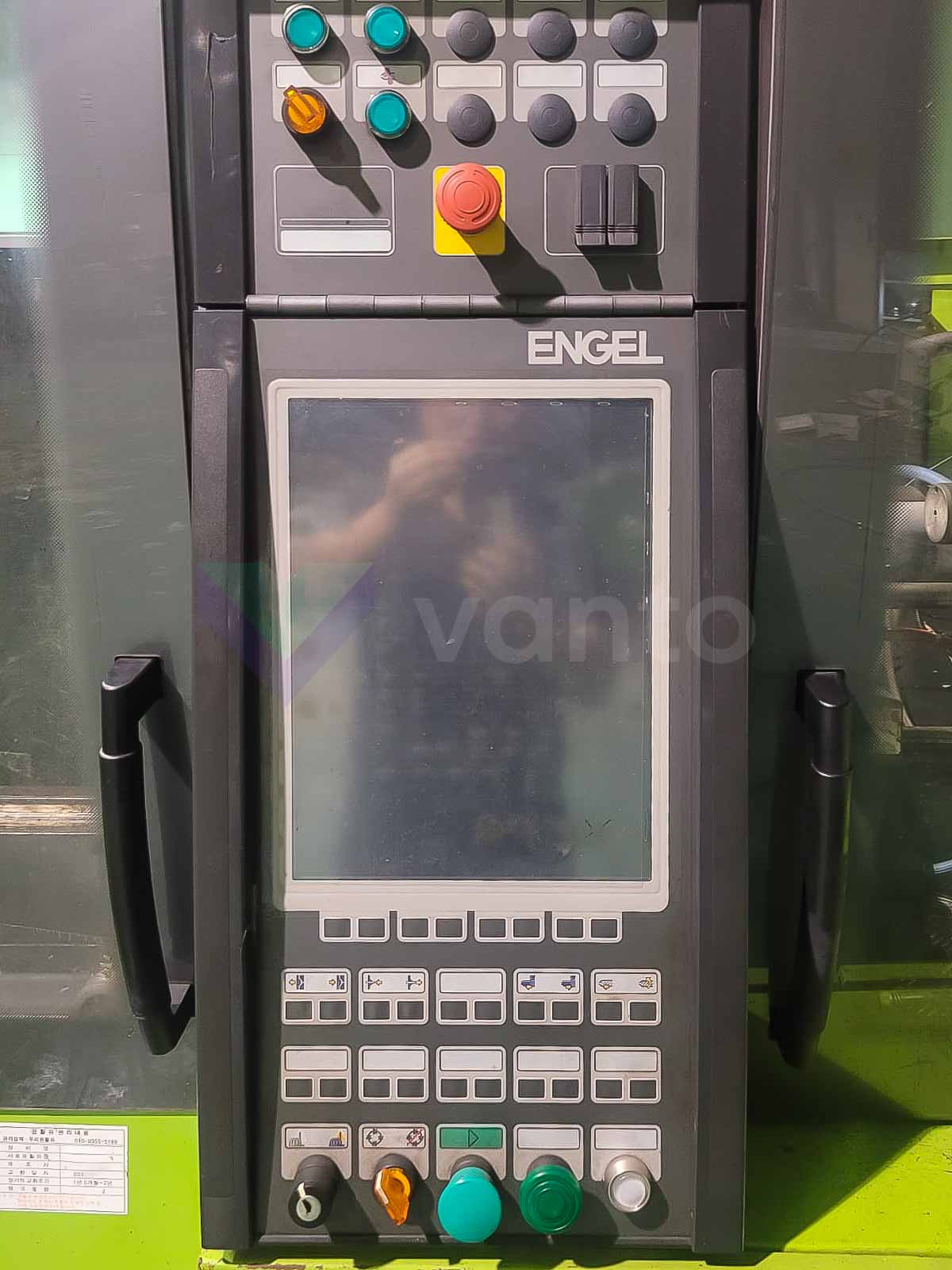

ControlCC200
Daylight between platens max800 mm
Dimensions (long x wide x high)4.400 x 1.500 x 2.000 mm
Ejector stroke / force max.130 / 40 mm / kN
Injection pressure2.400 bar
Injection rate104 cm³/s
Injection volume69 cm³
Mold opening force38 kN
Mould height min300 mm
Mould opening stroke max500 mm
Nozzle stroke / force max.200 / 28 mm / kN
Oil tank capacity300 l
Platen size (h x v)740 x 470 mm
Power: installed max22 kW
Screw diameter25 mm
Screw L/D ratio24,8
Screw speed550 rpm
Shot weight max63 g
Weight7.200 kg
