ENGEL

VICTORY VC 1350 / 300 POWER

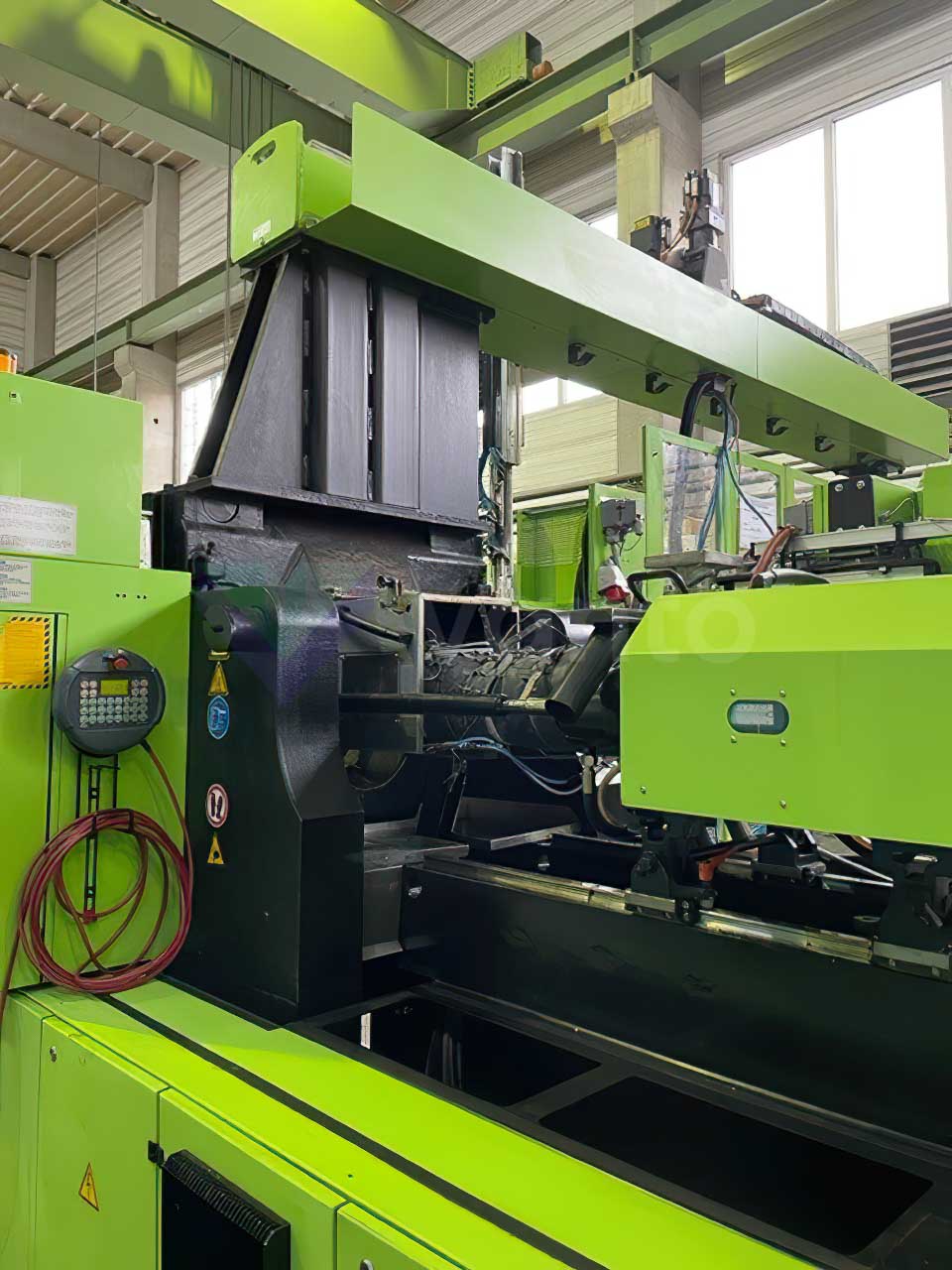

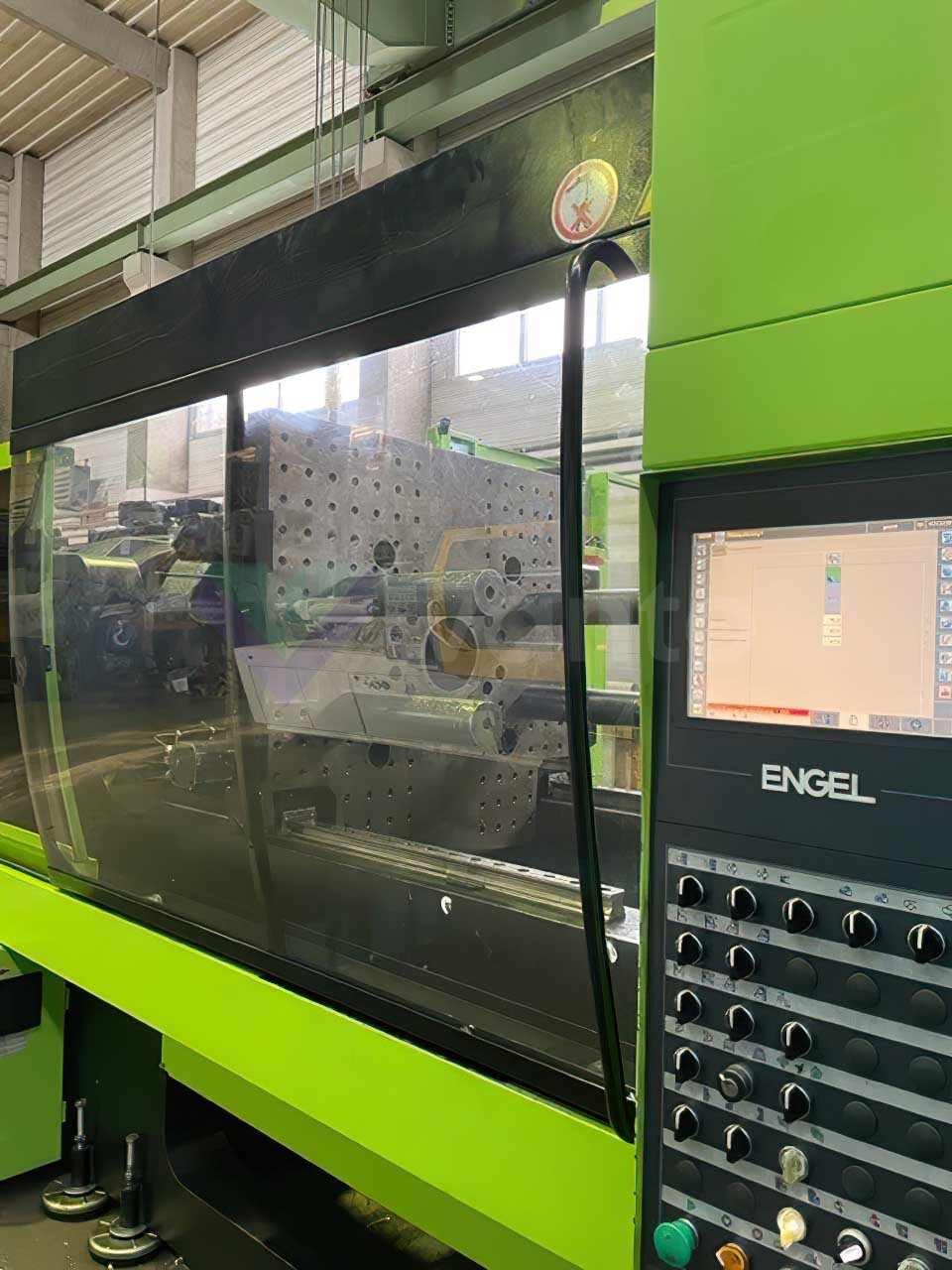

350t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2007
Availability	Available
ID	10641

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force

0kN

Clamping force	3.500 kN
Control	CC200
Core pulls	4
Daylight between platens max	1.650 mm
Dimensions (long x wide x high)	7.500 x 2.200 x 2.400 mm
Distance between tie-bars (h x v)	n/a mm
Injection pressure	1.650 / 2.050 bar
Injection volume	510 cm³
Mould opening stroke max	1.000 mm
Platen size (h x v)	1.200 x 1.100 mm
Power: installed max	45 kW
Screw diameter	55 mm
Shot weight max	460 g
Weight	27.000 kg

There are no available documents
