ENGEL

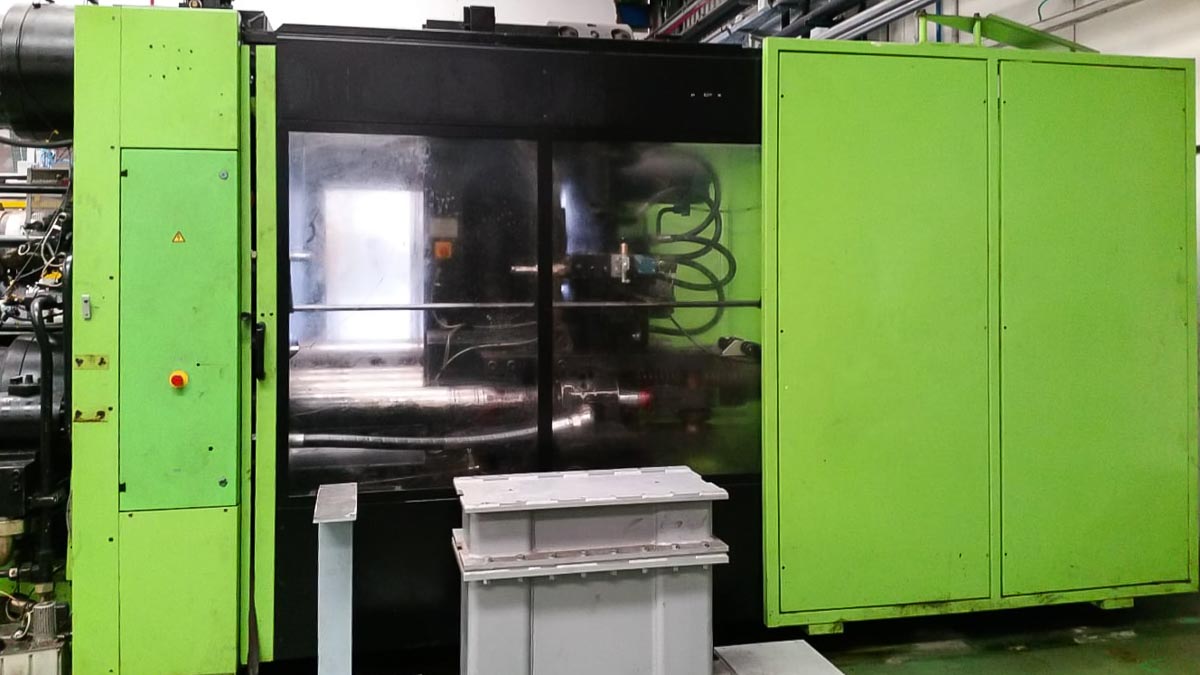

ES 7050 / 1100 DUO

1100t injection molding machine

Request a quote
Category 1000t or more Injection moulding machines
Condition Used
Year 2000
Availability Available
ID 10164

- Bimetallic M3 plasticizer - 70º cone nozzle - 1 core puller fixed plate - 1 core puller mobile plate - EUROMAP12 interface - QDP ENGEL / CPC quality software (statistics, graphs, etc.) - core puller sytem for free programming (36 steps) - 16 heating zones - 6 x hydraulic sequential valves

Screw diameter120 mm
Injection rate820 cm³/s
Injection pressure1.046 bar
Injection volume5.430 cm³
Screw L/D ratio20
Nozzle force max150 kN
Nozzle stroke max950 mm
Clamping force11.000 kN
Mould opening stroke max1.800 mm
Mould height max1.200 mm
Mould height min600 mm
Daylight between platens max2.400 mm
Distance between tie-bars h1.400 mm
Distance between tie-bars v1.150 mm
Platen size h2.000 mm
Platen size v1.830 mm
Ejector force215 kN
Dimensions (long x wide x high)10.050 x 3.350 x 2.592 mm

ENGEL ES 7050 / 1100 DUO Specification Sheet View PDF
ENGEL ES 7050 / 1100 DUO Platen Layout View PDF
ENGEL ES 7050 / 1100 DUO Machine Layout View PDF
