Sold

ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

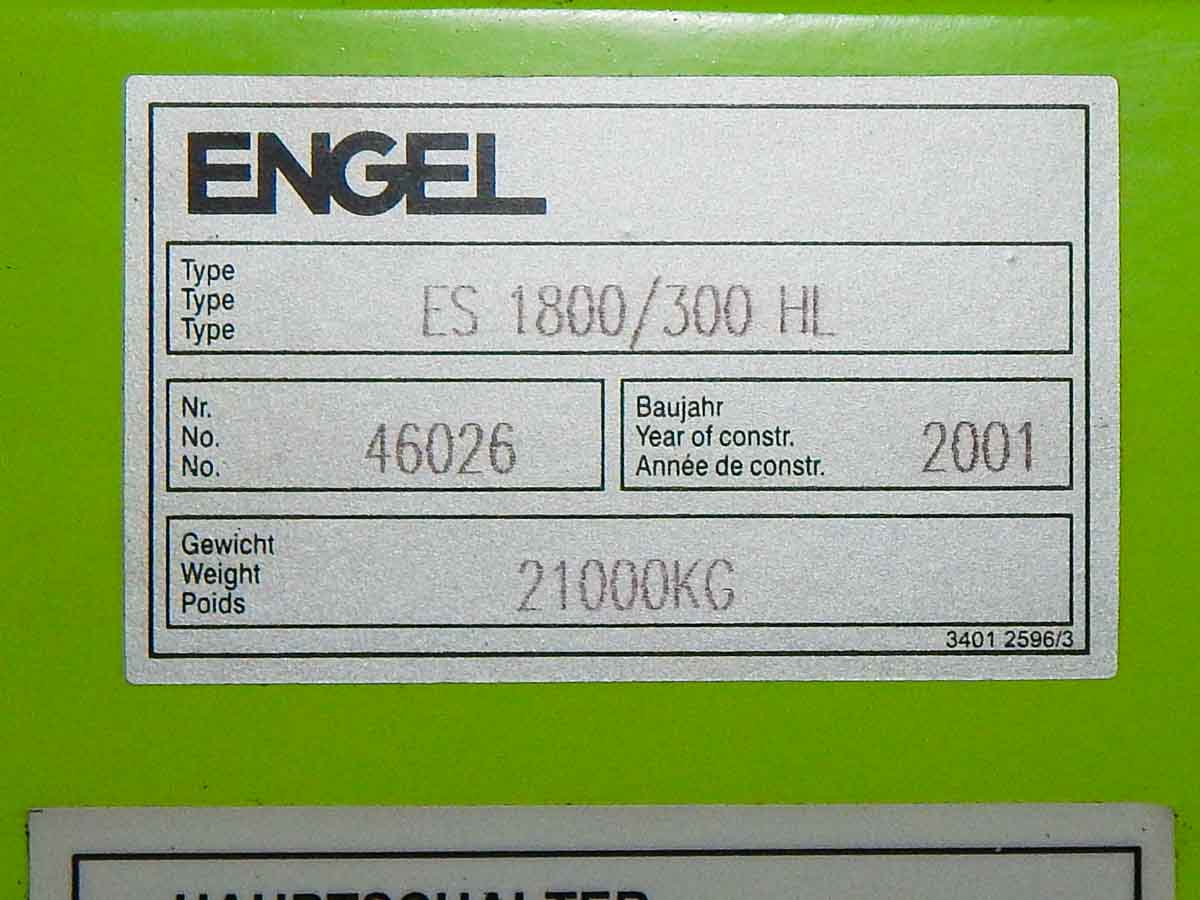

ES 1800 / 300 HL

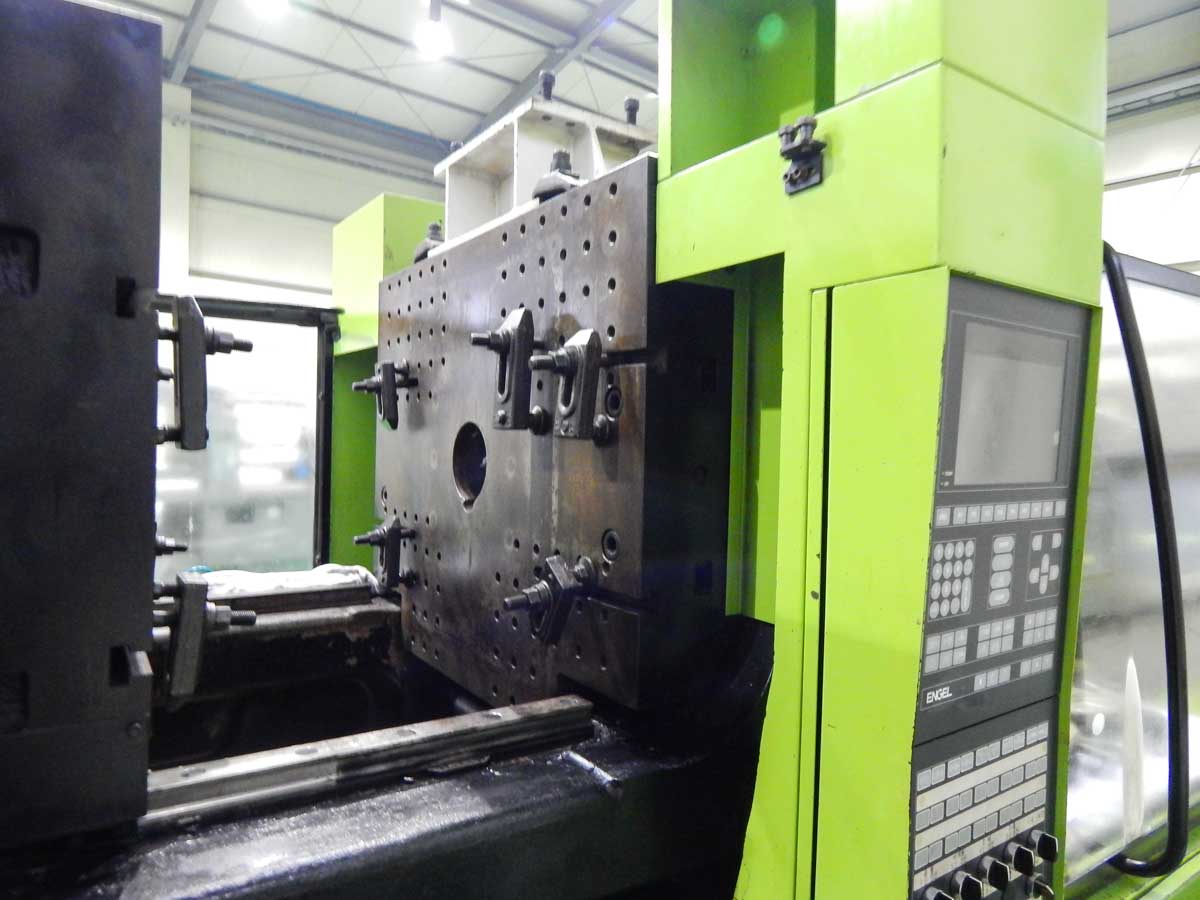

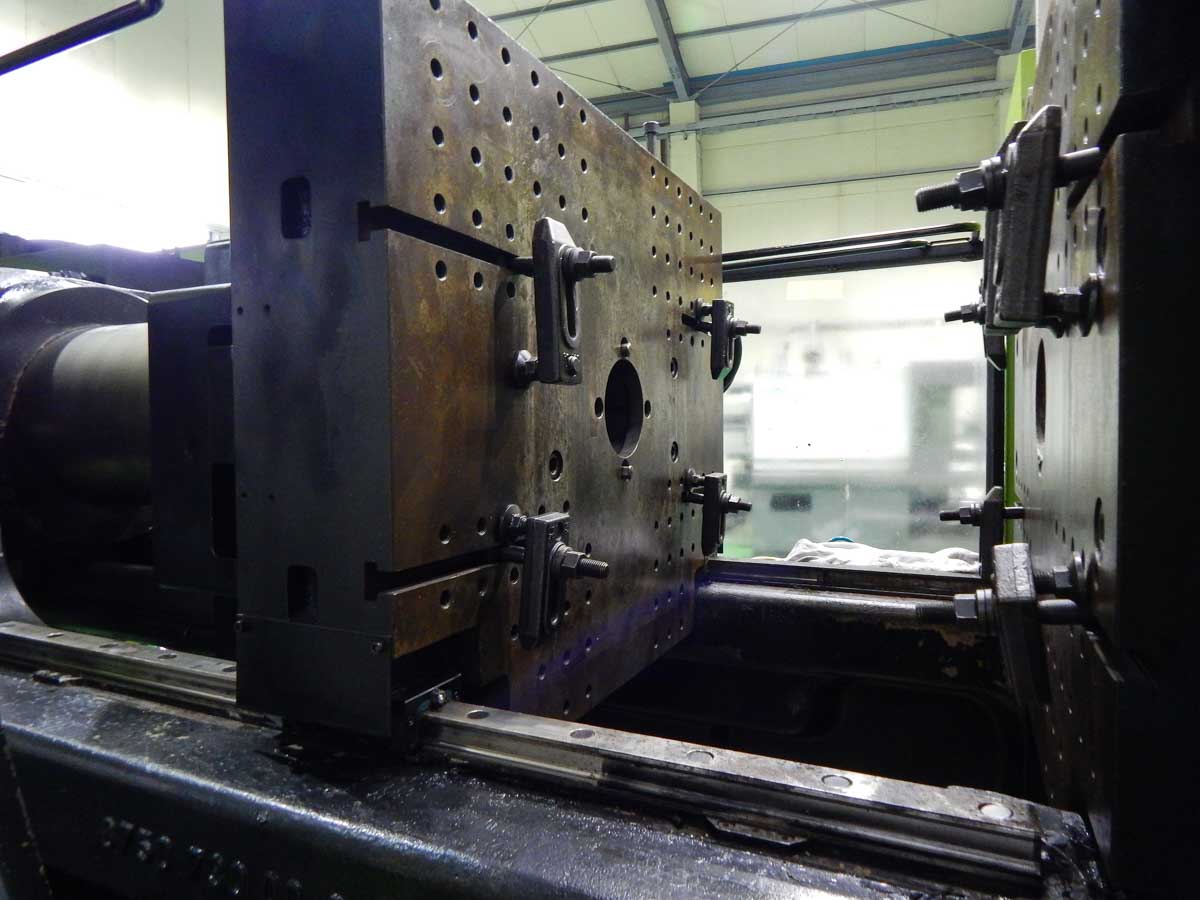

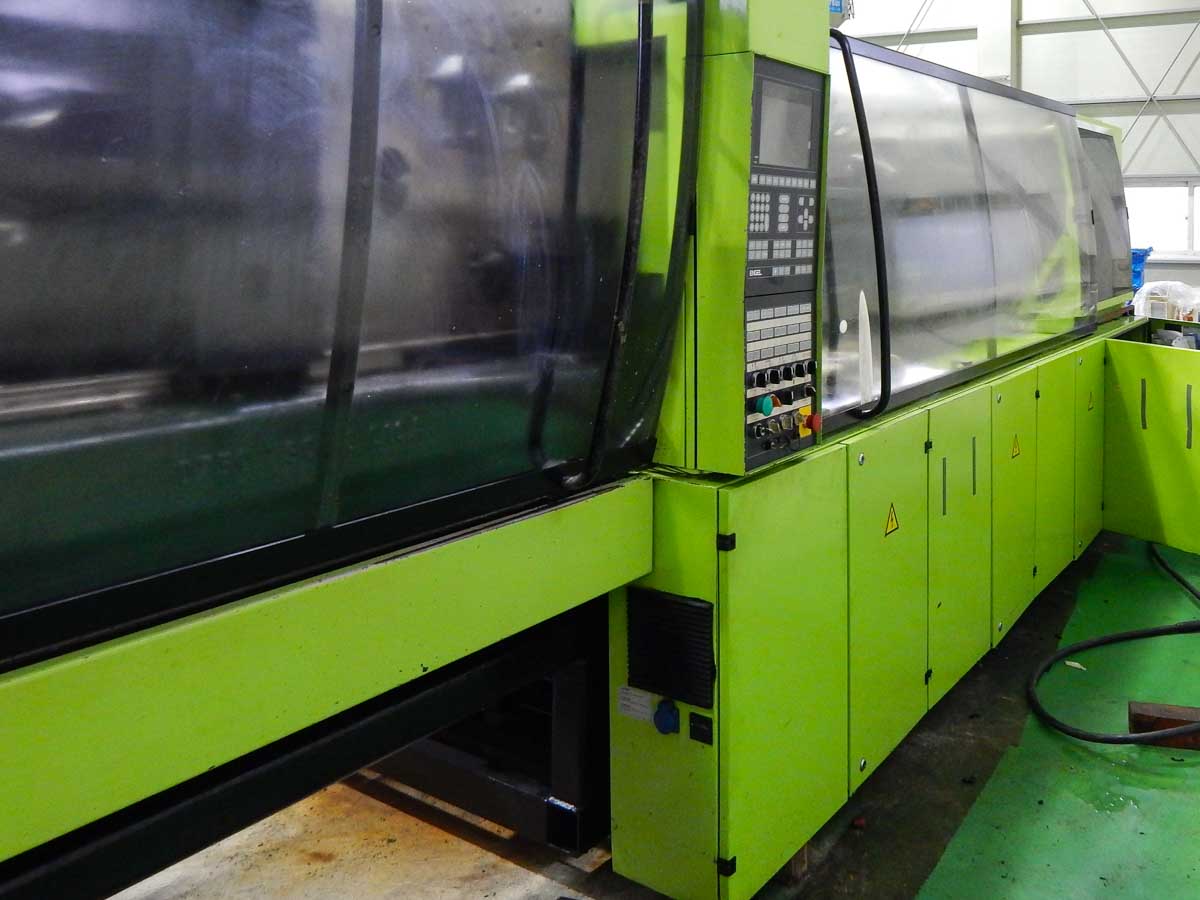

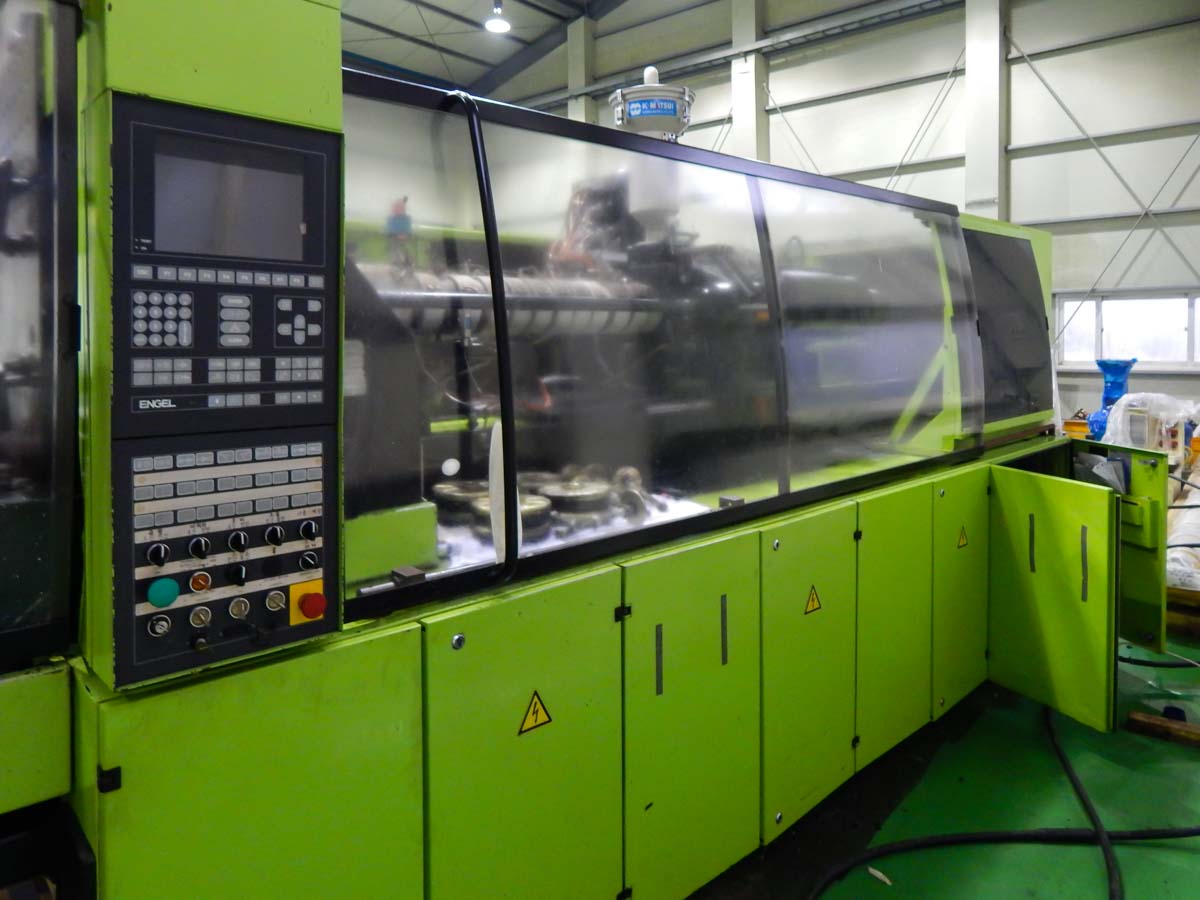

300t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2001
Availability	Sold
ID	10193

Clamping force

0kN

Completely unused 60 mm. Screw.

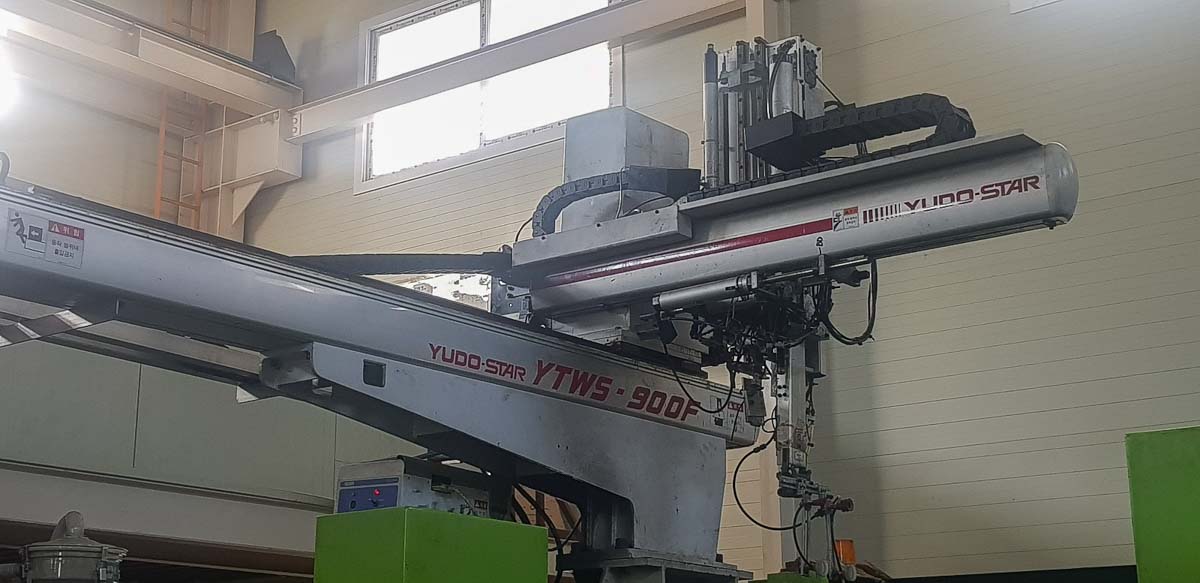

Including ROBOT YUDO Star YTWS - 900F

Clamping force	3.000 kN
Control	CC100
Daylight between platens max	1.300 mm
Dimensions (long x wide x high)	7.200 x 2.000 x 2.500 mm
Ejector force	90 kN
Injection pressure	1.960 bar
Injection rate	284 cm³/s
Injection volume	763 cm³
Mould height min	400 mm
Mould opening stroke max	900 mm
Nozzle stroke / force max.	110 mm / kN
Nozzle stroke max	500 mm
Oil tank capacity	870 l
Operating hours	62,420
Platen size h	1.100 mm
Platen size v	1.100 mm
Power: installed max	89 kW
Screw diameter	60 mm
Screw L/D ratio	20
Screw speed	226 rpm
Shot weight max	702 g
Weight	20.000 kg
