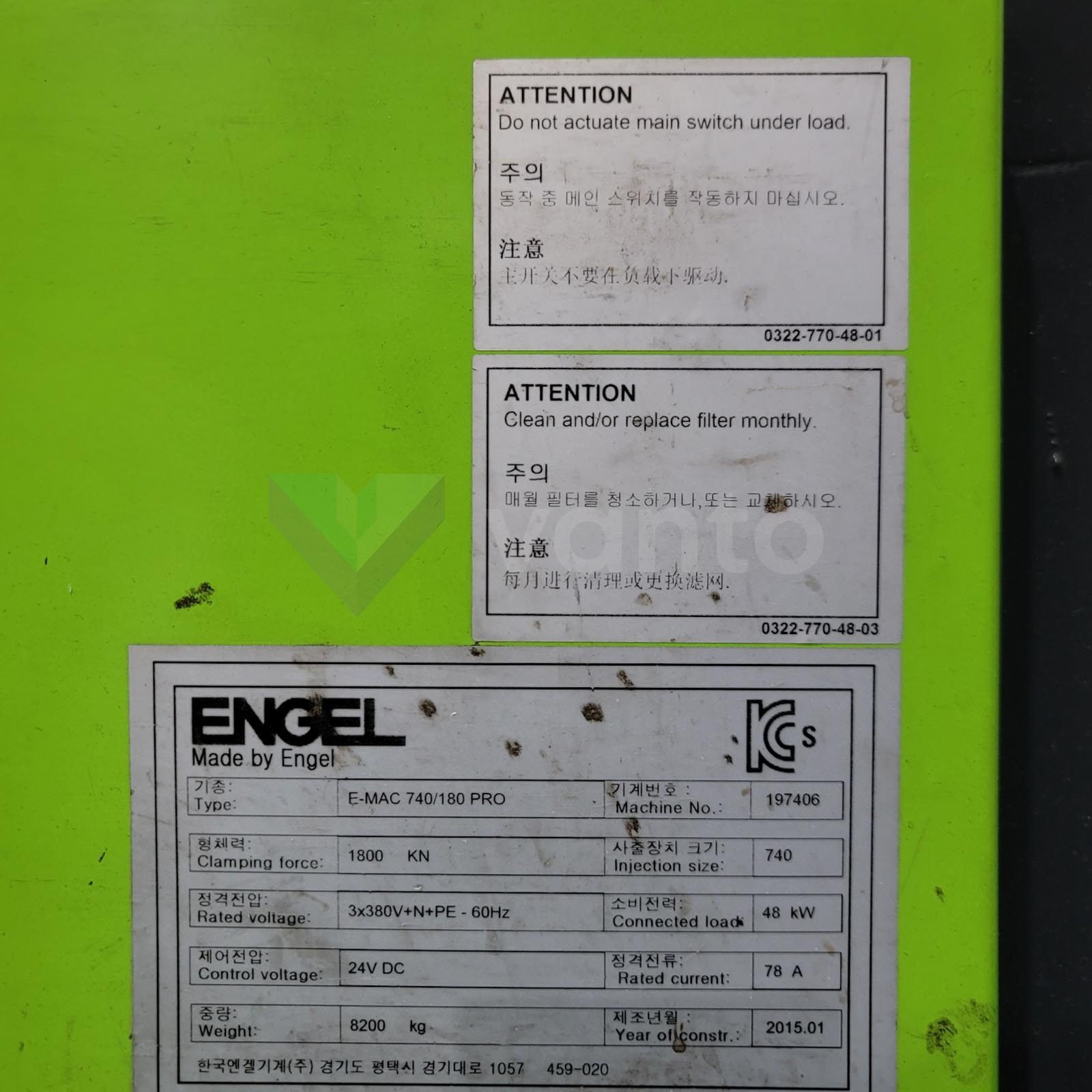

ENGEL

E-MAC 740 / 180 PRO

180t all-electric injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2015
Availability Available
ID 10736
Isaac Mateo
+34 932 711 191
|
+34 652 098 501
Send message
Request a quote

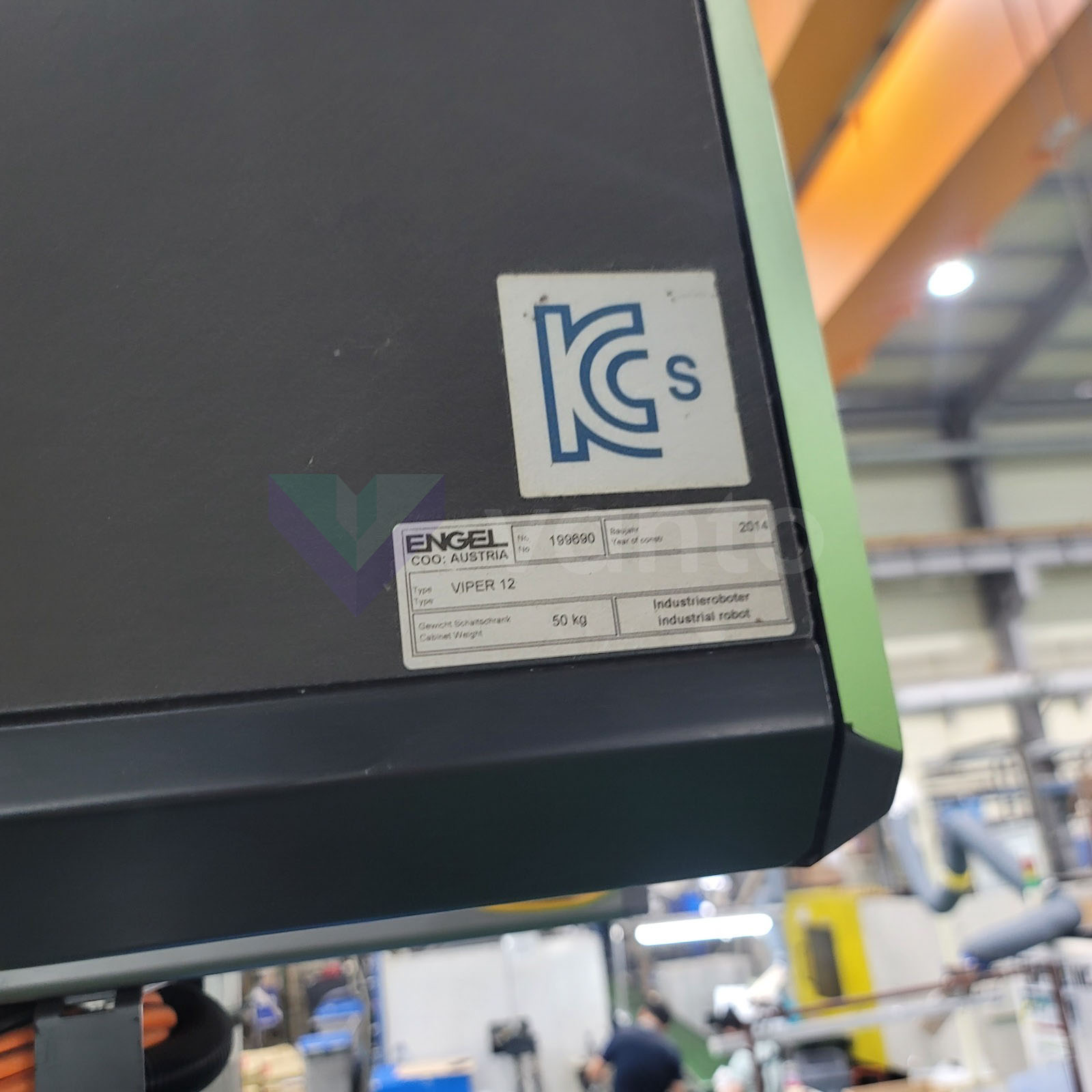

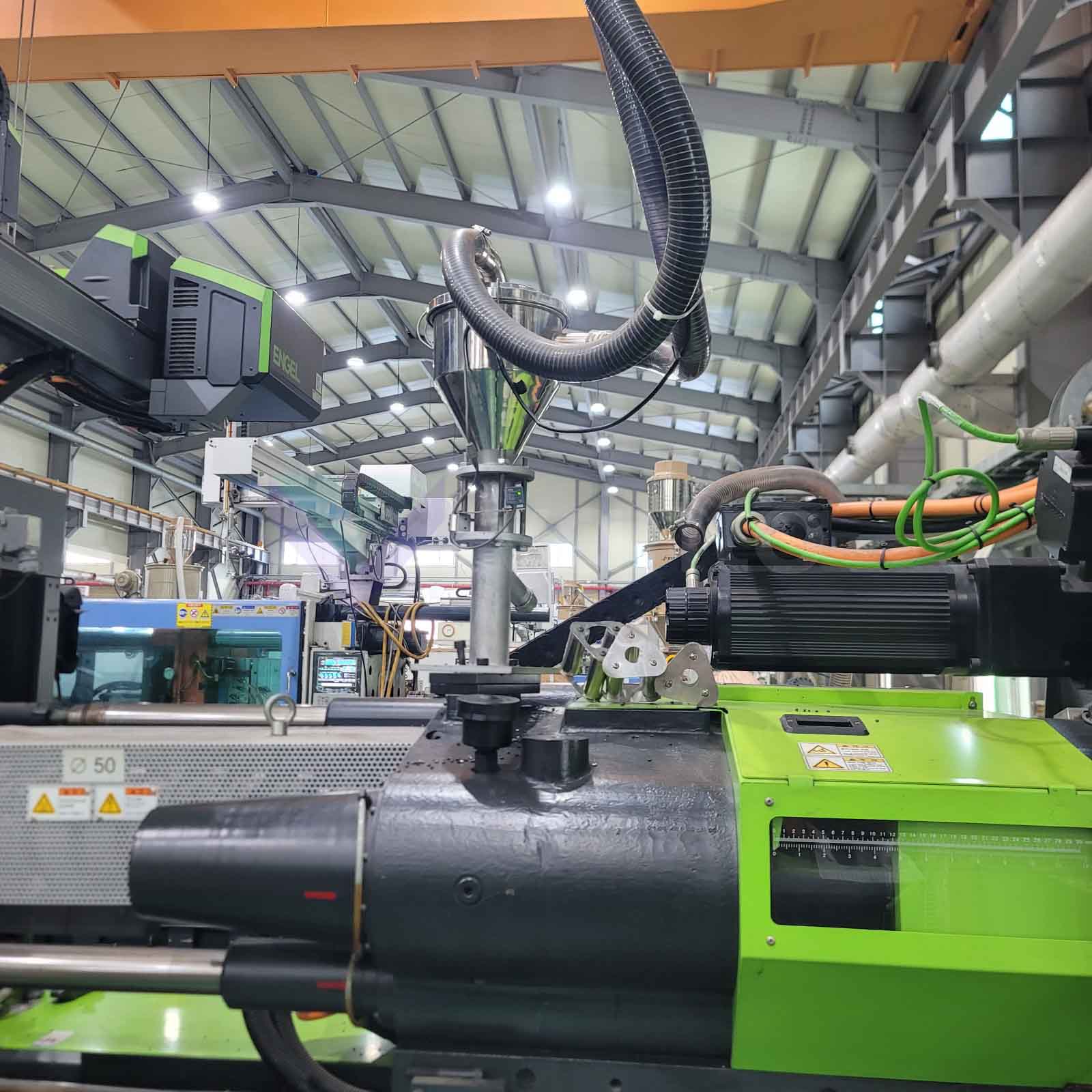

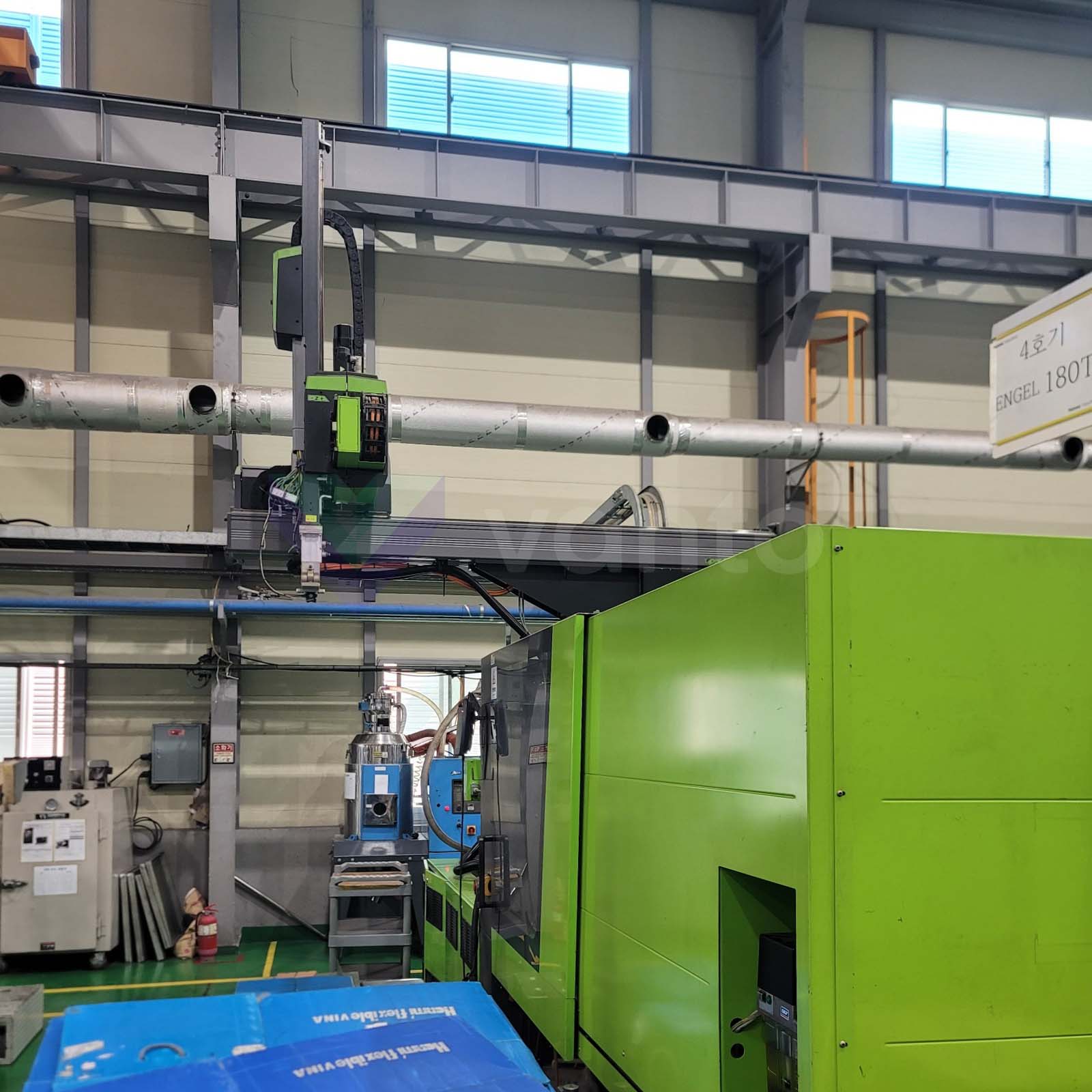

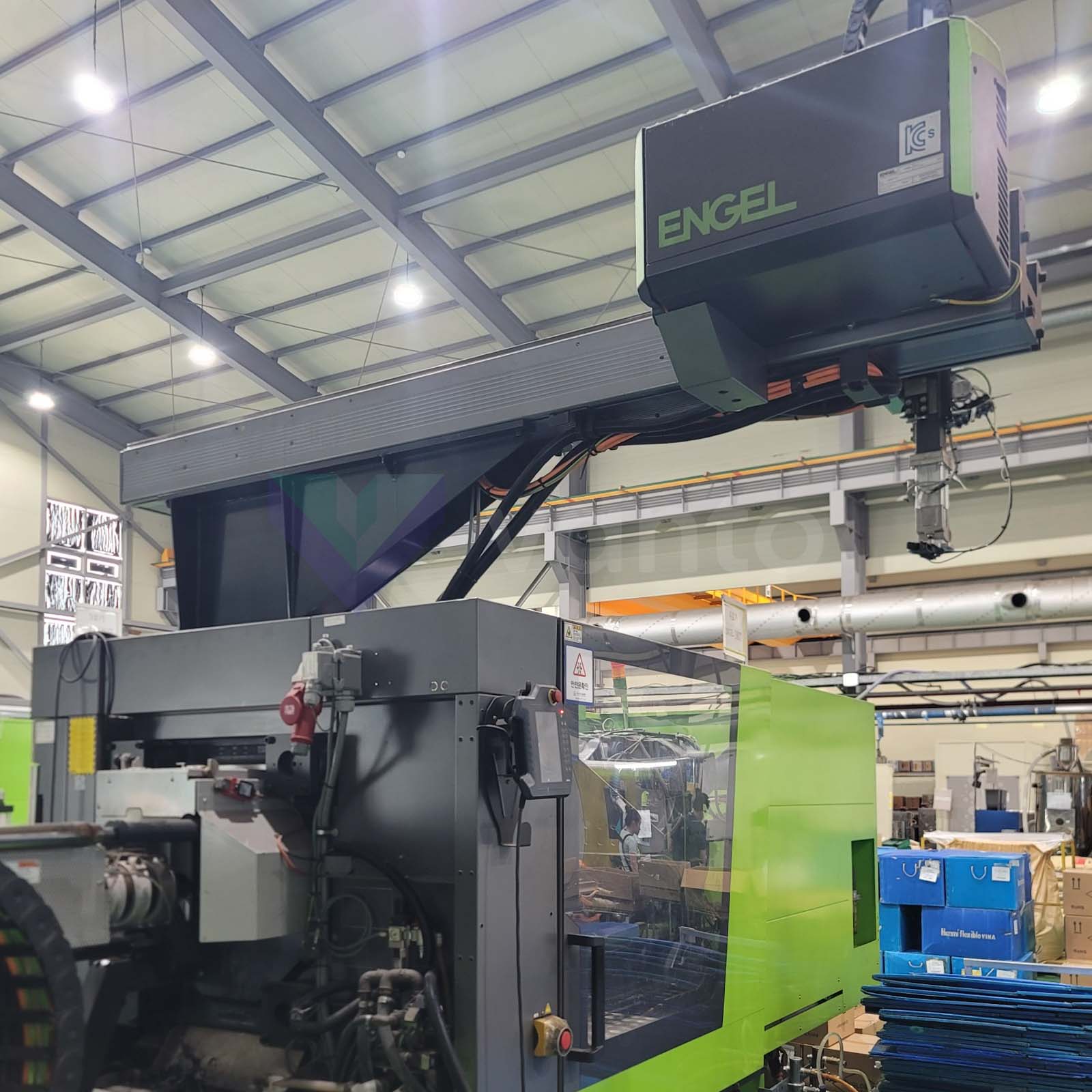

Including: ENGEL VIPER Robot + Hopper dryer + Loader.

Clamping force1.800 kN
Daylight between platens max1.060 mm
Dimensions (long x wide x high)4.700 x 1.500 x 2.200 mm
Distance between tie-bars (h x v)520 x 520 mm
Dry cycle time1,7 / 320 sec/mm
Ejector stroke / force max.130 / 37 mm / kN
Heating zones5
Injection pressure2.000 bar
Injection rate654 / 905 cm³/s
Injection volume392 cm³
Mold opening force180 kN
Mould height max600 mm
Mould height min250 mm
Nozzle stroke / force max.400 / 50 mm / kN
Nozzle stroke max200 mm

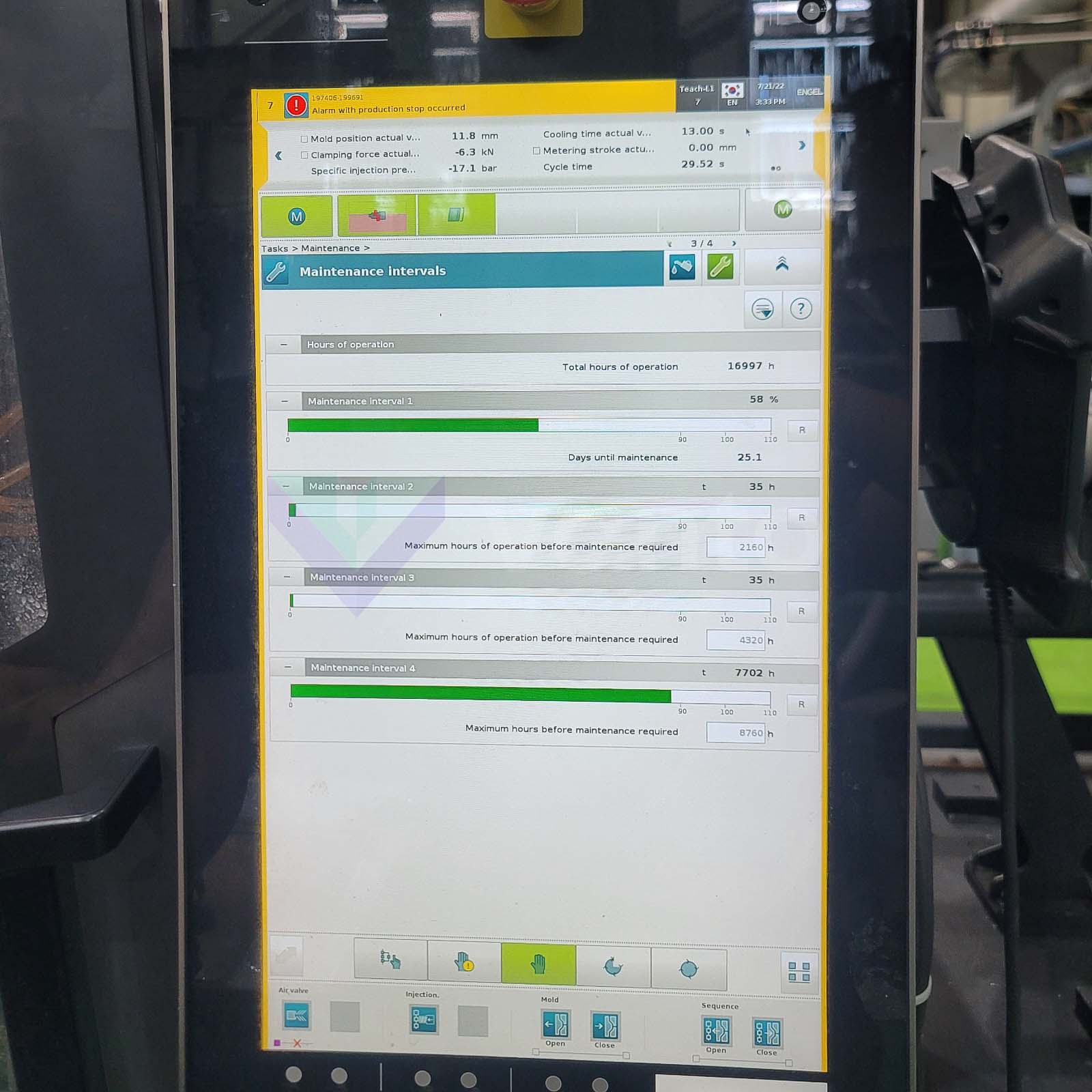

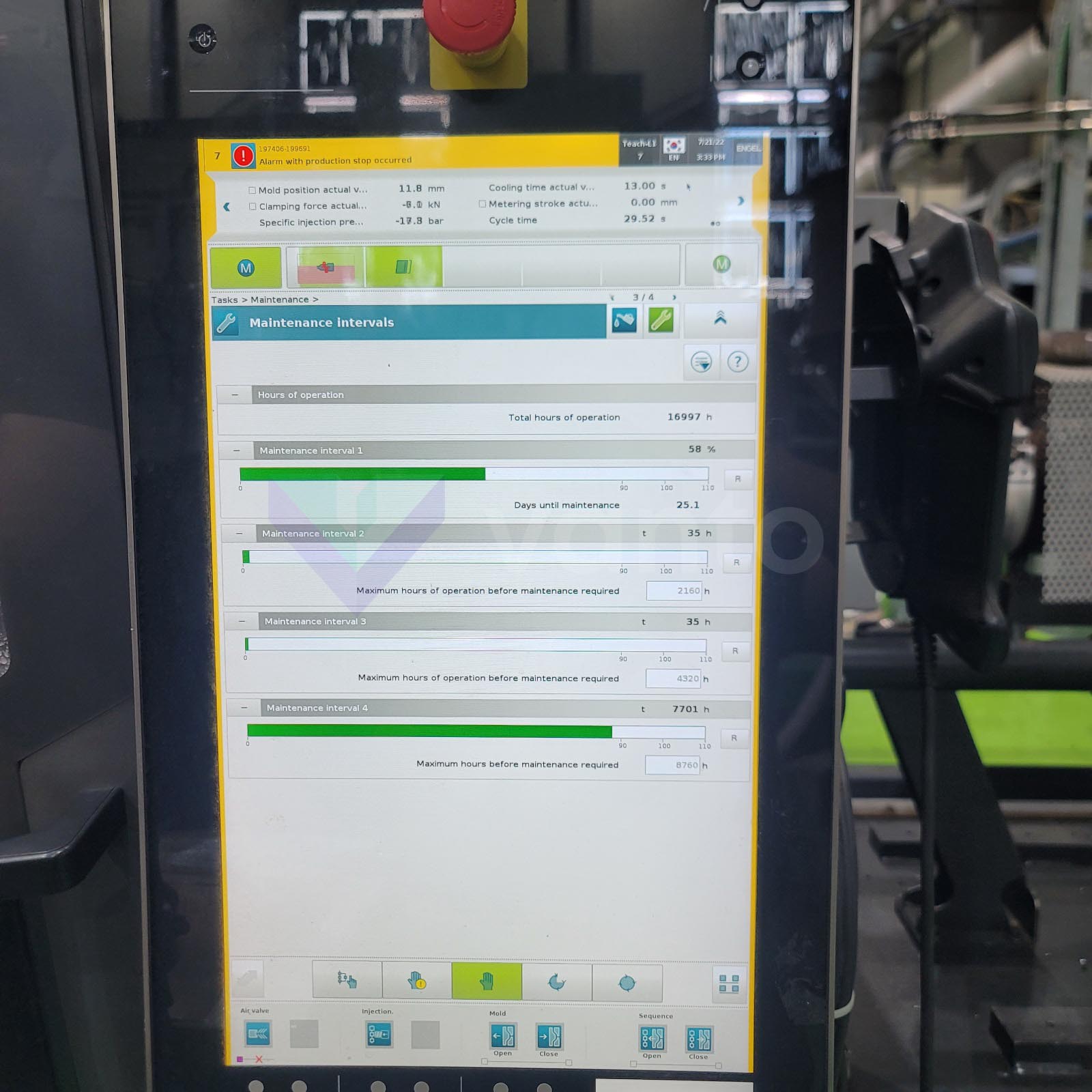

Operating hours16.997
Platen size (h x v)760 x 760 mm
Power: installed max15,3 + 27,8/31/34 kW
Screw diameter50 mm
Screw L/D ratio20
Shot weight max359 g
Weight8.200 kg
