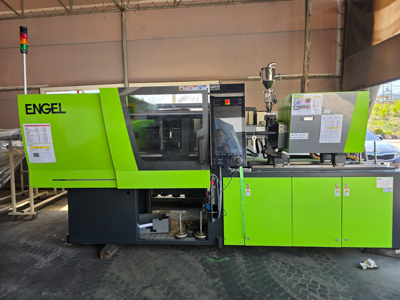

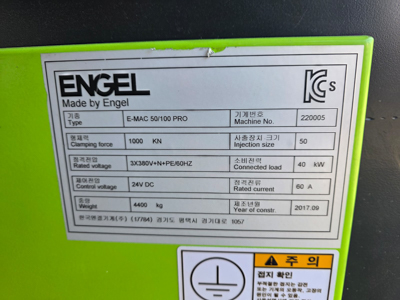

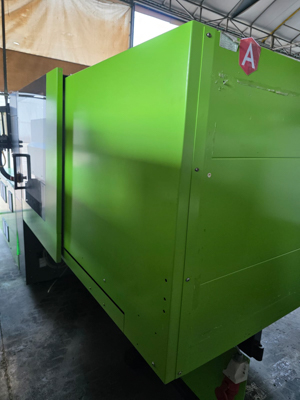

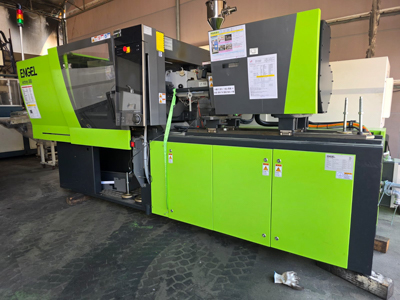

ENGEL

e-mac 50 / 100 PRO

100t all-electric injection molding machine

Category 100 to 249t Injection moulding machines
Condition Used
Year 2017
Availability Available
ID 3
|
Send message
Request a quote

Clamping force1000 kN
Barrel heating capacity5.1 kW
Daylight between platens max800 mm
Distance between tie-bars (h x v)460 x 410 mm
Dry cycle time1,4/320 sec/mm
Ejector force22 kN
Ejector stroke100 mm
Heating zones4
Injection pressure2400 bar
Injection rate84 cm³/s
Injection volume20.4 cm³
Max mold weight1 T
Mold opening force100 kN
Mould height max450 mm
Mould height min150 mm
Mould opening stroke max350 mm
Nozzle stroke / force max.200 / 20 mm / kN
Plasticizing capacity (PS)4.2 g/s
Platen size (h x v)650 x 600 mm
Power: installed max12 / 14 kW
Screw diameter18 mm
Screw L/D ratio24
Screw speed450 rpm
Screw stroke80 mm
Shot weight max19 g
