ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

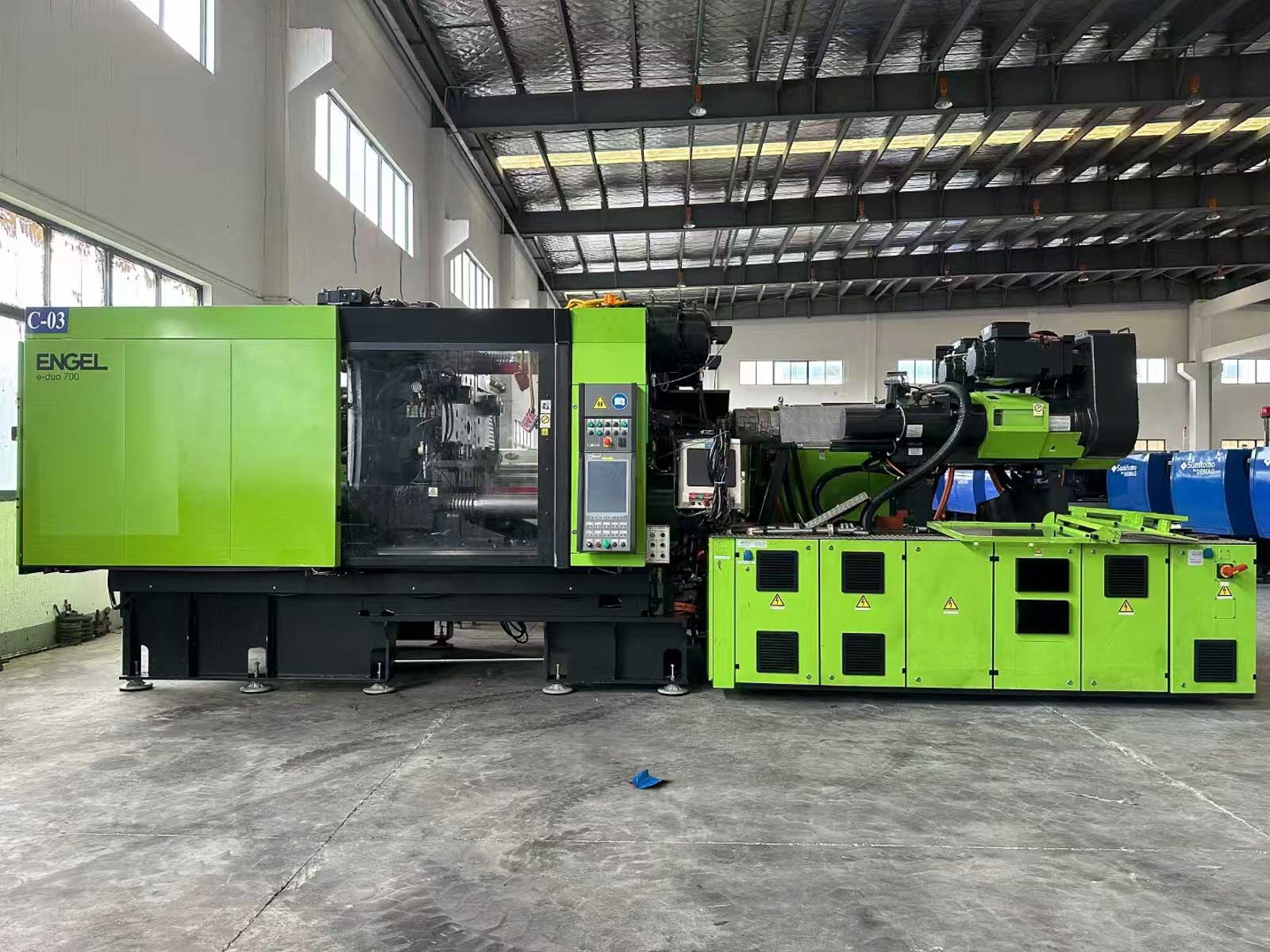

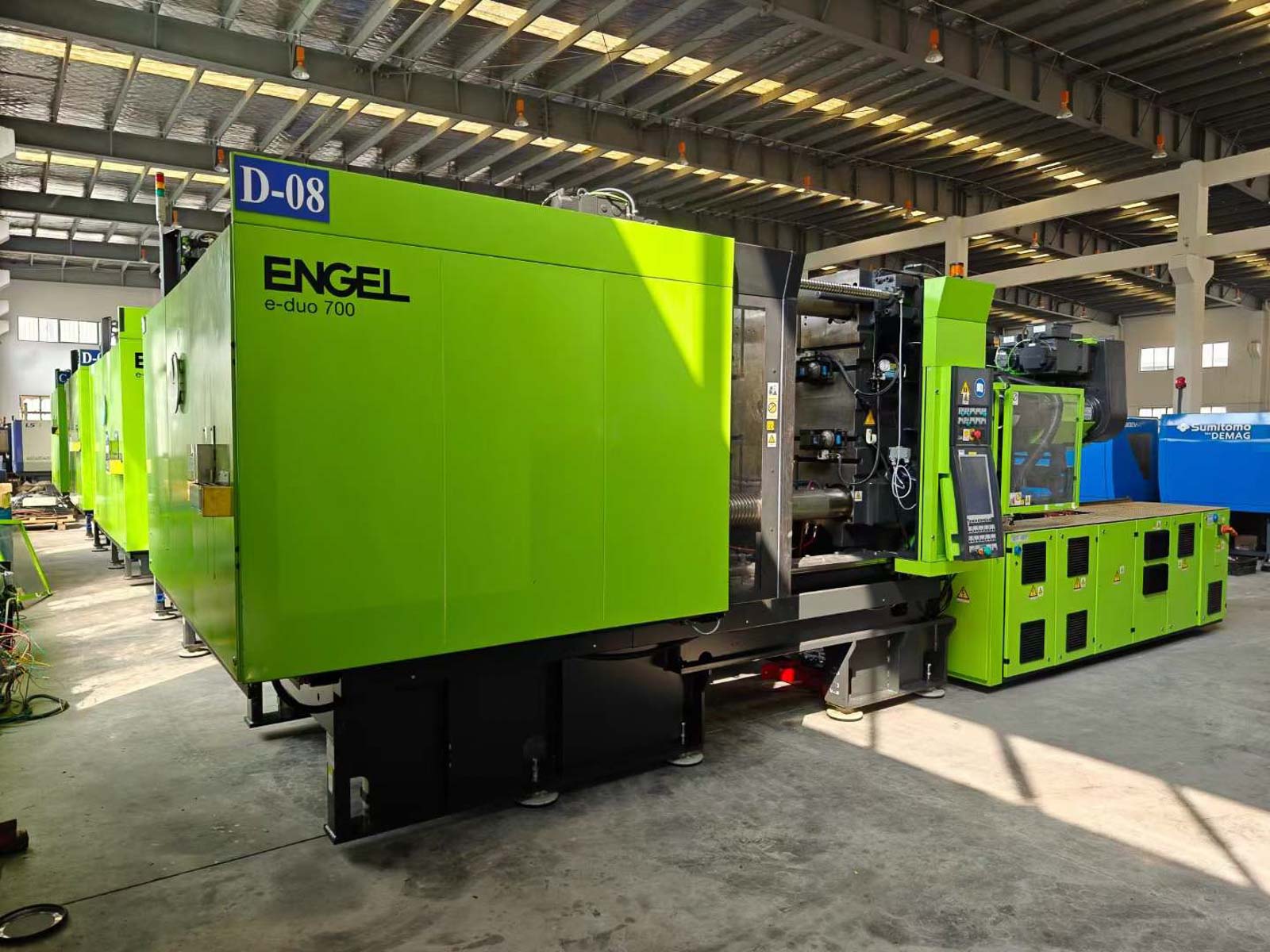

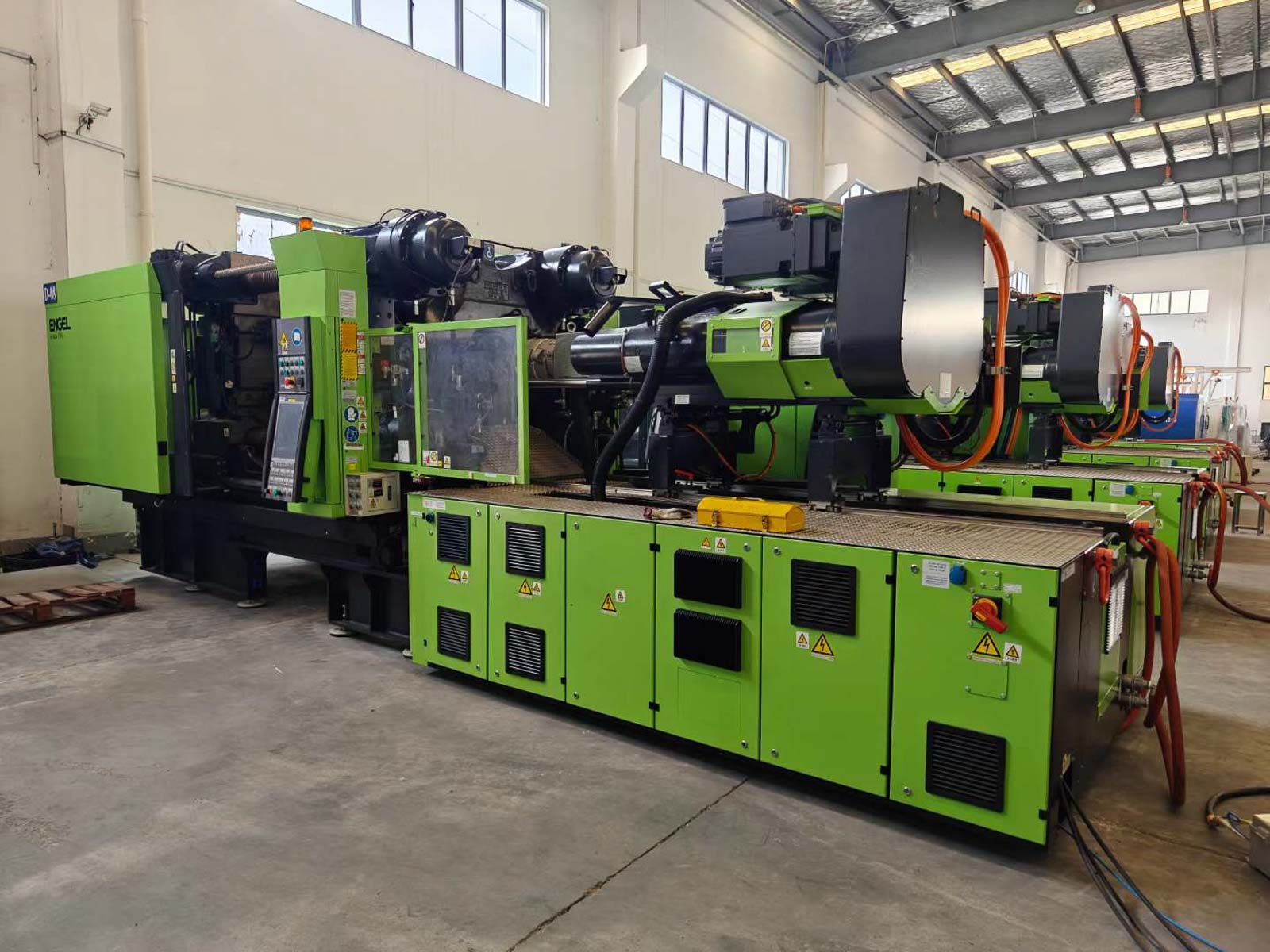

E DUO 1340 / 700

700t injection molding machine

Category	500 to 749t Injection moulding machines
Condition	Used
Year	2014
Availability	Available
ID	11262

Isaac Mateo

+34 932 711 191

+34 652 098 501

HYBRYD Machine

Clamping force	7.000 kN
Core pulls	2 x 2
Daylight between platens max	1.600 mm
Dimensions (long x wide x high)	8.300 x 2.300 x 2.300 mm
Distance between tie-bars (h x v)	1.100 x 960 mm
Dry cycle time	2,9 sec/mm
Ejector stroke / force max.	200 / 68 mm / kN
Heating zones	5
Injection pressure	1.960 / 1.040 / 1.760 bar
Injection rate	885 / 1.131 cm³/s
Injection volume	740 cm³
Mould height max	850 mm
Mould height min	350 mm
Mould opening stroke max	1.400 mm
Nozzle stroke / force max.	700 / 50 mm / kN
Oil tank capacity	175 l
Platen size (h x v)	1.510 x 1.440 mm
Power: installed max	55 kW
Screw diameter	60 mm
Screw L/D ratio	20
Screw speed	250 rpm
Weight	22.500 + 8.000 kg
