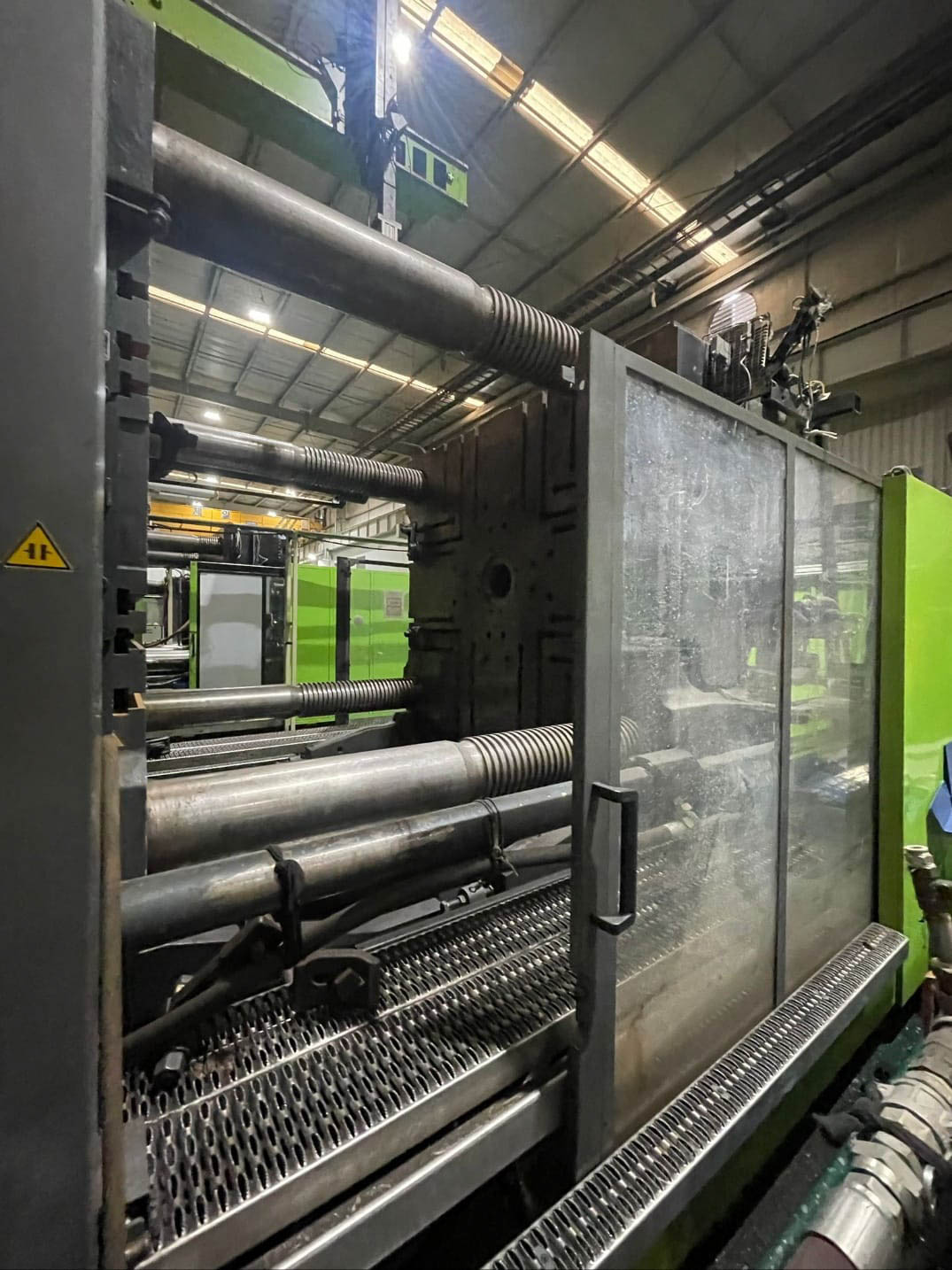

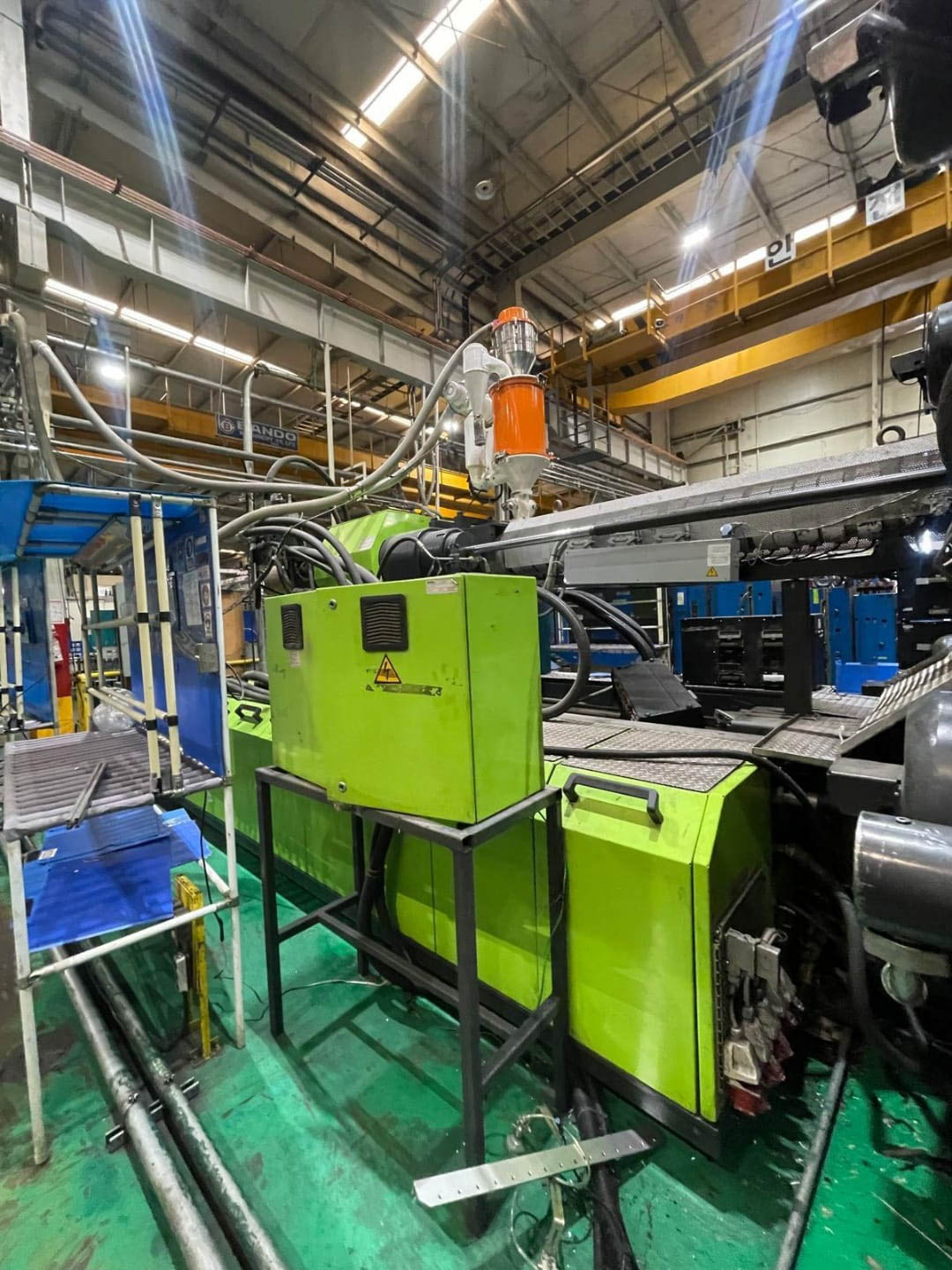

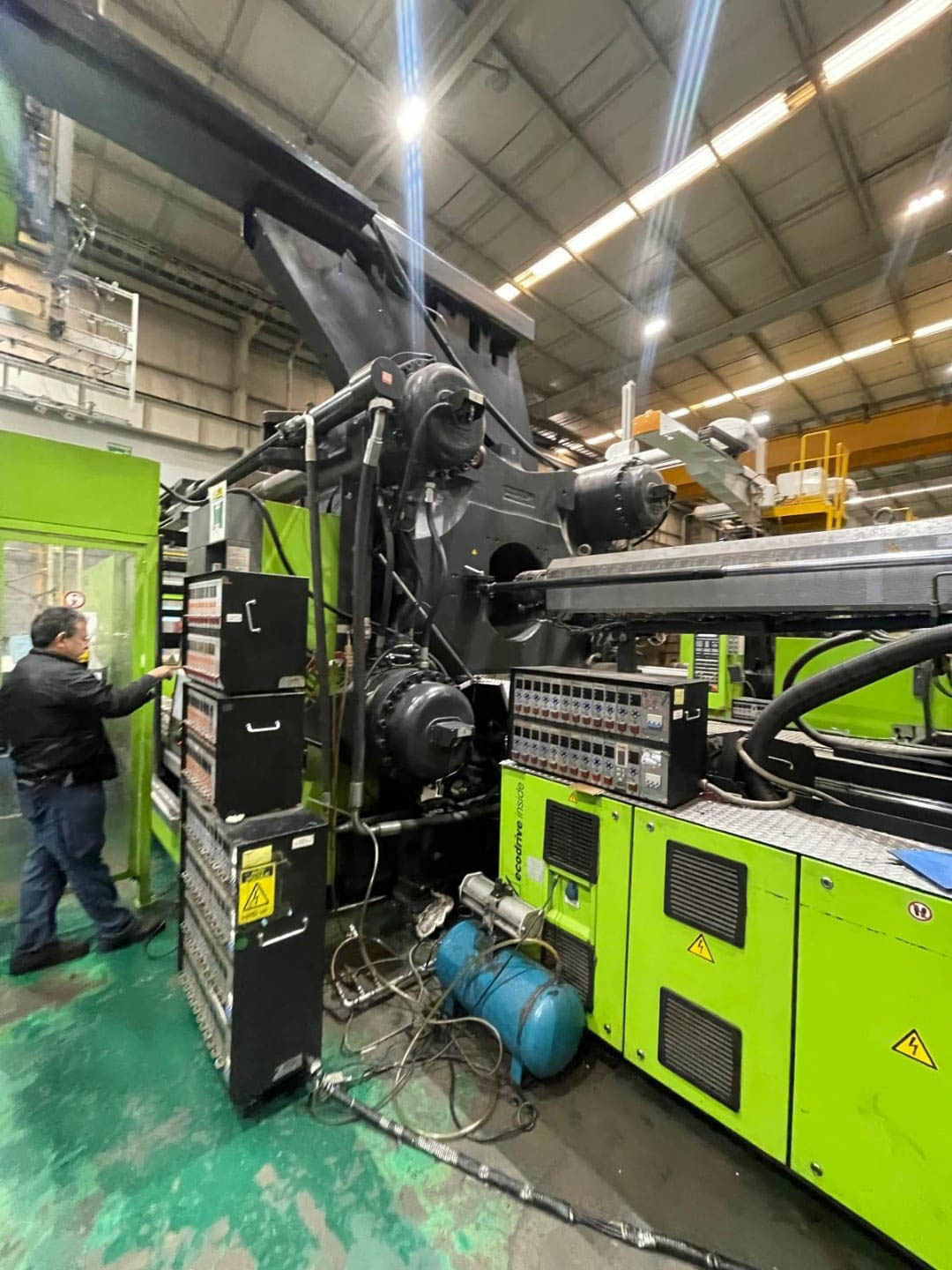

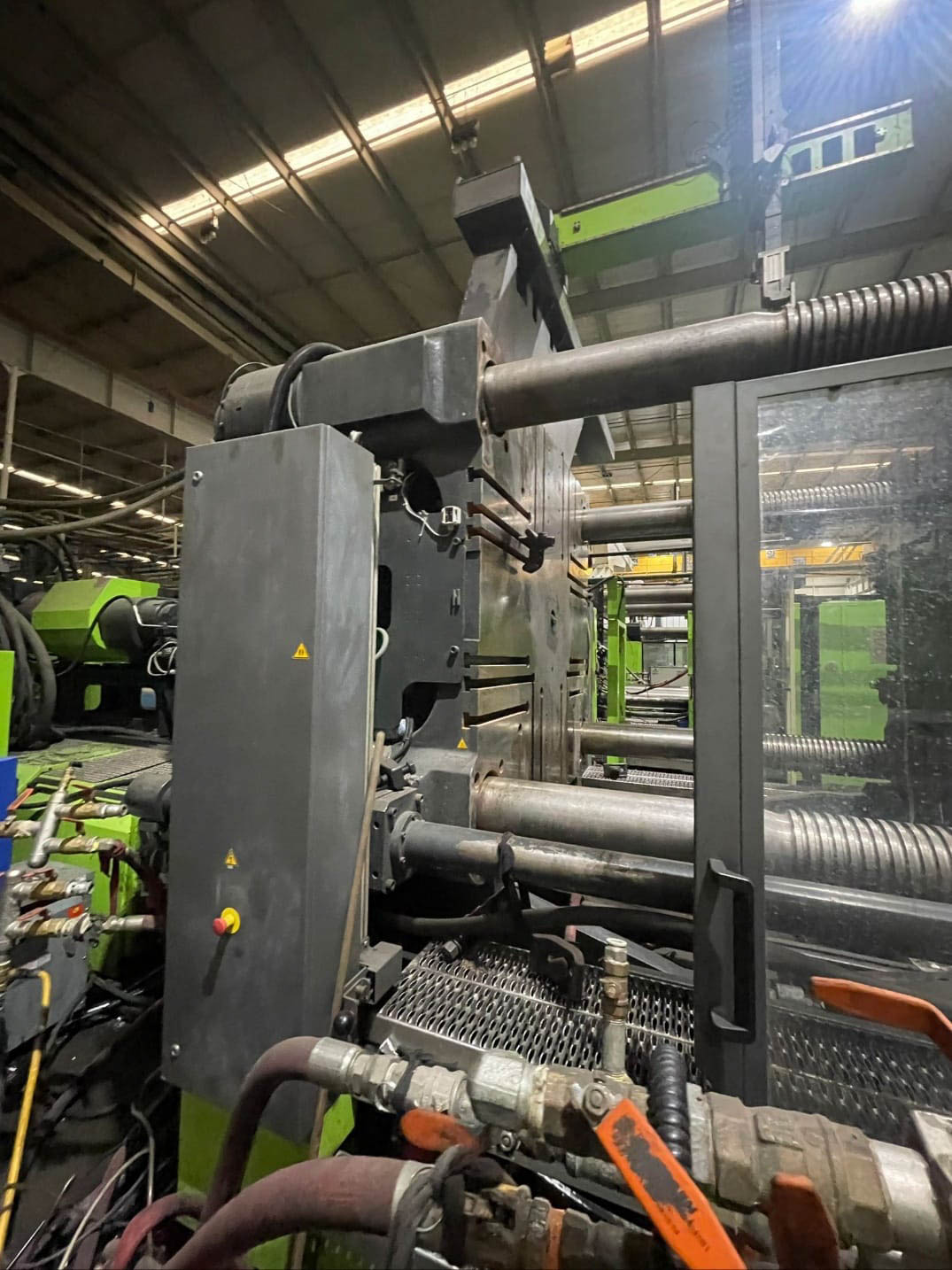

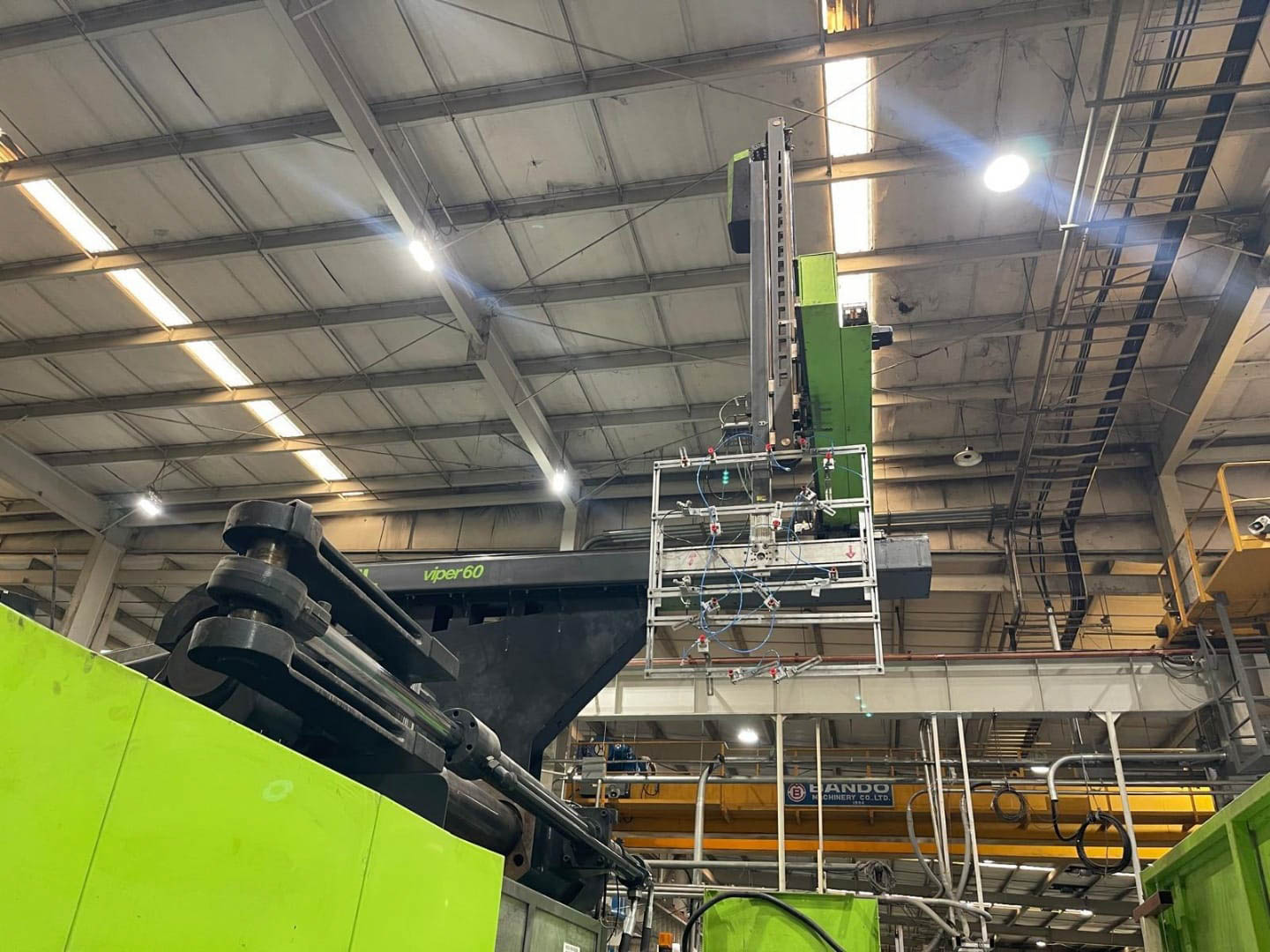

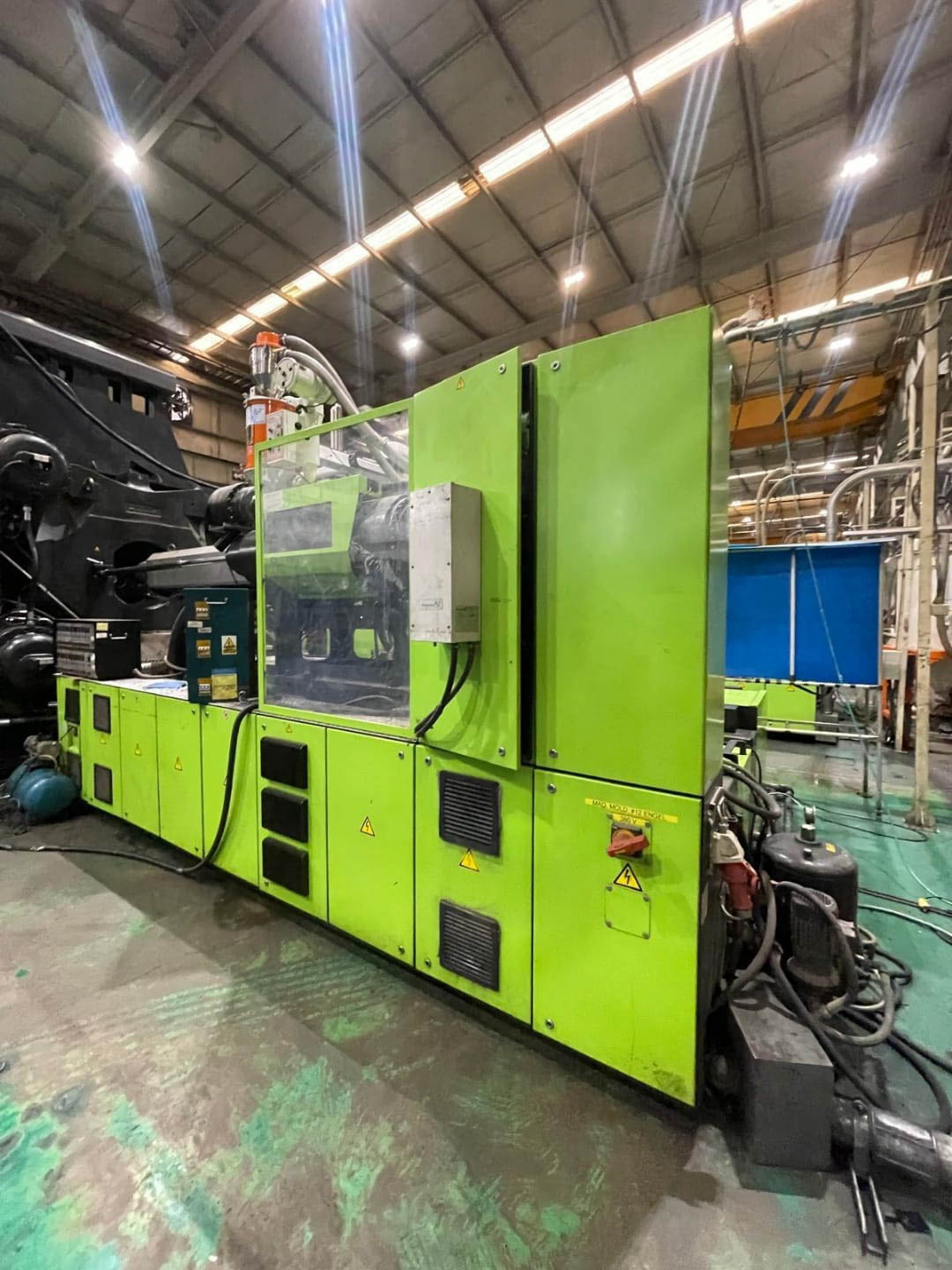

DUO 7050 1500 WP

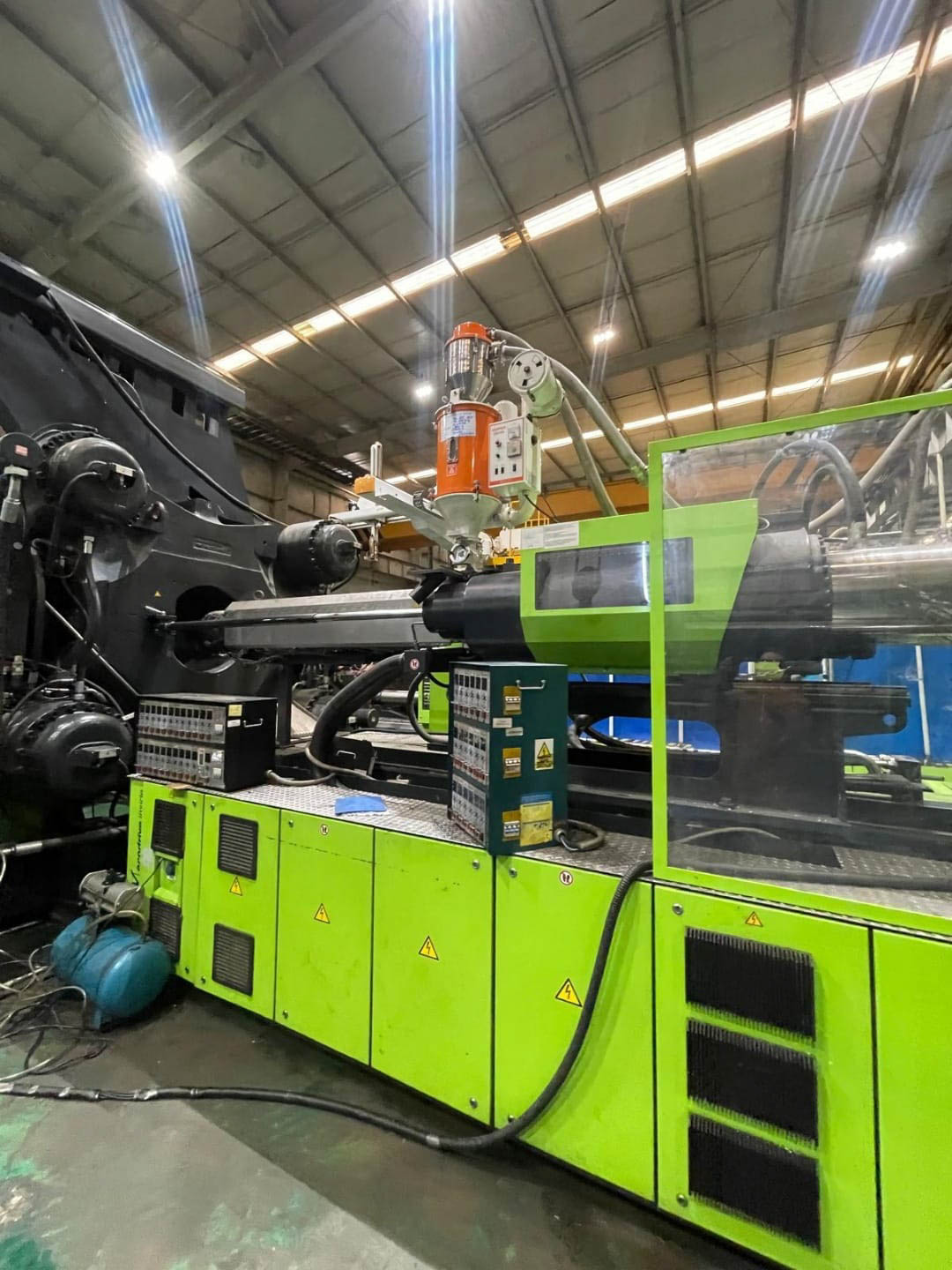

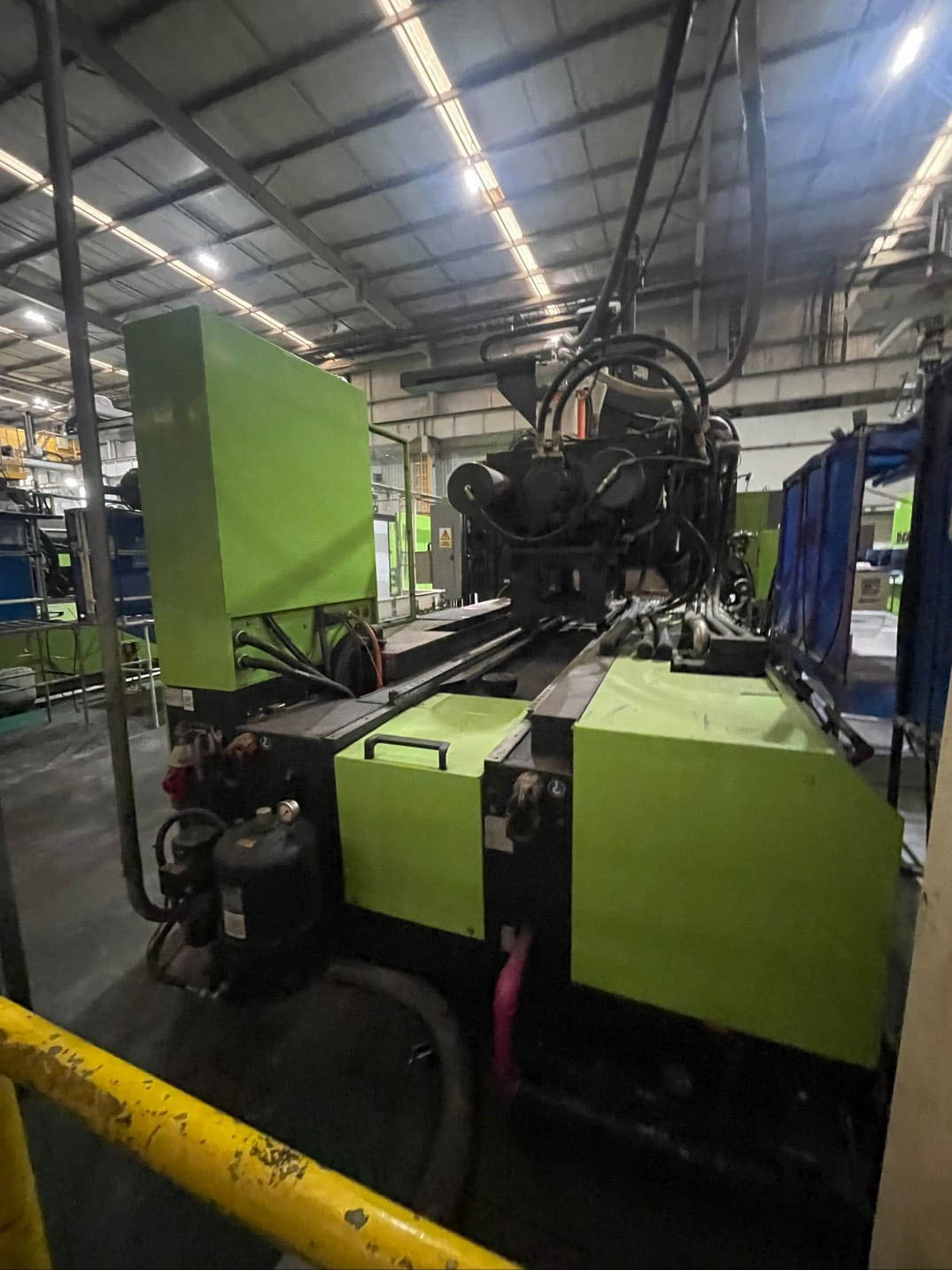

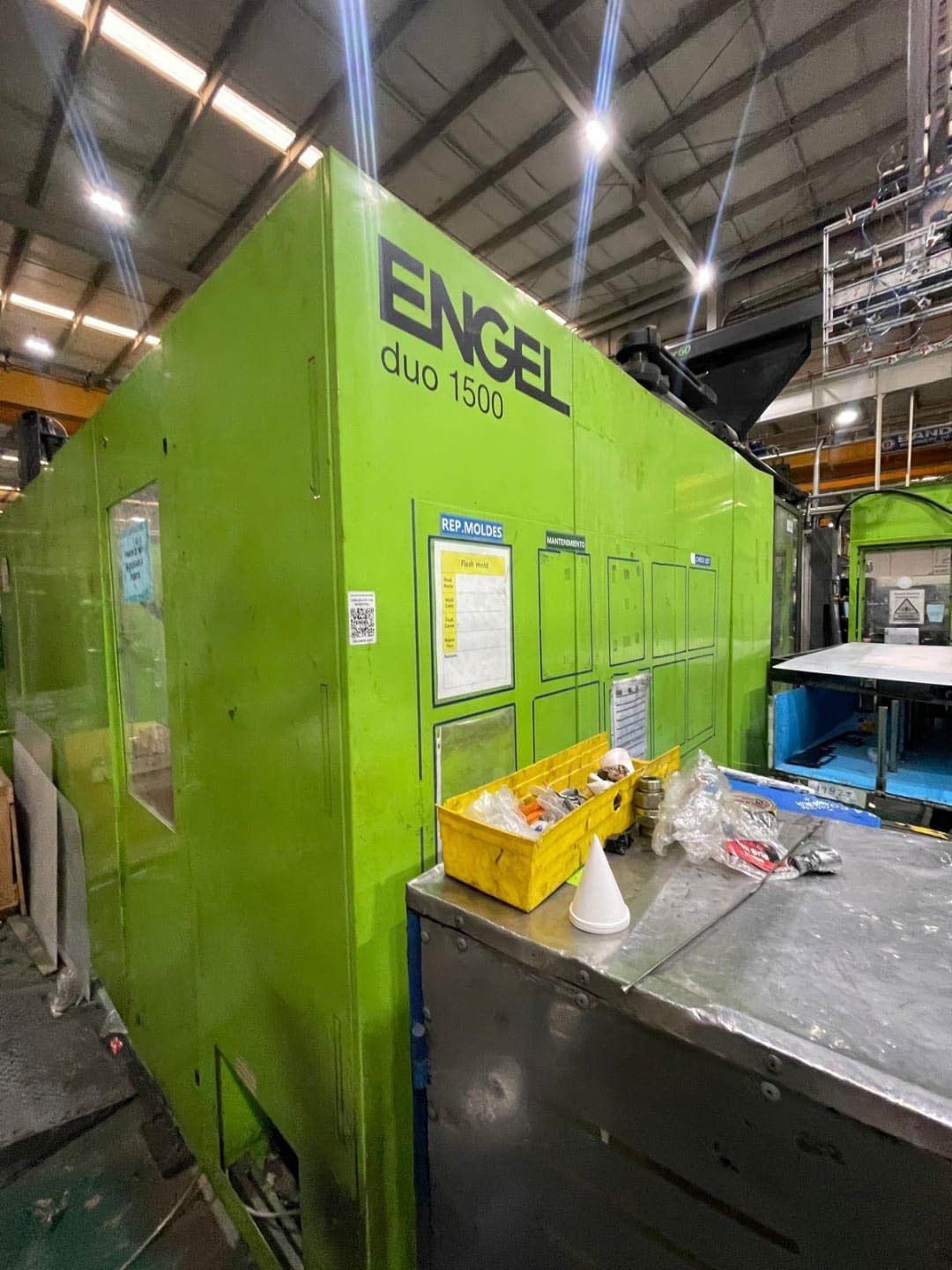

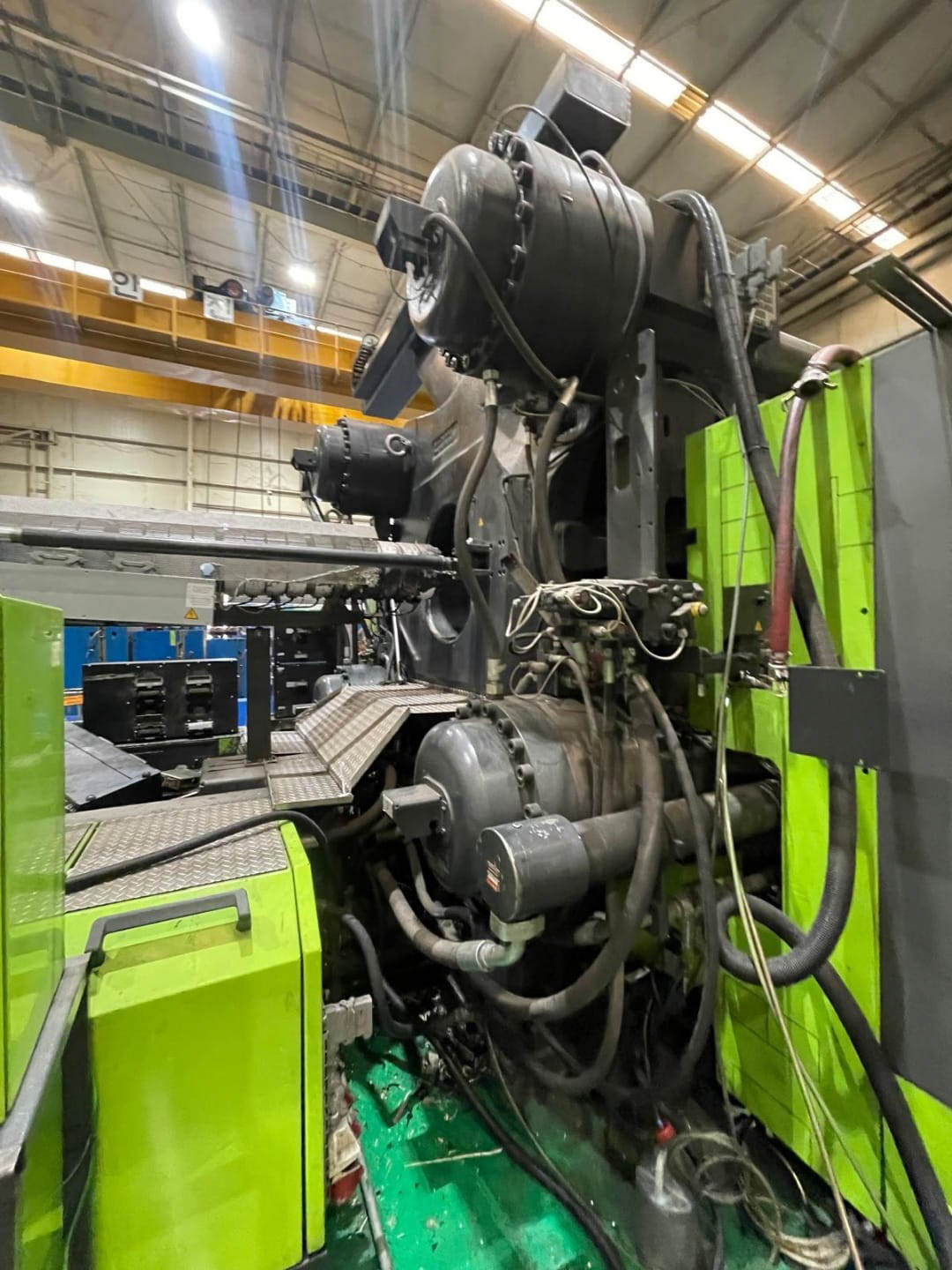

1500t injection molding machine

Category	1000t or more Injection moulding machines
Condition	Used
Year	2015
Availability	Available
ID	11275

Isaac Mateo

+34 932 711 191

+34 652 098 501

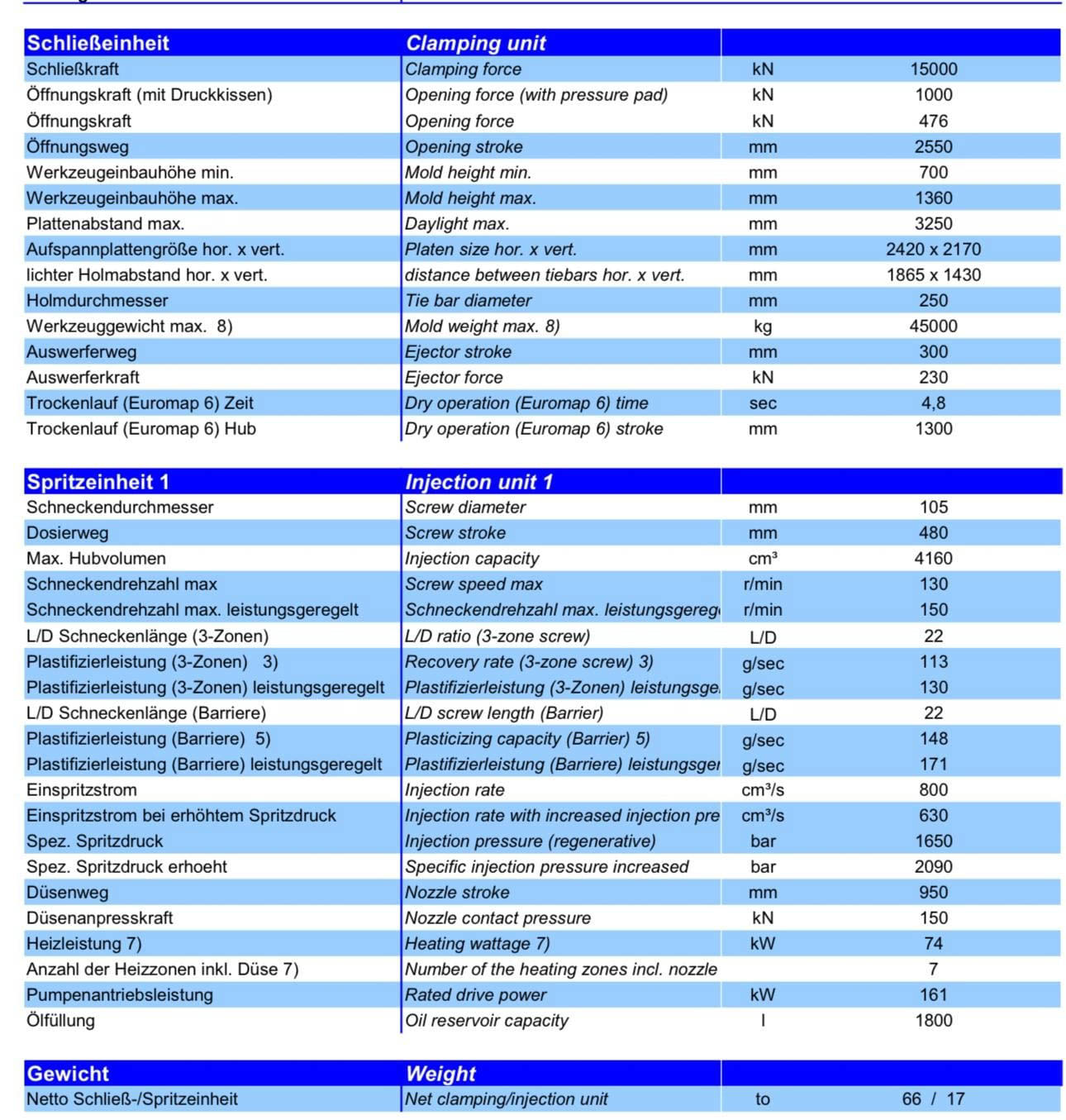

Screw diameter	105 mm
Clamping force	15.000 kN
Daylight between platens max	3.250 mm
Distance between tie-bars (h x v)	1.865 x 1.430 mm
Dry cycle time	4.8 sec/mm
Ejector stroke / force max.	300/230 mm / kN
Heating zones	7
Injection pressure	1.650 bar
Injection rate	800 cm³/s
Injection volume	4.160 cm³
Mold opening force	1.000 kN
Mould height max	1.360 mm
Mould height min	700 mm
Mould opening stroke max	2.550 mm
Nozzle stroke / force max.	950/150 mm / kN
Oil tank capacity	1.800 l

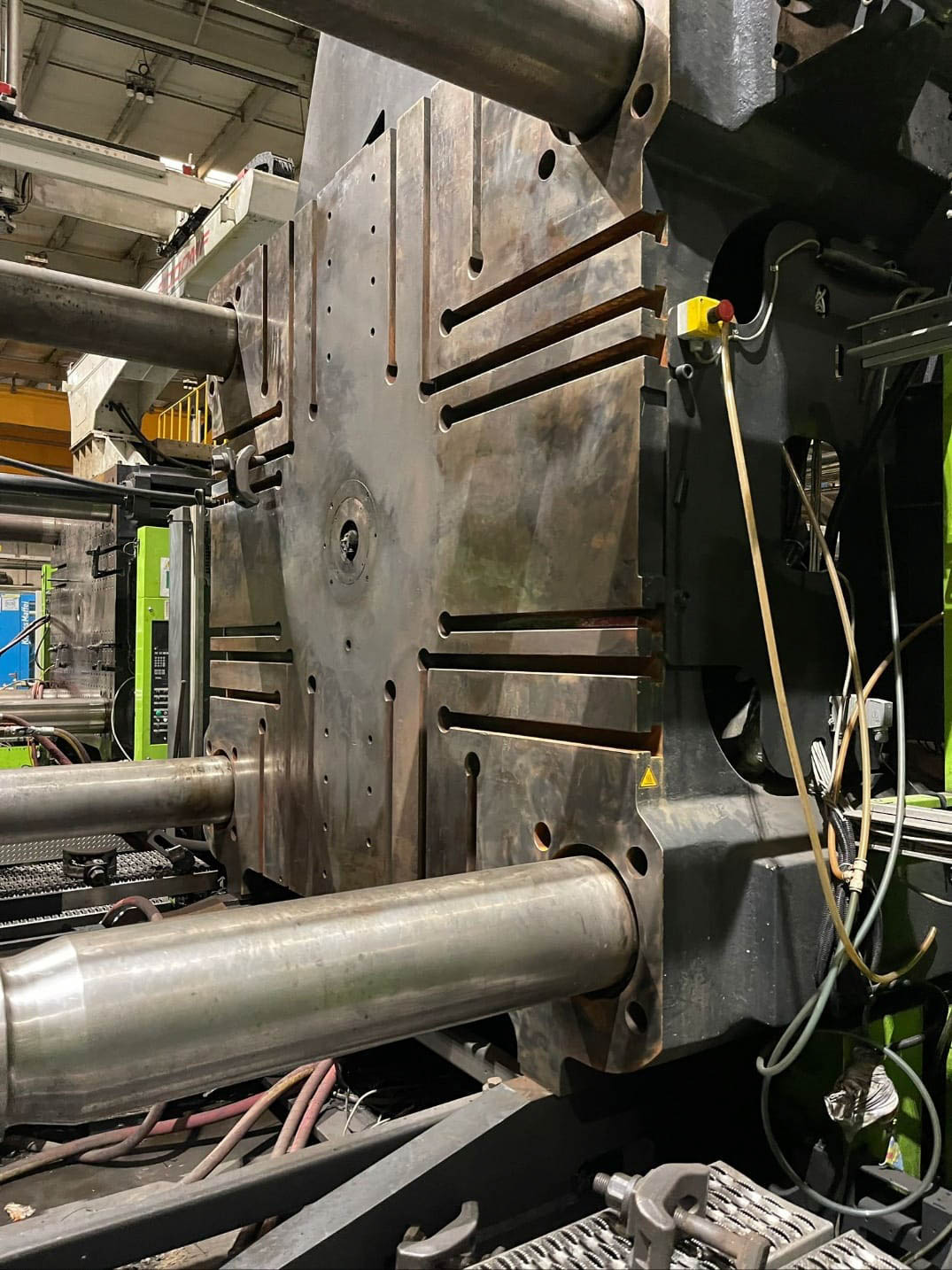

Platen size (h x v)	2.420 x 2.170 mm
Power: installed max	161 kW
Screw L/D ratio	22
Screw speed	130 rpm
Weight	66.000 + 17.000 kg
