ENGEL

Name: VANTO MACHINES - Purchase and Sale of used machines, second hand machinery
Address: Ronda Sant Pere, 16, Barcelona, Spain, Catalunya, 08010
Telephone: (+34) 932 711 191

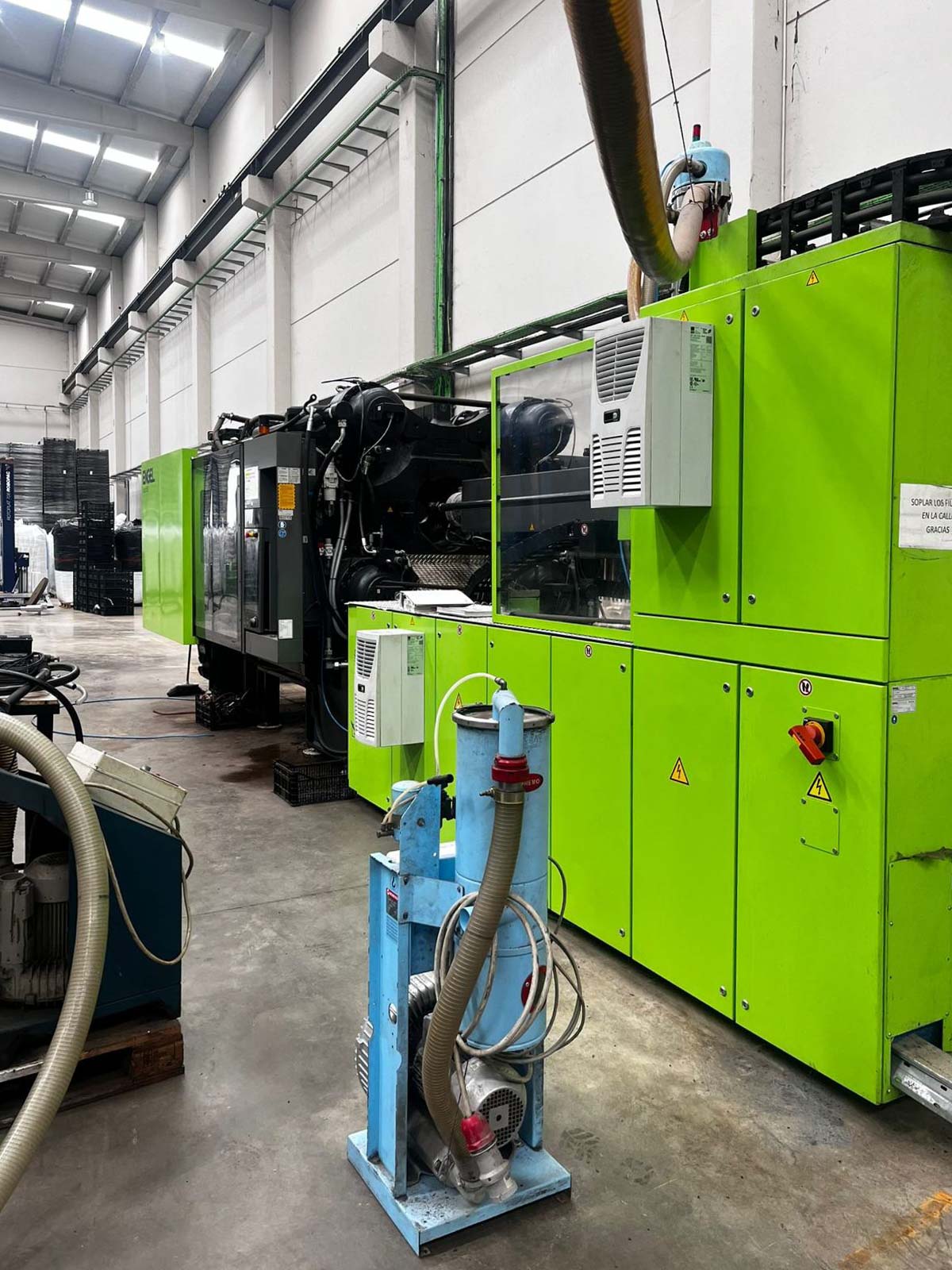

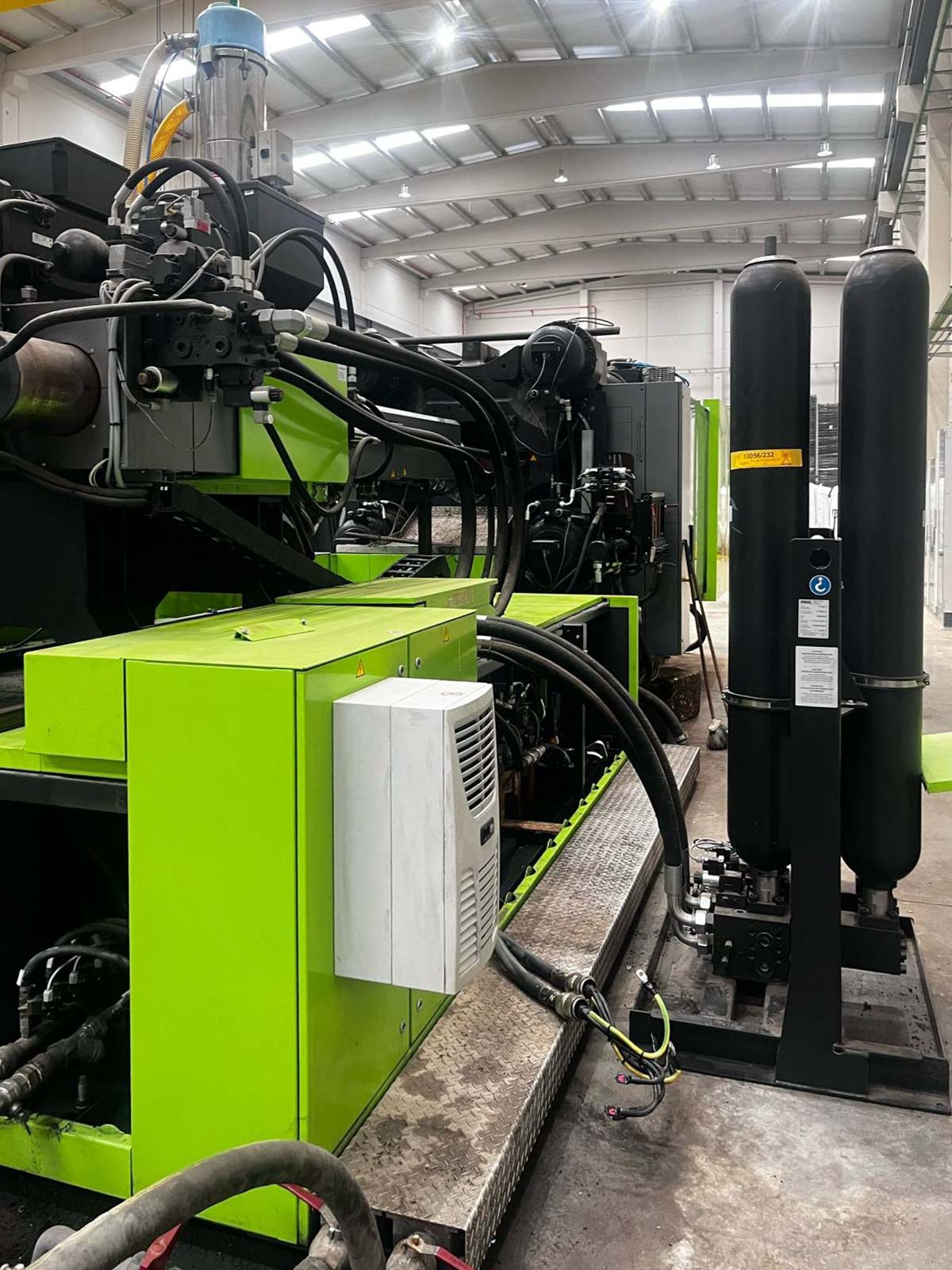

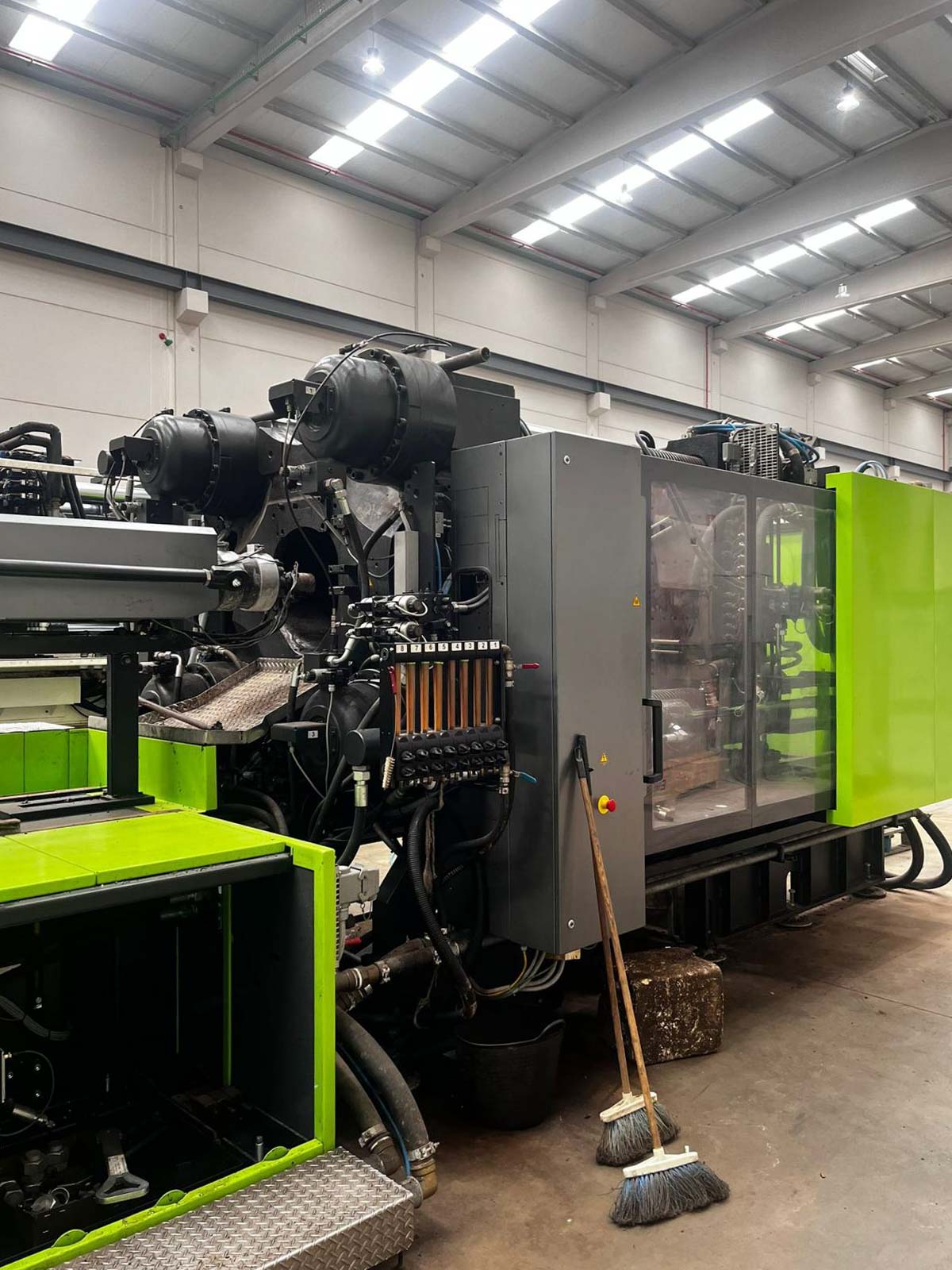

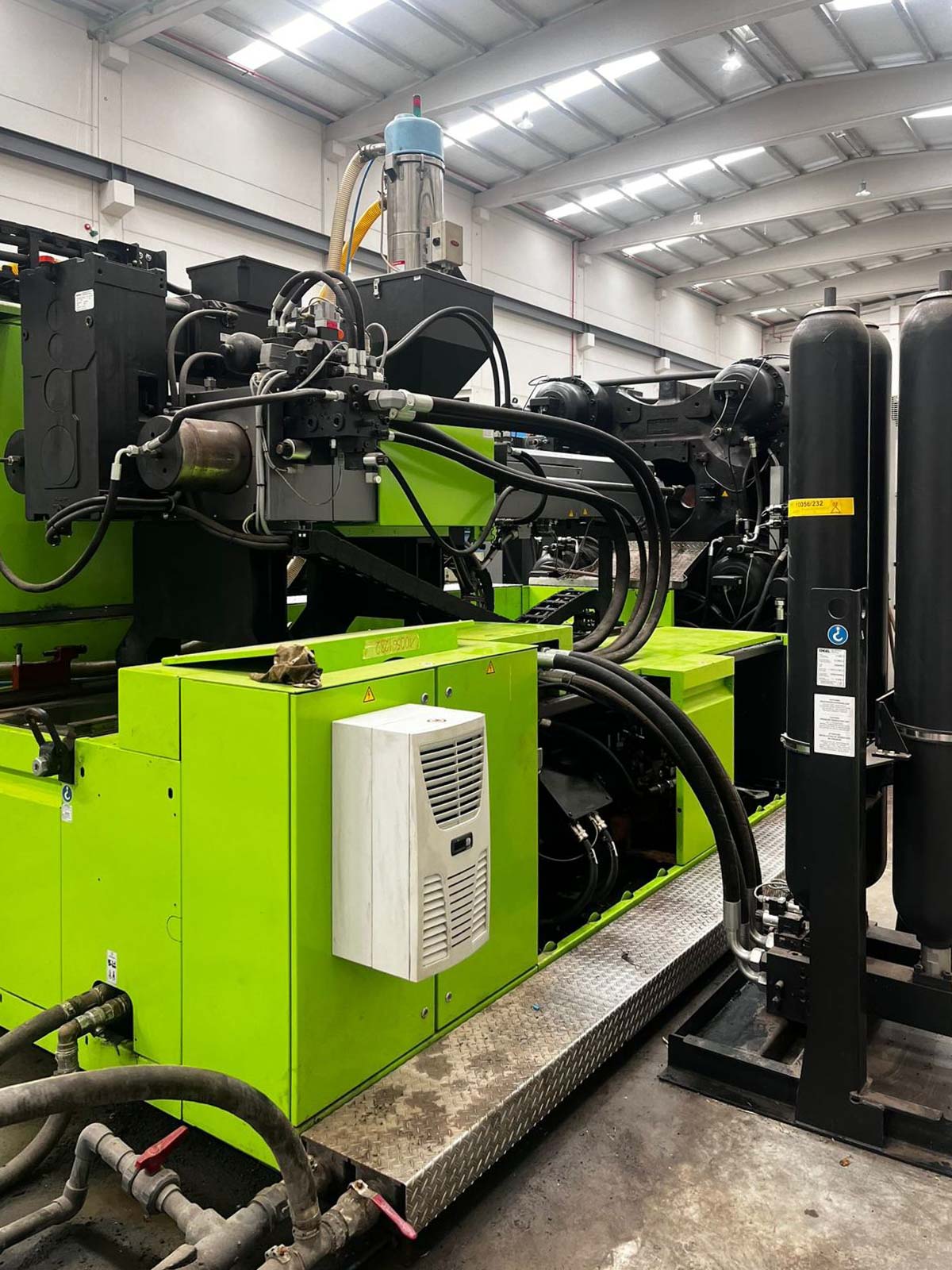

DUO 5160 / 650

650t injection molding machine

Category	500 to 749t Injection moulding machines
Condition	Used
Year	2019
Availability	Available
ID	11108

Isaac Mateo

+34 932 711 191

+34 652 098 501

Clamping force	6.500 kN

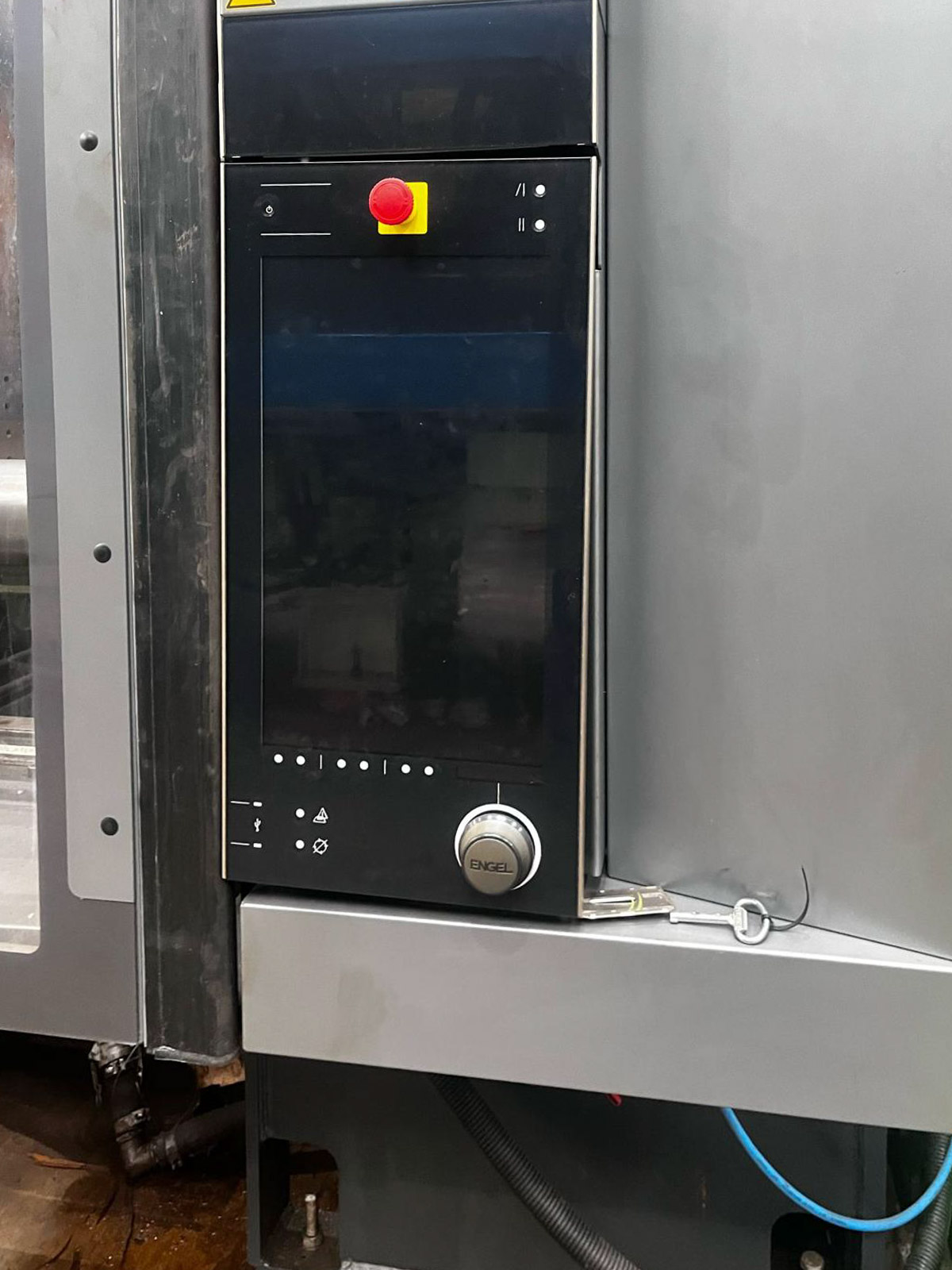

Control	CC300
Daylight between platens max	1.850 mm
Dimensions (long x wide x high)	8.200 x 2.500 x 2.500 mm
Distance between tie-bars (h x v)	1.110 x 960 mm
Ejector stroke / force max.	250 / 95 mm / kN
Heating zones	9
Injection pressure	1.583 bar
Injection rate	751 cm³/s
Injection volume	2.160 cm³
Mould height max	950 mm
Mould height min	450 mm
Nozzle stroke / force max.	700 / 150 mm / kN
Platen size (h x v)	1.510 x 1.440 mm
Power: installed max	47 kW
Screw diameter	90 mm
Screw L/D ratio	25
Screw speed	190 rpm
Shot weight max	2.375 g
Weight	10.000 kg

No videos available

ENGEL DUO 5160 / 650 Technical Specification Sheet	View PDF

ENGEL

DUO 5160 / 650

650t injection molding machine
