ENGEL

DUO 4550 / 700

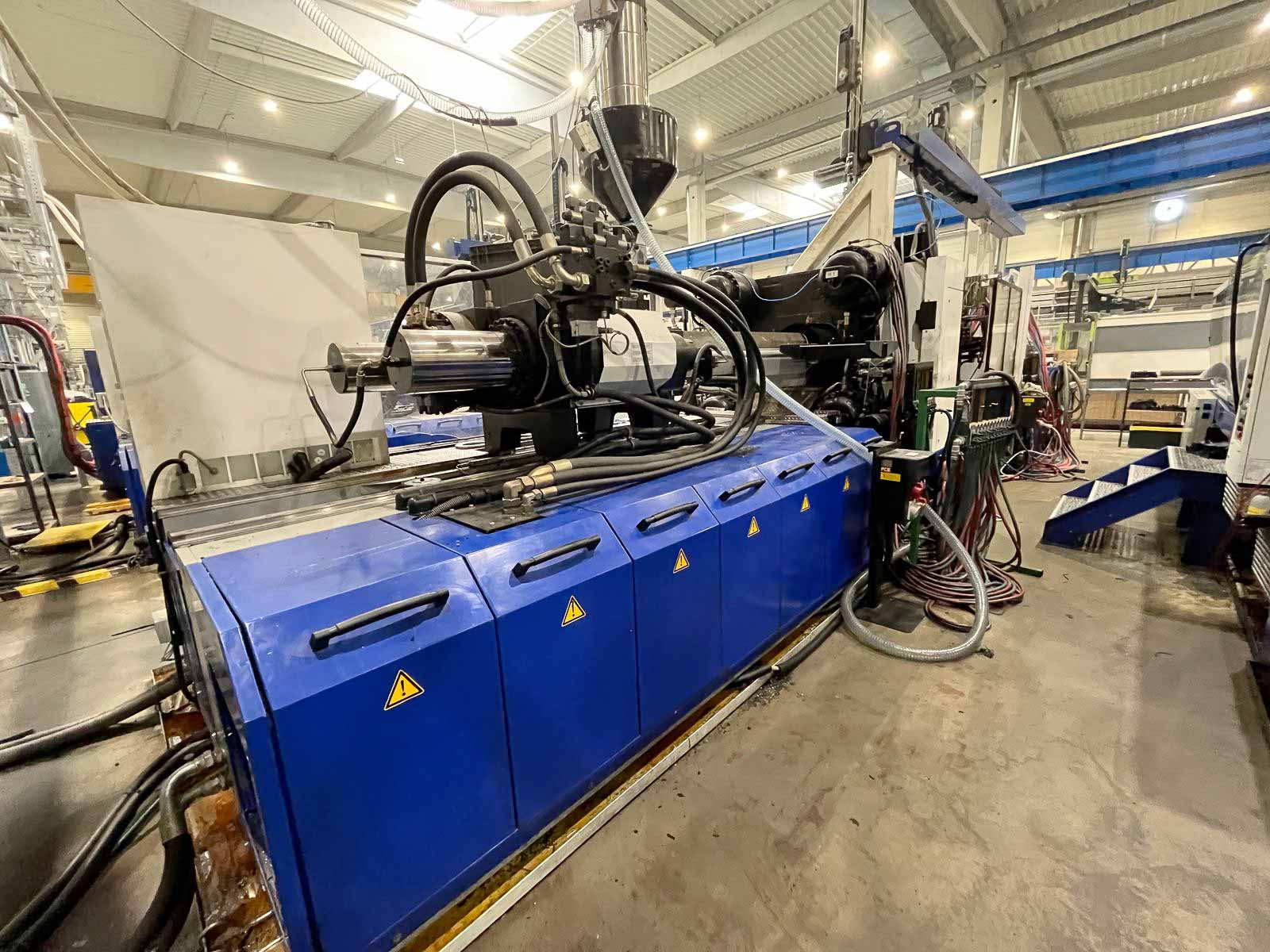

700t injection molding machine

Category 500 to 749t Injection moulding machines
Condition Used
Year 2004
Availability Available
ID 11250
Isaac Mateo
+34 932 711 191
|
+34 652 098 501
Send message
Request a quote

Linear Robot Engel ERC

Clamping force7.000 kN
ControlCC 100
Core pulls2 + 2
Daylight between platens max2.700 mm

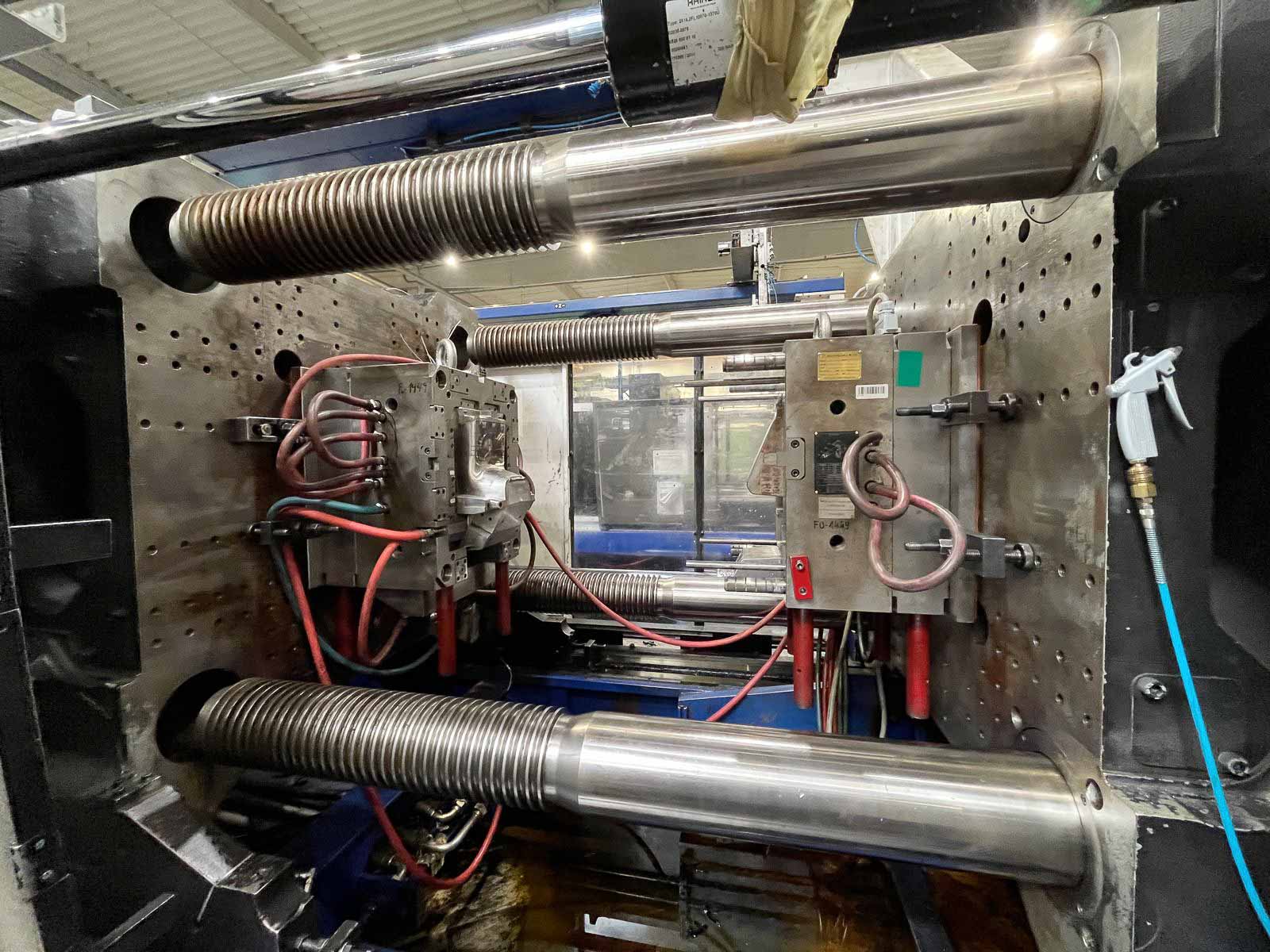

Distance between tie-bars (h x v)1.030 x 930 mm
Dry cycle time7 sec/mm
Ejector stroke / force max.300 / 90 mm / kN
Injection pressure1.910 / 2.100 bar
Injection rate2.488 cm³/s
Injection volume2.860 cm³
Mold opening force510 kN
Mould height max1.350 mm
Mould height min450 mm
Nozzle stroke / force max.65 / 185 mm / kN
Oil tank capacity1.000 l
Platen size (h x v)1.460 x 1360 mm
Power: installed max62 + 75 kW

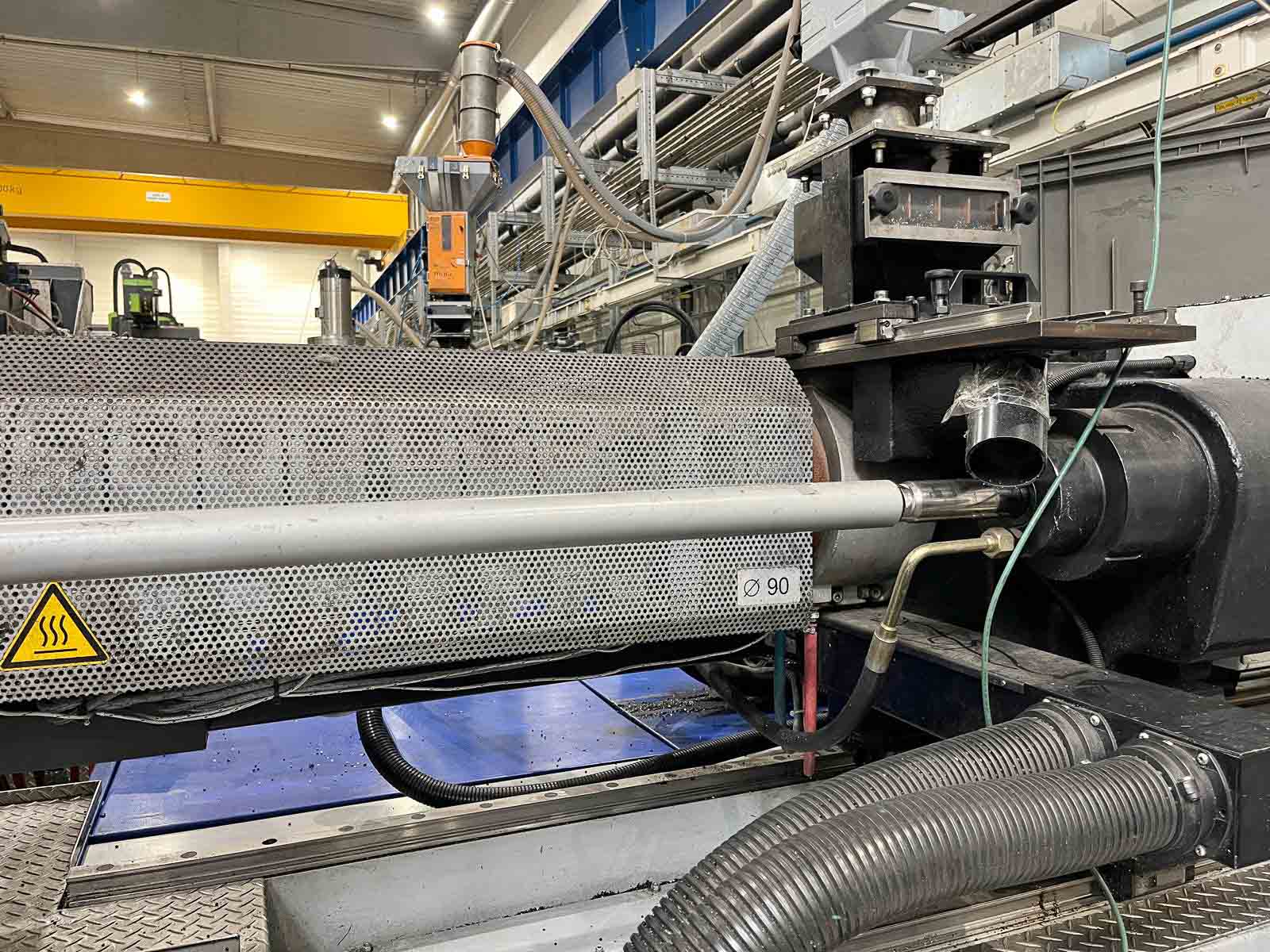

Screw diameter90 mm
Screw L/D ratio24
Shot weight max2.600 g
Weight22.000 + 10.000 kg
