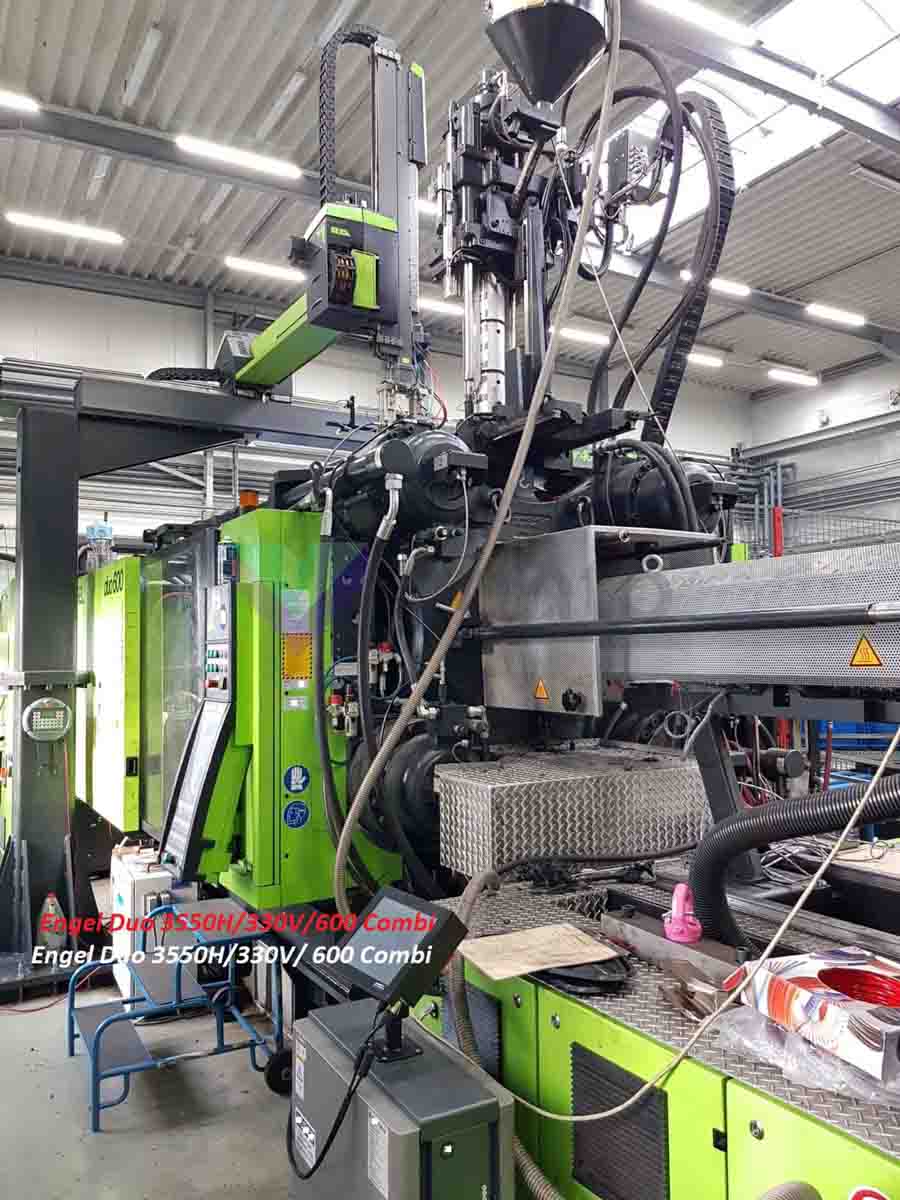

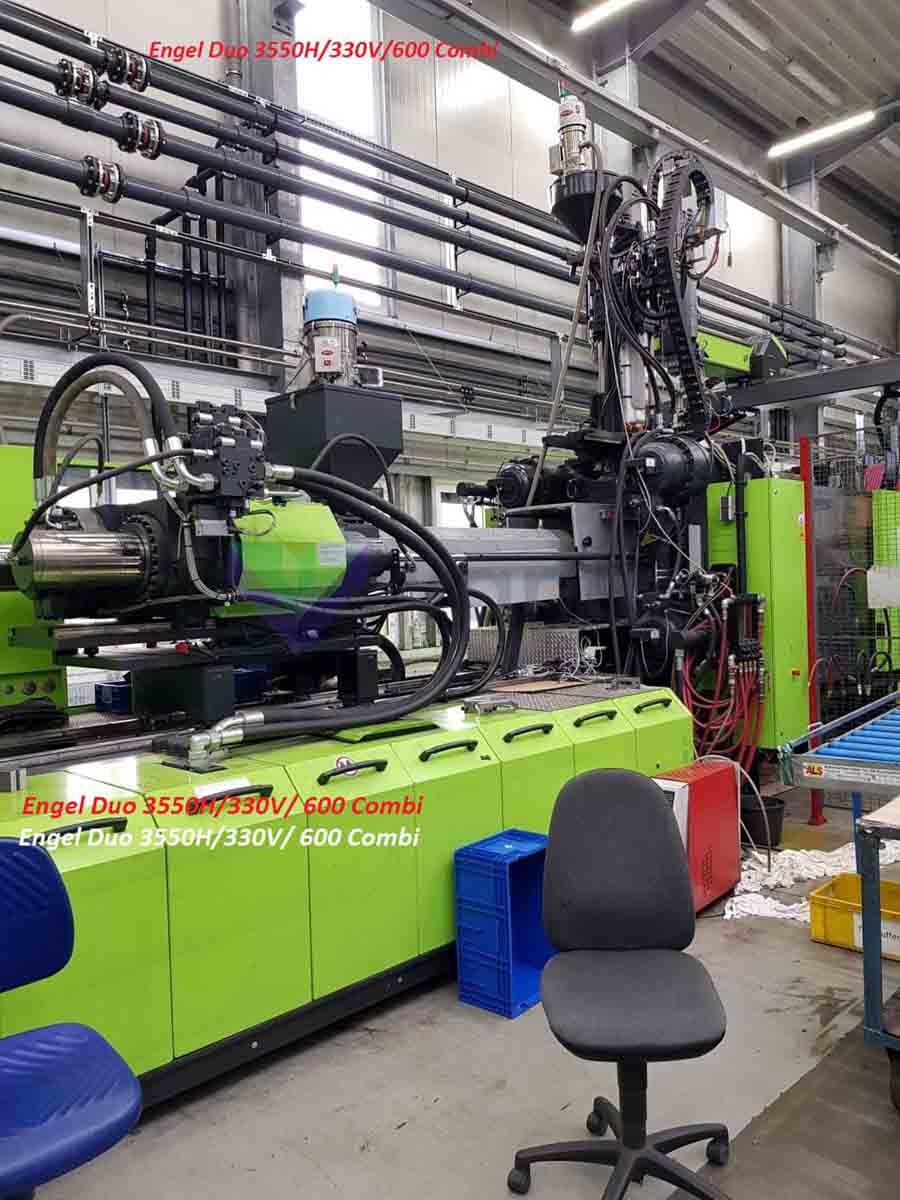

DUO 3550H / 330V / 600

600t bimaterial injection molding machine

Category	500 to 749t Injection moulding machines
Condition	Used
Year	2011
Availability	Sold
ID	10436

- The machine has two air valves.
- Internal hot runner 8 zones.
- One core pull on the nozzle side, two on the ejector side.
- Screw 1 = 90mm

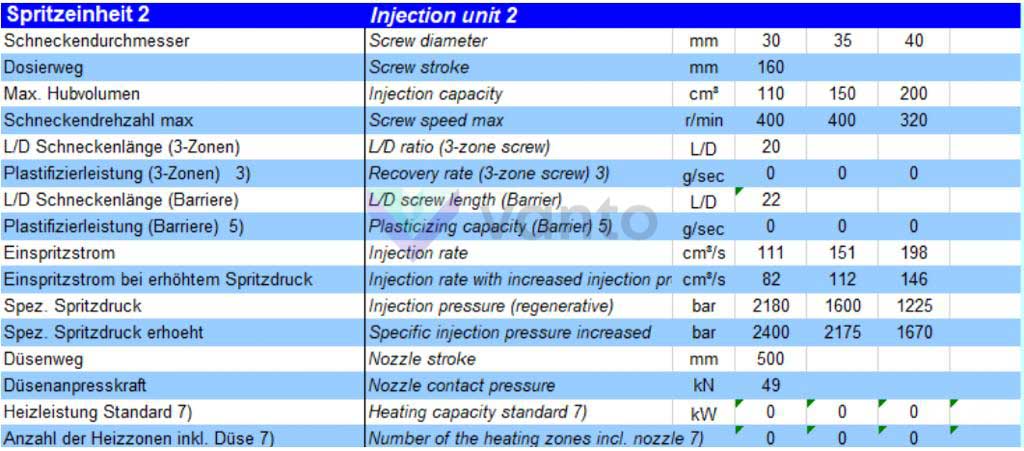

- Screw 2 = 35mm

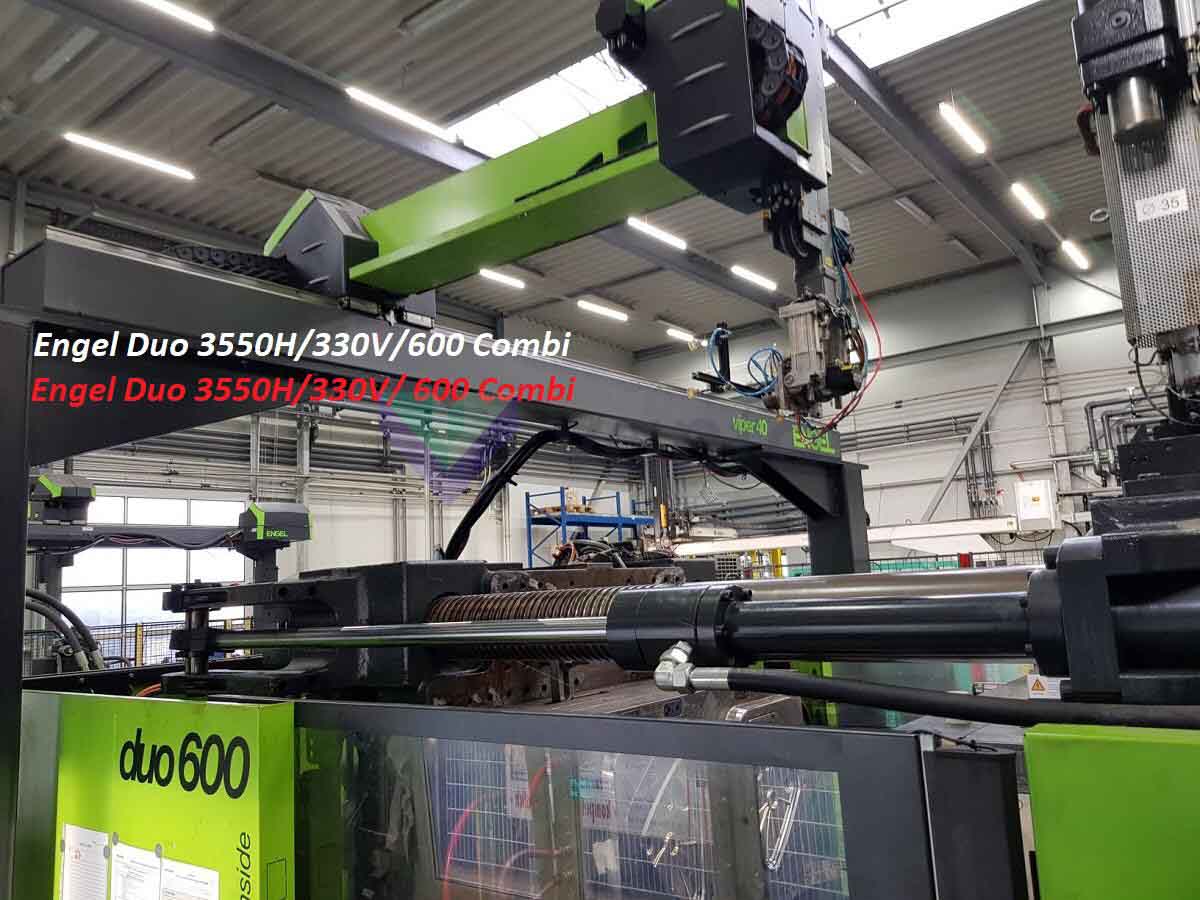

- Viper 40 robot with 4 servo axes, servo rotary axis, folding axis (axis 5) pneumatic.
- 4 freely programmable outputs
- 4 freely programmable inputs
- 38.000 working hours

Air Valves	2
Cascades / Sequential valve gates	n/a

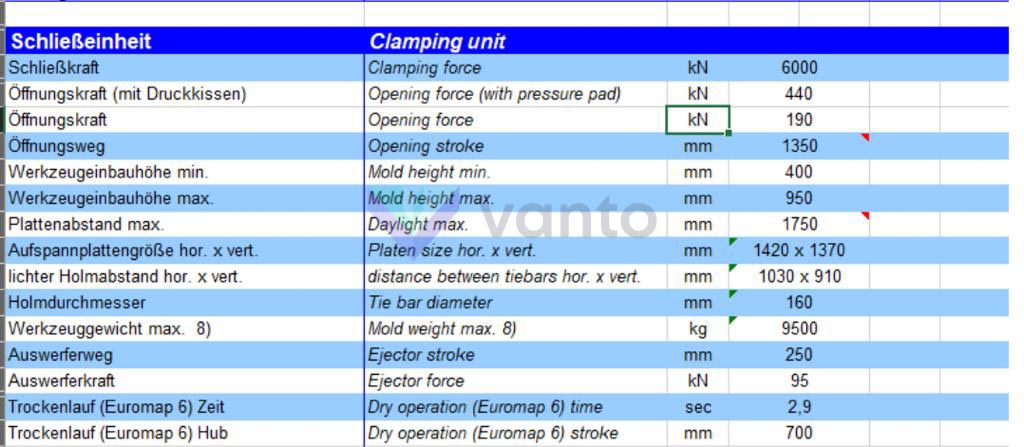

Clamping force	6.000 kN
Control	CC200
Core pulls	1 + 2
Daylight between platens max	1.740 mm
Dimensions (long x wide x high)	n/a mm
Distance between tie-bars (h x v)	1.030 x 910 mm
Ejector stroke / force max.	250 / 95 mm / kN
Heating zones	8

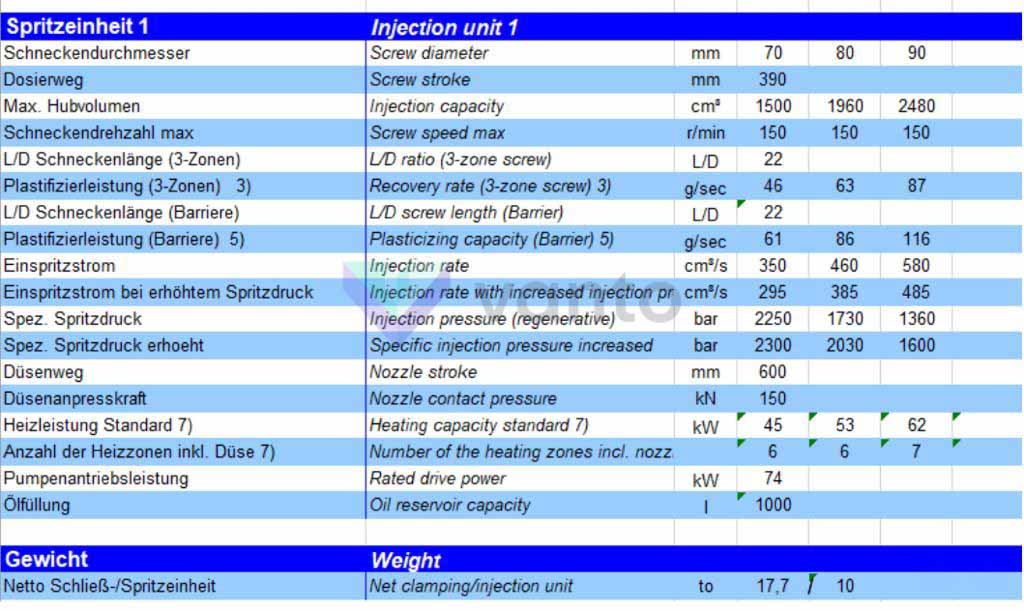

Injection pressure	1.360 / 1.670 bar
Injection rate	485 / 151 cm³/s
Injection volume	2.480 / 200 cm³
Mold opening force	440 / 190 kN
Mould height max	950 mm
Mould height min	400 mm
Mould opening stroke max	1.350 mm
Nozzle stroke / force max.	600 / 150 - 500 / 49 mm / kN
Nozzle stroke max	600 / 500 mm
Oil tank capacity	1.000 l
Operating hours	38.000
Platen size (h x v)	1.420 x 1.370 mm
Power: installed max	74 kW
Screw diameter	90 / 60 mm
Screw L/D ratio	22 / 20
Screw speed	150 / 400 rpm
Weight	17.700 / 10.000 kg
