ENGEL

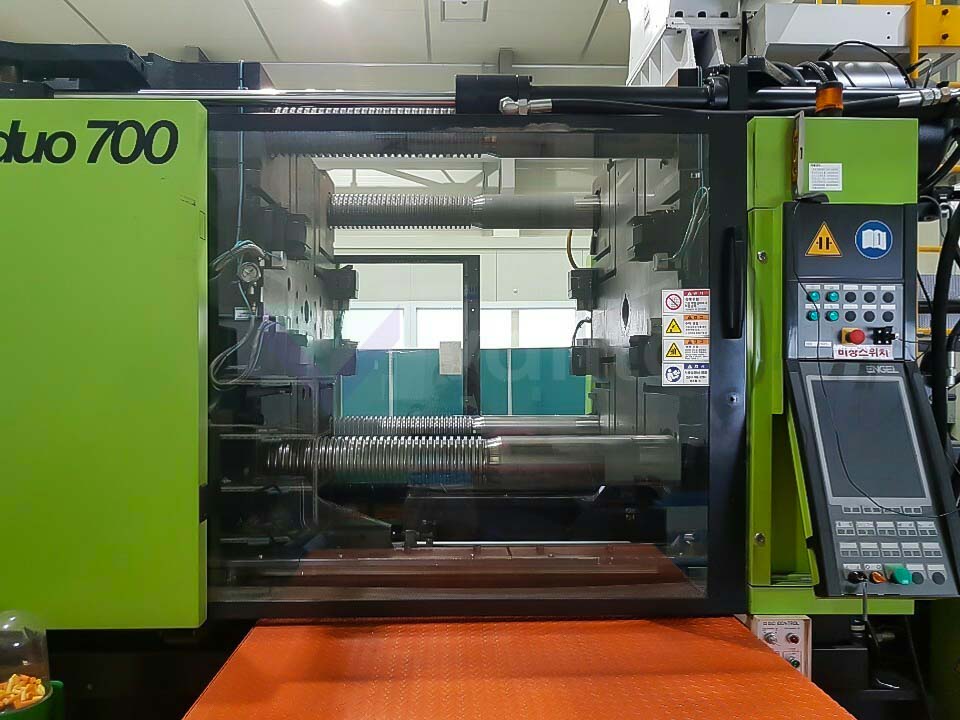

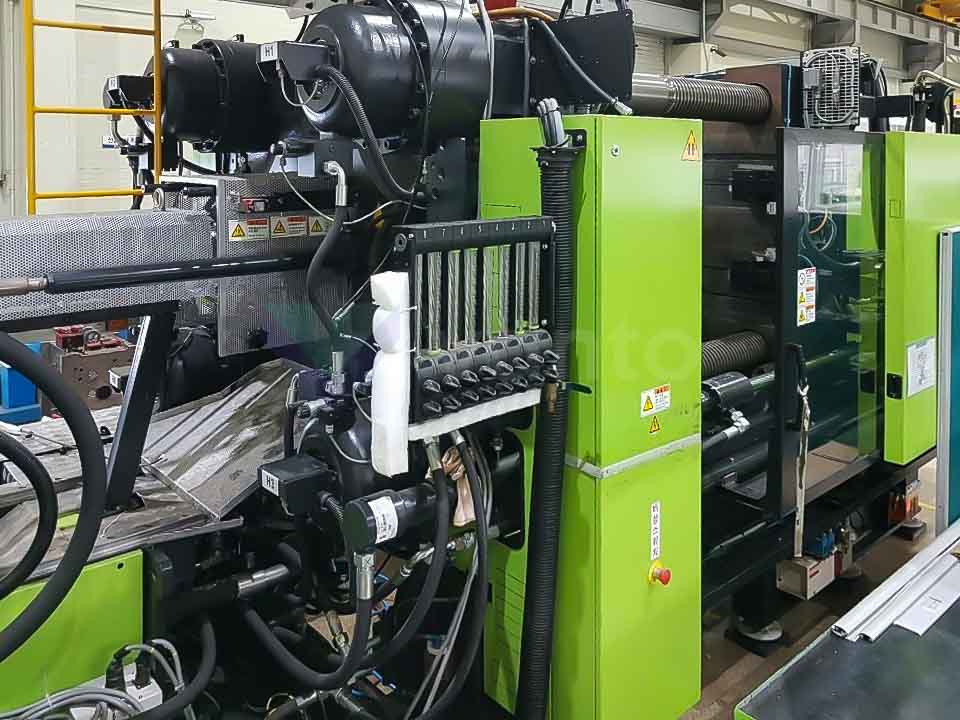

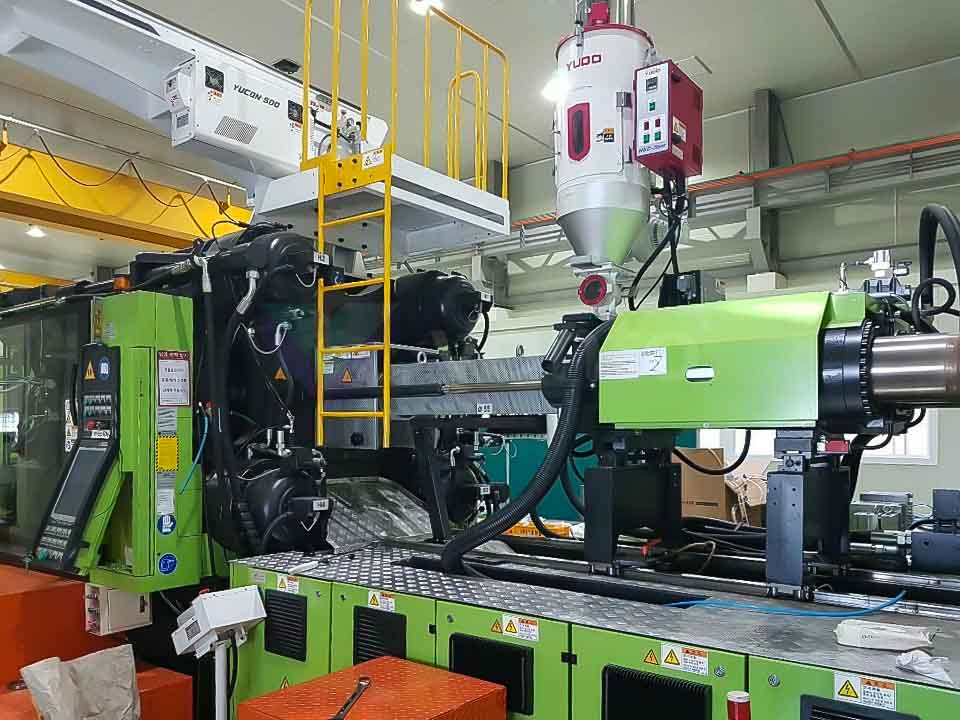

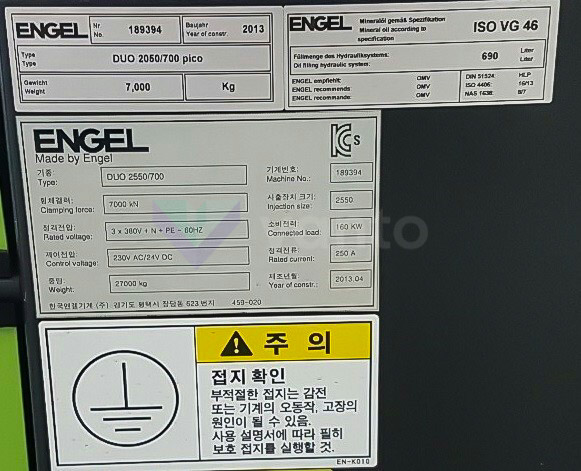

DUO 2050 / 700 PICO

700t injection molding machine

Request a quote
Category 500 to 749t Injection moulding machines
Condition Used
Year 2013
Availability Available
ID 10204

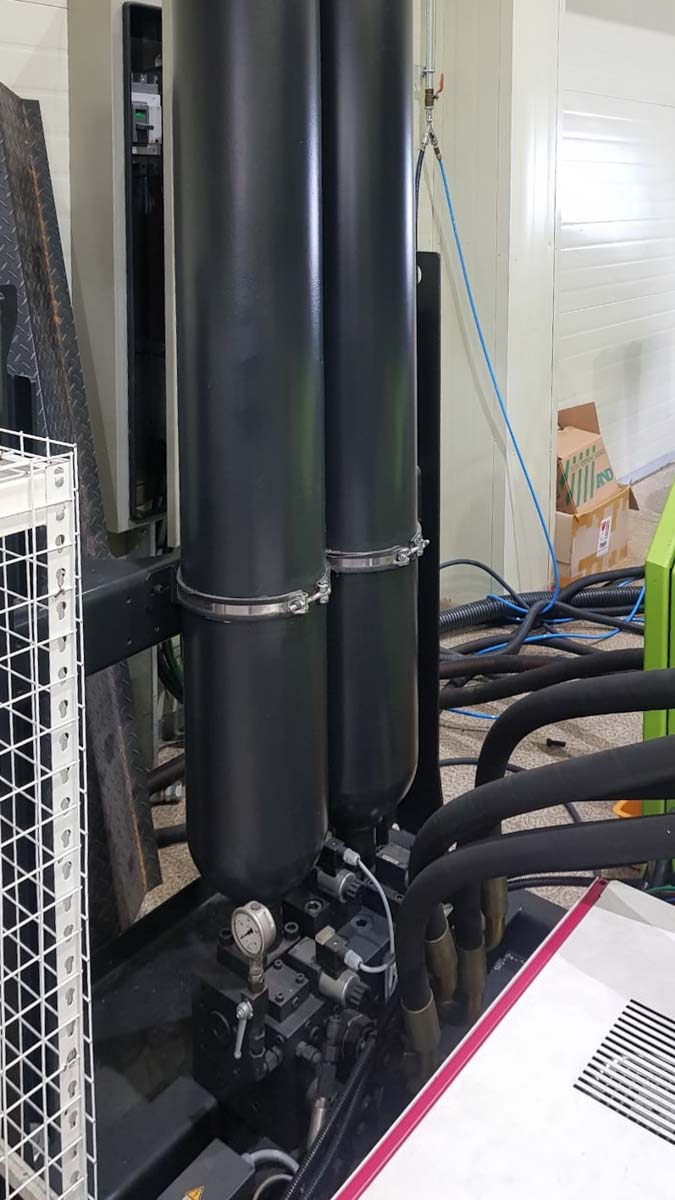

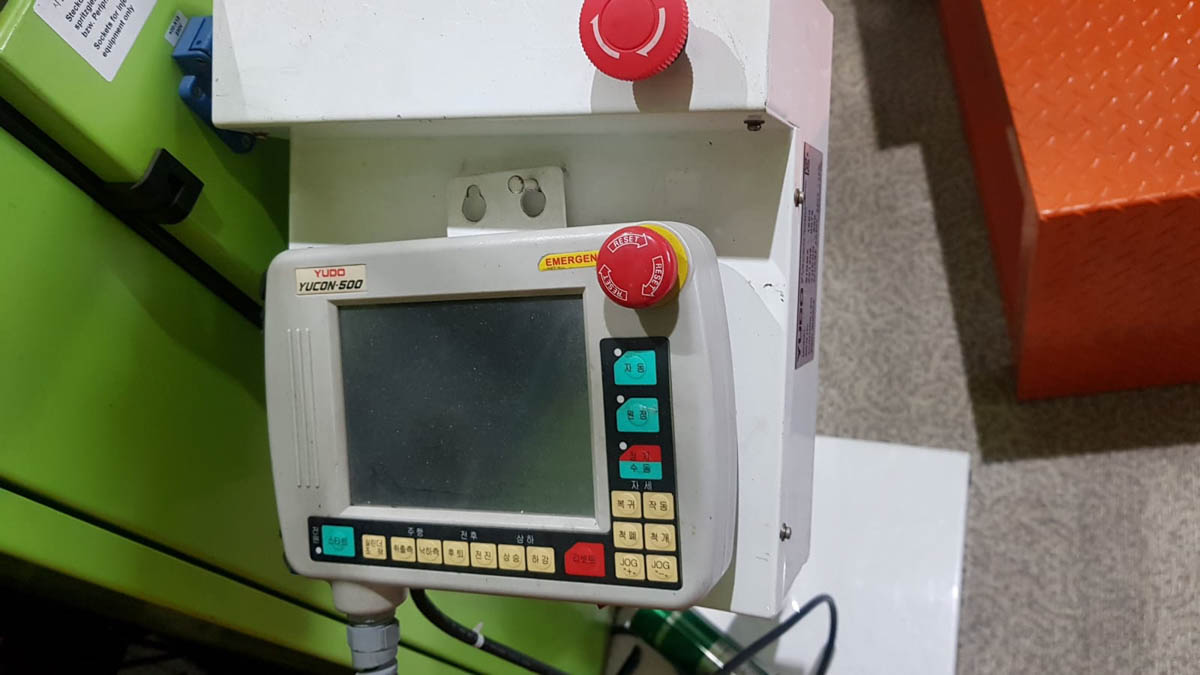

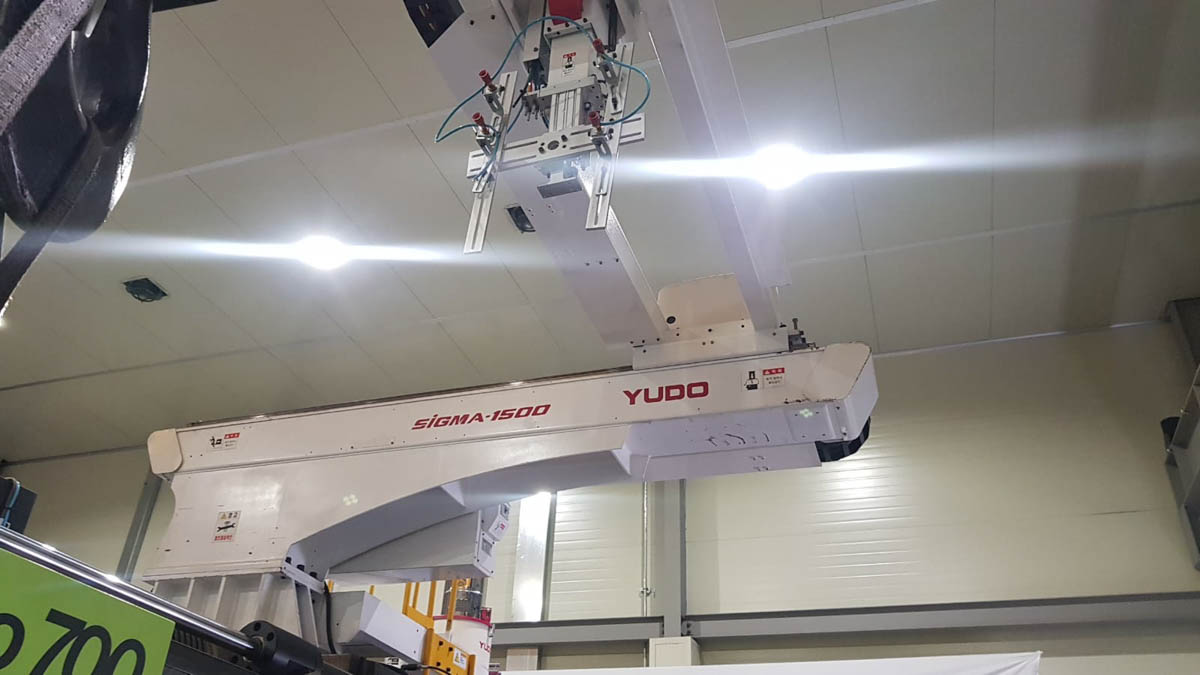

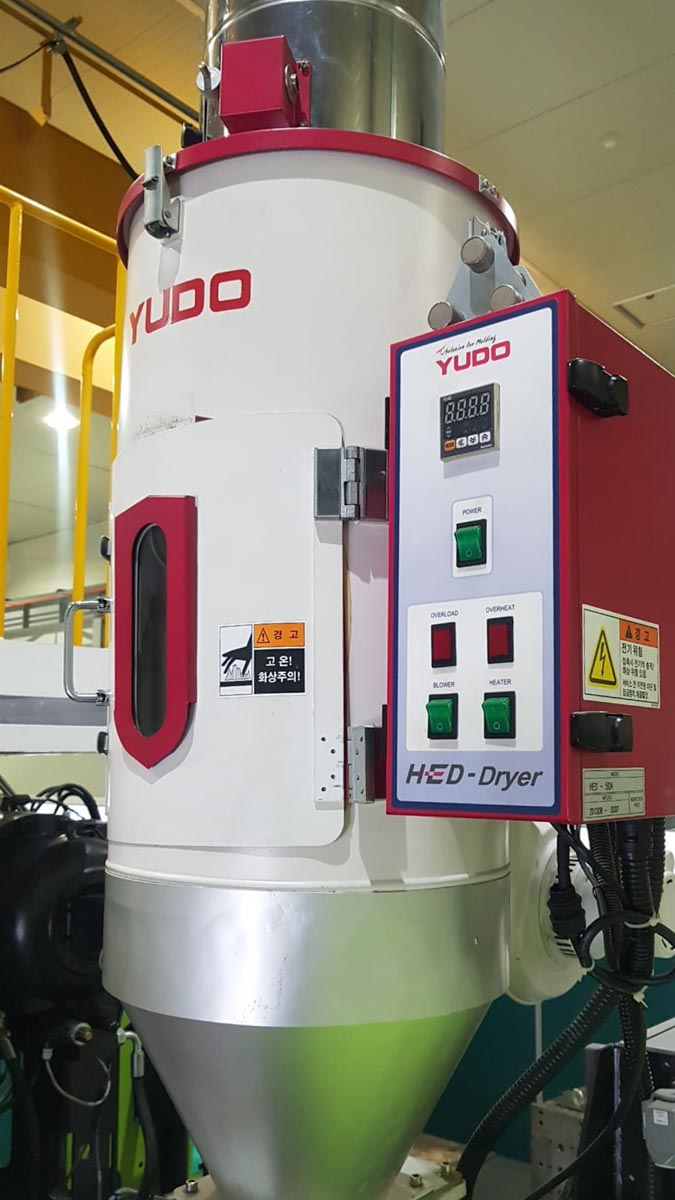

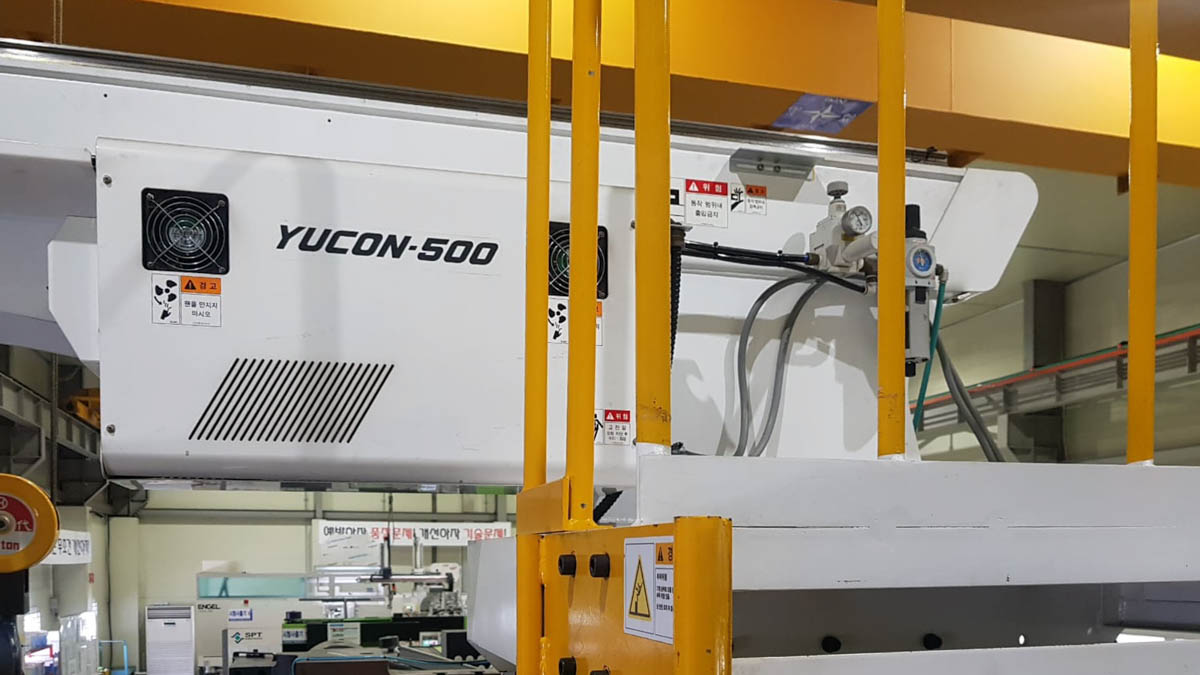

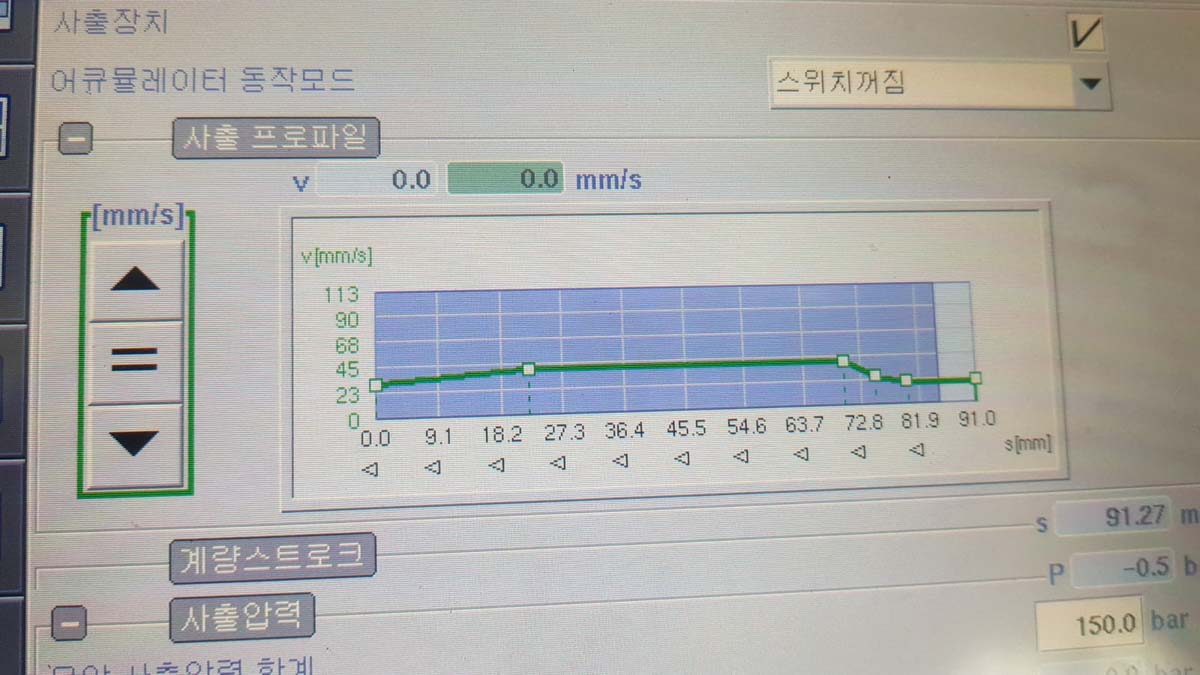

Only used for tests. Includes Accumulators for quick injection (from 113 to 350 mm / sec). 2 Noyos on each plate (4 in total). Includes Robot and Charger / Dryer included.

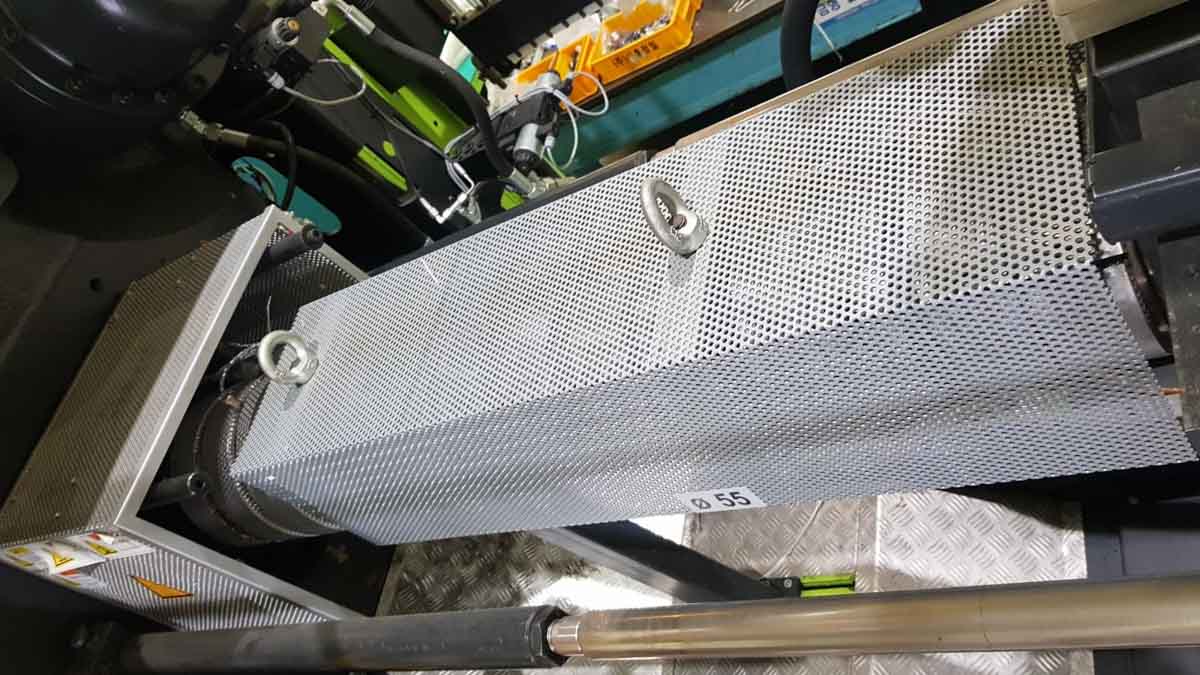

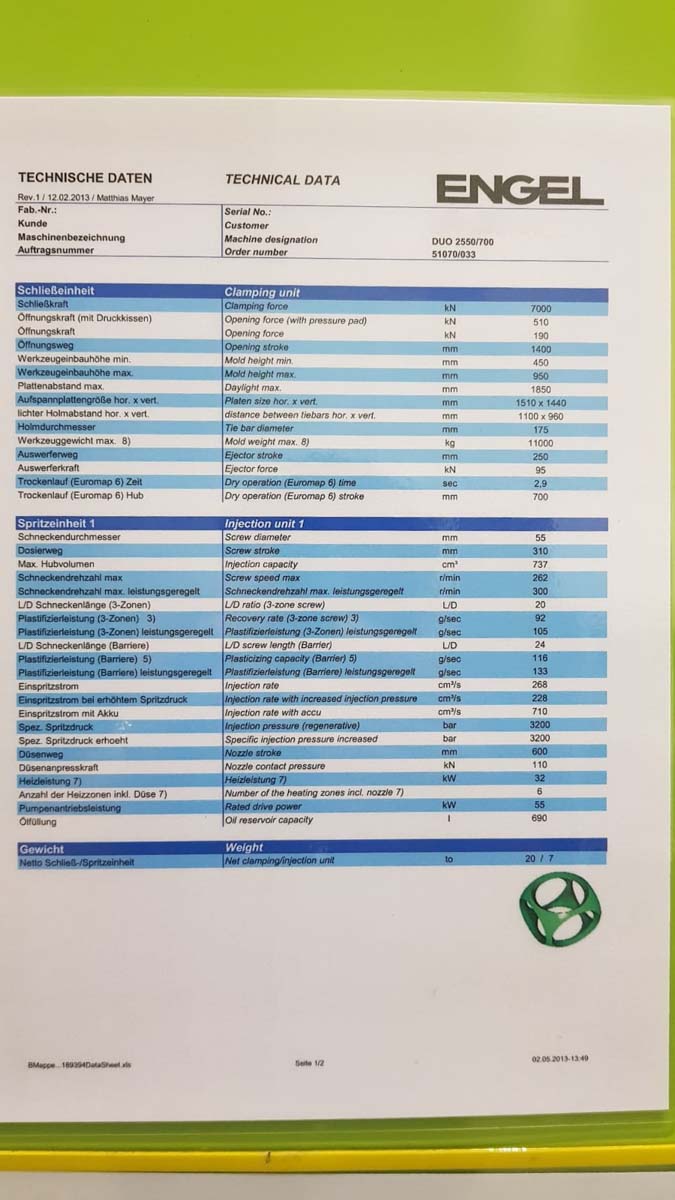

Screw diameter55 mm
Shot weight max0 g
Injection rate268 cm³/s
Injection pressure3.200 bar
Injection volume737 cm³
Screw speed0 rpm
Screw L/D ratio20
Nozzle force max0 kN
Nozzle stroke max0 mm
Clamping force7.000 kN
Mould opening stroke max1.400 mm
Mould height max950 mm
Mould height min450 mm
Daylight between platens max1.850 mm
Distance between tie-bars h1.100 mm
Distance between tie-bars v960 mm
Platen size h1.510 mm
Platen size v1.440 mm
Ejector force95 kN

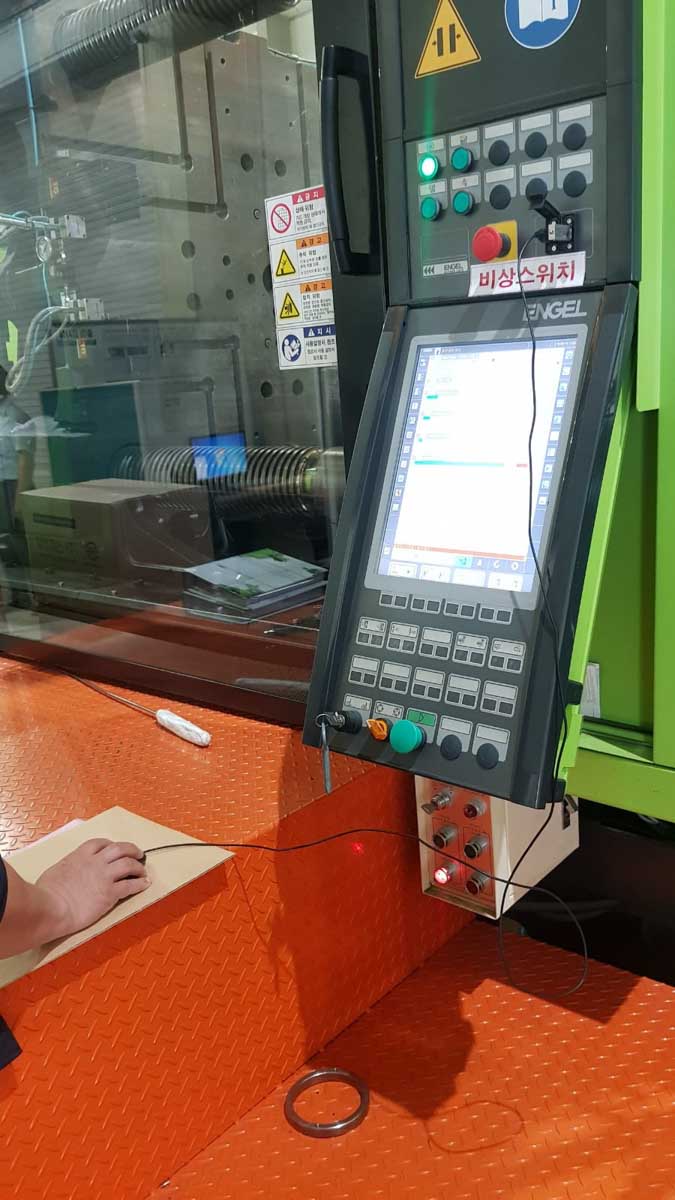

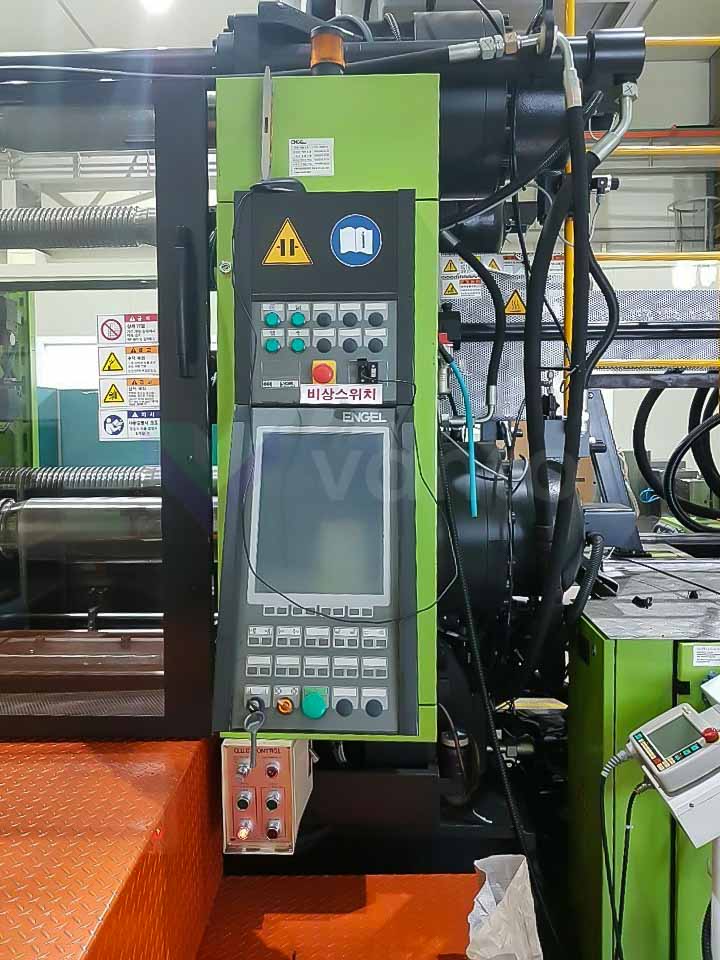

Control typeCC300
Core pulls2 x 2
Oil tank capacity690 l

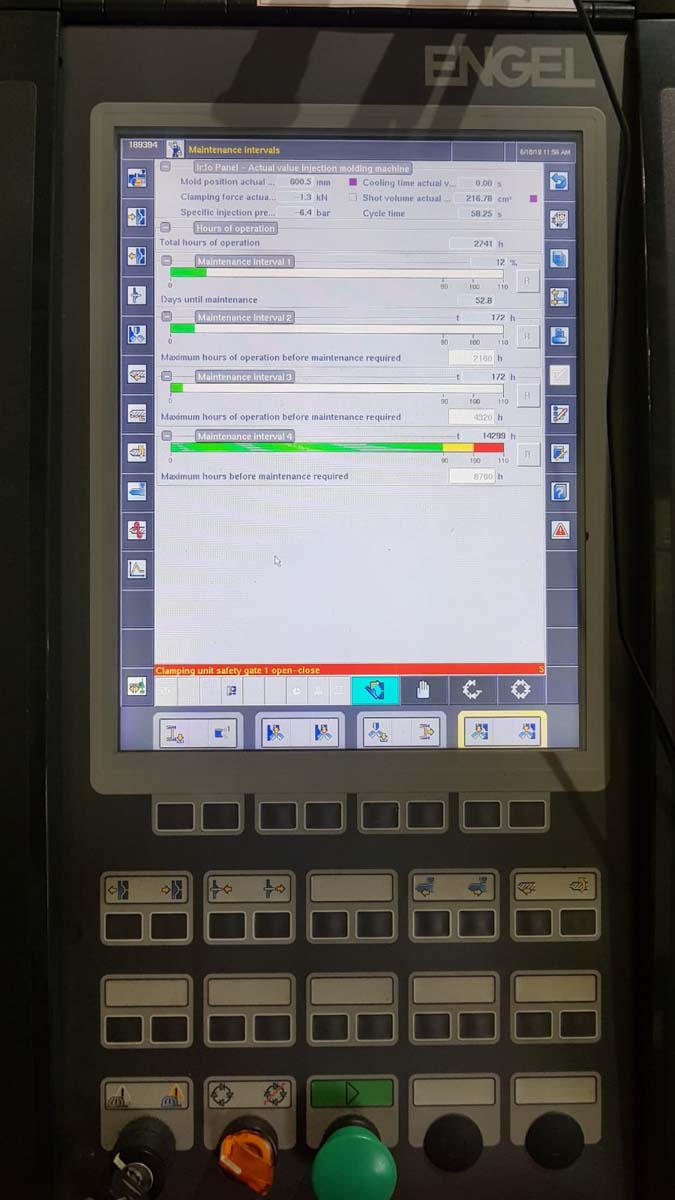

Operating hours2.741
Power: installed max55 kW
Weight20.000 + 7.000 kg
Dimensions (long x wide x high)8.300 x 2.300 x 2.300 mm
