ENGEL

DUO 16050 / 3200

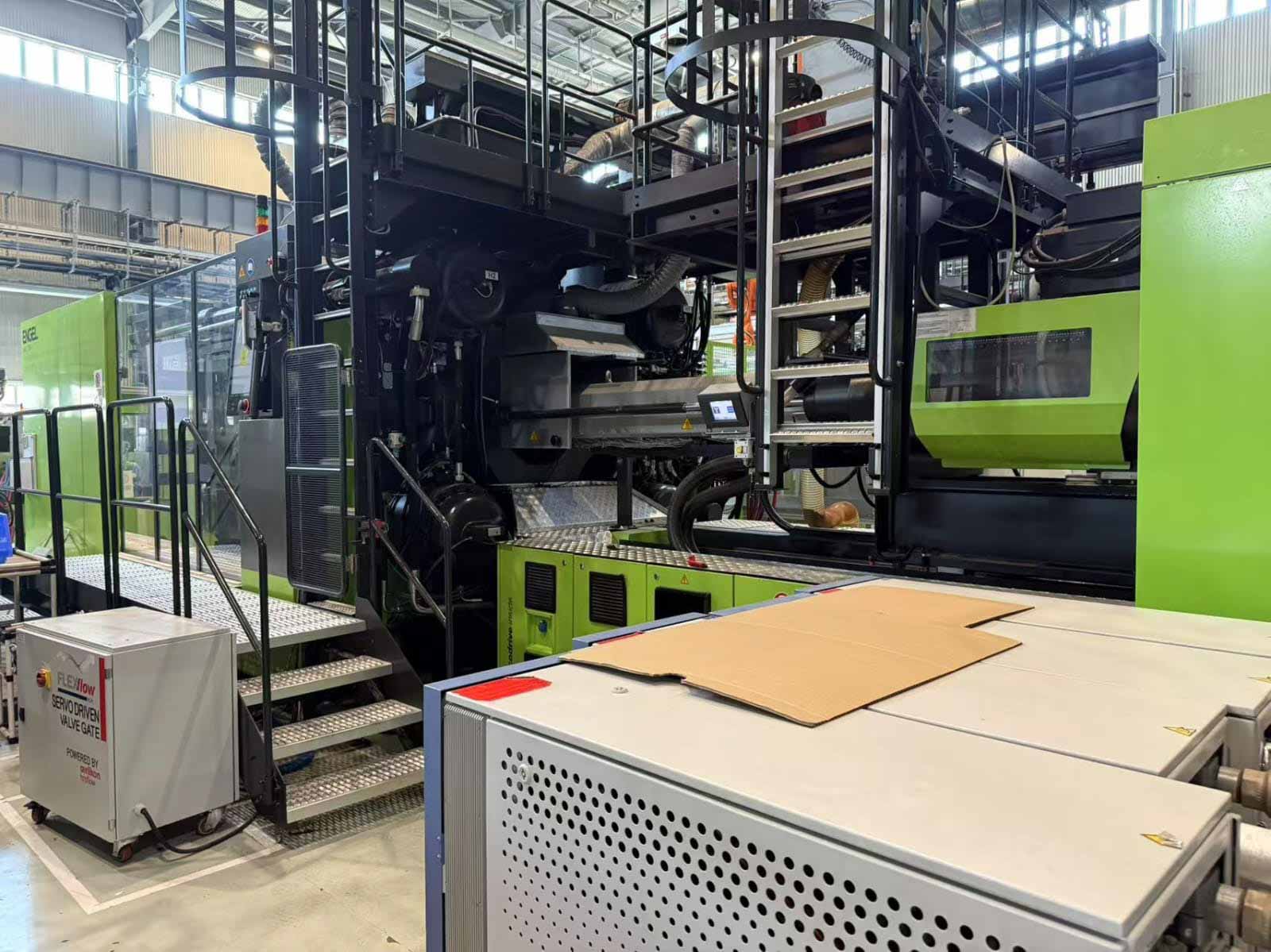

3200t injection molding machine

Category 1000t or more Injection moulding machines
Condition Used
Year 2015
Availability Available
ID 11280
Isaac Mateo
+34 932 711 191
|
+34 652 098 501
Send message
Request a quote

Screw diameter135 mm
Air Valvesyes
Cascades / Sequential valve gatesyes
Clamping force32.000 kN

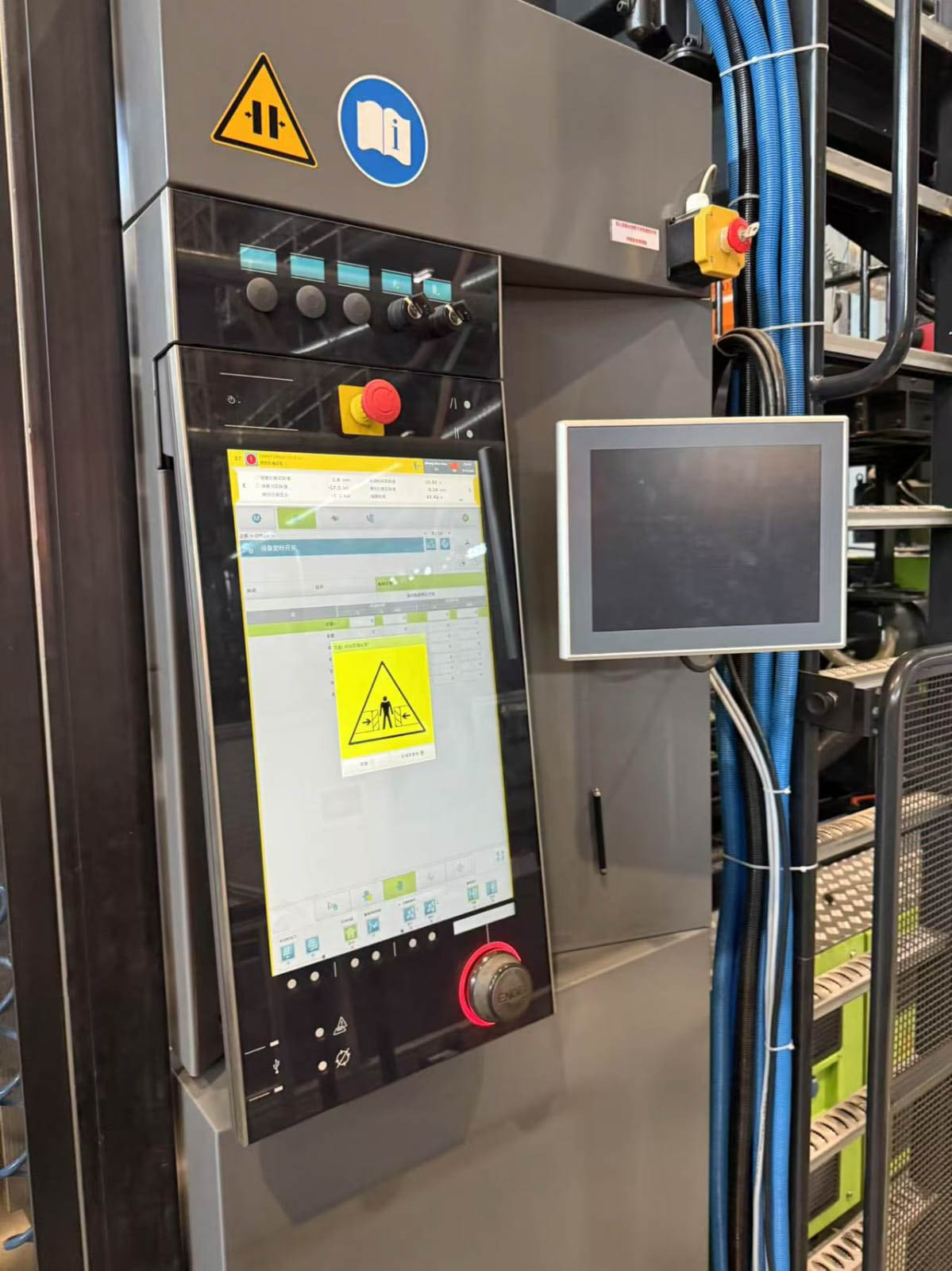

ControlCC300
Core pullsyes
Daylight between platens max4.200 mm
Dimensions (long x wide x high)n/a mm
Dimensions (long x wide x high)20.500 x 5.000 x 3.800 mm
Distance between tie-bars (h x v)2.240 x 1.800 mm
Dry cycle time6,8 sec/mm
Heating zones7
Injection pressure1.640 - 1.980 bar
Injection rate1.245 cm³/s
Injection volume8.870 cm³
Mould height max2.000 mm
Mould height min1.100 mm
Mould opening stroke max3.100 mm
Nozzle stroke max620 mm
Oil tank capacity6.200 l

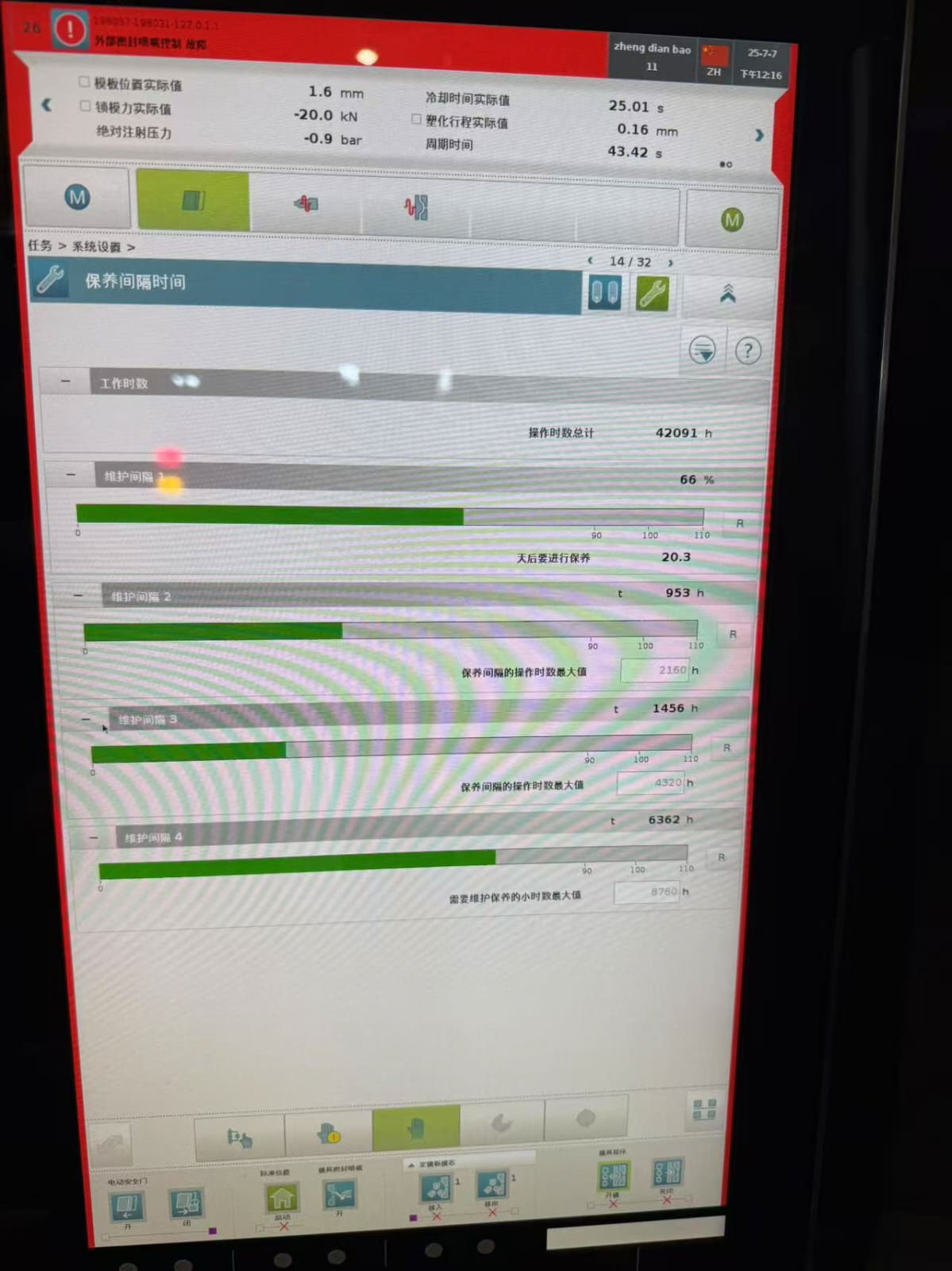

Operating hours5.957
Platen size (h x v)3.020 x 2.680 mm
Screw L/D ratio22
Weight145.000 / 65.000 kg
