ENGEL

DUO 1350 / 550

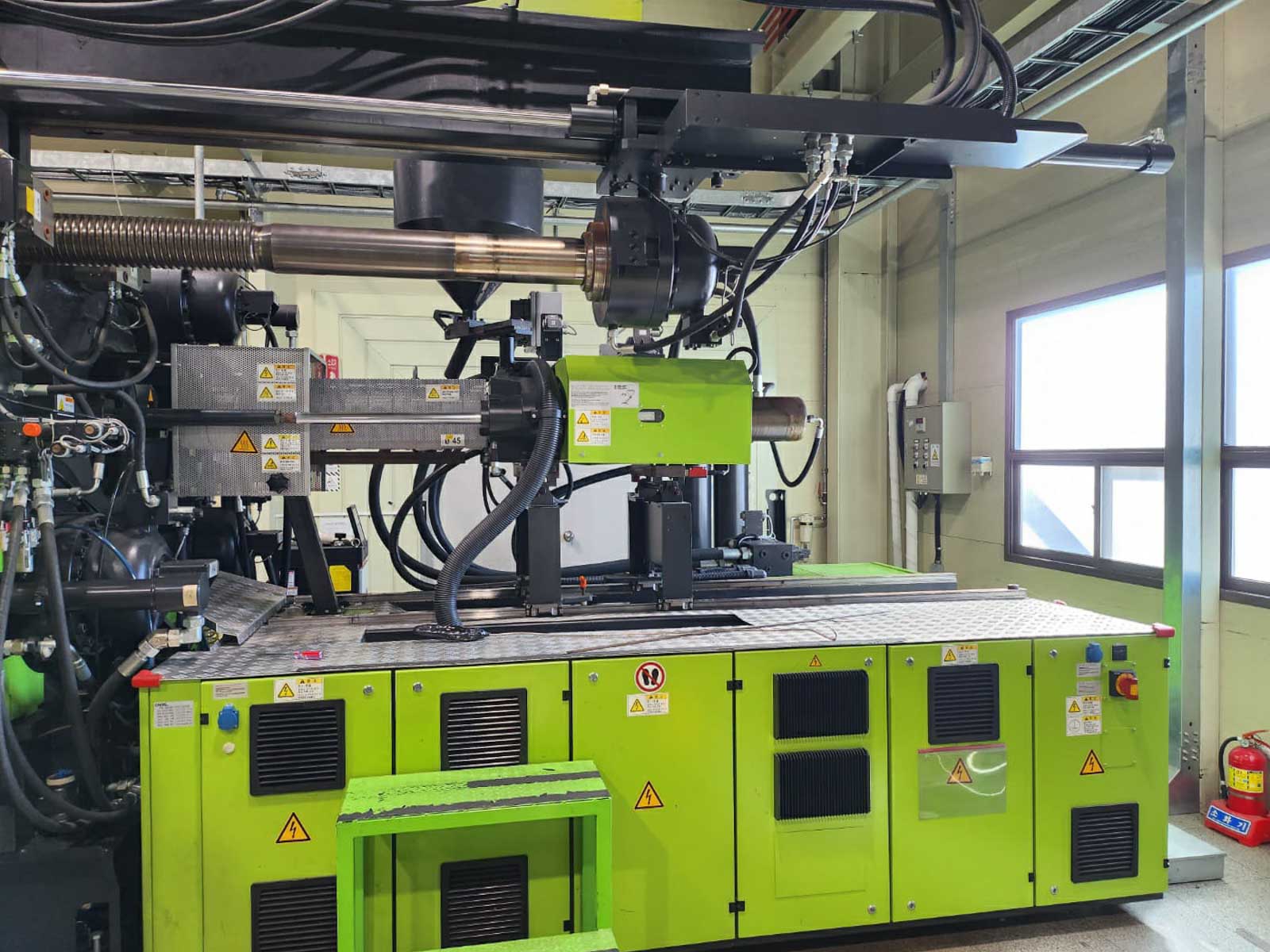

550t injection molding machine

Category	250 to 499t Injection moulding machines
Condition	Used
Year	2013
Availability	Available
ID	10980

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Clamping force

0kN

includes Retractable column

Clamping force	550 kN
Daylight between platens max	1.750 mm
Distance between tie-bars (h x v)	1.030 x 910 mm
Injection pressure	2.180 bar
Injection volume	617 cm³
Mould height max	950 mm
Mould height min	400 mm
Mould opening stroke max	1.350 mm
Operating hours	7.500
Platen size (h x v)	1.420 x 1.370 mm
Screw diameter	45 mm

There are no available documents
