ENGEL

DUO 11050 / 2300

2300t injection molding machine

Category 1000t or more Injection moulding machines
Condition Used
Year 2004
Availability Available
ID 11321
Isaac Mateo
+34 932 711 191
|
+34 652 098 501
Send message
Request a quote

Screw replaced in 2011, reinforced type – suitable for special materials. Option for two-component injection (2-shot). Mould tilting function. Magnetic platens. 2 hydraulic core pulls. 36 heating zones for the mould. 10 hydraulic cascade zones installed (expandable). Machine interface languages: English, German. Dimensions and Weight

Clamping force23.000 kN
Cascades / Sequential valve gates10
Core pulls2
Distance between tie-bars (h x v)2.000 x 1.600 mm
Heating zones36
Injection pressure1.600 bar
Injection volume8.870 cm³
Mould height max1.890 mm
Mould height min700 mm
Mould opening stroke max3.800 mm

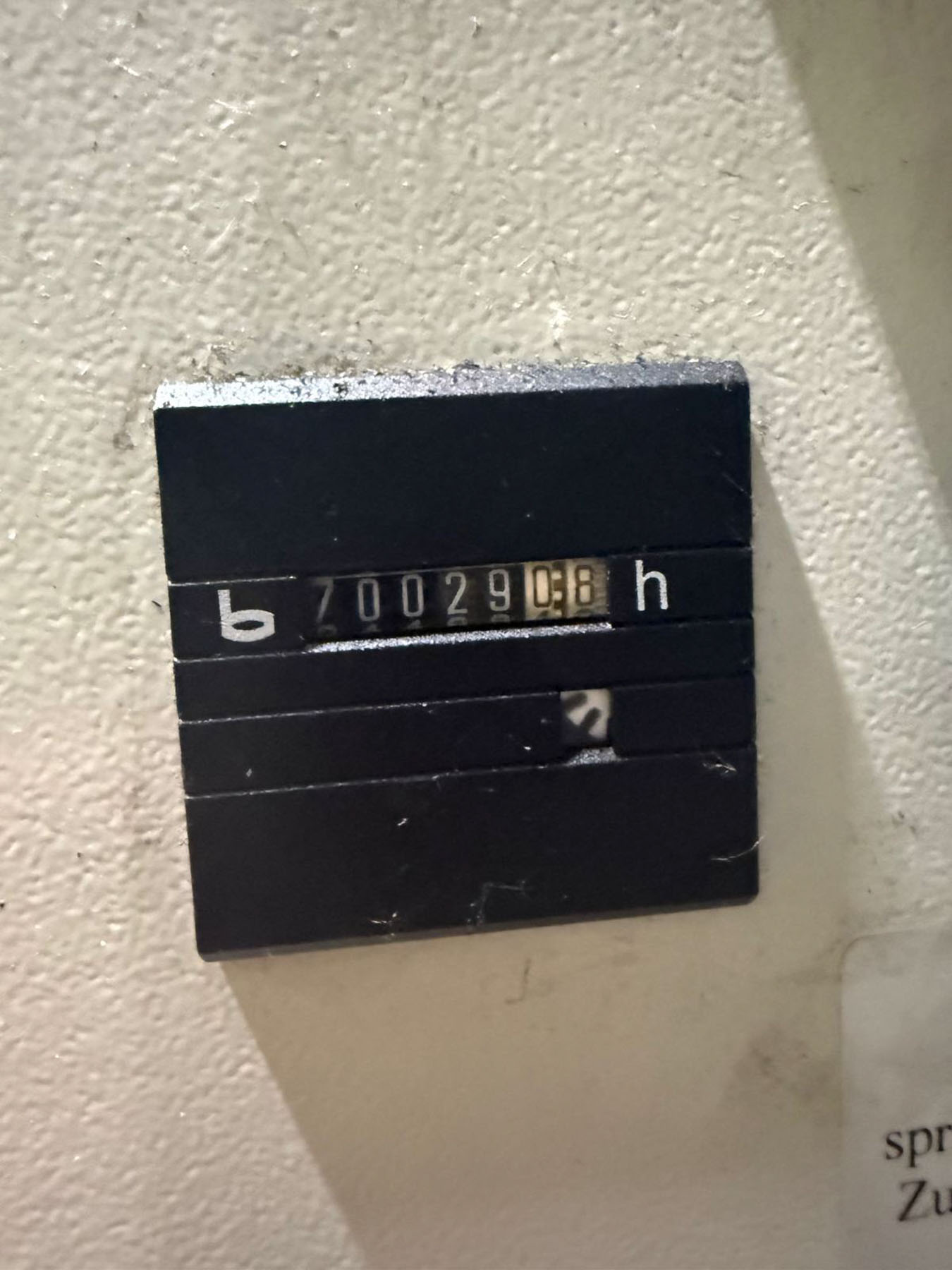

Operating hours70.029
Platen size (h x v)2.900 x 2.500 mm
Screw diameter135 mm
Shot weight max8.071 g
Weight131.000 kg
