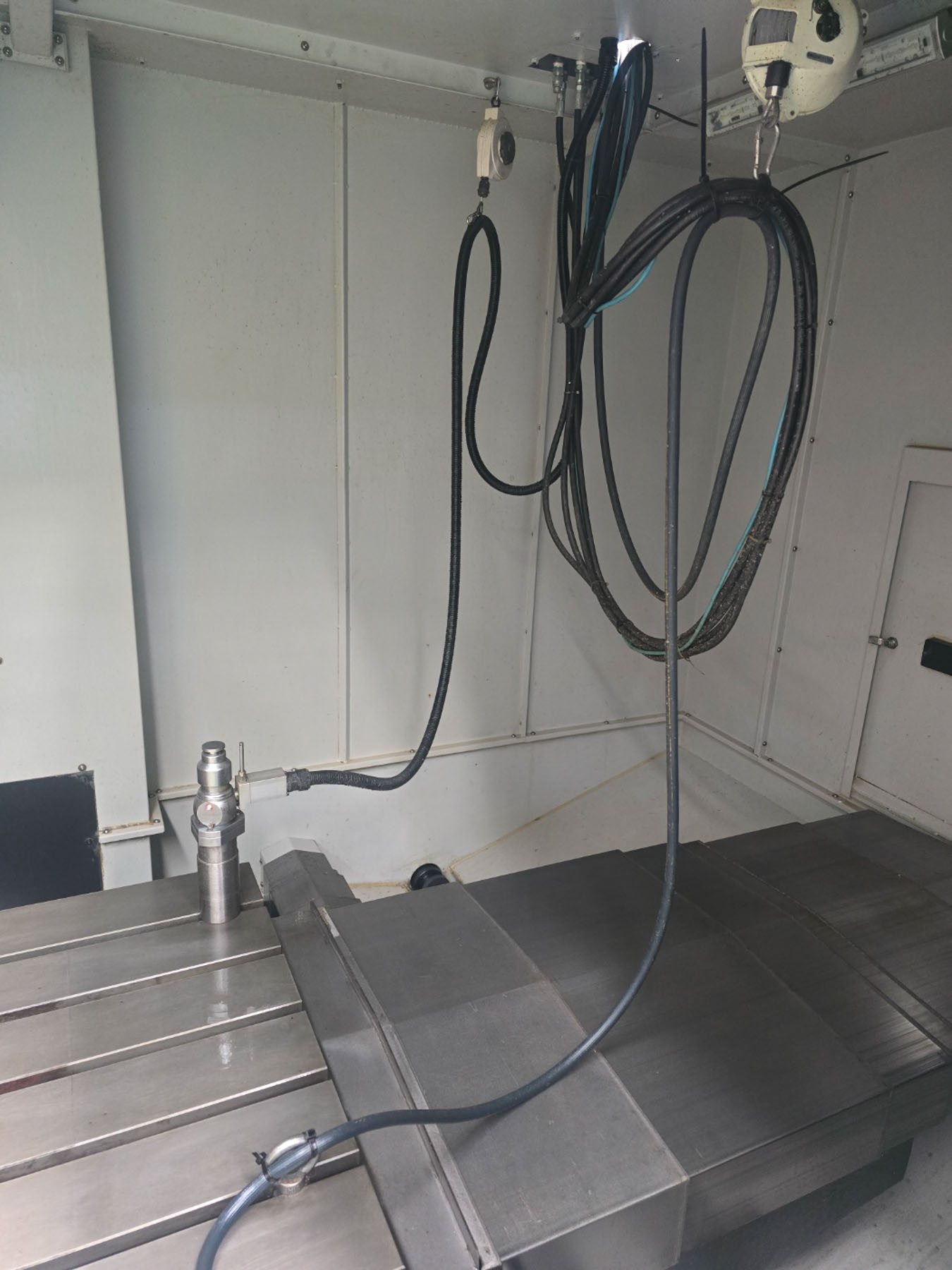

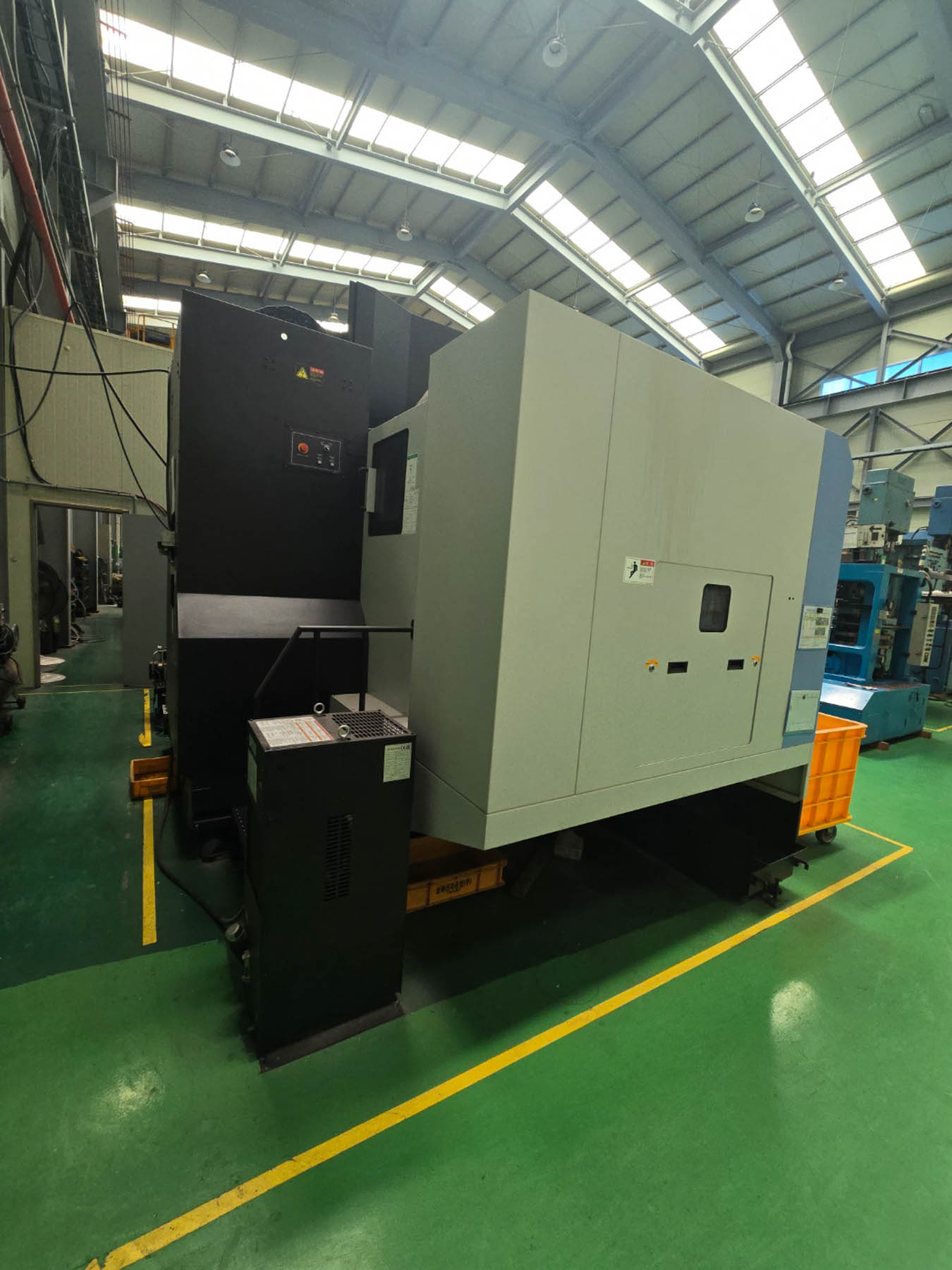

DNM 750 LII

Vertical machining center

Category	Machining centres
Condition	Used
Year	2018
Availability	Available
ID	11313

Isaac Mateo

+34 932 711 191

+34 652 098 501

BT40, 12000RPM, Fanuc i Series , ATC30ea Data Server,AICC II_200 BLOCKS, Oil cooler, Air Blower, Chip Conveyor, Chip Bucket

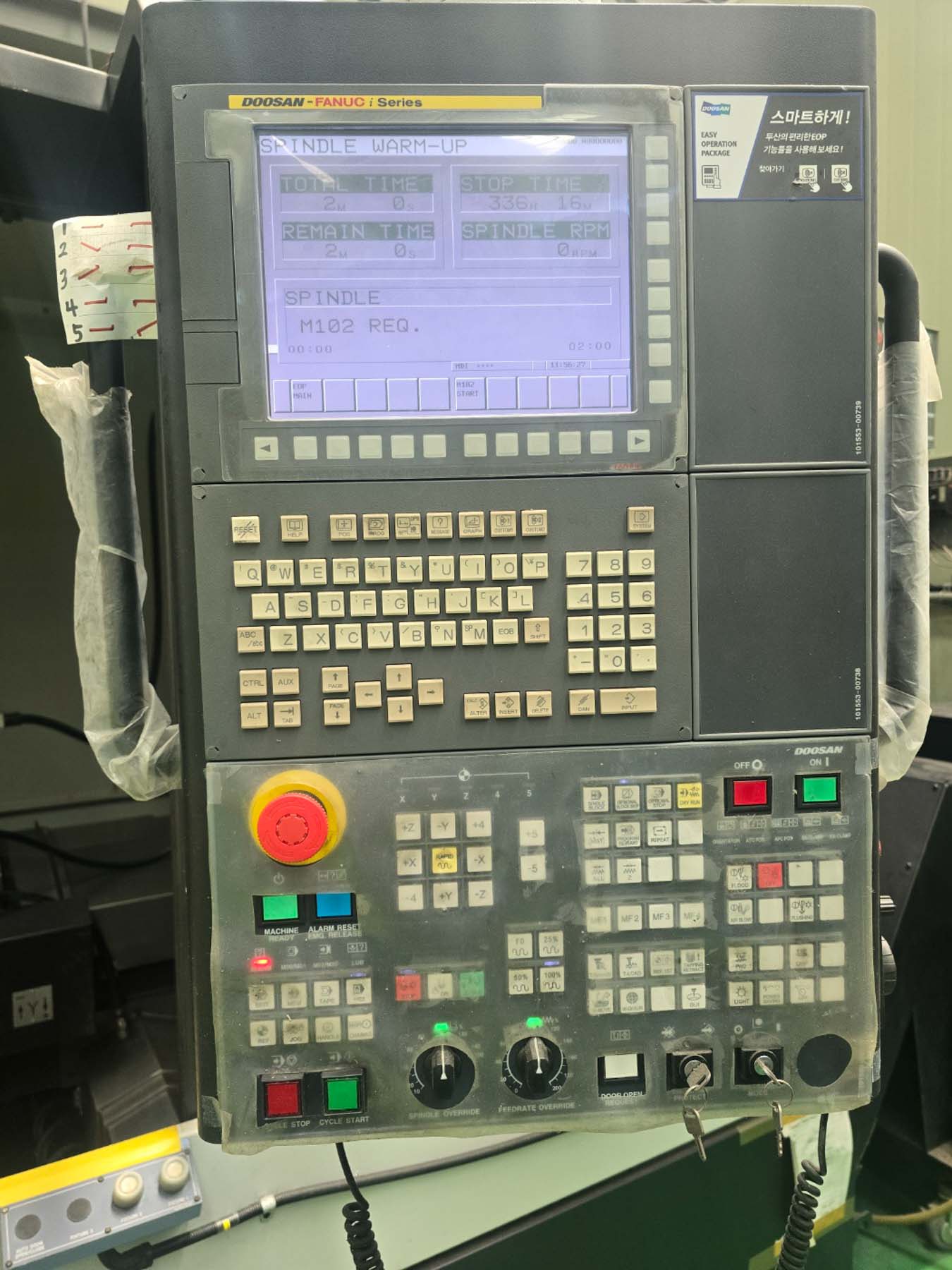

Control	Doosan Fanuc i Series
Dimensions (long x wide x high)	4.900 x 3.600 x 3.330 mm
Max. spindle speed	8000 rpm
Max. tool dia. tool dia. with adjacent positions empty	200 mm
Max. tool diameter	125 mm
Max. tool length	400
Max. tool weight	20 kg
Max. workpiece weight	2500 kg
Number of tool stations	30
Rapid Traverse (X x Y x Z)	24.000 / 24.000 / 20.000 mm/min
Spindle power	22 / 18.5 kW
Spindle taper	BT50
Torque	404 Nm
Travel (X x Y x Z)	2.160 x 762 x 635 mm
Weight	15000
Working area (X x Y x Z)	2.300 x 760 mm
