DOOSAN DN SOLUTIONS

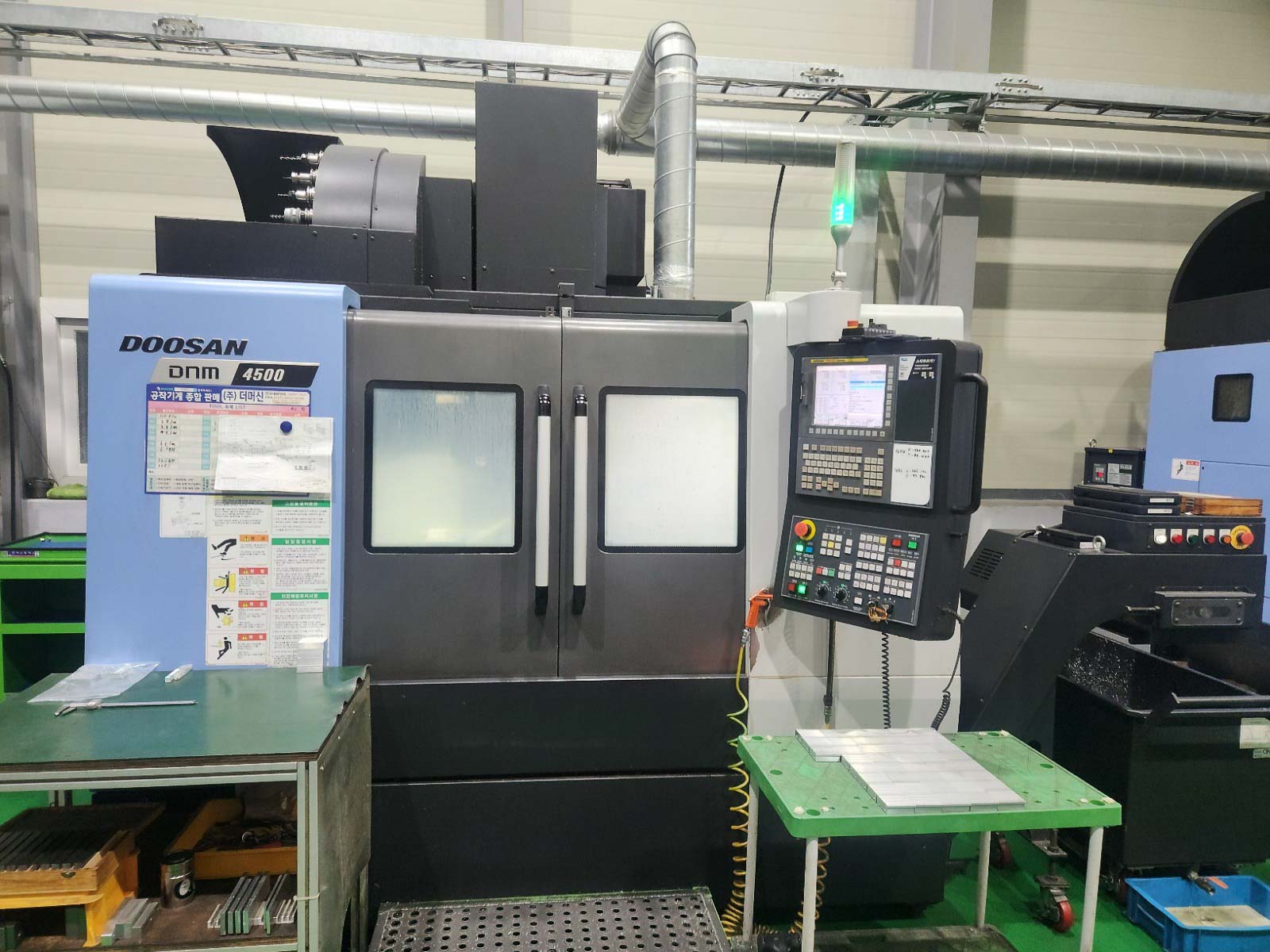

DNM 4500

Vertical machining center

Category Machining centres
Condition Used
Year 2018
Availability Available
ID 11162
Isaac Mateo
+34 932 711 191
|
+34 652 098 501
Send message
Request a quote

BT40, 12000 RPM, ATC30EA, AICC2(SUNDOK, 200BLUK), OIL COOLER. CHIP CONVEYOR, BUCKET

ControlDOOSAN Fanuc i Plus
Coolant tank capacity325 l
Dimensions (long x wide x high)2.300 x 2.690 x 2.635 mm
Max. spindle speed8.000 rpm
Maximum table load600 kg
Number of tool stations30
Rapid Traverse (X x Y x Z)30000 mm/min
Spindle power 18.5 kW
Spindle taperISO #40, BT40
Table size1.000 x 450 mm
Torque 117.8 Nm
Weight4.500
Working area (X x Y x Z)800 x 450 x 510 mm
