DAEWOO

MYNX 500

Vertical machining center

Category	Machining centres
Condition	Used
Year	2000
Availability	Available
ID	11178

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

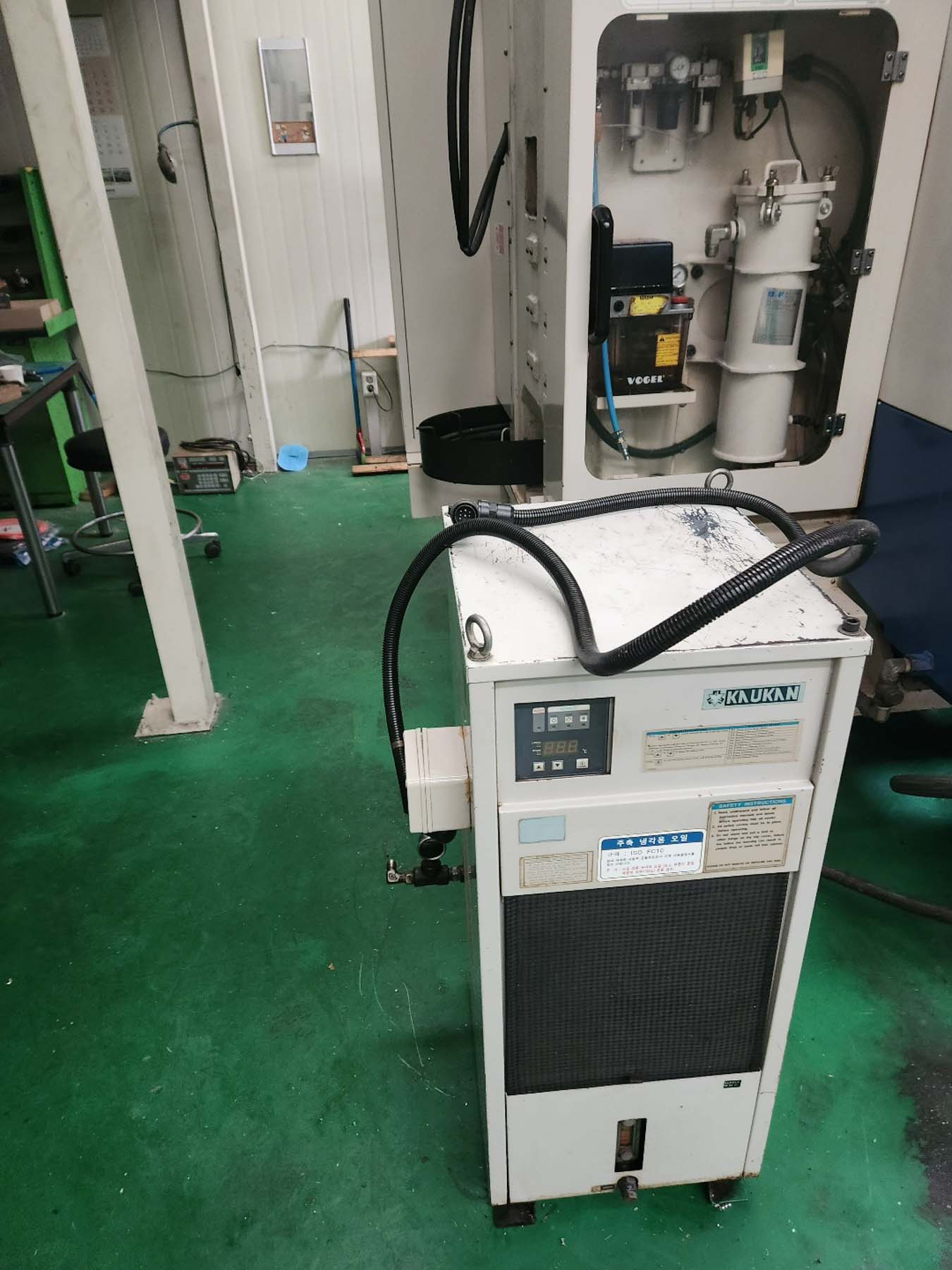

BT40, 8000 RPM, FANUC SYSTEM, OIL COOLER

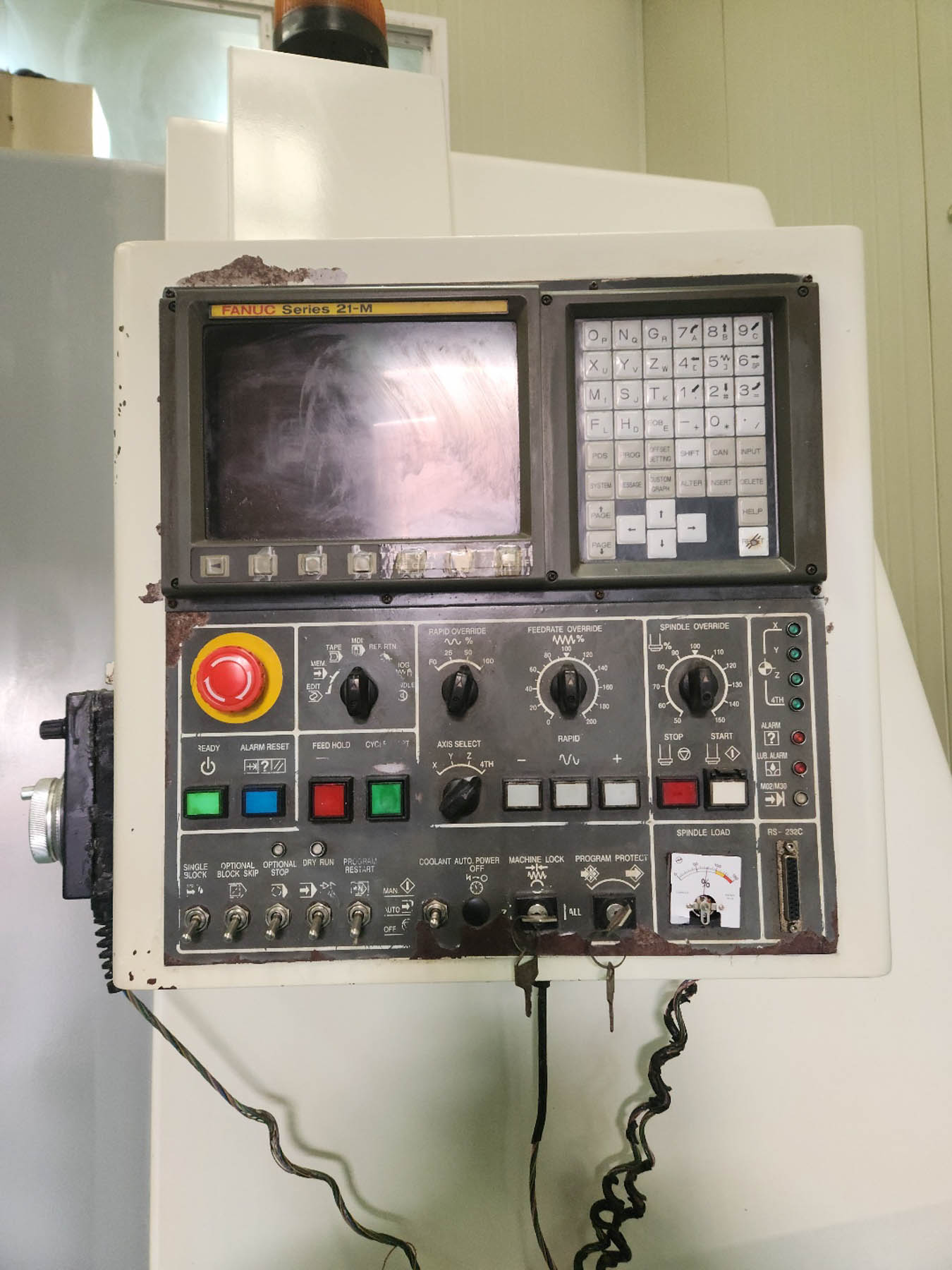

Control	Fanuc 21i-MB
Dimensions (long x wide x high)	2.850 x 2.450 x 2.750 mm
Max. spindle speed	8000 rpm
Max. tool dia. tool dia. with adjacent positions empty	130 mm
Max. tool diameter	90 mm
Max. tool length	300
Max. tool weight	8 kg
Max. workpiece weight	800 kg
Number of tool stations	24
Rapid Traverse (X x Y x Z)	30.000 / 30.000 / 24.000 mm/min
Spindle power	11 kW
Spindle taper	BT40
Torque	70 Nm
Travel (X x Y x Z)	1.020 x 510 x 575 mm
Weight	6500
Working area (X x Y x Z)	1.200 x 500 mm
