CMZ

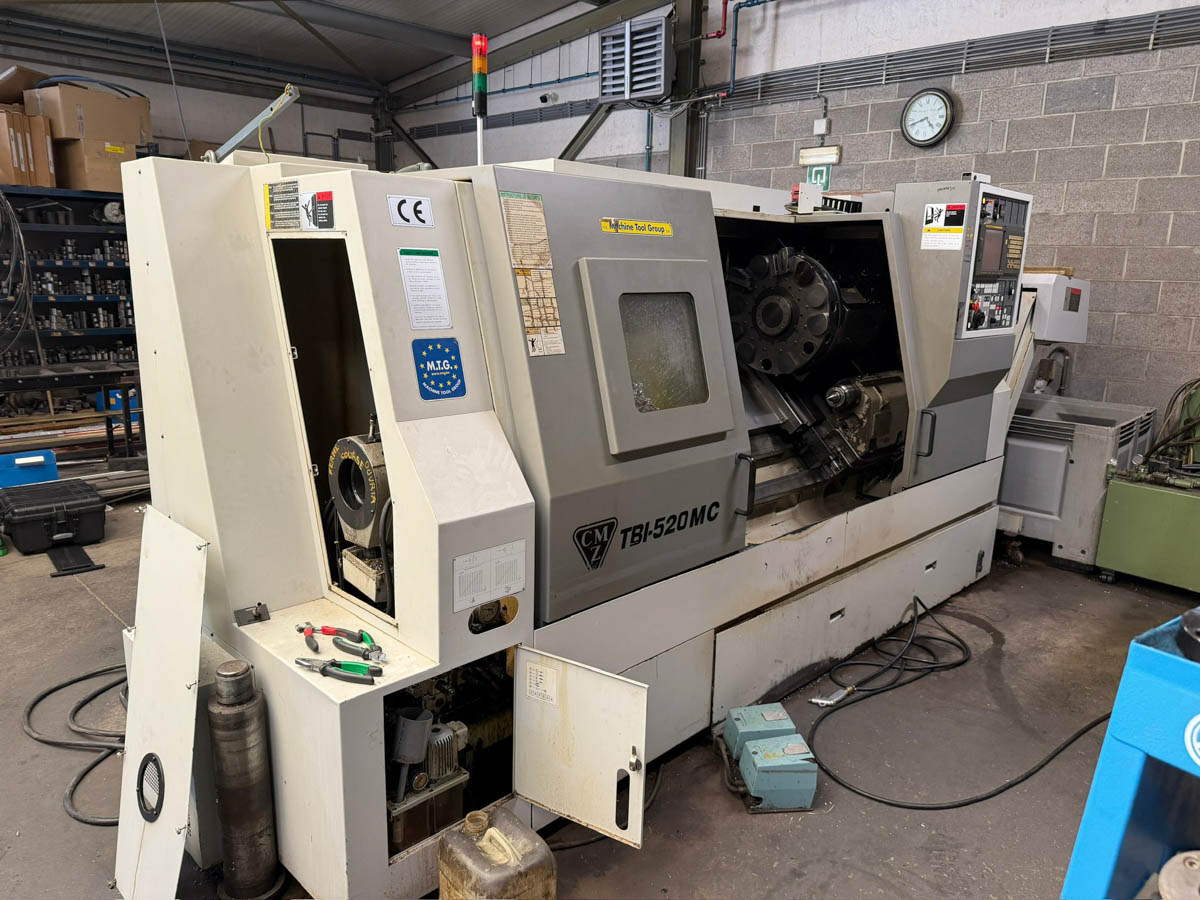

TBI-520 MC

CNC lathe

Category	CNC Lathe
Condition	Used
Year	2004
Availability	Available
ID	11360

Isaac Mateo

+34 932 711 191

|

+34 652 098 501

Axes	2 + Moto
Bar pitch	82 mm

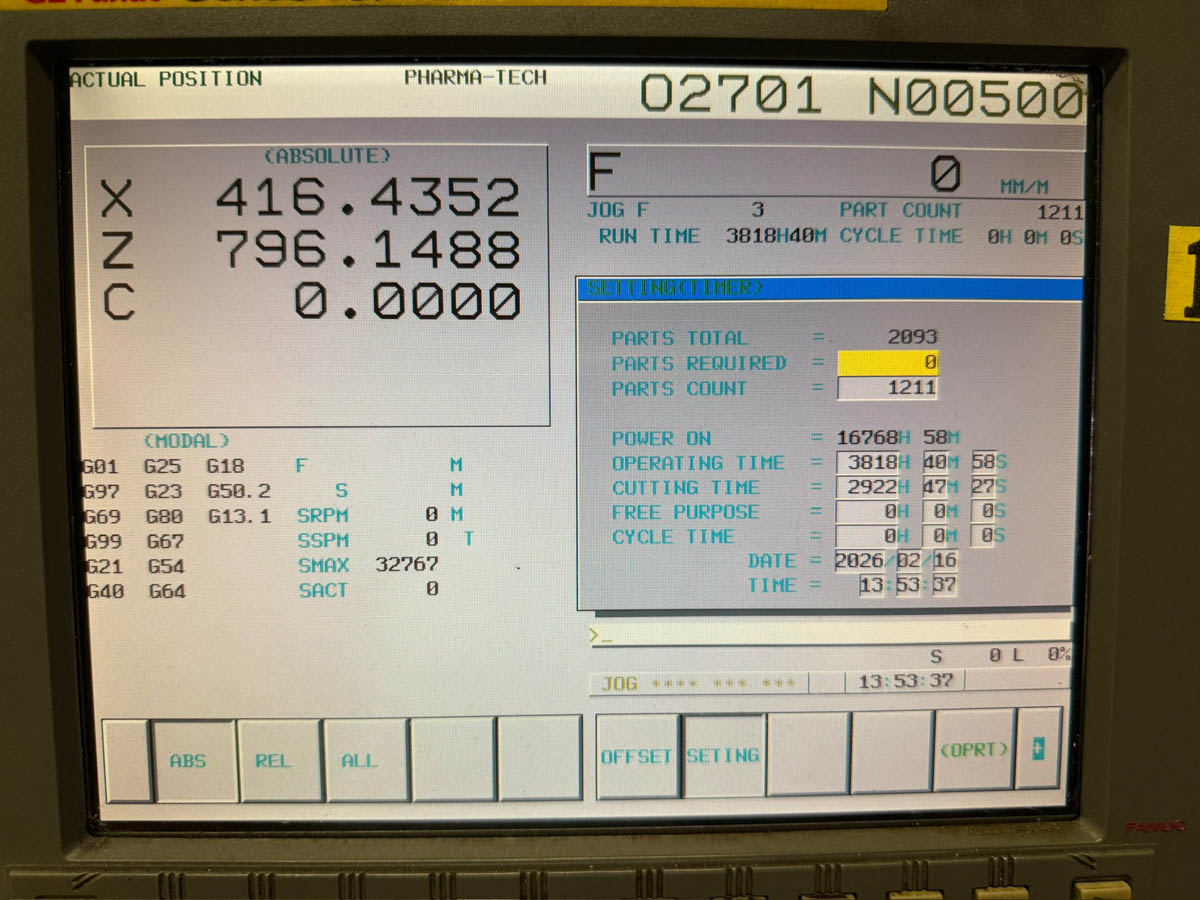

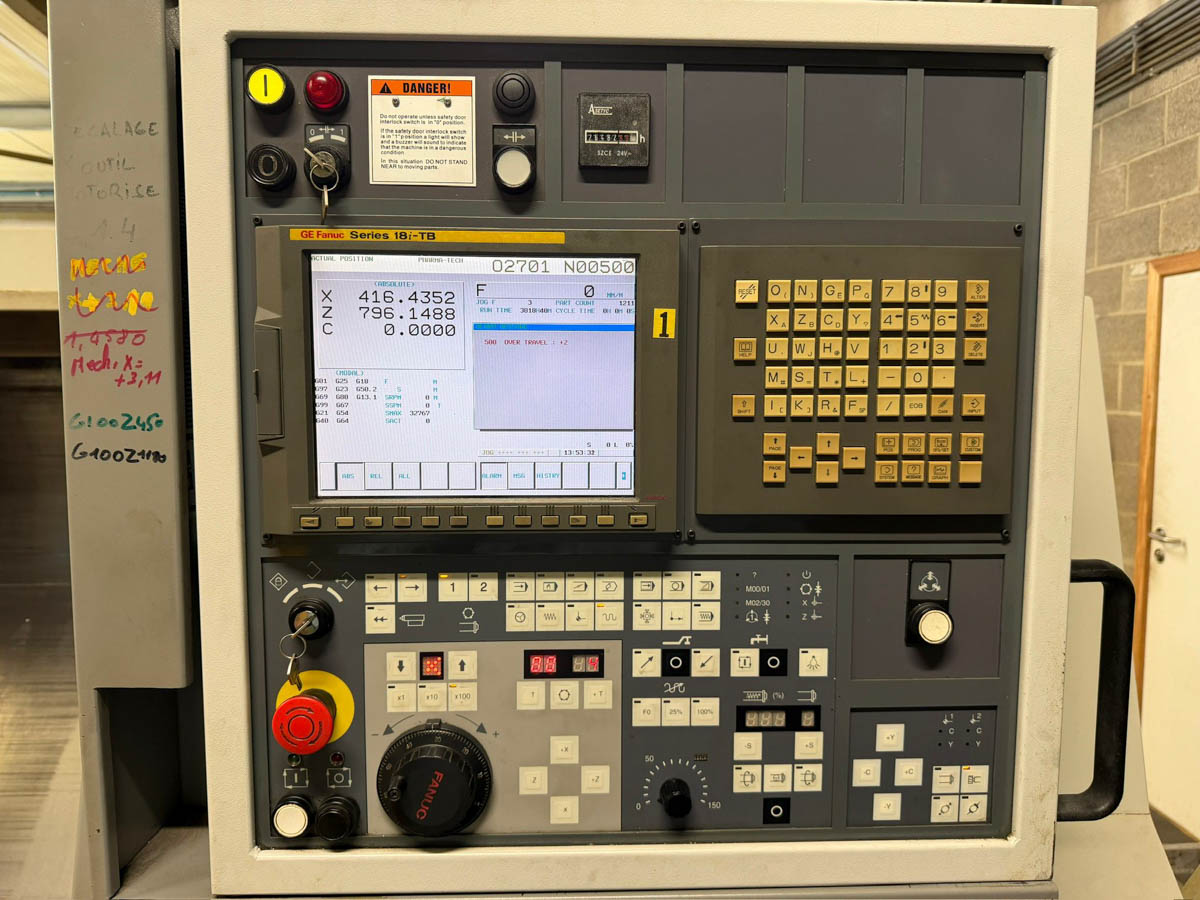

Control	FANUC 21i TB
Dimensions (long x wide x high)	3.750 x 1.740 x 1.920 mm

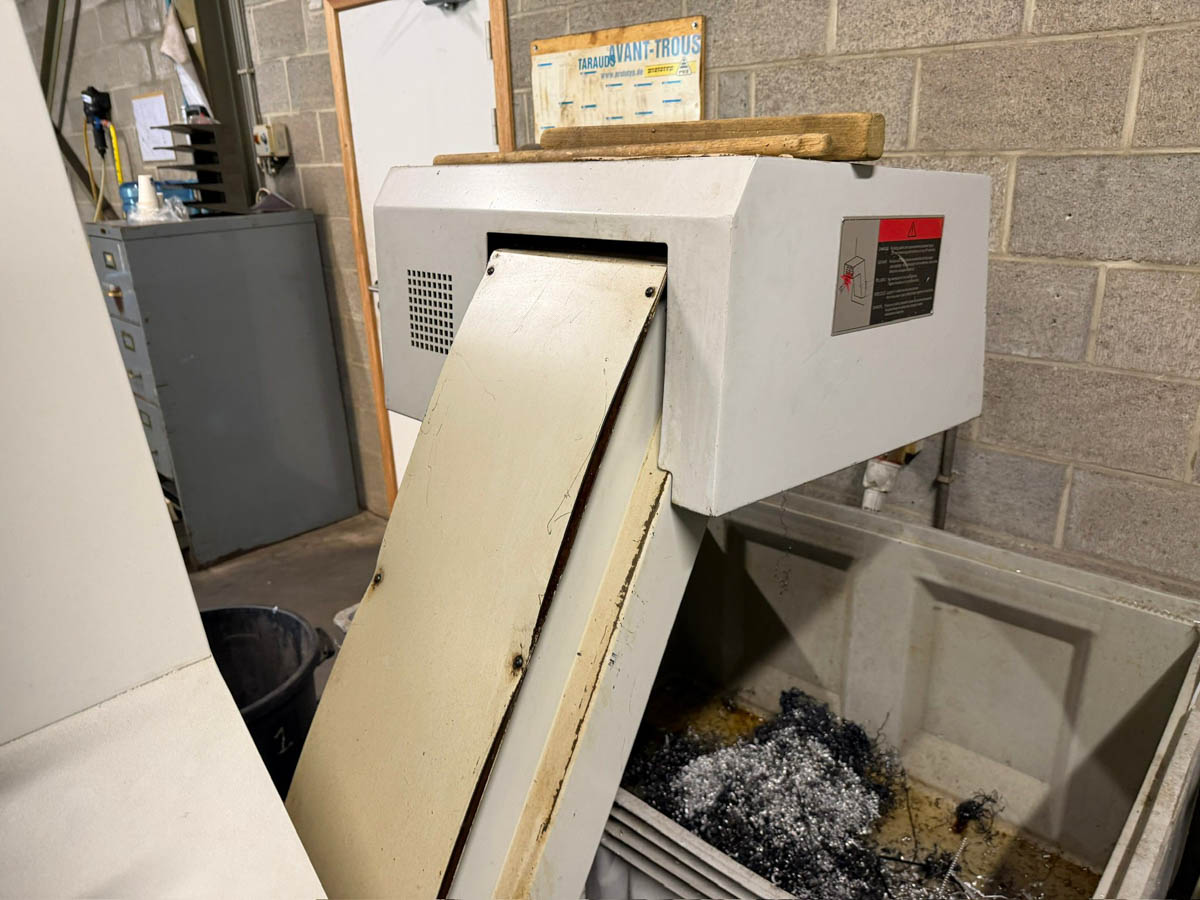

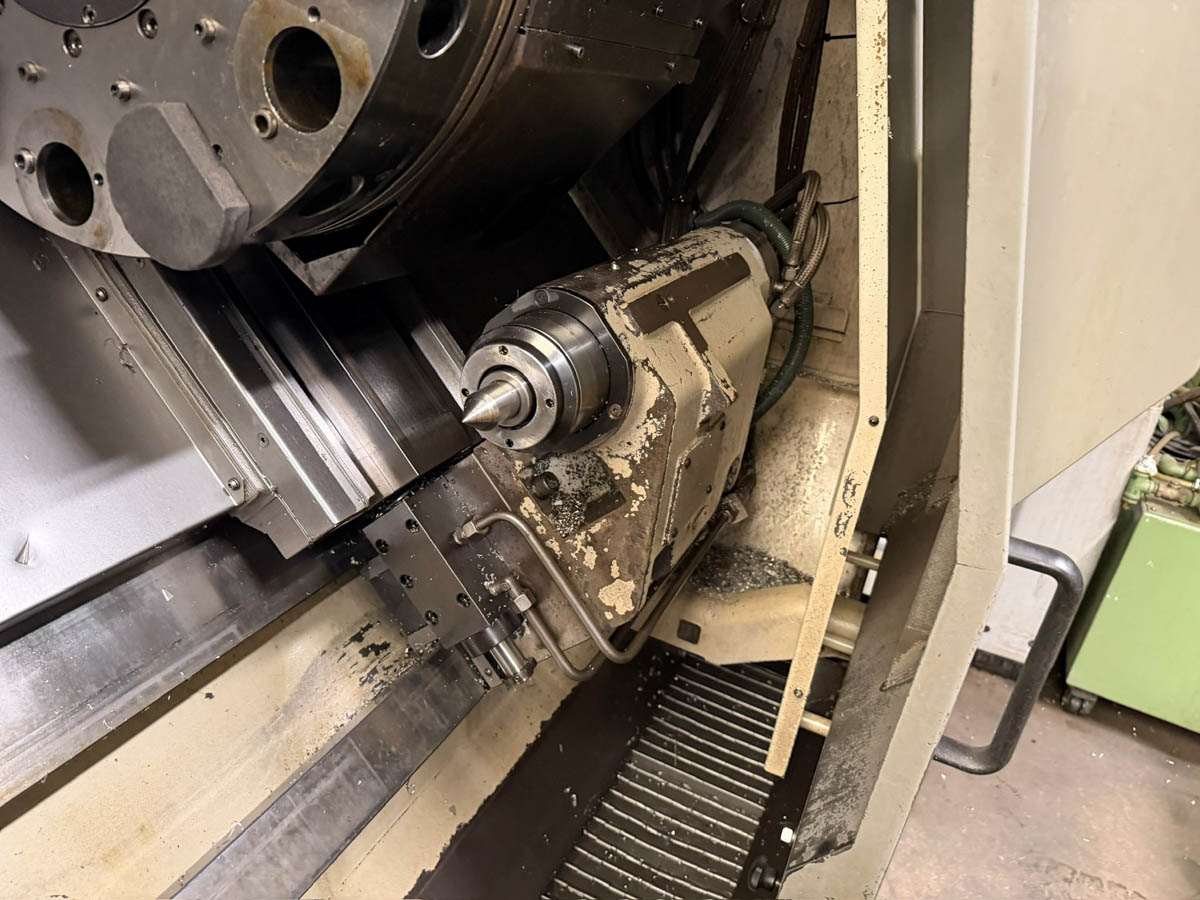

Equipment	Contrapunto, extractor de virutas, brazo

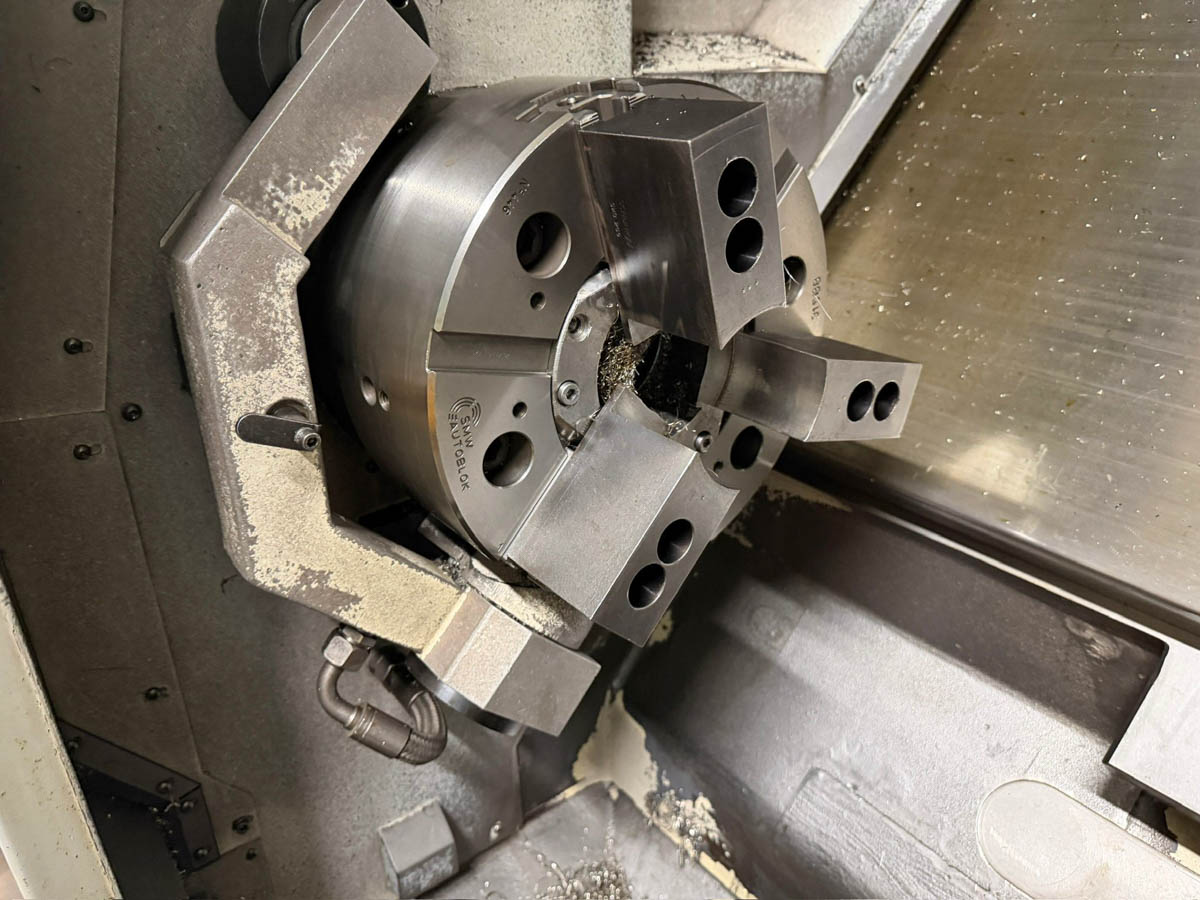

Main spindle nose	ASA A2-8
Max. length	1100 mm
Max. rapid traverse (X x Y x Z)	18.000 / 24.000 mm / min
Max. spindle speed	3000 rpm
Maximum tool diameter ø	25 mm

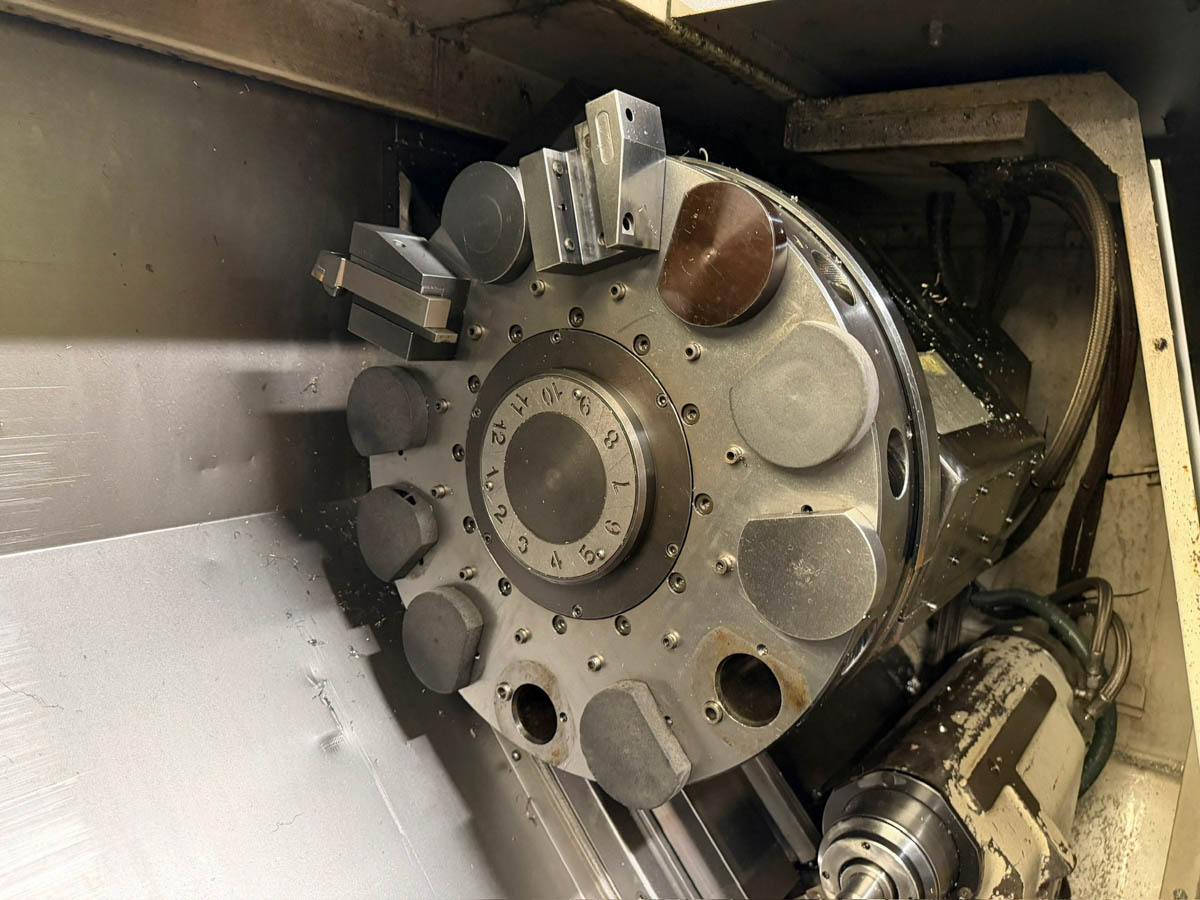

Number of positions	12 #
Power of driven tool	4.4 kW
Spindle power	22 kW
Tilting on bed	520 mm
Tool-holder cone	VDI-50
Weight	6.5 t
Workpiece diameter	360 mm

No videos available

There are no available documents
